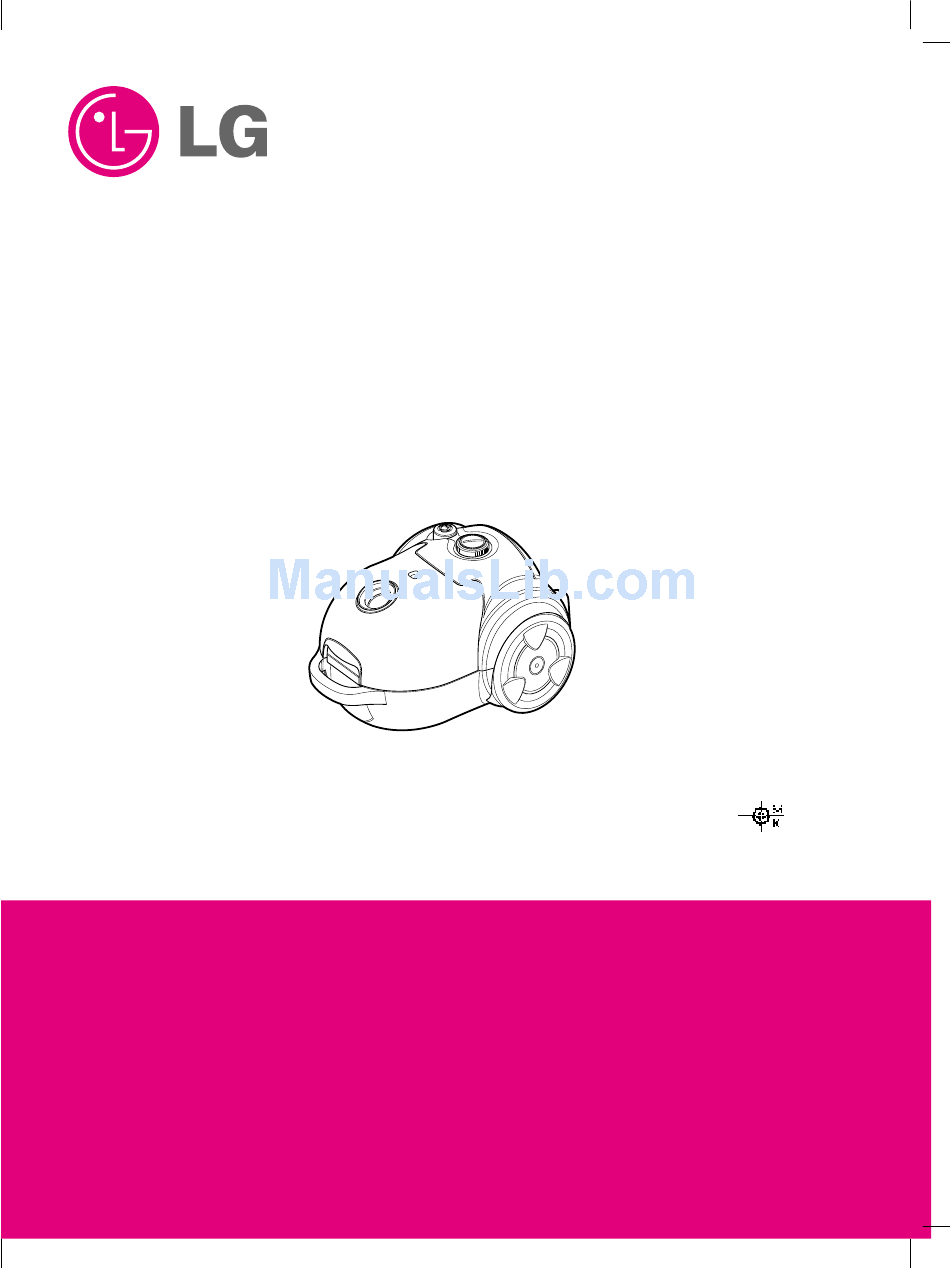

VACUUM CLEANER SERVICE MANUAL CAUTION BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS" IN THIS MANUAL. MODEL : V-CP243RDN / RTN, V-C3145RD / RT V-CP243NDN / NTN, V-C3143ND / NT V-CP243NB/NBN/ND, V-CP233NBN/NDN/NTN V-CP242RBN/RDN/RTN... -
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS......................3 CAUTIONS ............................ 3 DESCRIPTION..........................4 SPECIFICATIONS......................... 4 DISASSEMBLY ......................... 5~6 TROUBLE SHOOTING ......................7~9 BLOCK DIAGRAM ........................ 10~11 SCHEMATIC DIAGRAM......................10~11 CIRCUIT DIAGRAM ......................10~11 EXPLODED VIEW ....................... 12~14 REPLACEMENT PARTS LIST ....................15 APPENDIX ..........................16~18 1. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS BEFORE OPERATING THIS VACUUM CLEANER, READ THIS SERVICE MANUAL THOROUGHLY, AND OBSERVE EACH POINT CAREFULLY. 1. Change the paper bag or clean the cloth 4. Avoid suction such materials as: bag in case the indicator moves toward red. 1) Liquid or wet dust: Clogging the ventilation holes, reduces the intake power significantly and harms the 1) If the dust bag is full, intake power will be reduced. -
Page 4: Description
STEEL PIPE ASS’Y OR ......1EA • POWER CONTROL : TELESCOPIC PIPE ASS’Y - MAIN : ROTARY ON BODY NOZZLE ASS’Y ............1EA (V-CP243RDN/RTN, V-C3145RD/RT) ON/OFF ON BODY CREVICE TOOL (ON BOARD) ........1EA (V-CP243NDN/NTN, V-C3145ND/NT) • CAPACITY : 3 L DUSTING BRUSH............1EA •... -
Page 5: Disassembly
DISASSEMBLY NOTE: Before attempting to service or adjust any part of the vacuum cleaner, disconnect the electrical power supply cord from the wall outlet. 2. Body Cover Assembly Replacement • Almost all of the parts of this vacuum cleaner can be disassembled with a screw driver and each connecting 1) Remove the four screws fastening the body base. - Page 6 3. P.W.B Assembly Replacement 4) When reassembling, assemble control button after rotating the switch of P.W.B assembly in the direction of the arrow. 1) Remove a screw fastening “Board Supporter” on body cover Switch Button Spring Control Button Body Cover Board Supporter 4.
-
Page 7: Trouble Shooting
TROUBLE SHOOTING 1. SWITCH ON BUT MOTOR DOSE NOT RUN. CHECKING CAUSE SOLUTION Abnormal The fuse is melt down Exchange the fuse Check the power source in the coverknife switch Poor plug insertion Insert again Power cord cut Repair or exchange Interior lead wire cut Exchange the lead wire Normal... - Page 8 3. SWITCH OFF BUT MOTOR RUNS. Repair Poor connection Poor switch Exchange the switch 4. WEAK SUCTION POWER Exchange the carbon brush Carbon brush defaced or the motor Motor armature cut Exchange the motor Low rotation speed Foreign matters attached to Remove the foreign matters the impeller Inquire to the power utility...
- Page 9 5. VIBRATION NOISES Loose parts Secure firmly Unbalanced motor assembly Exchange or repair the motor Foreign matters are attached Remove the foreign matters to the impeller Exchange the carbon brush Poor carbon brush rectification or the motor Armature is cut or foreign Exchange motor matters attached Remove foreign matters...
-
Page 10: Block Diagram
BLOCK DIAGRAM V-CP243NDN/NTN, V-C3143ND/NT CORD REEL MOTOR ASS'Y PLUG BR:BROWN BL:BLUE SCHEMATIC DIAGRAM PLUG BR:BROWN BL:BLUE CIRCUIT DIAGRAM 0.47 250V -10- P/NO: 3828Fi5870A... -
Page 11: Block Diagram
BLOCK DIAGRAM V-CP243RDN/RTN, V-C3143RD/RT CORD REEL MOTOR ASS'Y PLUG BR:BROWN BL:BLUE SCHEMATIC DIAGRAM PLUG BR:BROWN BL:BLUE CIRCUIT DIAGRAM SLIDE VOLUME 1/2W 0.47uF TRIAC 250V 3.9K DIAC 0.1uF 1/2W 250V 1/2W 1/2W -11- P/NO: 3828Fi5870A... -
Page 12: Exploded View
EXPLODED VIEW BASE ASSEMBLY, BODY 146811 139202 152302 139204 146871 139201 152312 152301 152311 650581 130401 149601 144411 146601 -12- P/NO: 3828Fi5870A... - Page 13 COVER ASSEMBLY, BODY 250202 235501 335501 252311 340261 250204 335211 249701 243501 168711 339201 349801 -13- P/NO: 3828Fi5870A...
- Page 14 HOSE ASSEMBLY, FLEXIBLE 452151 449401 452001 435501 ACCESSORIES NOZZLE ASSEMBLY 552491 NZ-15 652481 652011 652012 NZ-27 652031 NZ-30 -14- P/NO: 3828Fi5870A...
-
Page 15: Replacement Parts List
REPLACEMENT PARTS LIST LOCATION No. PART No. DESCRIPTION REMARK 139201 3920FI4718P PACKING, DUST SEAL 149601 4960FI2324A MOUNT, BAG 3040FI1496A SHADOW GRAY 130401 BASE, BODY 3040FI1496B MIDDLE GRAY 152301 4I70098K FILTER, MOTOR SAFETY 144411 4441FI3605C CASTER ASS Y BLACK 4660FI2415A SHADOW GRAY 146601 WHEEL 4660FI2415B... -
Page 16: Appendix
APPENDIX 1. THE TYPE OF POWER CORD & PARTS NUMBER CORD REEL ASS’Y P/NO TYPE TYPE OF PLUG APPLICATION (L/NO.:146871) 12.7 Color identification of fuse Brown Yellow Blue -16- P/NO: 3828Fi5870A... -
Page 17: Color & Parts Number
2. COLOR & PARTS NUMBER COLOR COBALT SHADOW LIGHT MIDNIGHT DEEP LOCATION DESCRIPTION BLUE GRAY SILVER BLUE 335501 COVER, FILTER 3550FI1607A 3550FI1607B 3550FI1607C 3550FI1607D 340261 LATCH 4026FI3675A 4026FI3675B 4026FI3675C 4026FI3675D 243501 RING, CONNECTOR 4350FI3778A 4350FI3778B 4350FI3778C 4350FI3778D 250202 BUTTON, CORD REEL 5020FI3781A 250204 BUTTON, CONTROL (for Rotary) -
Page 18: Motor & P.w.b Ass'y & Cord Reel Ass'y Parts Number
3. MOTOR & P.W.B ASS’Y & CORD REEL ASS’Y PARTS NUMBER L/NO. P/NO DESCRIPTION REMARK 146811 4681FI2373B MOTOR ASS’Y, VC VMC-500E1, 220V 50 / 60Hz 146811 4681FI2373C MOTOR ASS’Y, VC VMC-500E3, 240V 50Hz 146811 4681FI2373D MOTOR ASS’Y, VC VMC-500E5, 230V 50Hz 146811 4681FI2373F MOTOR ASS’Y, VC... - Page 19 MEMO -19- P/NO: 3828Fi5870A...
