Summary of Contents for Navig[8]r NAVBIKE-GPS
-

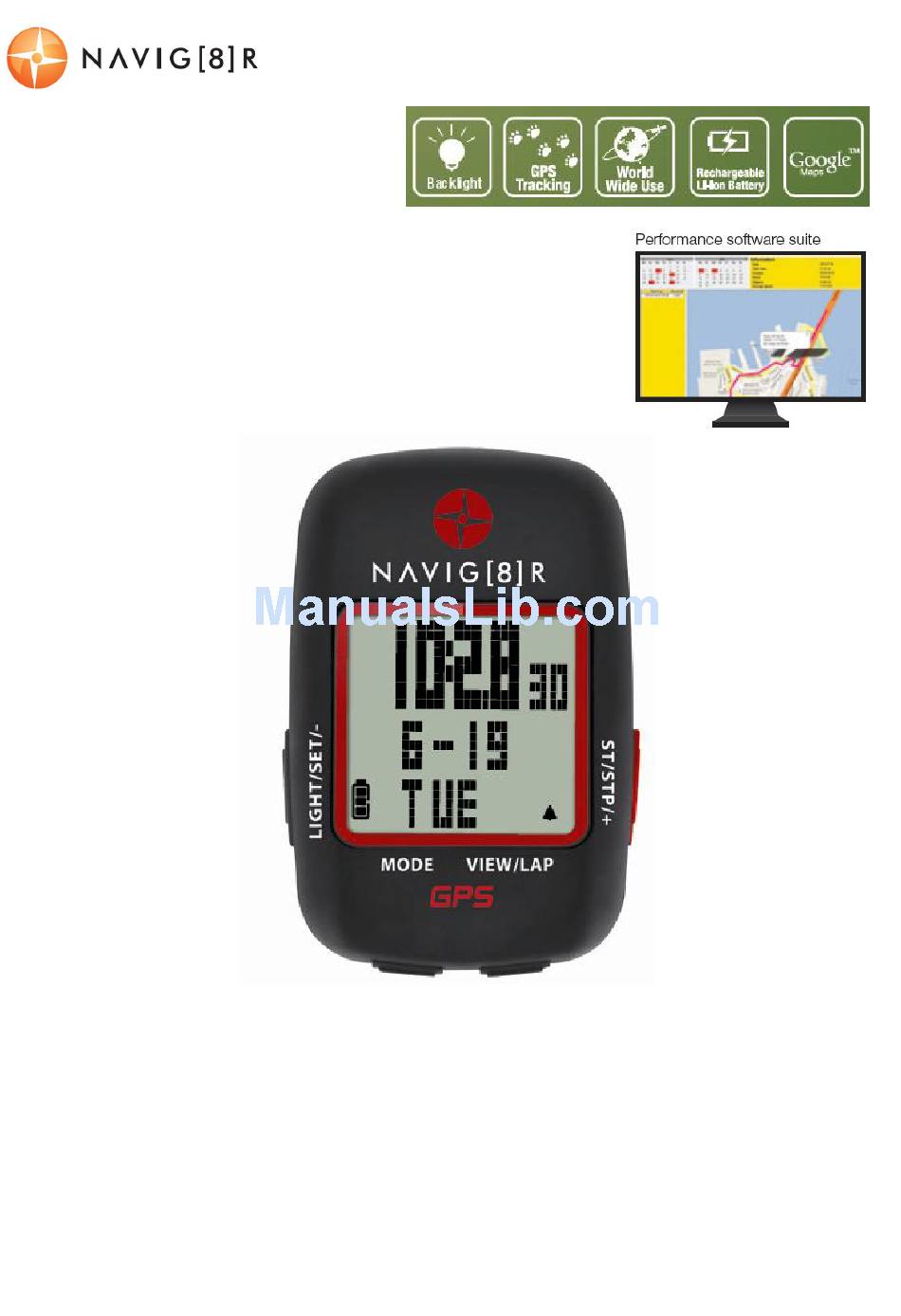

Page 1: User Manual
USER MANUAL NAVBIKE-GPS Please read carefully before use P a g e... -
Page 2: Table Of Contents
USER MANUAL NAVBIKE-GPS Table of Contents Important safety instructions and precautions What’s in the box How to reset your watch Navigating the Settings Screens (Entry Level) Setting your user information - The SET screen Setting the date and time Unit of Measure... -
Page 3: Important Safety Instructions And Precautions
- Remove any power or data cords by pulling them from the plug and not the cord. WHAT’S IN THE BOX 1 x NAVBIKE-GPS, 1 x CD software disc, 1 x charging cradle, 1 X bike mounting bracket with cable ties, 1 x user manual... -
Page 4: Setting Your User Information - The Set Screen
USER MANUAL NAVBIKE-GPS designed to save the user time and to reduce the required button presses. From the main time screen, use the MODE button to enter the main menu settings screen. Each press will move you past the following 7 options;... - Page 5 USER MANUAL NAVBIKE-GPS 3.2.1 Use a combination of the ST/STP/+ button to advance the digits, then the VIEW/LAP button to save the data and move to the next section. 3.2.2 The subsequent sections are: MINUTE, SECOND, YEAR, MONTH, DAY, 12/24H (12 or 24 hour time format) then lastly D-M (Day then Month format) or M-D (Month then Day) format setting.
-
Page 6: Unit Of Measure
USER MANUAL NAVBIKE-GPS 3.3.1 Adjust the subsequent sections which are: DST ON /OFF (Daylight Savings Time), 12/24H (12 or 24 hour time format) then lastly D-M / M-D (Day then Month format or Month then Day) format setting. 3.3.2 Press the VIEW/LAP button again to return to the beginning TIME sub-main screen. -
Page 7: Night (Backlight)
USER MANUAL NAVBIKE-GPS Night (Backlight) Use the ST/STP/+ button to then move to the NIGHT screen. Enter the screen by pressing VIEW/LAP. Press the ST/STP/+ button to toggle the three options 10 SEC, 20 SEC and ON. Confirm your choice by pressing the VIEW/LAP button. -
Page 8: Chime
USER MANUAL NAVBIKE-GPS values 10% to 100% for the CONTRAST value. The screen contrast will take a few seconds to adjust once you begin scrolling. Press the VIEW/LAP button to confirm your choice and to return back to the CONTRAST screen. -
Page 9: Alarm
USER MANUAL NAVBIKE-GPS OFF. Then, repeat the above steps from 9.1 to move to and set the alarms for each of the 5 alarm settings as needed. Then press the MODE button to return back the sub-menu ALRM screen Note 1: When the alarm sounds it will sound for 20 seconds. Press any button to stop the alarm. -
Page 10: Short Cuts
USER MANUAL NAVBIKE-GPS Note: The above alert consists of an audio (‘Beep’) and visual reminder (the screen will illuminate temporarily) Short Cuts 12.0 Press the LIGHT/SET/- button to either go the reverse way in menu options or use it in any screen to turn the backlight for the pre-determined amount of time. -
Page 11: Bike
USER MANUAL NAVBIKE-GPS NOTE 3: BEFORE MOVING TO OTHER TIMER BASED SCREENS OR BEFORE TRYING TO ADJUST USER SETTINGS RELATING TO TIMERS, ALL CURRENT TIME RECORDS NEED TO BE RESET AND SAVED. IF THIS IS NOT DONE, YOU WILL BE LOCKED OUT OF ASSOCIATED SCREENS. AS TIMER SCREENS ARE SHARED, SIMPLY ENTER ANY TIMER SCREEN, STOP, RESET AND SAVE THE ACTIVE FILE TO PROCEED. -
Page 12: Chro (Chronograph)
USER MANUAL NAVBIKE-GPS 14.1.2 Press the ST/STP/+ button to pause the timer (the screen will display STOP) and again to un-pause the timer. 14.1.3 From the STOP screen press the VIEW/LAP button to review your data before saving. The screen view combinations are as follows: a) CHRONO / ODO / CALORIES, b) CALORIE / AVE PACE / MAX PACE and c) DISTANCE / CHRONO / STOP . -
Page 13: Gps Hints And Tips
USER MANUAL NAVBIKE-GPS saving. The screen view combinations are as follows: a) CHRONO / ODO / CALORIES, b) CALORIE / AVE PACE / MAX PACE and c) DISTANCE / CHRONO / STOP Once paused, press and hold the ST/STP/+ to automatically reset and save the file. -
Page 14: Charging The Battery
CONNECTING THE USB CABLE TO YOUR WATCH AND COMPUTER 19.0 With the 4 gold plated pins at the top of both cradle and NAVBIKE-GPS, slide the NAVBIKE-GPS into the cradle. This should require little to no force. (Note: The pins on the cradle are spring loaded so they should all depress once the clip has attached, ensuring a firm connection. -
Page 15: Using The Pc Link Software (Quick Start Guide)
Run the software (usually by double clicking the icon produced on the desktop, pending your software and installation selections) 20.3 Connect your NAVBIKE-GPS to the cradle then connect to opposite USB end to your PC 20.4 Click the download button from the main screen, to begin the download and confirm your choice by clicking the following “DOWNLOAD DATA”... -
Page 16: Time Zone Table / Faq
Initially, try and ensure the antenna is pointing towards the sky for better signal reception. A. You can reset your NAVBIKE-GPS watch by Q. Can I reset the NAVBIKE-GPS? pressing all 4 buttons at once until the reset screen is displayed. - Page 17 USER MANUAL NAVBIKE-GPS Please note: As continual improvements are made to this product, slight operational differences may occur. For the most up-to-date user manual, please visit our web site. Warranty Against Defects Laser Corporation Pty Ltd (“Laser”) warrants your new product to be free from defects in materials and workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
