Summary of Contents for Sierra Pacific M1-D

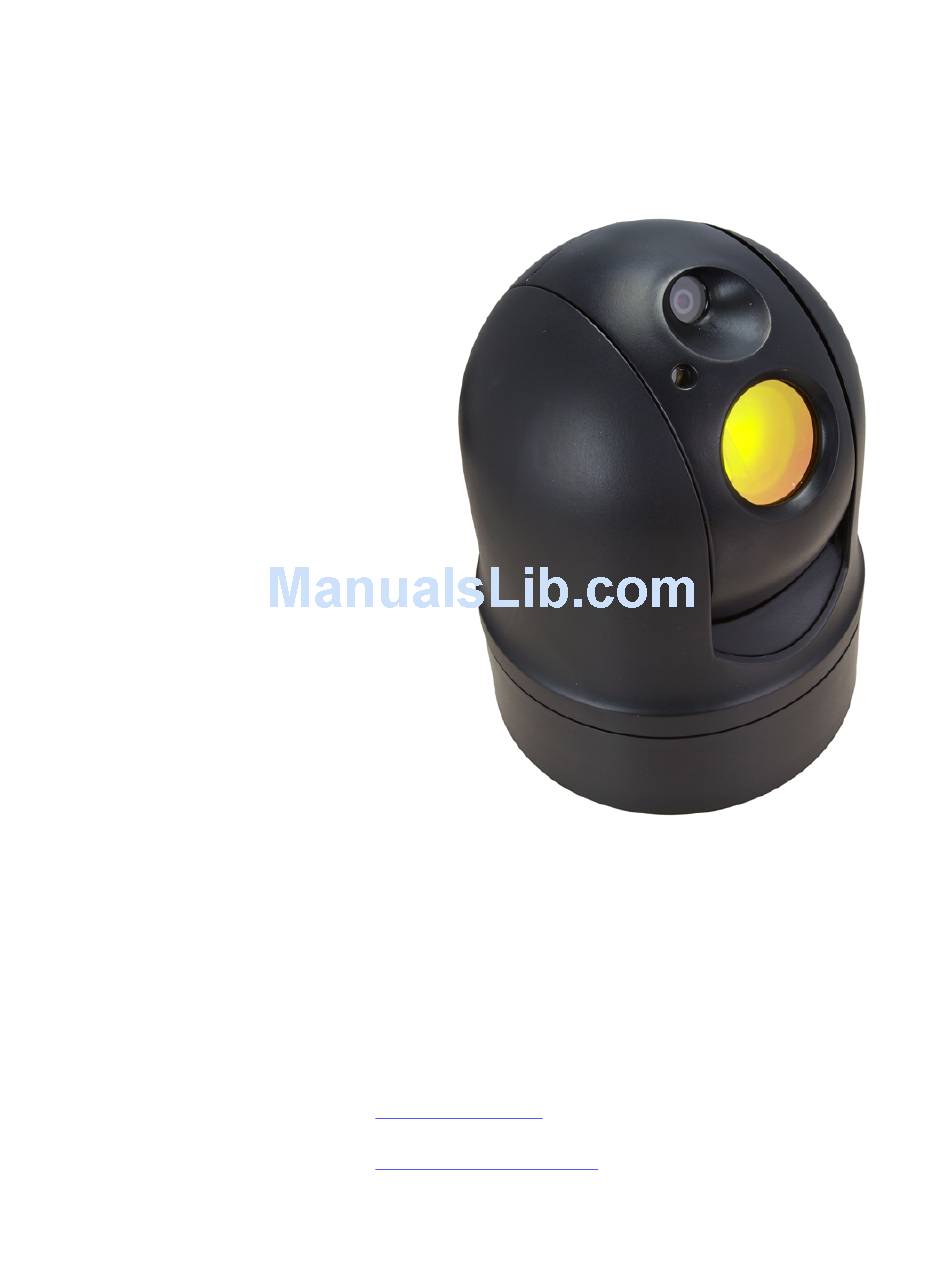

- Page 1 M1-D MANUAL REVISION 1.3.2 SIERRA PACIFIC INNOVATIONS CORP 6620 S. TENAYA WAY 100 LAS VEGAS, NV 89113 702-369-3966 WWW.X20.ORG SUPPORT@X20.ORG...
-
Page 2: Table Of Contents
Sierra Pacific Innovations Corp 1.3.2 TABLE OF CONTENTS 1. S AFETY N OTES – I MPORTANT ............... 4 2. A BOUT T HE M 1-‐D ................. 5 ... - Page 3 Sierra Pacific Innovations Corp 1.3.2 Symbology O SD M enu .............. 2 4 Symbology C rosshair M enu ............. 2 4 Symbology Z oomer M enu .............. 2 5 ...
-
Page 4: Safety Notes - Important
Video and RS-485 control cables should be separated from other cables. Shielding may be necessary in some cases to avoid interference. NEVER aim the lens of the M1-D at the sun or extremely hot objects. This may damage the precision thermal sensor. -
Page 5: About The M1-D
Shield the camera from radiation, X-Ray, Radar or other strong electro- magnetic sources. 2. ABOUT THE M1-D The M1-D is an intelligent Pan Tilt Zoom multisensor imaging platform designed for all weather operation on a variety of platforms. The M1-D is ideally suited for Vehicle, Vessel or stationary mounting configurations. -
Page 6: Functions
Visual CCD Sensor The M1-D is equipped with a visual imaging sensor that sees in the visual light spectrum. This sensor is ideally suited for object identification and for reading vehicle tags, ship or aircraft numbers. -
Page 7: Inverted Operation
Sierra Pacific Innovations Corp 1.3.2 Inverted Operation The standard orientation for the M1-D is in the upright position with the base plate resting on a surface below (such as a vehicle roof). The system is capable of inverted operation wherin the base plate is mounted above (such as in a UAV or Aircraft). -
Page 8: Technical Specifications
Sierra Pacific Innovations Corp 1.3.2 2.3 Technical Specifications 160x120 320x240 640x480 Thermal Performance Detector Microbolometer Long Wave InfraRed 320x240 640x480 Resolution 160x120 Spectral Response 8-12 microns (LWIR) 19mm or 25mm 19mm or 25mm Thermal Optics 19mm or 25mm 24° HFOV 32°... -
Page 9: Installation
3. INSTALLATION This section contains basic installation instructions for the M1-D multi sensor system. Since the M1-D is designed to be mounted on a wide range of vehicles, vessels and aircraft we cannot cover every installation scenario possible. This guide offers the basic instructions for installation in common applications. - Page 10 Sierra Pacific Innovations Corp 1.3.2 Fig. 1.2 Outer Dimensions (with stabilization plate) Fig. 1.3 Bottom mounting holes and magnets. M1-D User’s Guide...
- Page 11 For a more permanent mount or for use in extreme motion environments you will want to use the bolt holes on the bottom of the unit to affix the M1-D to a bracket (of your own fabrication). SPI Corp offers a vibration mitigation stabilization plate which also acts as a hard mounting plate for the M1-D.
-
Page 12: Mounting Steps
DO NOT PINCH YOUR FINGERS. The magnets will grab with some force. 3. If using the mounting holes first mount the M1-D to your mounting fixture then mount the fixture to your surface. We recommend fabricating a “spider” type bracket that extends out beyond the edge of the M1-D (see Fig. -
Page 13: Electrical Connections
3.3 Electrical Connections The M1-D operates on 12VDC power typical of most vehicles. The M1-D is a negative ground system so verify that your vehicle outputs the correct voltage and polarity. The M1-D outputs standard NTSC video signal and responds to commands via 2 wire RS/485 serial interface utilizizing the Pelco-D protocol at 2400bps. - Page 14 Sierra Pacific Innovations Corp 1.3.2 Fig. 1.5 Pigtail Cable Extender. M1-D User’s Guide...
-
Page 15: Electrical C Onnections O Verview D Iagram F
Sierra Pacific Innovations Corp 1.3.2 Electrical Connections Overview Diagram Fig. 1.6 M1-D User’s Guide... -
Page 16: Operation
M1-D system. 4.1 Basic Operation The M1-D multi sensor pan tilt zoom system is comprised of the following subsystems. 1. Thermal infrared imaging sensor with dgital zoom and fixed focus optics. -
Page 17: Power O N T He
Power On the M1-D To power on the M1-D you need to connect power to the system by plugging in the cigarette lighter vehicle adapter. If you have installed a remote power switch use that to turn on the system. -
Page 18: Trigger The Laser Pointer
Trigger The Laser Pointer The M1-D has a visible light red dot laser pointer integrated into the system. WARNING LASER RADIATION EMITTED FROM THE FRONT OF THE SYSTEM. DO NOT FIRE LASER WHEN ANY PERSON IS STANDING IN FRONT OF THE SYSTEM. -
Page 19: Thermal Imaging Color Palletes
0 to 255 values. In a black and white display mode, this range is change the appearance of the displayed image. The The M1-D thermal imaging sensor is a full color thermal imager converted to shades of grey with, for example, 0 being totally black and... - Page 20 0 to 255 values. In a black and white display mode, are mapped (as determined by the AGC algorithm selected) to a range of Sierra Pacific Innovations Corp 1.3.2 to convert the scene to a video image. Different LUTs are available to simply reverses the choice of darker or lighter for temperature mode will not affect the digital data output.
-
Page 21: Onscreen Symbology
Heading Indicator The heading indicator shows the position of the M1-D in the relative pan axis. The pie shaped symbol will rotate around the circle indicating the direction that the imaging sensors are pointing. -
Page 22: Numeric Pan Tilt Indicator
The M1-D displays the SPI Logo in the bottom right corner of the screen. Text String The M1-D gives the user the ability to input a custom text string that will be displayed on the screen. This is useful for labelling individual cameras in multiple camera setups. -
Page 23: Accessing The On Screen Display Menu
Sierra Pacific Innovations Corp 1.3.2 Accessing The On Screen Display Menu To adjust the settings of on screen symbology you need to access the OSD Menu (On Screen Display Menu). To access the OSD enter the Pelco-D command [CALL] + 99 + [ENTER] or [PRESET] + 99 + [ENTER]. -
Page 24: Symbology Osd Menu
Symbology OSD Menu The symbology OSD Menu allows you to turn on or off the various symbology items available in the M1-D system. The symbology menu also allows you to select between Fixed and Moveable Crosshairs. When you access the Symbology OSD Menu you will see the following choices. -
Page 25: Symbology Zoomer Menu
Sierra Pacific Innovations Corp 1.3.2 Symbology Zoomer Menu The Zoomer Menu controls the zoom Field Of View indicator which gives you an indication of what the field of view will be when you activate the thermal zoom. Objects that are within these boundries should appear in image when zoom is activated. -
Page 26: Symbology Logo Menu
Crosshair Configuration Menu The crosshair configuration menu allows you to select the various crosshair and zoomer types of symbology inside the M1-D system. With the crosshair configuration menu you can choose different fixed and movable types of crosshairs as well different... - Page 27 Sierra Pacific Innovations Corp 1.3.2 Crosshair type chart Fig. 2.3 Zoomer type chart Fig. 2.4 M1-D User’s Guide...
-
Page 28: Crosshair Configuration Adjustable Type
Sierra Pacific Innovations Corp 1.3.2 Crosshair Configuration Adjustable Type The adjustable type crosshair configuration menu allows you to select the type of adjustable crosshair displayed. To change the adjustble type crosshair select the adjustable type menu and use the joystick to cycle through the cross hair types. The following are the available adjustable crosshair types. -
Page 29: Cross Grouping
The crosshair adjust sub menu allows you to set the position of the adjustable crosshair types. Once set the M1-D will remember the position until you change the position or reset the position. To adjust crosshairs independently make sure CROSS GROUPING is set to OFF. -
Page 30: Crosshair Adjust Reset All Submenu
[OPEN] button to complete the command. 4.3 Advanced Operation The M1-D is a simple to operate multi sensor pan tilt zoom system. However, many unique advanced features are integrated into the system in order to expand on its capabilities. -
Page 31: Setting Preset Positions
Sierra Pacific Innovations Corp 1.3.2 Setting Preset Positions The M1-D allows you to “preset” positions of the system for either direct recall or for use in Auto Scan or Pattern Scan features. The M1-D can maintain up to 80 preset postions (Presets 0-79). -
Page 32: Preset C All N Umber C Ode T Able 1 .5
Sierra Pacific Innovations Corp 1.3.2 Different keyboard controllers send commands in different ways so you may have to experiment with the order of the commands. You may find that ## + CALL or ## + PRESET works with your controller. -
Page 33: Preset 81 Video Switch
8 seconds before moving to the next point. You can preset up to 40 points (presets 0-39) for the M1-D to stop at during auto scan. The M1-D will scan through presets you have configured in numeric order from 0-39. -
Page 34: Preset 8 6 P Attern S Can 3
Preset 86 Pattern Scan 3 The pattern scan preset feature lets the M1-D scan between preset points. This differs from Auto Scan in that the M1-D slowly and continually scans between the preset positions without stopping at any position. Pattern scan continuosly scans between positions in numeric order from low to high. -
Page 35: Preset 96 180 Degree Continuous Scan
The Preset 98 command tells the M1-D to scan continuously in a 90 degree pan. The 90 degrees of pan is 45 degrees to either side of the position of the M1-D when the command is sent. It is NOT based on the home position.
