Summary of Contents for Eela Audio EA815/2
-
Page 1: User Guide

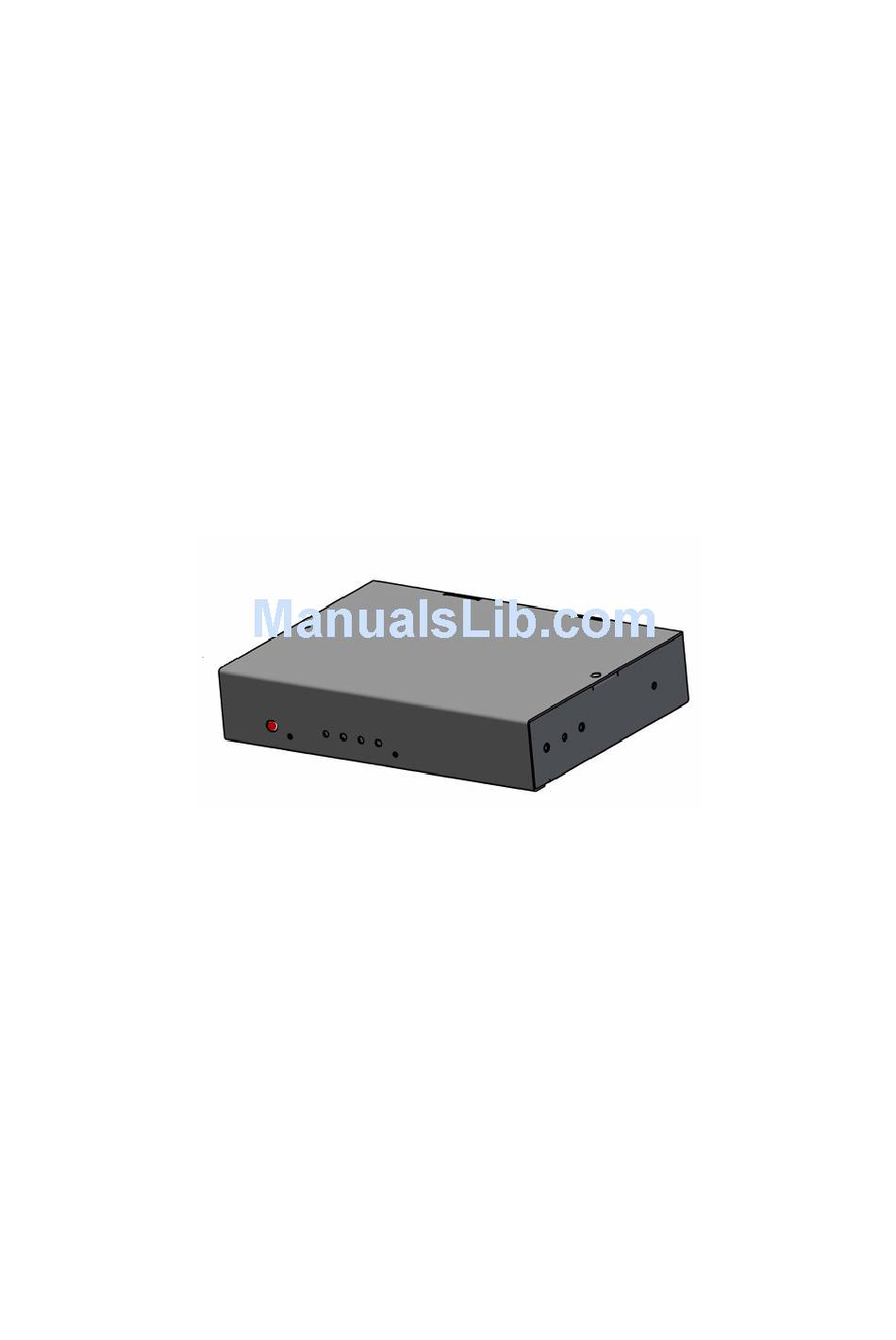

EA815/2 Telephone hybrid User guide EA Broadcast / eela audio http://www.eela-audio.com... -
Page 2: General Information
Clean the outside of this product with a soft cloth. Do not use any cleaning detergents like alcohol, white spirit or ammonia based fluids to clean this product. This can severely damage the finish of the product. Eela Audio EA815/2 Telephone hybrid... - Page 3 Also some filtering is employed to reduce out of band signals like hum, dailing pulses etc. GAINS for SEND and RECEIVE are adjustable through the frontpanel. Eela Audio EA815/2 Telephone hybrid...
- Page 4 Send programm, preferably speech at nominal level, to the line and use the console PFL system to listen to the hybrid output. Adjust the SEND level on the EA815/2 in such a way that the limiter LED on the front of the EA815/2 only lights up at peaks in your send signal.
- Page 5 EA815/2DIAGRAMS Please note: Remote connector has changed in SMD versions! Power supply units of older versions do not match! EA Broadcast / Eela Audio Het Riet 8 A 5431NM Cuijk The Netherlands http://www.eela-audio.com Eela Audio EA815/2 Telephone hybrid...
- Page 6 Optional rackmounts: EA800/3, 19" 1HE rack mount kit for 1 unit (130 mm) EA800/4, 19" 1HE rack mount kit for 2 units (20 mm) Eela Audio EA815/2 Telephone hybrid...
- Page 7 Eela Audio EA815/2 Telephone hybrid...
- Page 8 EA Broadcast / eela audio http://www.eela-audio.com Eela Audio EA815/2 Telephone hybrid...
