NQ Industries Clarifier User Manual

Uv-air purification system
Hide thumbs
Table of Contents

Advertisement

Quick Links

NQ Clarifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Clarifier and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NQ Industries Clarifier

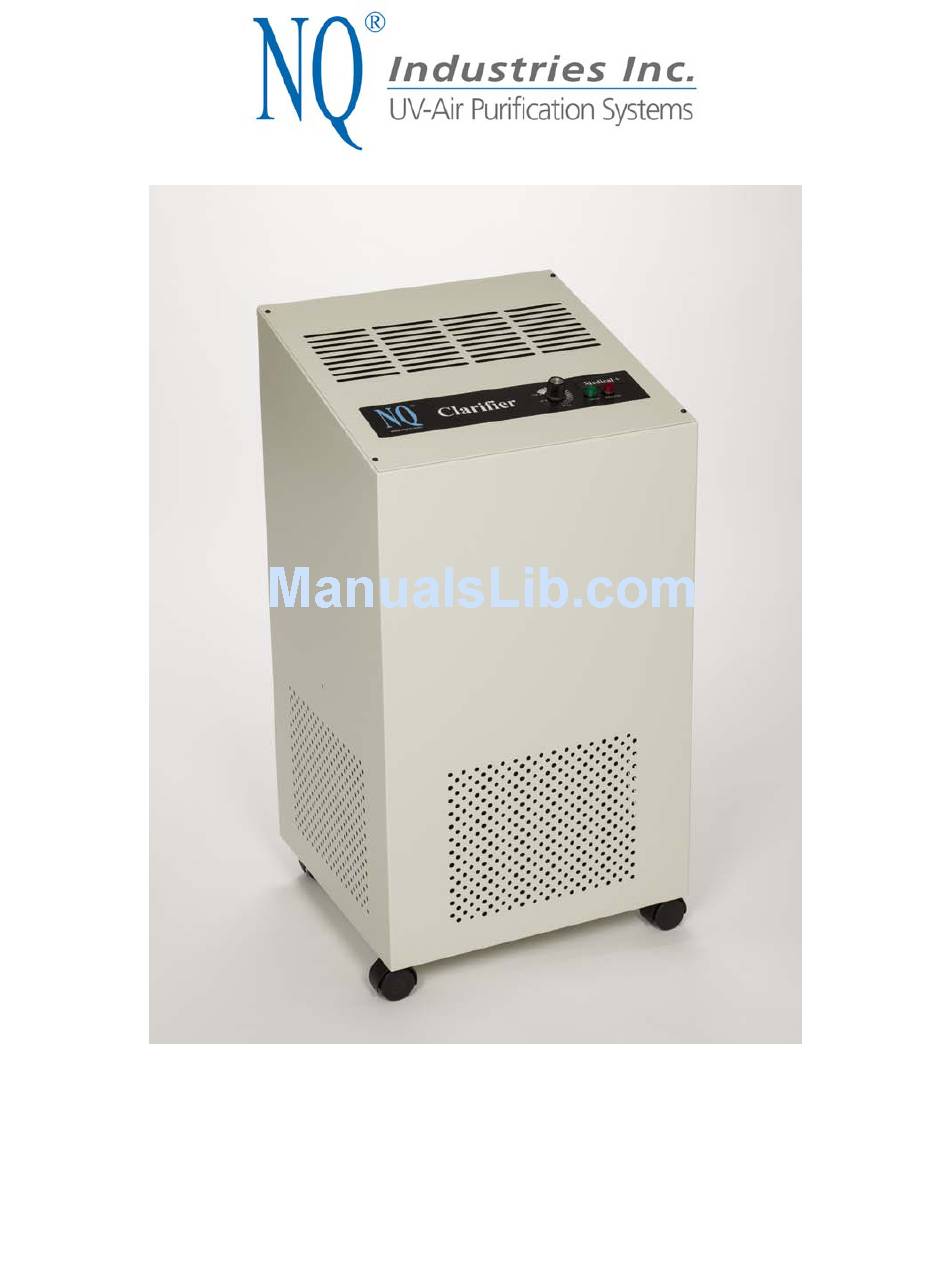

  • Page 1 NQ Clarifier...

  • Page 2: Important Operation Information

    If for any reason, the NQ Clarifier is not in operation for 6 months or more, then the HEPA filter module, in its entirety, should be changed before starting.

  • Page 3: Air Flow Pattern

    Industry guidelines suggest at least 2-3 air changes / hour (ACH) for adequate airborne cleaning and allergy control. The Clarifier produces 350 cubic feet per minute (CFM). The Clarifier will change 21,000 cubic feet per hour at high speed. However, the patented “Top flow” featured in the Clarifier delivers more actual air changes per hour than other...

  • Page 4: Cleaning And Changing Filters

    GREEN INDICATOR LIGHT Remains on when the UV light is operating properly. When the light goes out the UV lamps are not functioning. RED INDICATOR LIGHT Goes on when it’s time to change or clean pre-filter or change HEPA filter. Go to the “Clean Prefilter Section”...
  • Page 5 UNPLUG THE UNIT Remove (1) screw on each side and on the back of the unit (3 screws total) FIG.1 DO NOT REPLACE SCREWS / SAVE THEM Fig 1 The back screw on top of rear access panel is a shipping screw and does not need to be replaced.
  • Page 6 5. Place complete HEPA + carbon filter with pre-filter wrapped around filter, into inner chamber with the open end of HEPA facing towards the top of the NQ Clarifier unit. The plastic handle faces you. 6. Replace rear access panel and replace (2) bottom screws.
  • Page 7 Maintaining Your NQ Clarifier CLEANING AND CHANGING FILTERS SAFETY WARNINGS • BEFORE YOU ATTEMPT ANY MAINTENANCE ALWAYS UNPLUG THE UNIT • NEVER LOOK DIRECTLY AT THE ULTRAVIOLET LAMPS WHEN LIT HOW TO CHANGE THE POST FILTER NOTE: WHEN CHANGING THE UV BULBS IT IS RECOMMENDED TO REPLACE THE POST FILTER UNDER THE OUT FLOW VENTS WHEN THE TOP ACCESS PANEL IS OPEN.
  • Page 8 Technical Specification Summary AIR PURIFICATION SYSTEM DIMENSIONS  HEIGHT - 27 INCHES WIDTH - 15 INCHES DEPTH - 14 INCHES FILTER MATERIAL  80 SQ.FT. OF True HEPA MEDIA RATED AT 99.97% AT 0.3 MICRONS; NON OUT-GASSING, 10" HIGH X 13.5" DIAMETER ...

  • Page 9: Warranty

    FILTER IS NOT COVERED FOR SAFETY WARNINGS  THE NQ Clarifier IS NOT TO BE USED IN AN OXYGEN RICH ENVIRONMENT. IF OXYGEN IS USED, THE NQ Clarifier MUST BE AT LEAST 6 FEET AWAY FROM OXYGEN SOURCE.  IF THE PRODUCT IS DEFECTIVE, CALL NQ @ 800-837-8650 OR YOUR AUTHORIZED DEALER FROM WHERE YOU PURCHASED THE UNIT FOR A RETURN AUTHORIZATION NUMBER.
  • Page 10 PARTS TO ORDER REPLACEMENT PARTS CALL YOUR AUTHORIZED DEALER OR NQ INDUSTRIES, 1-800-837-8650 PRE-FILTER POST FILTER ULTRAVIOLET LAMP CARBON RING HEPA DRUM COMPLETE REPLACEMENT PARTS PACK INCLUDES: PRE & POST FILTERS CARBON-HEPA FILTERS ULTRAVIOLET LAMPS Call your local dealer for pricing and availability.
