Axer FHD-85 User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

User's Manual

FHD-85

User Manual

Table of Contents

Need help?

Do you have a question about the FHD-85 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axer FHD-85

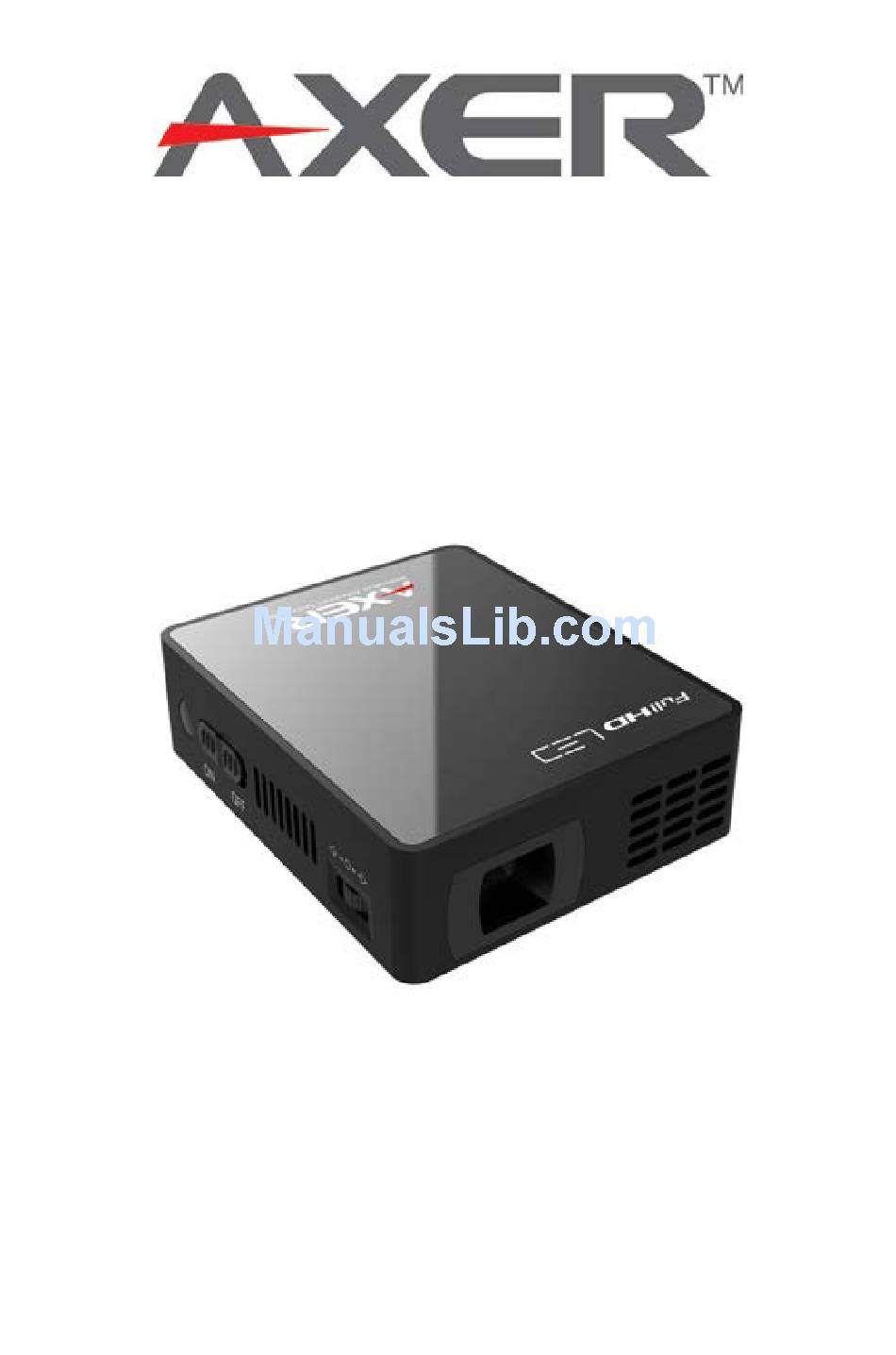

Page 1: User Manual
User’s Manual FHD-85 User Manual...
Page 2: General Safety Information
Relative Humidity should be at 25% ~ 80%, non-condensing. The battery is integrated with the device. Do not dissemble or modify. The battery should be replaced by a Axer authorized service center. Ensure that the ambient room temperature is within 40 - 95°F (35 - 35°C).
Page 3: Package Contents
User Manual Only use the accessories supplied by the manufacturer. Avoid looking directly into the projector’s lens. The device should not be used in a dusty environment. Dust particles and other foreign Objects may damage the unit. Only use the enclosed power adapter (see Technical Data). Both the Product and the User’s Manual are subject to change without further notice Package Contents...
Page 4: Fcc Compliance Statement
User Manual FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 5: Table Of Contents
User Manual Contents Devices Overview ................5 Getting Started ................7 ..........7 Charging Your Pico Projector ........7 Connecting an External Input Source ........9 Connecting Micro SD/SDHC Card ............9 Connecting USB Device ............10 Using Headphones Functions and Operations ............11 ..............
Page 6: Devices Overview

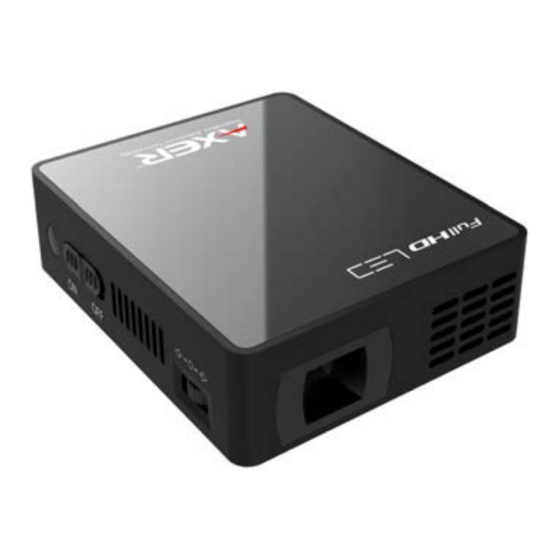

User Manual Devices Overview Projector 1. OK Button 7. Headphone/AV Jack 2. Navigation Buttons 8. HDMI Port 3. Return Button 9. Focus Wheel 4. LED Indicator 10. Speaker 5. Micro SD/SDHC Card Slot 11. Power Switch 6. Mini USB/DC IN Jack 12.
Page 7 User Manual Warning: Improper use of the battery may cause Infrared Receiver overheating, explosion or ignition, which can result in an injury or a fire. Battery leakage may damage the remote control. 30° Do not expose the remote control to direct sunlight.
Page 8: Getting Started
User Manual Getting Started Charging Your Projector The projector has a built in a Li-polymer battery for mobile use. Please fully charge the projector before its first use. The projector can also charge through USB, use the supplied usb cable to plug your projector into your computer.
Page 9 While this device can connect to a VGA Port, we do not include the cable in the supplied accessories, this cable is available for purchase wherever our Projectors are being sold and our Retail Website, Search for Axer HDVG317. Plug one end of into the HDMI Port on your projector.
Page 10: Connecting Micro Sd/Sdhc Card
User Manual 2. Supported screen resolution of PC: 1920 x 1080 / 1600 x 1200 / 1280 x 1024 1280 x 960 / 1280 x 720 / 1152 x 864 1024 x 768 / 800 x 600 / 640 x 480 3.
Page 11: Using Headphones
User Manual Using Headphones The projector has a built-in stereo speaker for providing you the best portable audio experience. Additionally, you can connect your headphones to the headphone jack of the unit. Warning: Listening through headphones at a high volume for extended periods of time can result in hearing loss...
Page 12: Functions And Operations
User Manual Functions and Operations Main Menu In the main menu, press to select USB or TF (Micro SD/SDHC) mode as shown on the top-right corner of the main menu, Press to highlight the desired item and press to enter the submenu.
Page 13: Audio
User Manual Audio Select and play audio files. keys to highlight music In the main menu use the pres to select it, use the keys to select and open Audio files use the -/+ buttons to adjust the volume. During Audio playback, press to open the function key menu and use to achieve their...
Page 14: Source
User Manual Source When projecting from external source (AV, HDMI, and VGA) enter “Source” in the main menu to select the exact input source. Note: If the screen shows “No Signal” after connecting the external AV source, please follow the instructions on “Connecting External Input Source”...
Page 15: Settings
User Manual 2. Photo View List Slide delay Repeat Slideshow Order By order Press to select an item. Then press adjust the settings. 3. Power Save ECO Mode Auto Sleep Press to select an item. Then press adjust the settings. 4.
Page 16 User Manual If projecting over long periods of time The built-in battery supports about 1.5hrs of projection time. If you will be projecting over a long period of time, we recommend that you use the supplied AC adapter. When the battery gets low, the low battery capacity icon will flash.
Page 17: Specifications
User Manual Specifications Items Descriptions Optical Technology VGA 0.24” DLP Light Source RGB LED LED Lifetime 20,000 hours Contrast 1000:1 Resolution 640 x 480 (VGA) Aspect Ratio Projection Image Size 5 ” ~ 80 ” Projection Distance 20 cm ~ 200 cm AC Adaptor Up to ANSI 85 Lumens Brightness Battery...
