LG 34UC97 Owner's Manual
Ips led computer monitor
Hide thumbs
Also See for 34UC97:
- Owner's manual (34 pages) ,
- Service manual (31 pages) ,
- Manuals on using product functions (10 pages)
Table of Contents
Advertisement
Owner's Manual
IPS LED COMPUTER
MONITOR
(LED COMPUTER
MONITOR*)
*Disclaimer: LG LED Monitor applies LCD screen with LED backlights.
This product is a computer monitor and not for television purpose.
Please read the safety information carefully
before using the product.
IPS LED Computer Monitor (LED Computer Monitor) Model List
34UC97
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG 34UC97
Summary of Contents for LG 34UC97

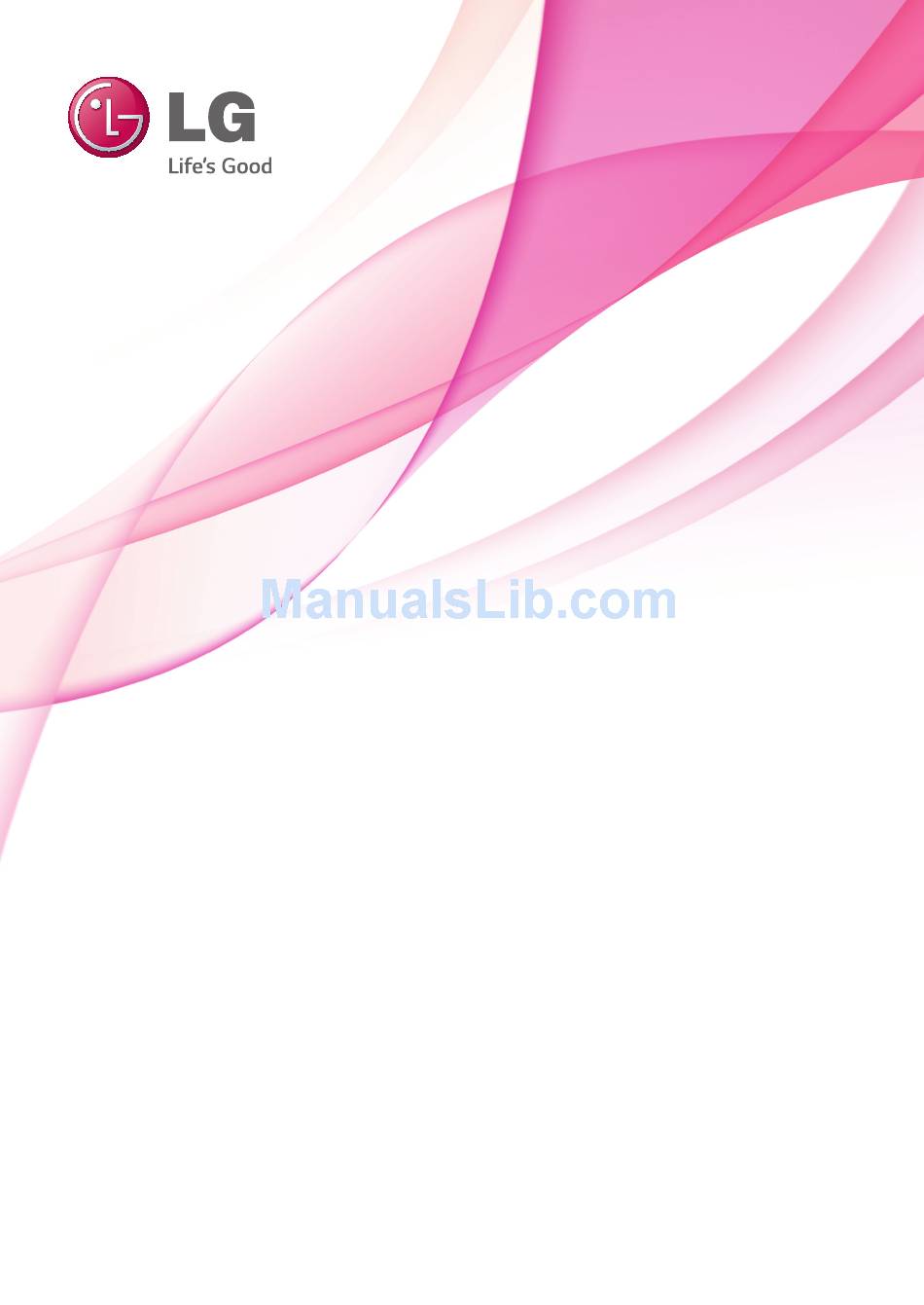

- Page 1 IPS LED COMPUTER MONITOR (LED COMPUTER MONITOR*) *Disclaimer: LG LED Monitor applies LCD screen with LED backlights. This product is a computer monitor and not for television purpose. Please read the safety information carefully before using the product. IPS LED Computer Monitor (LED Computer Monitor) Model List 34UC97 www.lg.com...
-
Page 2: Table Of Contents
- HDMI Connection HDMI Timing (Video) Power LED - DisplayPort Connection - Thunderbolt ( ) Connection Connecting Peripherals PRoPeR PosTURe - USB Cable connection - PC Proper Posture for Using the Monitor - Connecting Headphones InsTallInG THe lG MonIToR sofTWaRe... -
Page 3: License
Each model has different licenses. Visit www.lg.com for more information on the license. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -
Page 4: Assembling And Preparing
The product warranty will not cover damage or injury caused by the use of unauthorized components. It is recommend that use the supplied components. If you use generic cables not certified by LG, the screen may not display or there may be image noises. -
