Summary of Contents for MIA NP-50

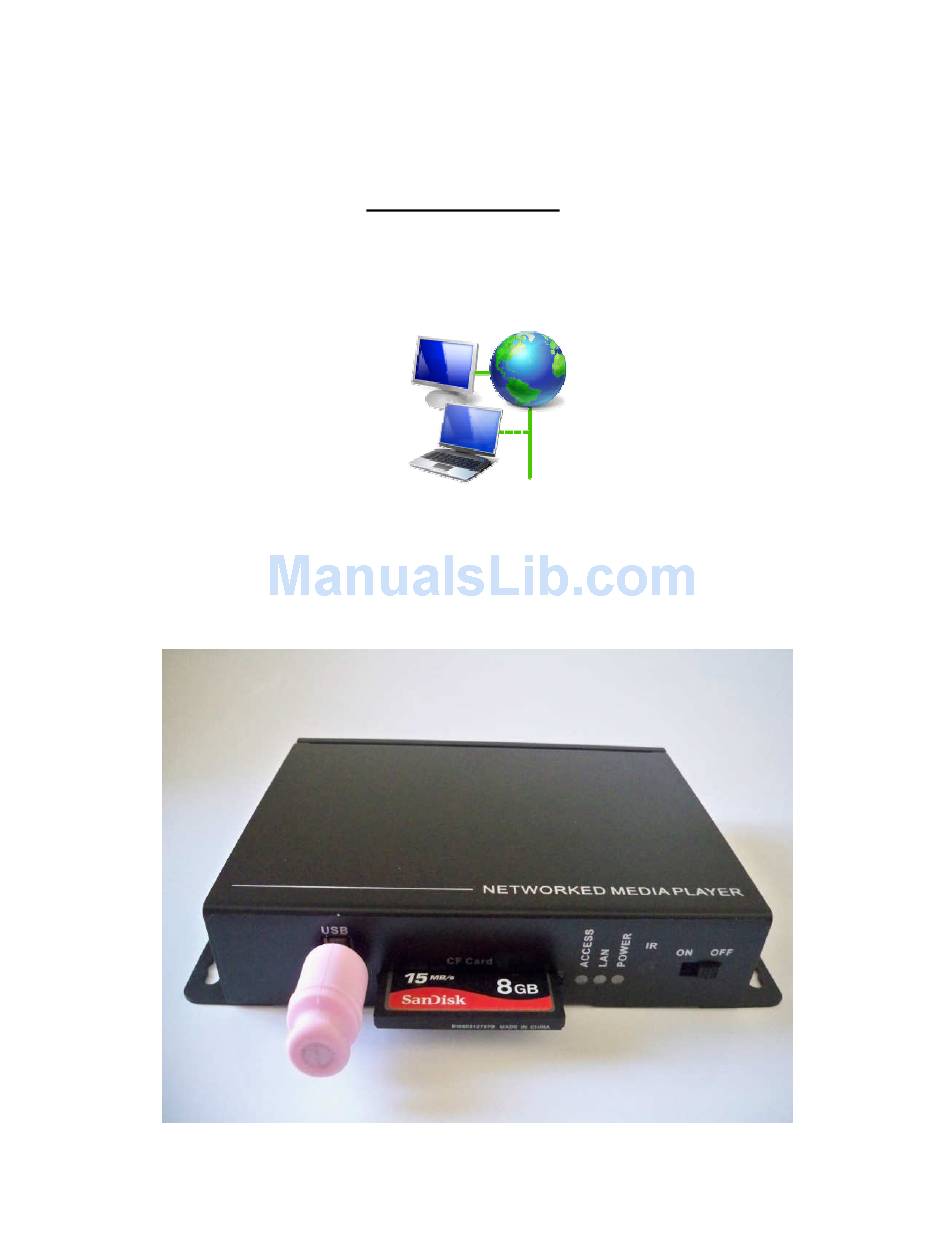

- Page 1 Network Digital Signage Player NP-50 User Guide User Guide 2/22/2012...
- Page 2 F: HDMI: HDMI output (HDMI cable included) G: Ethernet port: Connect to LAN or Internet network Storage: • NP-50 can now playback and download with CF card or USB drive. • If both CF and USB devices are inserted, CF card will be ignored. •...
- Page 3 Remote control: special keys 1. Video-In key: Switch either Video-Input source or CF/USB media file source on multi-zone screen or full screen 2. Screen Mode key: Switch entire screen either multi-zone or full screen 3. Keyboard key: When Video-In source is used, press it will pop up color setting menu to adjust brightness, hue, contrast.
- Page 4 Video Feed Method NP-50 player has A/V In port that allows video and audio source to feed in from TV Set Top Box or any composite video output device like DVD player or Camcorder. Connection: 1. Use 3-in-1 (Yellow/Red/White) cable to connect to TV STB’s A/V out (picture) and plug in one end to NP-50’s A/V In.
- Page 5 1. Zone resolution: Total area is 1280 x 720 pixels a. Top Zone: 1280 x 100 pixels b. Video Zone: 720 x 480 pixels c. Image Zone: 560 x 560 pixels d. Mid Zone: 720 x 80 pixels e. Bottom Zone: 1280 x 60 pixels System block diagram •...
- Page 6 icat Operation You can use icat same as before. The additional instructions are stated below. *Note: If you plan to use full screen only to playback media files only. Go to Step 4. Step 1. Create image files for the image zone and the top zone. 1.
- Page 7 Image Zone on the right side. is Image Zone on the left side and Video Zone on the right side. Its layout is associated with the Top Zone file. 8. Browse your jpg image file then click “Upload”. It will be saved under “Top Zone” folder. 9.
- Page 8 Enter data on each field. “*” field must fill with your data. Check Active and any group name for your players. 3. Go to Folder and select “Image Zone” to display all image files(yuv type) 4. Check your selective image files and click “Add” to playlist area. 5.
- Page 9 Enter data on each field. “*” field must fill with your data. Check Active and any group name for your players. 4. Go to root or any folder to display all image files from media library. 5. Check your selective image files and click “Add” to playlist area. 6.
- Page 10 Step 6: New feature Weather(NP-50/NP-30 only) 1. In addition to date and time information, NP-50 provides weather information. User needs to enter player’s city code. There are two places in icat. One is system weather for all players in the...
- Page 11 same account. Device weather is for individual player only. *Note: If system weather is enabled, device weather will be ignored. To control each player’s weather, disable system weather. **:To find your City Code, visit http://www.weather.yahoo.com and enter city name. some digit numbers will appear on the top url address.
-
Page 12: Cat Operation
Save: save current playlist into local disk for future use. Global Settings: there are some options to select to manage playback or device. Multi Zone: Only available on NP-40 and NP-50 models, not NP-25 and NP-30. Once checked, will grey out for action. - Page 13 Image Zone Editor Top banner: Browse to find your pre-designed jpg file with created at 1280x100 resolution which will display as your top banner image. Template1 or Template2: define the video zone and image zone layout and can only be set once per playlist. Add: Add jpg files for image zone.
- Page 14 TV Feed and Full Screen: 1. TV Feed: To input external video source into “Video Zone”. Click “Add TV Feed” and “TV_FEED_ON” will appear on playlist, then select time duration or enter “Start Time hh:mm” and “Stop Time hh:mm”. a. Specific time range: ex. 12:00 to 14:00 =>...
- Page 15 RSS Feature: 1. Add RSS Feeds management to replace previous RSS Advantages software 2. RSS Edit: add or edit RSS url and foreground color, background color ..settings. When this Icon is clicked, a RSS window will appear. User Guide 2/22/2012...
- Page 16 a. click “Add Feed”, a “Add New Feed” RSS window will appear. Enter your RSS URL link below and click “Connect” to retrieve data. Make sure your PC is connecting to internet. => Group: assign RSS to any group on the pull down window Active: if checked then current RSS data will be sent under same group.
- Page 17 d. If user wants to duplicate same RSS to another group, just open current RSS’s property and use Ctrl-C keys to copy RSS link data and then click “Add Feed” and press Ctrl-V keys to paste RSS link and then assign to another group name. e.
