Summary of Contents for X4-TECH LUNA DT7

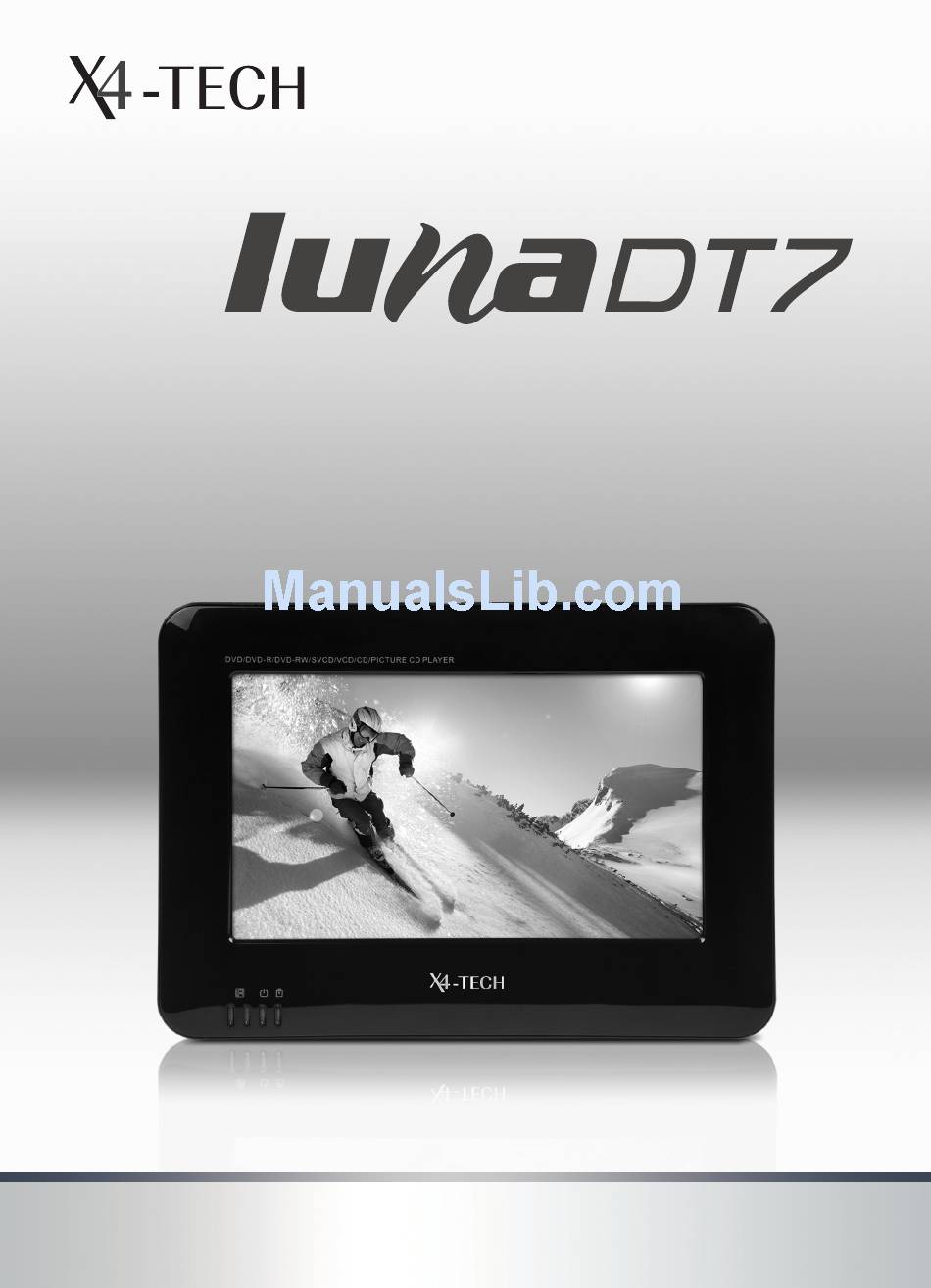

- Page 1 mobile Multiformatplayer with DVB-T television instruction manual...
-
Page 2: Table Of Contents
Inhalt Chapter 1 Intended Use Chapter 9 Maintenance and Handling Before you start Icon Description Chapter 10 Trouble Shooting Copyright Protection Chapter 11 Service Chapter 2 Safety Instructions Chapter 3 Main features Technical Data Package Contents Chapter 4 The Device Front Left Back... -
Page 3: Chapter 1 Intended Use
Intended Use Dear customer, The X4-TECH LUNA DT7 is a mobile DVD/TV device for the use with DVB-T televi- sion. The integrated DVD player will read Film Discs, Audio CD’s and Data Discs. You have acquired one of our high-class products. This instruction manual will... -
Page 4: Copyright Protection
Safety Instructions › The following safety instructions are not only for the safety and pro- tection of the device, but also for the protection of your own safety and Describes a function in the DVB-T operating mode. health. Please read and follow them carefully. Describes a function for the TTX. - Page 5 › Should the device, power supply or any connecting lines show dama- › Keep this product away from vessels containing liquids, e.g., buckets, ge, do not touch them, while they is still connected to the mains. Switch vases or plants. Liquids can enter the case/housing or the plug connec- off the main switch first and then pull the mains plug carefully out of tors.
-
Page 6: Chapter 3 Main Features
Main features › If you have any doubt about the approach, the security, the handling or › 17,5 cm (7") LCD display with 480 x 234 resolution the correct connection of the device, or questions should arise which are › mobile DVB-T reception not clarified in the course of this user guide, please turn to an authorized dealer or contact our technical information. -
Page 7: 3.2 Package Contents
3.2 Package Contents › Dynamic range: > 85 dB (DVD/CD) Connections › X4-TECH LUNA DT7 with integrated rechargeable battery Antenna, AV-out (3,5 mm), earphones (3,5 mm), USB 2.0, card reader, 12 V DC-IN › Remote control › 12V car adapter Supports ›... -
Page 8: Chapter 4 The Device
The Device Front 5 Card Reader The card reader supports SD, MMC and MS type memory cards up to 4 GB. The cards need to be formatted in FAT-32 format. 6 MEDIA This button opens the source selection menu. Select your source (disc drive, memory card or USB stick) and exit the menu by pressing the 1 1 2 3 button again. - Page 9 11 USB 2.0 Connector 10 Navigation Buttons / VOL –, / VOL+, › USB sticks up to a capacity of 4 GB can be used. They need to be formatted in FAT-32. Press to navigate within menus. › Do not use an extension cable longer than 25 cm. ›...
-
Page 10: Back
15 ON OFF 17 Loudspeakers 18 OPEN › Push the switch to ON to use the device and to OFF to switch it off. › The device will automatically use battery power if it is not connected to the Press this button to open the disc drive. 19 Disc Drive power supply. - Page 11 Number Pad › You can access titles directly by inputting the title number. „10+“ counts in steps of 10. The last digit is input by the numbers on the number pad. Please note that all files are counted progressively. This means that the first file is file number one.
- Page 12 ENTER 15 SOURCE Press ENTER to confirm your selection. This will open the source menu. Here you can choose the input SETUP medium that you want to view (disc drive, memory card or USB stick). Opens/leaves the SETUP function. Pressing the button again will exit the menu. (play/pause) 16 DISPLAY Press to pause/play/continue playback.
- Page 13 DVB-T SETUP menu. on the TTX page. 20 SEARCH / blue Starts the automatic program search function. First select the country, Starts a fast forward of the playback. Repeated pressing varies the if local position numbers should be used and start the program search. The speed.
-
Page 14: Changing Batteries
Changing Batteries Rechargeable battery The remote control uses one battery of the type CR2025 3V. The rechargeable battery has a capacity of 1200 mAh. This offers operational time for about two hours, depending on the type of active use If the range of the remote control is reduced or if the remote control is not wor- king correctly anymore, change the batteries. -
Page 15: Tips On The Use Of Batteries
Tips on the Use of Batteries › Avoid the total discharge of rechargeable batteries. › Take care of correct polarity when using batteries. Please note the following points when using batteries. › Batteries are hazardous waste and do not belong in the normal waste bin. ›... -
Page 16: Chapter 6 Dvb-T
First time installation DVB-T The installation assistant dialogue box will appear on screen after turning What is DVB-T? the device on for the first time. DVB-T is the abbreviation for Digital Video Broadcasting – Terrestrial. DVB-T is › You will be asked if this option is to be carried out. Select “YES“. broadcasted by earth based transmitters into the atmosphere. - Page 17 › „SETUP" opens the DVB-T menu. You can choose the channel in the “Channel › With the navigation buttons you can browse through the programs and their Guide” under „TV Channels". offers. Program settings Automatic Channel Change › Open the DVB-T menu by pressing „SETUP“. Choose “Channel Guide” to edit the ›...
-
Page 18: Chapter 7 Dvds, Audio Cds, Data Discs, Usb Sticks & Memory Cards
DVDs, Audio CDs, Data Discs, USB Sticks & Memory Cards Tips on Handling CDs und DVDs Please follow these steps in the described sequence. Putting in the medium Handling CDs and DVDs › Press „OPEN“ to open the disc drive, insert the disc and close the drive. ›... -
Page 19: Dvb-T-Mode
Menu Overview Note › Open/close the menu with „SETUP“. Depending on your Disc-drive and/or the used CD-R/RW (DVD-R, DVD+R, DVD- DVB-T Mode RW, DVD+RW) it may come to come to malfunction based in compatibility and features of the disc-drive. Channel Guide Some DVD’s and CD’s may not be able to be used at all, due to restrictions on the disc. -
Page 20: 8.2 Dvd-Mode
8.2 DVD-Mode › Language Defines the OSD language. System Setup › Parent Control Change PIN (standard PIN is 0000). › TV System Defines parental channel control (lock and unlock channels). Set the TV system (PAL or NTSC). Note: PAL is the standard TV norm for Germany. ›... - Page 21 Maintenance and Handling › Default Maintenance Reset to factory settings. Carry out a technical safety inspection on a regular basis, e.g. check if the power Language Setup cable or housing may have become damaged. If there is reason to believe that the device can no longer be operated safely, then ›...
- Page 22 Cleaning the device Dispose of the device is such a way as is mentioned by the law or rules of your Unplug all power supplies before cleaning. Always use a soft, dry and lint-free community. cloth to clean the unit’s exterior. If the device is extremely dirty you can use a soft cloth, dampened with water or a mild cleaning solution to clean.
- Page 23 Trouble Shooting This product has been produced according to current standards of production No picture / distortion and engineering. During the development it has proven to be reliable and wor- › Check the connection. king. Under some circumstances it may come to a malfunction. The reasons for ›...
- Page 24 · E-Mail: info@x-peer.de www.x4-tech.de Informational and updates http://www.x4-tech.de You will find original X4-TECH spare parts and accessories on the home pages of X4-TECH or under www.x-spares.de X4-TECH assumes no responsibility or liability for any errors or inaccuracies that may appear in this instruction manual.
- Page 25 Version 1.0 – 12 /2010 www.x4-tech.de...
