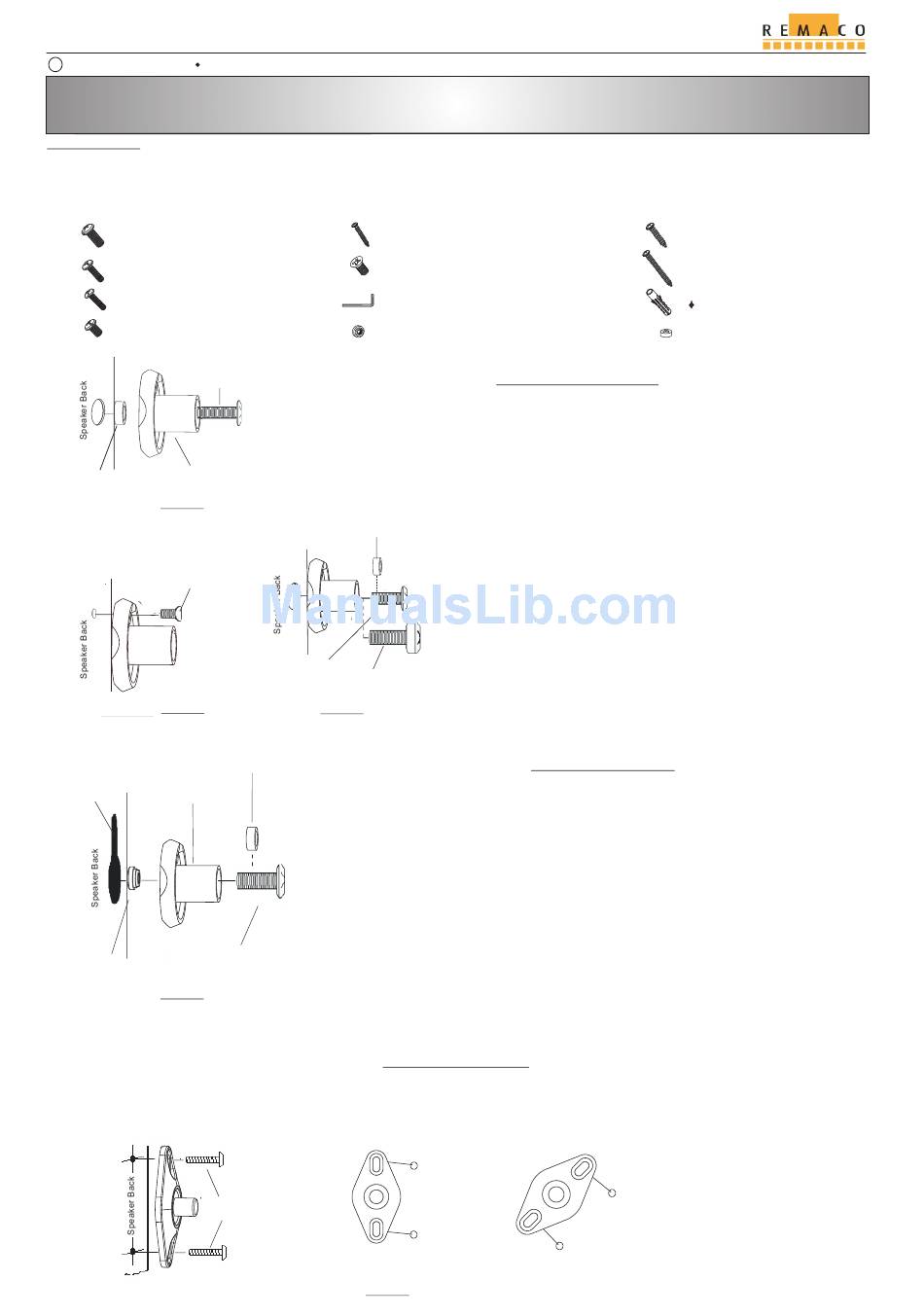

Remaco BKT-542 Installation Manual

C COPYRIGHTS 1998 REMACO TECHNOLOGIES PTE LTD

Important Notes:

Please read the instruction sheet prior to installation. This speaker mount was designed solely for the mounting of small speakers weighing less than 10lbs.
We are not responsible for damage that may occur if speakers weighing more than 10lbs are used.
The user will have to determine which type of configuration will work best with the hardware that was purchased. If the included hardware does not
fit the application, the appropriate hardware will have to be purchased.
M6x20mm Machine Screw (1)
M5x20mm Machine Screw (1)
5/8"-32x5/8" Machine Screw (1)
1/4"-20x1/2" Machine Screw (2)
M5 x 20mm
Machine Screw
Mounting Post
M5 x 1/8"
Plastic Washer
Figure 1
M4 x 8mm Flat Head
Machine Screw
Figure 2
Plastic Washer
Mounting Post
Keyhole
5/8"-32 x 5/8"
Machine Screw
#8-32 Round Key
Hole Nut
Figure 4
13. Find the best mounting configuration that matches your speaker enclosure. Four-hole speaker mount patterns
can be accommodated by positioning the speaker plate diagonally (Figure 5).
14. Using the 1/4"-20 x ½"machine screws, install the speaker plate and secure the speaker enclosure (Figure 5).
1/4"-20 x ½"
Machine Screw

Installation Guide

ST4.2x19 Self Tapping Screw (1)
M4x8mm Flat Head Machine Screw (1)
4mm Allen key
#8-32 Round Key Hole Nut (1)
1. Most satellite speakers will require the use of the M5 x 20mm machine
screw ised in combination will the M5 x 1/8" plastic washer.
The plastic washer is used as a spacer between the threaded insert and the post (Figure 1).
NOTE: It is critical the M5 plastic washer is used correctly.
2. Once the proper configuration is determined, secure the post to the speaker.
M5 x 1/8"
Plastic Washer
5/8"-32 x 5/8"
1/4"-20 x ½"
Machine Screw
Machine Screw
Figure 3
M5 x 1/8"
7. If your speaker has a factory key hole design, you will use the
5/8"-32 x 5/8" machine screws in combination with the key hole nut.
8. Loosely pre-assemble the mounting post with the 5/8"-32 x 5/8" machine screw
and key hole nut (Figure 4).
NOTE: Be sure the key hole nut is installed with the knurled (rough) edge
toward the post.
9. Engage the key hole nut into the key hole slot, as shown.
10. Put tension on the assembly by gently pulling back on the speaker mount post
while tightening the 5/8"-32 x 5/8" machine screw (Figure 4).
11. The key hole nut will engage on the housing in the key hole slot.
12. If the post does not tighten securely against the housing, it will be necessary to
use the M5 x 1/8" plastic washer as a spacer under the head of the 8-32 x 5/8"
machine screw (Figure 4).

2/4 - Hole Mounting

2-Hole Orientation
Figure 5
(For BKT-542)
(1)

Single Hole Mounting

3. Some speakers use the smaller M4 x 8mm hardware,
which is inserted into the off-center hole on the mounting post
(Figure 2).
4. Check the size of the hole and make sure the 5/8"-32 x 5/8"
machine screw, the 1/4"-20 x ½"machine screw, the M6 x 20mm,
or the M5 x 20mm fits inside (Figure 3).
5. When the correct size and attach to the rear of the speaker
enclosure.
NOTE: If the screw does not tighten properly, use the M5 x 1/8"
plastic washer to tighten it up.

Key Hole Mounting

4-Hole Orientation
Website: www.remacotech.com
V: 1.0
BKT-542
ST5.5x19 Self Tapping Screw (2)
ST5.5x45 Self Tapping Screw (2)
8x38 Alligator Plastic Anchor (2)
M5x1/8" Plastic Washer (1)
