Summary of Contents for Gote-Power G3220

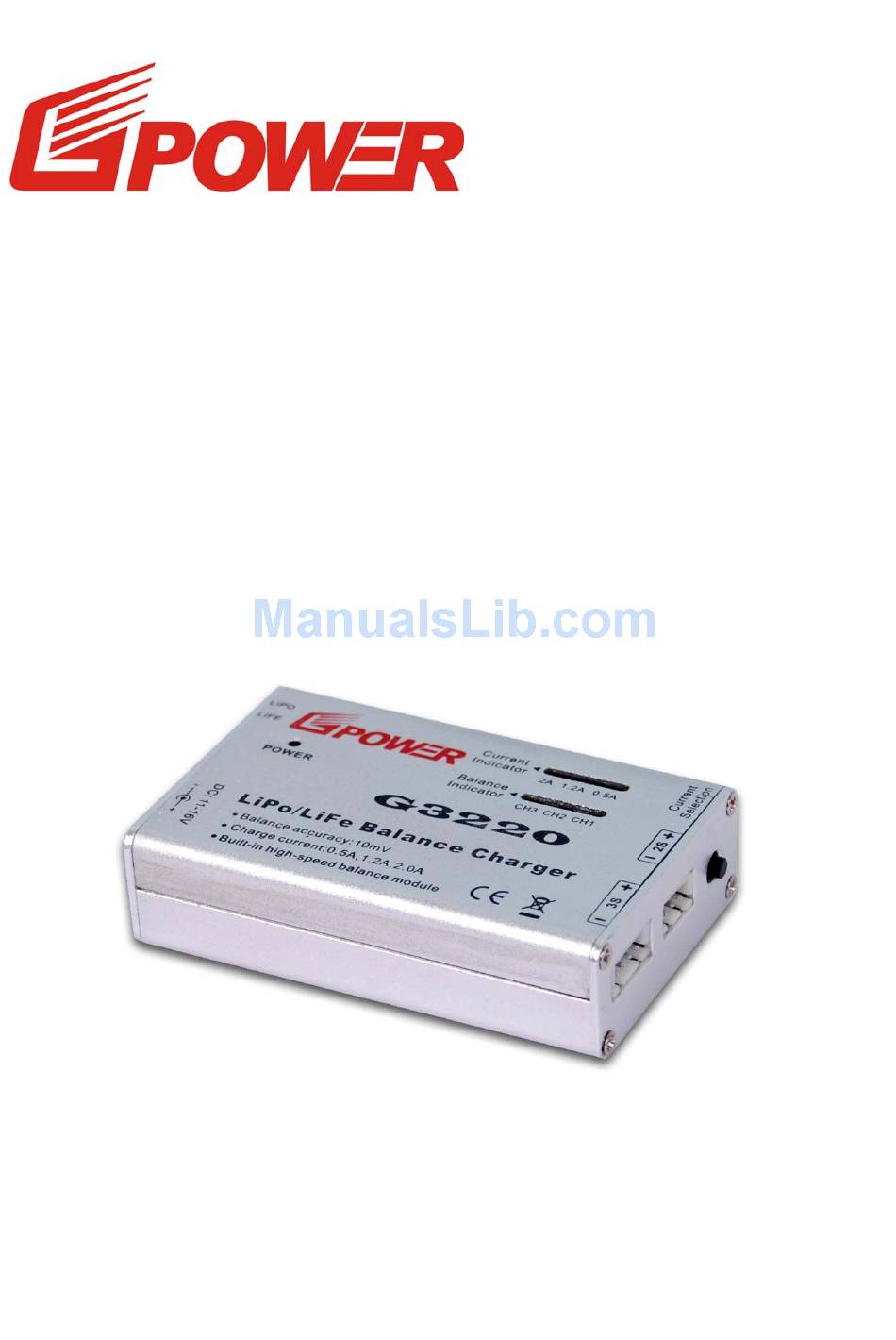

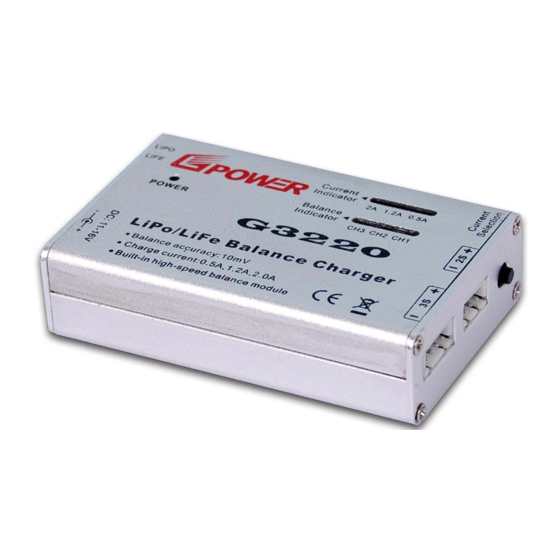

- Page 1 Intelligent Balance Charger Of LiPo/LiFe Battery G3220 User Guide...
-
Page 2: Specifications
Unpack Inspection： Opened the package, please follow the list below to check for lacking or damage,if any one is incompatible with the list, please connect with your suppliers immediately. One G3220 charger. One input power cord. One User‘s manual. Specifications：... -
Page 3: Performance Features
Having indicator of charging current and individual cell-balancing. Input under-voltage & over-voltage protection。 If the input voltage is under 10V or over 18V, G3220 will stop charging to protect the battery ,at the same time the power indicator lamp will flash quickly to warn. - Page 4 Preparing the power adapter or storage battery which matches with this charger(voltage:11-16V, current:≧2.0A),Connect the power supply to G3220, All LEDs turns on and then off in turn, the red LED stops at 1.2A(The default value of charging current is 1.2A).If input power supply doesn’t match, power supply light will flash at all times ,then pls change to...
- Page 5 Step 4: Start Charing Connect the 2S or 3S (LiPo or LiFe battery pack) to the G3220( Prohibit to connect 2S and 3S together to charge at one time). Now, the green LED begin to flash, this means G3220 is in charging. If the individual cell voltage of any one arrived at 4.20V(LiPo) or 3.60V(LiFe), corresponded LED will...
-
Page 6: Warranty Service
G3220 Intelligent Balance Charger Of LiPo/LiFe Battery Never leave the charger unsupervised when charging or discharging. If you leave, disconnect the battery to prevent any unexpected dangers or damage. Do not mix batteries of different types, different capacities or from different manufacturers. - Page 7 If there is any revision of this user guide , we will not inform you separately. Please log into the web server of www.Gote-Power.com to update by yourself. Shenzhen Gote Power Technology Co.,Ltd Manufacture Tel:86-755-8606 6596 Fax:86-755-8606 6596 www.gote-power.com Gote Power Technology Co.,Ltd.
