Summary of Contents for ASICO MyLocator

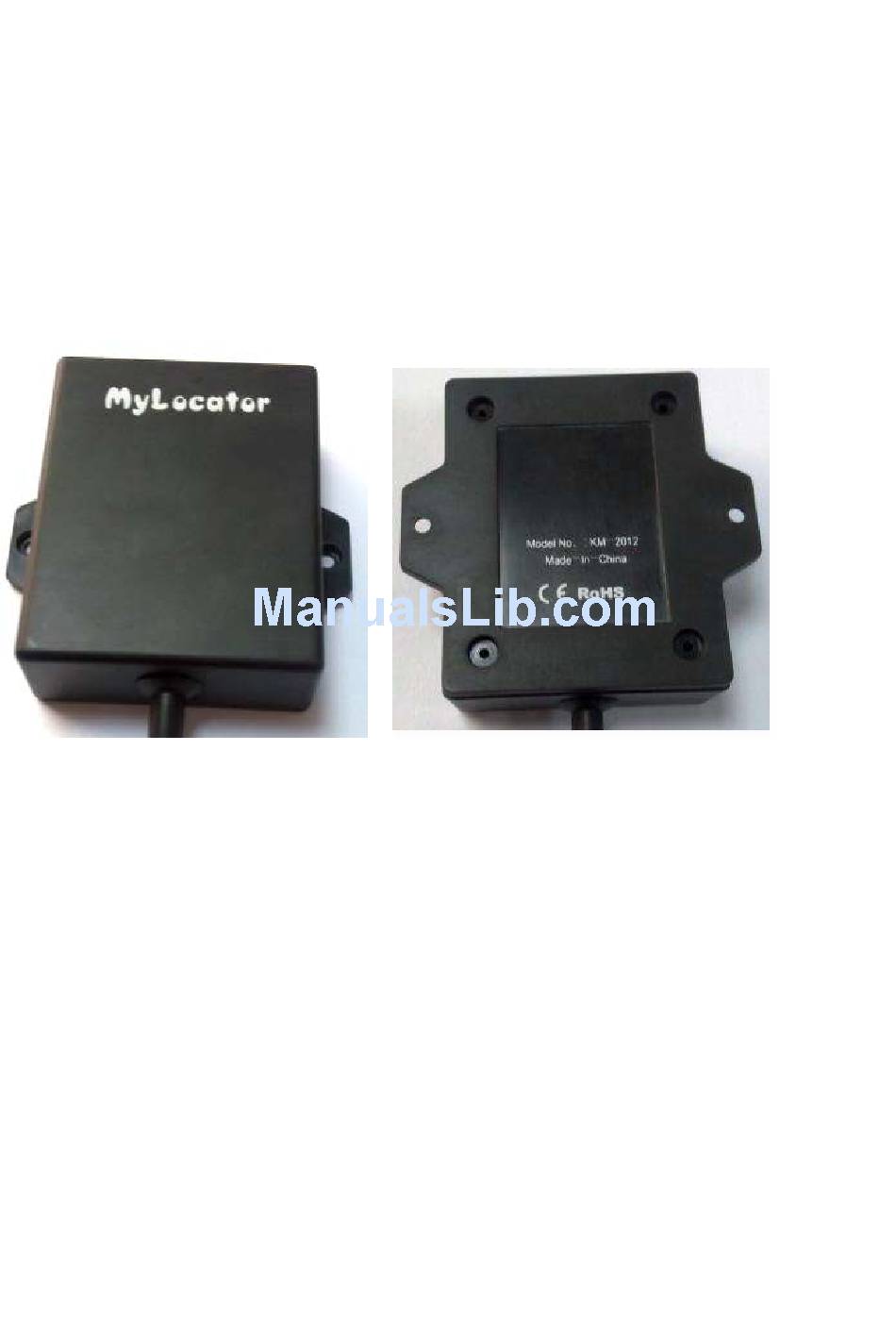

- Page 1 GSM/GPS/GPRS Vehicle/Motorcycle Motorbikes Tracking User Manual V7.0...
- Page 2 Every effort has been made to ensure that the contents of this booklet are correct. However, neither the authors nor Asico accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this booklet . The contents of this booklet are subject to change without notice.
-
Page 3: Product Overview
The information and instructions contained within this publication comply with all FCC, GCF, PTCRB, R&TTE, IMEI and other applicable codes that are in effect at the time of publication. ASICO disclaims all responsibility for any act or omissions, or for breach of law, code or regulation, including local or state codes, performed by a third party. - Page 4 Components and Installation Kit The unit Tracking model is a Telemetric device primarily intended to be fitted to a vehicle to provide location and Engine/Driver /Route information via a wireless network. Cable Loom The 8 Pins Way Power Loom is the main cable that provides power, input and output signals to the Panic Press Pad The Panic Press Pad can be used in an emergency to activate input 1 and...
- Page 5 Specification Paramete Power Supply +9V ‐+35V / 1.0A Backup Battery 200mAh Dimension 64*48*20mm Weight Operating temperature ‐20° to 55° C Humidity 5% to 95% Non‐condensing Frequency GSM 850/900/1800/1900Mhz GPS Module latest GPS SIRF‐Star III chipset GPS Sensitivity ‐158Db GPS Frequency L1, 1575.42 MHz C/A Code 1.023 MHz chip rate...
- Page 6 6. KIM-2012 installation: 1.Open The Unit case by remove 2. Pull the Strip to get the PCB out 3. Enter the sim card inside the sim slot the Screw from the case Turn on the swift button to start the unit Wiring Program...
- Page 7 Power connection: Connect to Permanent power via fuse Ignition Detection Input 4 or Input 5 (positive triggering) can be used for ignition detection.The detection alarm will be sent to the server via GPRS. Please refer to <GPRS Communication Protocol> Alarm Command 0x9999 for more information. 9.5 Analog Input (AD1 and AD2) Input voltage should be 0~6V.
- Page 8 Connect with Car original Fuel meter Fuel level sensors supplied by us are resistance-type sensors with output resistance: 0-200Ω(ohm). For the circuit shown on the right picture, if VCC is 12V, R should be 200Ω(ohm) and if VCC is 24V then R should be 600Ω(ohm) to make the input range to AD1 or AD2 is 0-6V.
