Daewoo TP-605GUC Service Manual

Daewoo TP-605GUC Service Manual

Зortable radio cassette with cd/mp3/usb/card slot player
Hide thumbs Also See for TP-605GUC:

Advertisement

Quick Links

Download this manual

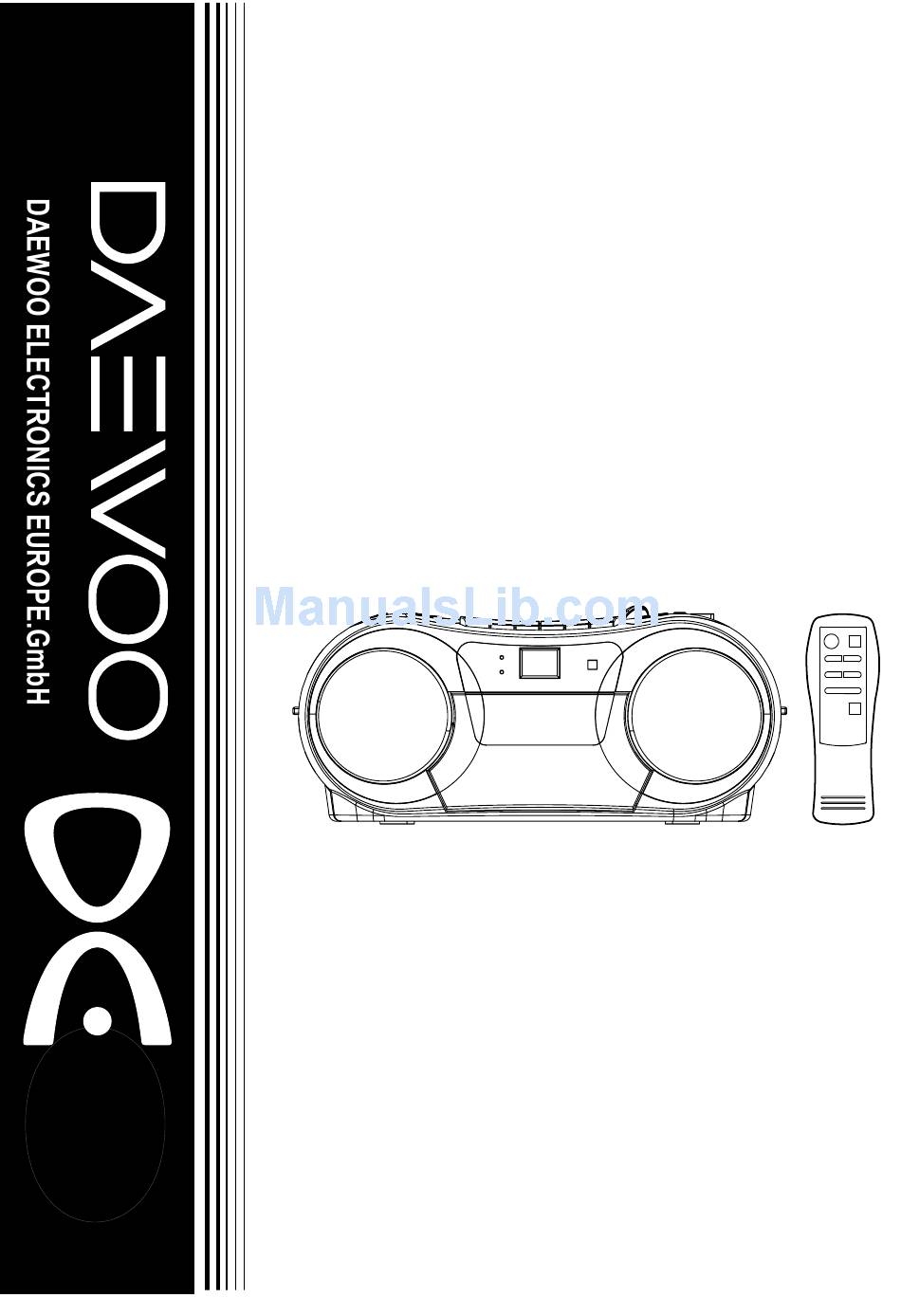

Service Manual
Portable Radio Cassette
with CD/MP3/USB/Card Slot Player
TP-605GUC
DAT H.K. LIMITED

Advertisement

loading
Need help?

Need help?

Do you have a question about the TP-605GUC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo TP-605GUC

Summary of Contents for Daewoo TP-605GUC

  • Page 1 Service Manual Portable Radio Cassette with CD/MP3/USB/Card Slot Player TP-605GUC DAT H.K. LIMITED...

  • Page 2: Model Specification

    CONTENTS : # MODEL SPECIFICATION P.1-7 # SCHEMATIC DIAGRAM P.8-9 # PCB LAYER DIAGRAM P.10-13 # WIRING DIAGRAM P.14 # BLOCK DIAGRAM P.15 # EXPLODE DIAGRAM P.16 # PART LIST P.17-24...
  • Page 3 PAGE:1 OF 7 MODEL NUMBER: UC966DR(2W) CUSTOMERS MODEL NUMBER: TP-605GUC BRAND: TYPE OF SET: PORTABLE RADIO CASSETTE WITH CD/MP3/USB/CARD SLOT PLAYER DATE: 15/4/2006 STANDARD TEST CONDITIONS SUPPLY VOLTAGE: INTO 4 OHM LOAD REFERENCE OUTPUT POWER: AM ANTENNA: IRE LOOP ANT.
  • Page 4 PAGE: 2 OF 7 AM PERFORMANCE SPECIFICATIONS (MW) Test Items Unit Nominal Limit Remark1 Intermediate frequency +/-3 Tuning range 520-1630 Dial calibration 612KHz 1404KHz 612KHZ dB/M MAX SENS 999KHz dB/M 1404KHz dB/M 20 dB quieting 612KHz dB/M 999KHz dB/M sensitivity 1404KHz dB/M IF rejection...
  • Page 5 PAGE: 3 OF 7 FM PERFORMANCE SPECIFICATIONS Test Items Unit Nominal Limit Remark1 Intermediate frequency 10.7 +/-0.1 Tuning range 87.35-108.25 +/-0.15 '+/-0.25 Dial calibration 90MHz 106MHz 90KHZ MAX SENS 98MHz 106MHz 30 dB quieting 90MHz 98MHz sensitivity 106MHz IF rejection 90MHz Image rejection 106MHz...
  • Page 6 PAGE: 4 OF 7 FM PERFORMANCE SPECIFICATIONS Test items Unit Norminal Limit Remark1 25 MPX indicator sens. 100Hz W/Z 19KHz 26 MPX separation 1k Hz FILTER 10K Hz 27 MPX T.H.D. Main 400 Hz W/Z 19KHz L. or R. 1K Hz FILTER MAX 50dB quieting Sensitivity...
  • Page 7 PAGE: 5 OF 7 CASSTETTE ( MAGNET ERASE ) Test items Unit Nominal Limit Remark1 Tape speed B-111N 3000 Hz +3,-2 Wow & Flutter WRMS JIS B-111N 0.35 Distortion B-118N S/N ratio B-112S Cross talk B-121N Separation B-141N Hum & noise VR Max Hum &...
  • Page 8 PAGE: 6 OF 7 (CD BUIDE IN) (TEST AT SPKD OUTPUT) Test items Unit Nominal Limit Remark1 LEVEL TRACK 1.3,11 +/-3.5 FREQUENCY RESPONSE 40 - 15KHz LEVEL 0dB TRACK 30,34 JIS A NET IN CHANNEL SEPARATION 1KHz LEVEL 0dB TRACK 14 JIS A NET IN TOTAL HARMONNIC DISTORTION LEVEL 0dB...
  • Page 9 PAGE: 7 OF 7 AUDIO LEVEL BALANCE Unit Norminal Limit Remark0 FM 1000uV 22.5K DEV. +/-3 FM FUNC.1mV AM 5mV/M30%MOD +/-3 22.5KHz DEV TAPE - 10dB 1KHz MTT-118 +/-3 (FM LEVEL 0dB) CD-10 dB RECORDING LEVEL...
  • Page 19 DAT H.K. LTD. PAGE:1/8 TP-605GUC PART NO DESCRIPTION 中文名 158-966001-00 1 966DR PM1 ASSʼY 主 主 板 板 组 组 合 合 件 件 133-208227-14 1 I.C TA8227P 集成电路 133-102111-67 1 I.C SA2111 集成电路 133-207312-11 1 I.C AN7312 集成电路 133-507805-61 1 I.C KA7805...
  • Page 20 DAT H.K. LTD. PAGE:2/8 TP-605GUC PART NO DESCRIPTION 中文名 127-105078-01 3 ELE.CAP 10UF/50V +/-20% C22.87.301. 电解电容 127-226048-01 5 ELE.CAP 22UF/16V +80/-20% C3.83.85.129.173. 电解电容 127-476048-01 9 ELE.CAP 47UF/16V +80/-20% C1.39.124.134.140.145.146.151.170. 电解电容 127-107048-01 16 ELE.CAP 100UF/16V +80/-20% C18.28.80.91.108.109.110.111.112.127. 电解电容 C137.130.131.179.187. 64 127-107058-01 1 ELE.CAP 100UF/25V +80/-20%...
  • Page 21 DAT H.K. LTD. PAGE:3/8 TP-605GUC PART NO DESCRIPTION 中文名 113-333005-63 4 CAR. RESISTOR 33K 0603 R156.157.158.159. 贴片电阻 113-473005-63 18 CAR. RESISTOR 47K 0603 R9.20.74.75.87.101.103.124.137.138. 贴片电阻 R106.108.111.117.118.119.120.210. 113-563005-63 1 CAR. RESISTOR 56K 0603 贴片电阻 100 113-683005-63 1 CAR. RESISTOR 68K 0603 R143.
  • Page 22 DAT H.K. LTD. PAGE:4/8 TP-605GUC PART NO DESCRIPTION 中文名 139 187-000966-00 1 FH0185B1-DSP (BLUE BACKLIGHT) 显示背光源 140 136-316038-00 OPTIC R/C REC MORULE FM-6038LM-5A（E3标记） 红外线接收头 127-476048-01 1 ELE.CAP 47UF/16V +80/-20% 电解电容 141 127-107038-01 1 ELE.CAP 100UF/10V +80/-20% 电解电容 142 123-104350-16 3 C.CAP 0.1UF+/-20% 50v C2.5.6...
  • Page 23 DAT H.K. LTD. PAGE:5/8 TP-605GUC PART NO DESCRIPTION 中文名 181 101-480661-35H 1 TRANSFORMER EI-48 230V 50Hz ( 按生产细则 ） 变压器 101-480661-25H 1 TRANSFORMER EI-48 220V 50Hz ( 按生产细则 ） 变压器 101-480661-1AH 1 TRANSFORMER EI-48 110/220V 60/50Hz ( 按生产细则 ） 变压器...
  • Page 24 DAT H.K. LTD. PAGE:6/8 TP-605GUC PART NO DESCRIPTION 中文名 214 191-020280-02 1 UL1007#26AWG 280mm 2P1H P=2.5mm MAIN PCB CN3 TO BATTERY 线材 非 非 CE认 认 证 证 用 用 料 料 209 174-833150-20 1 UL2547#28D/S 150mm 3PINS MAIN PCB TO HEAD PHONE JACK 线材...

  • Page 25: Remote Controller

    DAT H.K. LTD. PAGE:7/8 TP-605GUC PART NO DESCRIPTION 中文名 715-096601-00 1 METAL GRILL-L 左铁网 715-096602-00 1 METAL GRILL-R 右铁网 308-003106-00 4 CD RUBBER CUSHION 25 度 避震胶 25度(绿色) 560-093801-00 1 ANTENNA 天线 720-325003-00 1 ANTENNA CONNECTD3.2*50*0.3 天线焊片 740-093801-00 1 CD DOOR SPRING CD门弹簧...
  • Page 26 DAT H.K. LTD. PAGE:8/8 TP-605GUC PART NO DESCRIPTION 中文名 77 303-050505-00 3 PAD CORD 5*5*5MM FOR BATTERY PLATE*2 高密度海棉 FOR REMOTE PCB*1 PAPER LABEL 642-096601-00 1 INSTRUCTION MANUAL 说明书 664-053211-02 1 DATE CODE LABEL 日期贴纸 664-053211-25 1 THERMAL FUSE LABEL 火牛贴纸...
