Page 1: Table Of Contents
Wiring Phones Single Line Phones Two Line Phones (option 1) Two Line Phones (option 2) Multi-Line Phones Connecting Faxes Choose a Method Dedicated Fax Line Distinctive Ring Fax Detection Automatic Detection via the Auto Attendant copyright centrepoint technologies inc. 2002 www.talkswitch.com... -
Page 2: Suggested Configuration
Connections from the TalkSwitch to all your telephone devices and computer, you need not add all of the phones The fax machine should be put into local extension ‘E8’ for a TalkSwitch 48, or ‘E3’ for the TalkSwitch 24 model. -
Page 3: Connecting Devices
- Connect the first incoming phone line to L1/L2. - Connect the second to L2. TalkSwitch 48-LS users can then connect remaining lines to L3/L4 and L4. If you have 2 lines out of 1 phone jack, you can plug it into the L1/L2, and L3/L4 jacks. -
Page 4: Connecting Phones

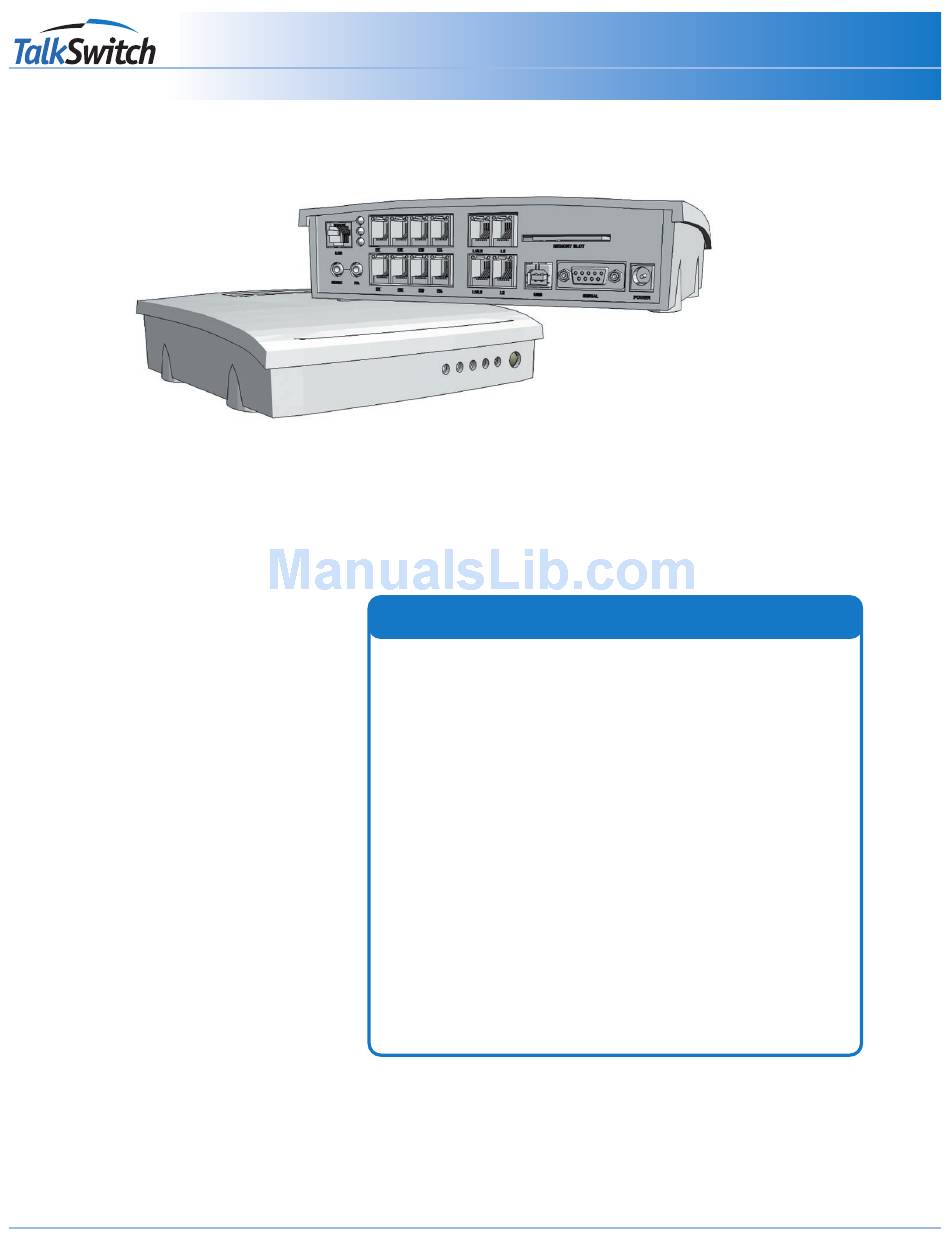

Wiring to TalkSwitch From Phone Lines RJ-11 cable to incoming phone lines. E1 E2 E3 E4 TalkSwitch 48-LS - Rear Panel Use the following pages to determine how to connect single line, two line, and multi-line phones. -
Page 5: Single Line Phones
RJ-11 cable. The jacks at the end of the cables should have two pins, although a 2 line / 4 pin cable will also work. Pin 1 Single Line RJ-11 Jack Ext 111 Pin 2 to TalkSwitch Jack E1 copyright centrepoint technologies inc. 2002 www.talkswitch.com... -
Page 6: Two Line Phones (Option 1)
RJ-11 cable. The jacks at the end of the cables should have two pins as shown below. Ext 111 Pin 1 to Jack E1 Single Line RJ-11 Jack Pin 2 Ext 112 to Jack E2 copyright centrepoint technologies inc. 2002 www.talkswitch.com... -
Page 7: Two Line Phones (Option 2)
Jack E1 A 4 pin female receptical will two pins as shown below. indicate that you have a duplexer and not a line splitter. Ext 112 to Jack E2 Single Line RJ-11 Jack copyright centrepoint technologies inc. 2002 www.talkswitch.com... -
Page 8: Multi-Line Phones
Ext 113 two line (4 pin) male connector. to Jack E3 A 4 pin female receptical will Ext 114 to Jack E4 indicate that you have a duplexer and not a line splitter. copyright centrepoint technologies inc. 2002 www.talkswitch.com... -
Page 9: Connecting Faxes
More telephone lines can be added as you grow, and you can keep the same fax arrangement. Disadvantages: You only have one line, and can therefore only handle one call at a time. You may have to purchase distinctive ring from your phone company. copyright centrepoint technologies inc. 2002 www.talkswitch.com... -
Page 10: Dedicated Fax Line
Remember, TalkSwitch 24 units only have 2 incoming lines and 4 local extensions, so incoming lines are connected to jacks TalkSwitch 48 with dedicated fax line. L1 and L2, and local phone extensions to E1 through E4. copyright centrepoint technologies inc. 2002... -
Page 11: Distinctive Ring Fax Detection
For TalkSwitch 24, we recommend that you put your fax into extension 113. For TalkSwitch 48, we suggest you put the fax into extension 118. copyright centrepoint technologies inc. 2002 www.talkswitch.com... - Page 12 Ring Extension 118 TalkSwitch 24 fax connections TalkSwitch 48 fax connections 3.6 Reconnect Phones and other Devices to TalkSwitch You may wish to add the following telephone equipment. It is not necessary to add all these devices or lines Additional Incoming...
-
Page 13: Automatic Detection Via The Auto Attendant
Step “E” above configures the incoming fax line. The default configuration assumes that the fax machine is attached to extension 118 (TalkSwitch 24 users should connect to extension 113). Adjust these values to match the extensions you will plug your fax into. copyright centrepoint technologies inc. 2002 www.talkswitch.com... - Page 14 Choose 'File' then 'Save to TalkSwitch'. A progress bar will show the data exchange to the TalkSwitch unit and should take only a few seconds to complete. Step B Disconnect The TalkSwitch unit from the computer. Saving TalkSwitch Settings. copyright centrepoint technologies inc. 2002 www.talkswitch.com...
- Page 15 Extension 113 Extension 118 TalkSwitch 24 fax connections TalkSwitch 48 fax connections 4.6 Reconnect Phones and other Devices to TalkSwitch The following telephone equipment may be connected, however it is not necessary to add all of the suggested devices or lines.
