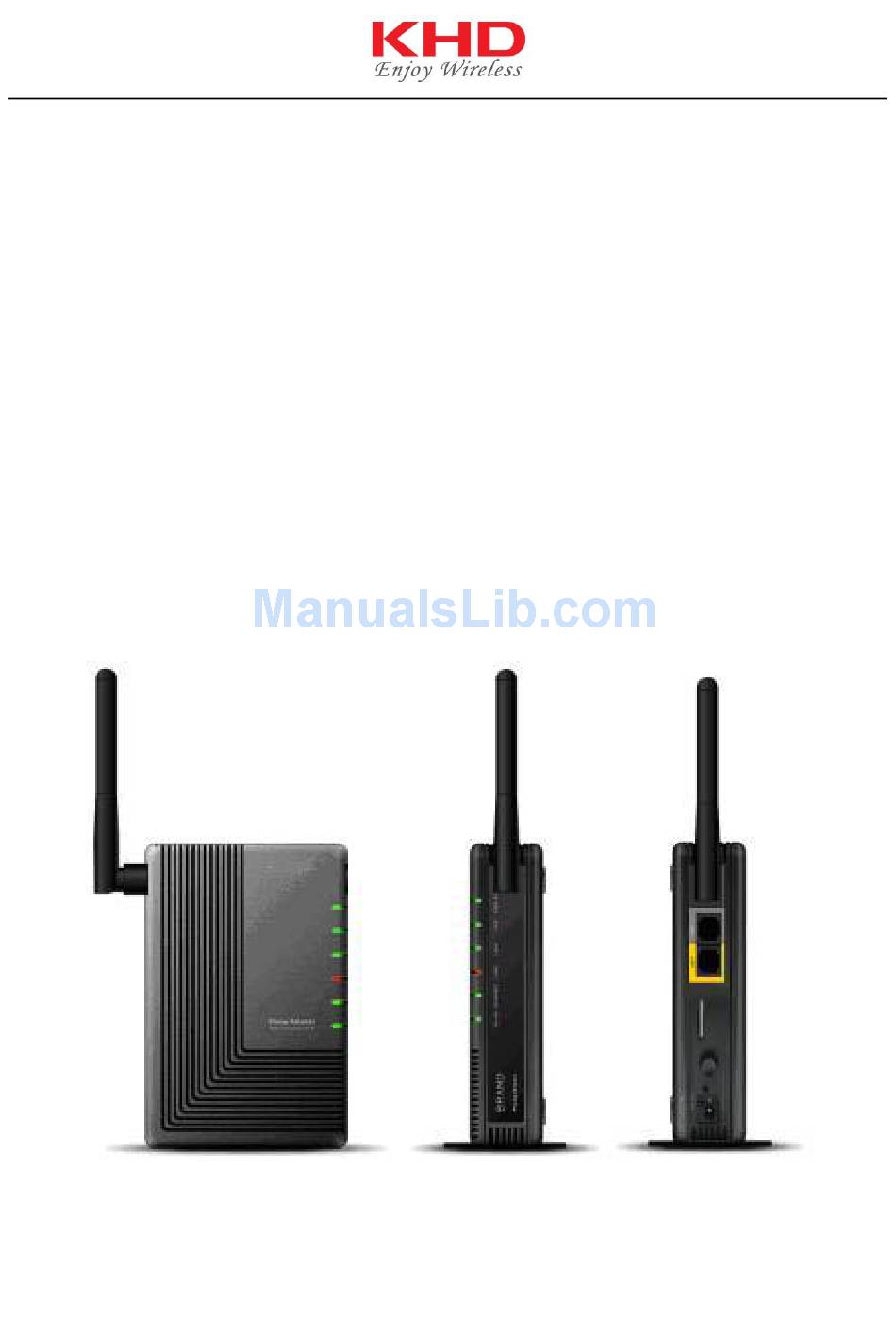

3G Wireless Router CW450 EVDO A , 450MHZ Quick Start Guide www.khd.hk... - Page 2 Thank you for purchasing CW450! This high cost-efficiency router is the best choice for Small office / Home office users, all computers and network devices can share 3G internet via Ethernet or Wi-Fi, and also share a single xDSL / cable modem internet connection at high speed. Easy install procedures allows any computer users to setup a network environment in very short time - within minutes, even inexperienced.
- Page 3 LEDs Status Description The power is ready and it works Power The power is off. LAN port is successfully connected. Blink Sending / receiving data No Ethernet connection WAN port is successfully connected Blink Sending / receiving data No Modem Connection Radio switch is turned on WiFi Blink...
- Page 4 Instruction of the ports on the rear panel: Button/port Description LAN Port. Connect LAN systems with RJ-45 cable. WAN Port. Connect DSL or Cable modem. SIM Card SIM card port. Power Turning on/off the router power. Reset configurations to default. Press the button and hold for Reset 5 seconds.
- Page 5 Setup using built-in 3 G module 1. Connect the power adapter to the power jack, then plug it into the wall socket. 2. Insert a 3G SIM Card to the SIM card port, and then turn on the router power. 3.
- Page 6 3. Connect your computer to the router’s LAN port using an Ethernet cable. 4. Check to make sure the router’s LAN and WAN LED is lit; to confirm the cable connections are made correctly. Connecting to the Internet To Connect to the Internet via the Web User Interface: 1.
- Page 7 3. After your successful login, you enter the CW450 router WEB configuration interface. - 7 -...
- Page 8 4. Click "Internet Settings" - > "WAN" and enter into the WAN setting page. a) 3G Internet For 3G Internet connection type, you are required to have the following: ① build-in 3G Module ② Broadband data SIM card. Select “3G” Internet Connection type then set up the rest of the parameters to continue.
- Page 9 drop-down list. The default is “Auto Detect”. Connect Status ： The current status of the 3G network connection. Boot-up dial mode：auto & manual. Dial parameter：Default & User defined. For 3G Internet Connection select ‘User defined’ then enter Username, Password, Dial Number, APN and PIN Code provide by your ISP.
- Page 10 Select STATIC (fixed IP) for the WAN port. Then fill the IP address、subnet mask、default Gateway、primary DNS server and secondary DNS server (you can get parameters from your ISP, and you must enter and fill in at least one parameter) Select PPPoE (ADSL) for the WAN port, you can configure the - 10 -...
- Page 11 following parameters to PPPoE dial up through a DSL modem. 5. Chick “Wireless Settings” --> “Basic” to the configure page. Check Radio ON to activate your wireless connection and set the SSID for your 3G Wireless-N Router. Click the Apply button to save your setting.
- Page 12 6. Click "wireless network Settings" - > "Security", going into the Wireless Security/Encryption setup page. - 12 -...
- Page 13 Select “Security Mode” to select desired type of encryption for the router Wi-Fi and input encryption key and Click ‘Apply’. Click the “Apply” button to save your setting. - 13 -...
