TI Designs

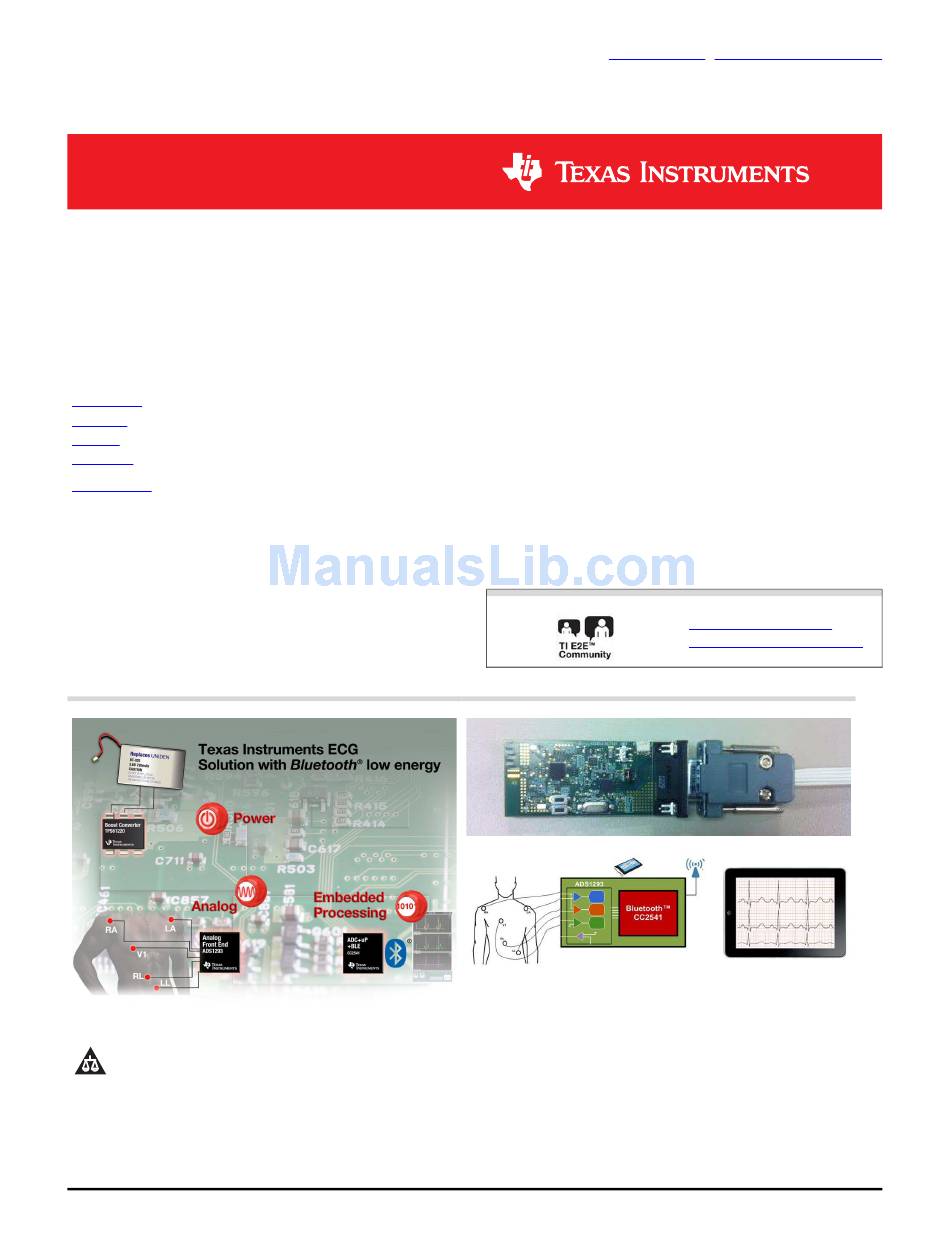

Wireless Heart Rate Monitor Reference Design
TI Designs
TI Designs provide the foundation that you need
including methodology, testing and design files to
quickly evaluate and customize and system. TI
Designs help you accelerate your time to market.
Design Resources
Tool Folder Containing Design Files
TIDA-00096
ADS1293
Product Folder
CC2541
Product Folder
TPS61220
Product Folder
Small Programmer and Debugger for
CC Debugger
Low-Power RF System-on-Chips
An IMPORTANT NOTICE at the end of this TI reference design addresses authorized use, intellectual property matters and other
important disclaimers and information.
WebBench is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
TIDU195A – January 2014 – Revised July 2014
Submit Documentation Feedback
Design Features
The Wireless Heart Rate Monitor with Bluetooth® low-
energy (BLE) is a reference design for customers to
develop end-products for battery-powered 3-channel
health and fitness electrocardiogram (ECG)
applications.
•
Supports 5-Lead ECG applications
•
Easily monitor heart rate data through an iOS
Mobile Application
•
Powered by a Lithium-ion battery
•
EMI filters integrated in the ADS1293 device reject
Interference from outside RF sources
•
Open-source Firmware and iOS application
enables quick time-to-market for customers
Featured Applications
•
Health and Fitness
Copyright © 2014, Texas Instruments Incorporated
Ajinder
Singh,
Natarajan Viswanathan
ASK Our Analog Experts
WebBench™ Calculator Tools
Wireless Heart Rate Monitor Reference Design
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TI Designs and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TI Designs

  • Page 1 Wireless Heart Rate Monitor Reference Design TI Designs Design Features TI Designs provide the foundation that you need The Wireless Heart Rate Monitor with Bluetooth® low- including methodology, testing and design files to energy (BLE) is a reference design for customers to quickly evaluate and customize and system.
  • Page 2 (DCK) measuring 2 mm × 2 mm to enable small circuit layout size. For the TPS61220 block diagram, see Figure Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 3 – TPS6122x Low Input Voltage, 0.7V Boost Converter With 5.5μA Quiescent Current For more information on each of these devices, see the respective product folders at www.TI.com. TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 4 Two differential or four single-ended inputs • SPI™-compatible interface • 3,5 mm × 3,5 mm × 0,9 mm QFN package Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 5 (BLE LL TIMER) TIMER 3 (8-bit) RF_P RF_N TIMER 4 (8-bit) DIGITAL ANALOG MIXED Figure 3. CC2541 Block Diagram TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 6 – Two I/O pins have LED Driving capabilities – Watchdog timer – Integrated high-performance comparator • Development Tools Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 7 Network processor interface for applications running on an external microcontroller • BTool – Windows PC application for evaluation, development, and test TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 8 Adjustable output voltage from 1.8 V to 6 V • Fixed output voltage versions • Small 6-pin SC-70 package Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 9 8051 microcontroller core in addition to running the BLE stack. For additional information, see Section 4.4. TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 10 Figure 7. Current Consumption-Active versus Sleep Modes Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 11 5. In order to view the Identifier number (UDID), double click on Serial Number as shown in Figure 10 TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 12 2. Once the top-left button is clicked, a menu appears, click on Add File to Library (see Figure 12) to navigate to and select the ecgmonitor.ipa file from the file directory. Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 13 Getting Started www.ti.com Figure 12. Add File to Library TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 14 (see Figure 15). Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 15 Figure 16. ECG Monitor Application • Press the Start Scanning button as shown in Figure Figure 17. Launch Application TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 16 – Figure 20 appears when connected to the body. Figure 20. ECG Data Connected to the Body Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 17 The peer device may also discover and configure the battery service for battery level-state notifications. This functionality is the same as supported in Simple BLE Peripheral framework. TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 18: Getting Started

    0x2D3A ECG_COMMAND 00 (1 byte) GATT_PERMIT_READ ECG command set Figure 21. ECG Peripheral Application: Complete Attribute Table Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 19 ECG Sample2: Channel 3 ADC Low byte The Allowed maximum size of notification packet is 20 bytes. TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 20 Figure 23. CC Debugger Launch the IAR project workspace as shown in Figure Figure 24. Project Details. Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 21 Ensure that the software is on version 8.20.1 or newer as shown in Figure Figure 25. Version Control Figure 26 shows the main entry function. Figure 26. Main Function TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 22 Start again to reconnect the demo board. If the issue continues, see the following solution on adjusting the input voltage from the battery. Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 23 1500 1000 Time (s) C004 Input-Referred Noise (µV) C006 Figure 30. Input-Referred Noise Figure 31. Noise Histogram TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 24 11L1 -4.38 -4.26 204.8 118.8283733 11L1 1800 -4.39 -4.48 147.2 115.5902624 11L1 2400 -4.42 -4.37 47.73 101.1310575 Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 25 – IC – Industry Canada ICES-003 Class A See the Gas Sensor Platform Reference Design (SNOA922) for reference. TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 26 V_Lithium 4.7µH EPL3015-472MLB VOUT V_Lithium 1.00Meg 10µF TPS61220DCK 0.1µF 47µF 10µF EG1390B 200k Figure 36. Power Section Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 27 SYNCB RSTB VSSIO 22pF 0.1µF ADS1293CISQE/NOPB VDD_3 1.0Meg VDD_3 1.0Meg PTS635SL50LFS RSTB_1293 Figure 37. Analog Front End TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 28 56.2k 1000pF CONN_FTSH-105-01-L-DV P0_3/MISO P0_5/SCK PULSE_BEAT 2.21k RESET_N Yellow BLE_RST 1293_RSTB PTS635SL50LFS RSTB_1293 Figure 38. ADS1293 Section Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 29 LQG15HS2N2S02D MuRata Ω, SMD Inductor, Multilayer, Ferrite, 5.1 nH, 0.3 A, 0.2 Ω, 5.1nH 0402 LQG15HH5N1S02D MuRata TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 30 1,6 mm Crystal, 4.096 MHz, 18 pF, SMD Crystal, 11,4 × 4,3 × ECS-41-18-5PXEN-TR ECS, Inc. 3,8 mm Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 31 Figure 0. UNDEFINED Figure 0. UNDEFINED Figure 0. UNDEFINED Figure 39. Layer Plot Figure 0. UNDEFINED Figure 0. UNDEFINED TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 32 Figure 40. All Layers Figure 41. Bottom Layer Figure 43. Top Layer Figure 42. Ground Layer Wireless Heart Rate Monitor Reference Design TIDU195A – January 2014 – Revised July 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 33 To download the Gerber files for each board, see the design files at TIDA-00096. Figure 44. Fab Drawing TIDU195A – January 2014 – Revised July 2014 Wireless Heart Rate Monitor Reference Design Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 34 SWRU270 About the Author AJINDER PAL SINGH is a Systems Architect at Texas Instruments where he is responsible for developing reference design solutions for the industrial segment. Ajinder brings to this role his extensive experience in high-speed digital, low-noise analog and RF system-level design expertise. Ajinder earned his Master of Science in Electrical Engineering (MSEE) from Texas Tech University in Lubbock, TX.
  • Page 35 Added paragraph explaining that installation of application is manual, but the designer must still connect to iTunes to ........................install the application. NOTE: Page numbers for previous revisions may differ from page numbers in the current version. TIDU195A – January 2014 – Revised July 2014 Revision History Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
