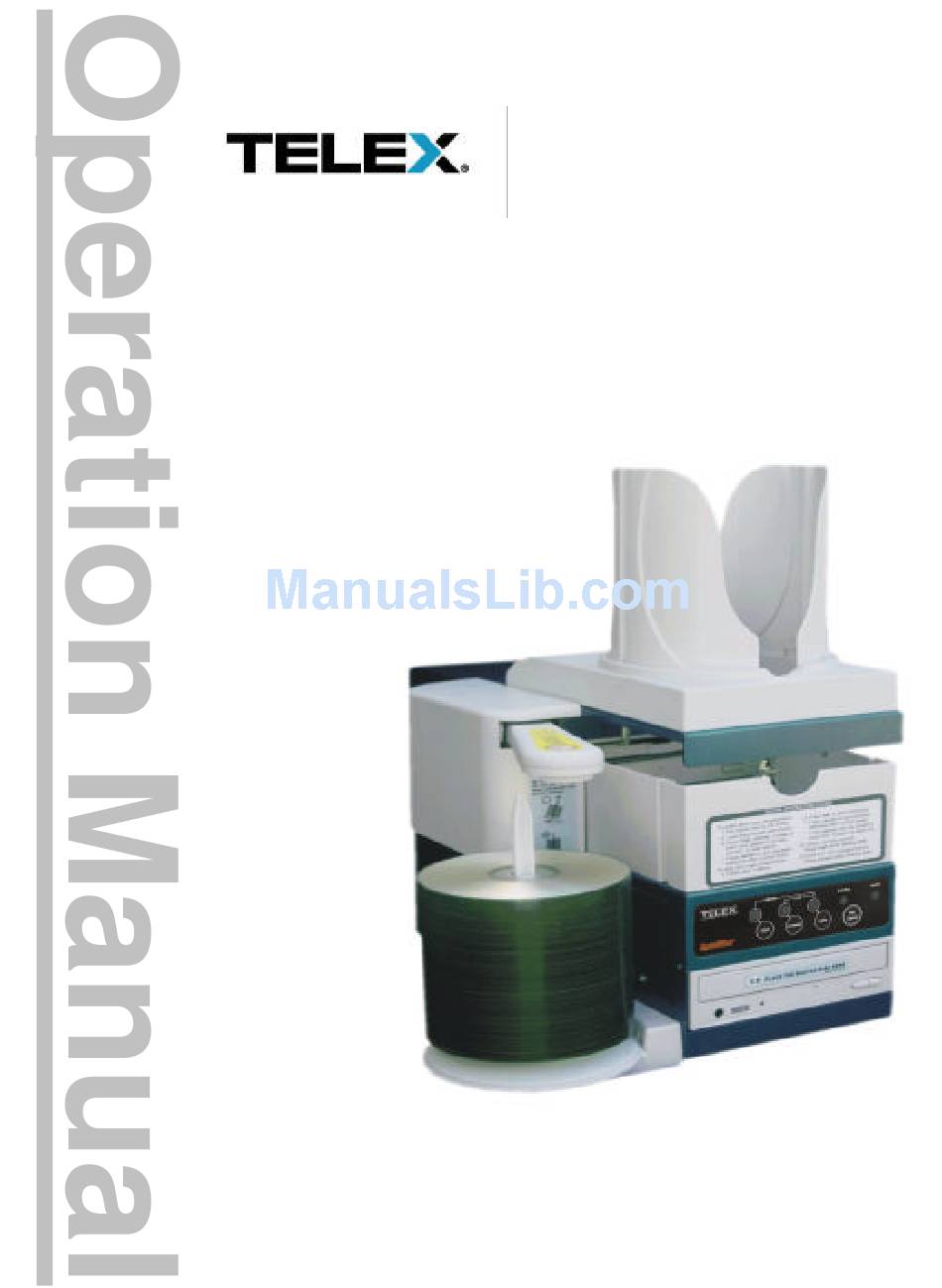

- Page 2 Model #: CDR100A Automatic CD Duplicator Serial Number: ______________________ Serial number is labeled on the real panel of your device.)
- Page 3 It takes only minutes to learn with no hassles!! This operation manual provides you with all the i m portant information that you need. It helps you understand the product, so CDR100A can work as intended. Again, we appreciate your purchase. Telex Communications Inc. works closely with our customers to provide our intelligent, convenient automation equipment and solutions .
- Page 4 Do not touch any moving parts to avoid injury or damage. Copyright Information © Telex Communications Inc. 2002-2003. Version: V3.0R1 All rights reserved. Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.
- Page 5 Telex Communications Inc. makes no warranty of any kind with respect to this information. Telex Communications Inc. warrants this device for a period of one year from the date of delivery free from defects in material and workmanship. In case of a malfunction or fault, Telex Communications Inc.
- Page 6 Any written or oral information or advice given by the dealer, reseller, agents, sales reps, or employee of Telex Communications Inc. will in no way increase the scope of this warranty nor may you rely on such oral or written communication.
- Page 7 _________________________________Table of Contents Preface What You Shall Need ·······························································································2 Important Safety Instructions ··················································································3 FCC Regulations······································································································· 4 Limited Warranty ·······································································································4 Installation Unpacking the Package ···························································································7 Checking the Contents ·····························································································7 Getting Familiar with Your Duplicator ·····································································8 Assembling Your Duplicator ····················································································8 Disassembling Input Hopper Leaves·······································································9 Operation Loading Blank Discs ·······························································································10 Getting Ready ··········································································································10...
- Page 8 Checking the Contents Your CDR100A shall come with: - One CDR100A auto-duplicator unit - One spindle kit (including one spindle, one spindle base, and one ring)
- Page 9 Getting Familiar with Your Duplicator Assembling Your Duplicator Assemble the input hopper leaves: Carefully attach the two leaves, one at a time, on the input hopper. Assemble the spindle set: Follow the instruction that comes with the spindle kit to assemble the spindle. The spindle is where the successful discs will be stacked.
- Page 10 Attach the spindle set: Attach the spindle set on the bracket. Connect the power cord: Plug in the power cord to the real panel of the device, and connect the cord to a wall outlet. M Warning… Use a reliable power source of a correct voltage with ample current supply. Out-of-specification or unstable power supply may lower its productivity, increase failure rate, and damage the device.
- Page 11 Make sure the device is securely plugged into a wall outlet that can provide a power source of the correct voltage and ample current. Turn on the power switch at the real panel of CDR100A. The CDR100A will enter the initialization process, and the LED indicators will in turn run one after another for a while.
- Page 12 If you are encountering a high failure rate, the first step to solve the problem is to reduce the writing speed. CDR100A provides three burning speeds for your convenience. If you press the high button, the device will go to the maximum possible writing s peed. Therefore, the maximum production rate can be expected.
- Page 13 Refer to the “To Stop a Running Job” section to stop simulation. To Execute a System Check (Initialization) In ready mode, press high button while h olding safe button, the device will start an initialization process as it does when you turn on the device. After it’s complete, the device enters ready mode.
- Page 14 _______________________________________Reference Frequently Asked Questions Q: Burning failure rate is high. - Try a lower writing speed such as normal or safe. - Use different brand blank discs. - Check power source. Q: Disc jam during operation. - Check if the disc is standard size. (120mm) - Make sure that discs are leveled in the input hopper.
- Page 15 In many cases , the production rate shall be successfully traded off with the throughput rate. Your CDR100A can be restricted to three maximum writing speeds simply by pushing the high, normal, or safe buttons. Note that selecting a high-speed does not mean the writing speed will be fixed at maximum.
- Page 16 LED Message Definitions From the LED display, users can easily identify the status of the device and, if any, abnormal situation. ?: Lit ?: Off ? : Flash T : Run >> Normal Status << ????? Power-off T T T T T Initial in process ????? Unit in ready mode...
- Page 17 Telex Communications, Inc. www.telex.com Part#: EZ5810-30421-30R1...
