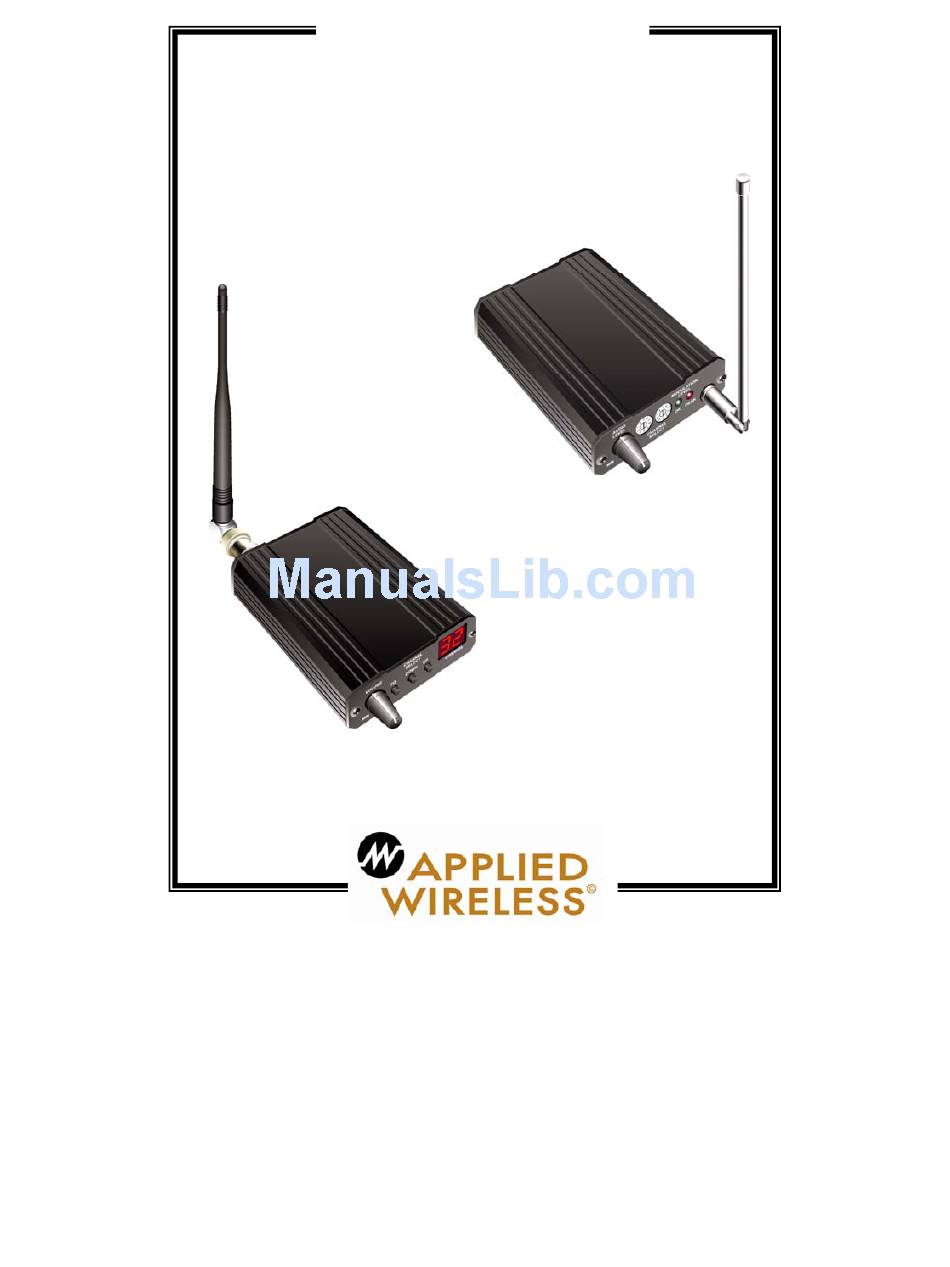

User’s Guide Instructions for Installation and Operation 900 MHz Stereo Audio Transmitter Model AT900-32 900 MHz Stereo Audio Receiver Model AR900-32 Long Range Wireless Applications...
Page 3
900 MHz Stereo Audio Receiver Model AR900-32 Introduction / Product Descriptions Model AT900-32 from Applied Wireless, Inc. is a high quality transmitter designed to broadcast excellent quality low noise stereo audio from any line level source, to the Applied Wireless model AR900-32 receiver. The...
(such as a directional flat panel or Yagi) to increase operating range (please contact Applied Wireless for a selection of available antennas). The AT900-32 transmitter and the AR900-32 receiver are well-suited for many diverse applications, including distribution of audio entertainment content throughout a building, home theater installations, commercial and industrial surveillance, monitoring, security, etc.
Page 5
Figure 1 – AT900-32 Transmitter (Rear Panel) Note 1: If the audio source device provides only a single (mono) output, a “Y” adaptor (not supplied) may be used to feed the signal to both of the transmitter’s input jacks.
Page 6
Figure 2 – AR900-32 Receiver (Rear Panel) Connecting Power to the Transmitter and Receiver The AT900-32 and the AR900-32 each require an external power source of between 7.5 and 18 volts DC. A plug-in 120VAC-to-9VDC power converter is supplied with each unit. Insert the power converter’s 2.1mm plug into the jack on the unit’s rear panel (refer to Figures 1 and...
Page 7
Figure 3 – AT900-32 Transmitter (Front Panel) Selecting the Channel of Operation (Receiver) The AT900-32 provides 32 user-selectable channels. Referring to Figure 4 and Table 1, use the buttons on the unit’s front panel to DOWN select the desired channel.
“33” to “99” (inclusive) is the same as channel 32. NOTE 2: If the AT900-32 and AR900-32 will be used along with an Applied Wireless video transmitter and receiver (models VT900-3 and VR900-3), the channel for the audio units must be at least 9MHz above or below the channel of the video units, to prevent interference between the RF signals.
IMPORTANT! Properly setting the transmitter’s modulation level is CRITICAL to satisfactory operation of the transmitter, and receiver. If the level is set too low, the receiver will likely be plagued with objectionable background noise (hiss). If the level is set too high, distorted audio and/or interference on adjacent channels is likely to result.
Page 10
(while the display is indicating the equalization profile) will advance to the next profile. The 2-digit CHANNEL indicator will automatically revert to displaying the receiver’s current channel when the button has not been pressed for two to three seconds. Applied Wireless, Inc.
Page 11
Transmitter Connection Diagram For maximum range, the transmitter’s antenna must be oriented vertically. Rear panel of transmitter AC Adaptor Dual RCA phono jack to 3.5mm mini phone plug adaptor 3.5mm Stereo Output Jack Right Left Audio Outputs Audio Source Device Audio Source Device with RCA phono jack outputs, with 3.5mm mini phone jack...
Page 12
Rear panel of receiver AC Adaptor Right Left Audio Inputs Audio Playback (or Recording) Device with RCA phono jack inputs, for example: • P.A. Amplifier • Stereo Receiver • Audio Recorder Applied Wireless, Inc.
Internal Settings The AT900-32 transmitter and the AR900-32 receiver each have internal jumpers and/or switches (on their respective printed circuit boards) that are preset at the factory to provide the proper configuration for most applications. The following sections describe these settings, and provide guidelines for when it may be necessary or desirable to modify them.
Page 14
) setting, configuring the receiver for maximum sensitivity. This is the appropriate setting for most applications (to allow for maximum reception range). However, if multiple AT900-32 transmitters are to be used in a common area (so as to broadcast multiple audio...
Page 15
Noise Reduction (Transmitter and Receiver) The transmitter and receiver are each equipped with active noise reduction circuits that minimize objectionable background noise (or “hiss”) which might otherwise be noticeable during periods of silence, such as the pause between tracks on a CD. These circuits are normally enabled (factory default).
Antenna Input Impedance 50 Ohms Frequency Stability (over operating temp. range) +/-30 ppm Operating Temperature Range -20°C to +70°C Storage Temperature Range -50°C to +150°C *Audio performance specifications are “end-to-end” characteristics, when used with Model AT900-32 transmitter. Applied Wireless, Inc.
Page 17
The following sections pertain exclusively to the Audio Transmitter, Model AT900-32: This product incorporates transmitter module FCC ID: QY4265 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 18
Any cost or expense related to the removal or reinstallation of the product. 10. Any product whose serial number or date code is altered, defaced, obliterated, (continued on next page) destroyed, or removed. Applied Wireless, Inc.
Page 19
You must first contact AW at the following address/phone for assistance: APPLIED WIRELESS, INC. 1250 Avenida Acaso, Suite F Camarillo, CA 93012...
