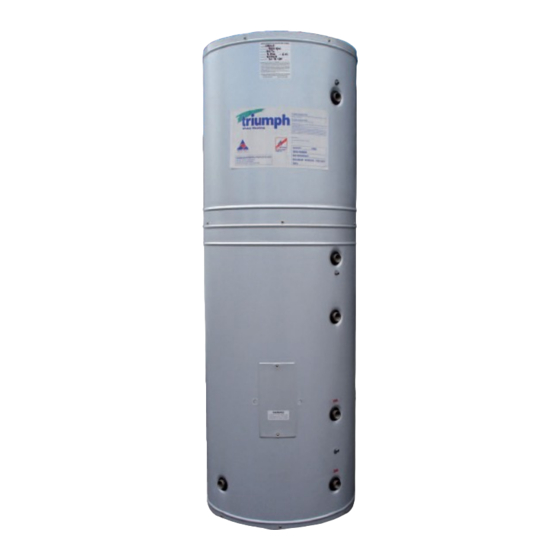

- Page 1 Mains Pressure Duplex Stainless Steel Multi-purpose Water Heaters Installation Commissioning Technical Data...
- Page 2 Due to constant further development, illustrations and technical data can differ. Copyright: All information specified in this technical document as well as the designs and technical descriptions made available by Sigma Sheetmetal Products remain Sigma Sheetmetal Products property and may not be reproduced without prior written permission.
-
Page 3: Table Of Contents
4.6 Tips on reducing heat loss ......................10 5 Commissioning Instructions ......................11 5.1 Flushing, filling, bleeding ........................11 5.2 Pressure/leak test ..........................11 6 Technical Data ..........................12 7 Producer Statement .......................... 13 General Information Sigma Sheetmetal Products Limited. Subject to technical modifications Page 3... -
Page 4: Warranty
Triumph water heaters are designed and manufactured to meet all relevant NZ Standards and Minimum Energy Performance Standards (MEPS) as specified by AS/NZS 4692.2. See section 7 for list of standards. -
Page 5: Installation Instructions
Water heaters come complete with sensor pockets to accommodate temperature sensors required for solar or heating circuit control. Triumph water heaters have a maximum permitted operating temperature and pressure of 95°C and 850 kPa respectively. The water heaters feature excellent thermal insulation properties by way of high density polyurethane encased in a protective Zincalume shell. -
Page 6: Standard Electric Water Heater
8. Tempering valve (suggested but not compulsory 4. Non-return valve temperature limiting device) Cold water inlet connection Hot water outlet connection Drain connection TPR: Temperature Pressure Relief connection Multi-purpose water heater Sigma Sheetmetal Products Limited. Subject to technical modifications Page 6... -
Page 7: Valves And Components
1:7 : Use long radius bends Wet back flow and return pipes must be minimum 25NB Tee connection must be installed as per exploded view to ensure natural convection induced flow Valves and components Sigma Sheetmetal Products Limited. Subject to technical modifications Page 7... -
Page 8: Anchorage And Seismic Restraint
If draining into a tundish, the tundish must be constructed of a material capable of withstanding 99°C water. Anchorage and seismic restraint Sigma Sheetmetal Products Limited. Subject to technical modifications Page 8... -
Page 9: Electrical Installation
Light timber frame wall complying with NZS 3604 50x50mm vertical blocking full height of water heater, fixed to wall framing with 1 off 100x3.75mm nail at 600 maximum centres Electrical installation Sigma Sheetmetal Products Limited. Subject to technical modifications Page 9... -
Page 10: Tips On Reducing Heat Loss
Micro circulation is strongest in large diameter pipes. The most cost effective counter-measure to combat micro circulation is to fit anti-thermosiphon downward U loops at all hot water connection points. Sigma Sheetmetal Products Limited. Subject to technical modifications Page 10... -
Page 11: Commissioning Instructions
15 minutes and then inspect the connections to ensure there are no leaks. Leak test any auxiliary circuits (wetback, heating, solar) according to the manufacturer’s instructions. Sigma Sheetmetal Products Limited. Subject to technical modifications Page 11... -
Page 12: Technical Data
20mm / 3/4” BSP Solar return 20mm / 3/4” BSP Heating circuit flow 20mm / 3/4” BSP Heating circuit return 20mm / 3/4” BSP Electric element 1¼” BSP Sensor pocket 7x250mm Sigma Sheetmetal Products Limited. Subject to technical modifications Page 12... -
Page 13: Producer Statement
5 years on cylinder, 1 year on all other components Signature: Name: Suppliers of: SIGMA Building Products, TRIUMPH Hot Water Cylinders, EDEN Tool Chests, SIGMA Flue Systems, SIGMA & RUBBEDIN Stove Accessories, SIGMA Tool Storage Systems Sigma Sheetmetal Products Limited. Subject to technical modifications Page 13...
