IP EDH-01 User Manual

Video transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Video Transceiver
EDH-01
1/43

Advertisement

Table of Contents
loading

Summary of Contents for IP EDH-01

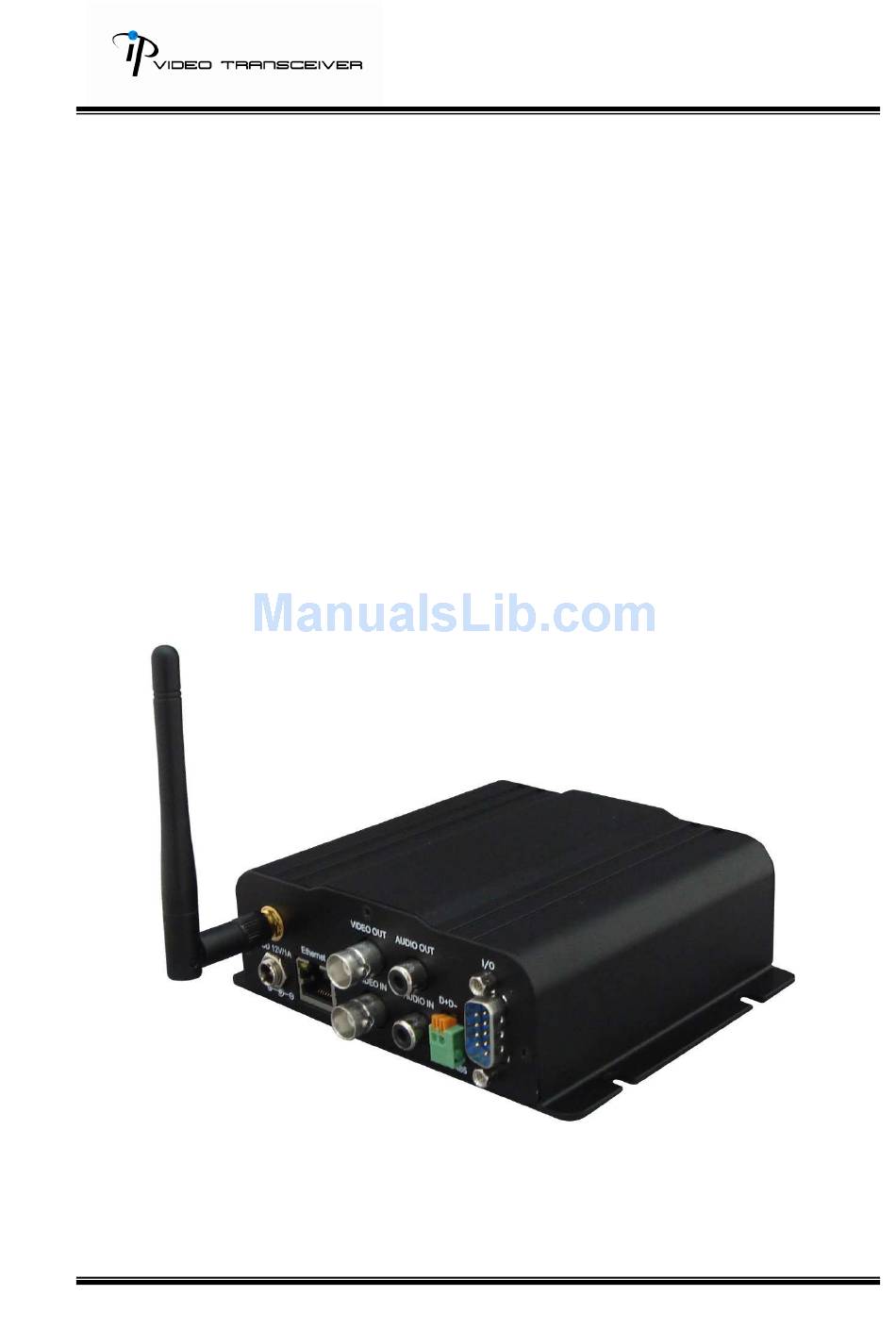

  • Page 1 User Manual Video Transceiver EDH-01 1/43...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    Content PREFACE ................................4 PRODUCT SPECIFICATIONS ......................... 4 PRODUCT INSTALLATION........................6 ............................. 6 ONITOR ETTING ........................7 ARDWARE NSTALLATION IP A ............................8 SSIGNMENT :........................11 NSTALL CTIVE CONTROL III. LIVE VIDEO............................12 VIDEO TRANSCEIVER CONFIGURATION .................. 14 ..........................16...

  • Page 4: Preface

    PREFACE VIDEO TRANSCEIVER provides function which is a combination of Video Server and Video decoder with IE built-in. It encodes analogue signals of traditional cameras to digital signals; user can monitor real-time video via IE browser. MPEG4 /JPEG compression format support smooth video quality.
  • Page 5 Network Ethernet 10/ 100 Base-T Wireless 802.11b/g (Optional) 64/ 128 bit Network Protocol HTTP, TCP/ IP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, 3GPP, UPnP System Video Resolution NTSC: 720x480, 704x480, 352x240, 176x120 (NTSC/PAL) PAL: 720x576, 704x576, 352x288, 176x144 Video adjust...

  • Page 6: Product Installation

    II. Product Installation A. Monitor Setting Right-Click on the desktop. Select “ Properties” Change color quality to highest (32bit). 6/43...

  • Page 7: Hardware Installation

    B. Hardware Installation B-1: Hardware Connection Connect power adaptor Connect Video Transceiver to PC or network with Ethernet cable iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for Video Server”. B-2: Front plane assignment 1.

  • Page 8: Ip Assignment

    C. IP Assignment Use the software, “IP Installer” to assign the IP address of Video Transceiver. The software is in the attached software CD. There are two languages for the IP installer IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version iii. There are 3 kinds of IP configuration.
  • Page 9 IP Installer configuration： vii. IP Installer will search all IP Devices connected on Lan. The user can click “Search Device” to search again. viii. Click the Video Transceiver listed on the left side. The network configuration of this Video Server will show on the right side. You may change the “name”...
  • Page 10 Please make sure this IP product and PC have the same Subnet. If not, please change this IP product subnet or PC IP subnet accordingly. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP products listed on “Device list” of IP Installer. An IE browser will be opened.

  • Page 11: Install Active Xcontrol

    D. Install ActiveX control: For the first time to view the video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options… Security Tab Custom Level…...

  • Page 12: Live Video

    When popup the following dialogue box, click “Yes”. III. Live Video Start a IE browser, type the IP address of this IP product in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin”...
  • Page 13 When connect to this IP product。The following program interface shows. ：Get into the administration page ：Video Snapshot Shows how many people connect to this IP product Show system time, video resolution, and video refreshing rate Video Transceiver supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connect to the PC to talk to server side, which is Video Server side.

  • Page 14: Video Transceiver Configuration

    Control the relay which is connected to this Video Transceiver Select PTZ protocol to control the PTZ camera which is connected to this video server. The PTZ function will be slightly different depends on which protocol to use. Double-click the video, it will change to full screen mode. Press “Esc” or double-click the video again, it will change back to normal mode.
  • Page 15 15/43...

  • Page 16: System Information

    Server Information：Set up the camera name, select language, and set up the camera time. Server Name：This is the Camera name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simplified Chinese to select. When change, it will show the following dialogue box for the confirmation of changing language.
  • Page 17 ii、 User Management VIDEO TRANSCEIVER supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this Video Transceiver Add user： Type the user name and password, then click “Add/Set”. Note: Allow guest to login as a Guest.
  • Page 18 Setting Management ： User may download the current setting to PC, or upgrade from previous saved setting. Setting download: Right-click the mouse button on Setting Download Select “Save AS…” to save current IP CAM setting in PC Select saving directory Save Upgrade from previous setting...

  • Page 19: Network

    Video Transceiver supports DHCP and static IP. DHCP：Using DHCP, Video Transceiver will get all the network parameters automatically. Static IP：Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
  • Page 20 Networking Services section Click Details and select UPnP to setup the service The IP device icon will be added to “MY Network Places” User may double click the IP device icon to access IE browser ii、 PPPoE： Select “Enabled” to use PPPoE.
  • Page 21 Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended.
  • Page 22 Camddns service： Please enable this service Key-in user name. IP Schedule update is default at 5 minutes Click “Apply”. DDNS Status Updating：Information update Idle：Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com：Register successfully. Update Failed, the name is already registered：The user name has already been used.
  • Page 23 Wireless Setting (Wireless Network Optional) Supports 802.11 b/g wireless connection. Notice：Wireless network and Ethernet network use the same IP, the user has to unplug Ethernet cable, if Ethernet cable is not unplug, wireless setting can not be executed. Status of Wireless Networks：...
  • Page 24 SSID：Based on AP setting. Channel ： This is used only when the user selects Ad-hoc mode in order to avoid conflict. Security：It supports “None”, “WEP”, “WPA-PSK” security encryption based on the setting of the Router. WEP： Authentication：There are Open System and Shared Keys, it is based on different encryptions.

  • Page 25: A/V Setting

    C.A/V Setting i、 Image setting The user can adjust “Brightness”, “Contrast”, “Hue”, and “Saturation”. 25/43...
  • Page 26 ii、 Video Receiver Setting Video Transceiver Mode： In this mode, Video Transceiver can be used as a Video Server, and simultaneously receive remote audio/video thru internet and output the remote audio/video to analog devices (DVR, Analog Monitor) One of the functions which video transceiver can provide is “Video Conference over Transceiver”...
  • Page 27 Once finish this setup, video transceiver will function as a video server Video Decoder side Setup Type: select remote IP device type Device Name: IP device name can be input by user iii. IP Address: input remote IP device IP address Web Page Port: default port is 80...
  • Page 28 Once setup finished, video transceiver will have video server + video decoder functions simultaneously Video Decoder mode: This mode enables Video Transceiver to receive remote audio/video thru internet, and output to analog devices such as DVR, Analog monitor 28/43...
  • Page 29 Video Decoder Setup Type: select remote IP device type Device Name: IP device name can be input by user iii. IP Address: input remote IP device IP address Web Page Port: default port is 80 Username: input remote IP device username Password: input remote IP device password vii.
  • Page 30 iii、 Video Setting This setting is for Video Server video format setting and not for Video Decoder video format setting. Video Decoder video format setting is depending on remote incoming video source. Video Transceiver supports Dual Streaming, it only supports Dual Streaming under Video Server mode User may select 2 streaming output simultaneously: Streaming 1 Setting: Basic mode and Advanced mode...
  • Page 31 Video Frame Rate：The video refreshing rate per second. Video Format：MPEG4 or JPEG. RTSP Path: RTSP output name Streaming 1 Advanced Mode： Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF –...
  • Page 32 Picture display frame per second NTSC: Max 30 frames/second PAL: Max 25 frames/second GOP Size It means "Group of Pictures". The higher the GOP is, the better the quality is. Video Format： There are 2 Video Format to choose MPEG4 or JPEG. RTSP Path: RTSP output connecting route Streaming 2 Basic Mode：...
  • Page 33 Streaming 2 Advanced Mode： Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use.
  • Page 34 Streaming 2, 3GPP mode: 3GPP default value is QQVGA，128Kbp，5FPS，GOP=1XFPS 3GPP mode suggested setting: QQVGA, lower than 128kbps, 5FPS, GOP= 1x FPS or 2x FPS, MPEG4 format 3GPP can achieve up to 10FPS, In 3GPP mode, Stream 1 & Stream 2 combined frame rate is 20FPS Fix Resolution：...
  • Page 35 Receive audio from remote IP cam/Video Server, and output audio from “Audio Out” in Video Transceiver b. Local Audio Capture and Transmit Enable Audio “IP Camera to PC” will capture audio from device connected to Video Transceiver and transmit the audio to remote PC thru network...

  • Page 36: Event

    SD card. To set up the motion area, click “Area Setting”. Using mouse to drag and draw the area. The same operation for area 2 and 3. Record File Setting: IP CAMERA allows 3 different types of recording file to change its record size. 36/43...
  • Page 37 For the use of recording software, IP CAMERA supports the detection of network connection. Whenever the connection is down, it records the video to SD card. To use this function, key in the IP address of the PC which is installed in the recording software, and enable the function of “Save to SD card”, then click “Apply”.
  • Page 38 iii、 Mail & FTP To send out the video via mail of ftp, please set up the configuration first. iv、 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. v、...
  • Page 39 Note：The use of the SD card will affect the operation of the Video Server slightly, such as affecting the frame rate of the Playback： It will show the capacity of the SD card. Click the date listed on this page. It will show the list of the video. The video format is AVI.

  • Page 40: Network Configuration

    Internet Access：ADSL or Cable Modem IP address：One real IP or one dynamic IP Only Video Server connects to the internet For fixed real IP, set up the IP into Video Server. For dynamic IP, start PPPoE. ii、 Configuration 2： Internet Access：ADSL or Cable Modem IP address：More than one real IP or one dynamic IP...
  • Page 41 For fixed real IP, set up the IP into Video Server and PC. For dynamic IP, start PPPoE. 41/43...
  • Page 42 Configuration 3： Internet Access：ADSL or Cable Modem IP address：one real IP or one dynamic IP Video Server and PC connect to the internet Device needed：IP sharing Use virtual IP, set up port forwarding in IP sharing. 42/43...

  • Page 43: Factory Default

    VI. Factory Default To recover the default IP address and password, please follow the following steps. Remove power and press and hold the button in the back of Video Server. Power on the Video Transceiver. Don’t release the button during the system booting.
