  • Page 1 EMC1000 User’s Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ........................3 Features ............................... 3 Package Contents ............................3 INSTALLATION ........................4 Getting Familiar With the AVer EMC1000 ..................... 4 Front Panel .............................. 4 Back Panel............................... 4 Connect the EMC1000 ..........................5 INITIAL SETUP ........................5 Set up PC Network ............................
  • Page 3 FEDERAL COMMUNICATIONS COMMISSION STATEMENT (CLASS A) ....... 30 COPYRIGHT ........................31 Trademarks ..............................31 Disclaimer ..............................31...
  • Page 4: Introduction

    Maximum capacity: VGA (640x480) up to 10 viewable parties or CIF (352x240) up to 2 rooms, total 12 viewable parties  You can use EMC1000 built-in SIP registrar or register EMC1000 as client to IP PBX or both  Near end and far end NAT and firewall traversal ...
  • Page 6: Installation

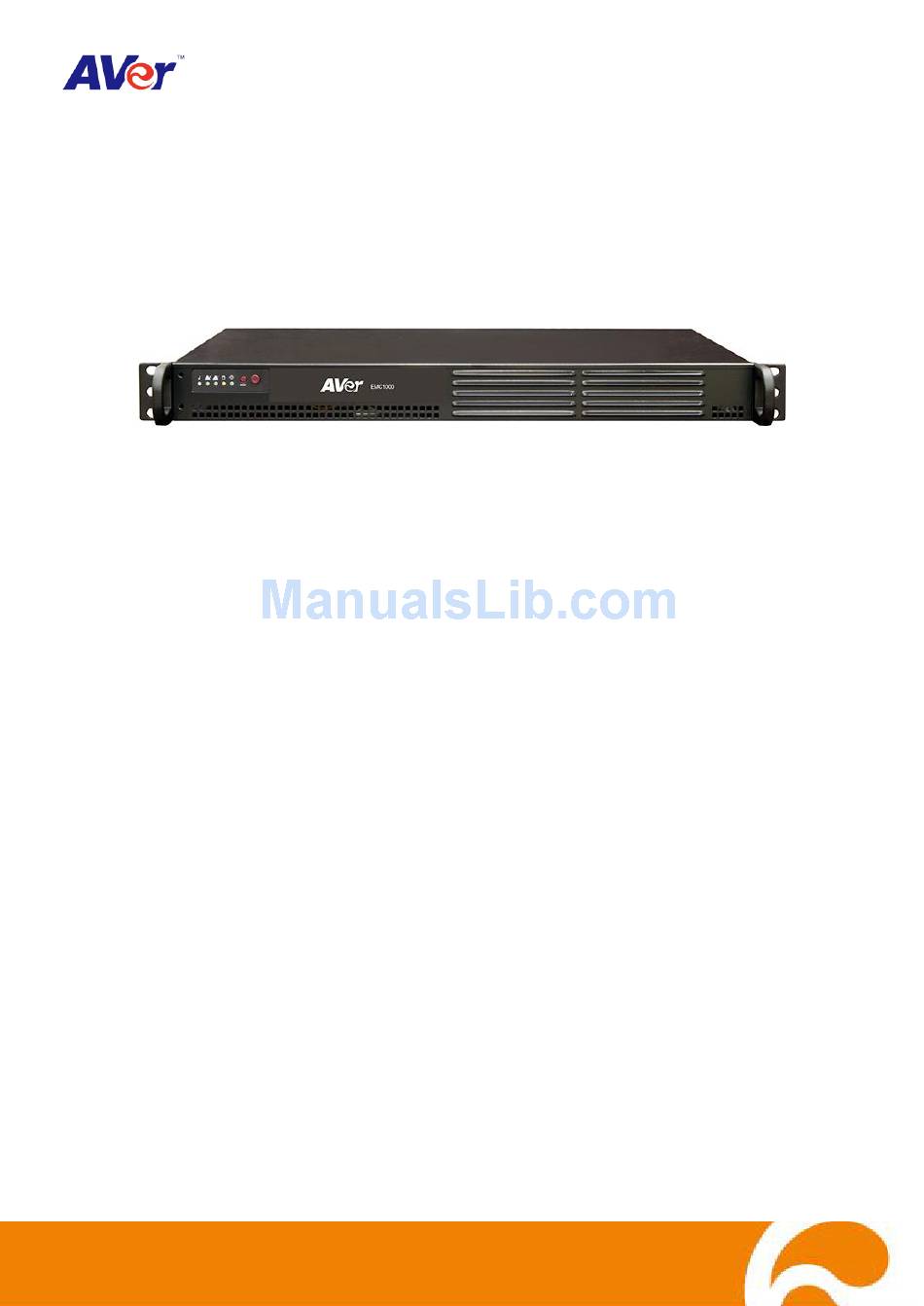

    INSTALLATION GETTING FAMILIAR WITH THE AVER EMC1000 EMC1000 is a 1U rack mount appliance. FRONT PANEL Name Function (1) LED Indicator Power, HD (harddisk), NIC1 (LAN1), NIC2 (LAN2) and overheat status (2) POWER Button Press this button to turn on/off the system. Power off shuts down the main system power, keep standby power alive.
  • Page 7: Connect The Emc1000

    CONNECT THE EMC1000 Before making the connections, make sure all devices are powered off. EMC1000 factory IP address is 192.168.0.1. 1. If you decide to put EMC1000 on the rack, use the screws to secure it to rack. 2. Connect the power cable 3.
  • Page 8: Set Up Pc Network

    “Properties”, change IP setting to “Use the following IP address”, enter the IP address and Subnet mask indicating below. Make sure the orange cross cable is connected properly from LAN1 on EMC1000 to the PC you just did the network setting change. Open internet browser on that PC, type in 192.168.0.1 in URL, hit enter.
  • Page 9: Firewall Planning

    HTTP Interface (WebTool) NEAR-END NAT TRAVERSAL In a deployment scenario where EMC1000 is located behind a firewall and is configured with private IP address, the signaling sent from the EMC1000 messages will contain private IP addresses. Unless the firewall provides VoIP NAT Traversal services, sessions will not connect, as the singling messages will contain non-routable addresses.
  • Page 10: Far-End Nat Traversal

    FAR-END NAT TRAVERSAL When the SIP client is behind a firewall, EMC1000 may receive private IP addresses in the receive SDP (for sending the session’s RTP packets). In this case, the packets cannot be sent before the first packets are received from the cliebt. The system learns the actual public IP address of these packets and sends the transmitted RTP packets to this address.
  • Page 11: Decide Emc1000 Network Setup Topology

    EMC1000. You can also put EMC1000 in DMZ (Demilitarized Zone of firewall) with LAN and public IP address. If you have an EMC1000 compatible IP PBX and like to have EMC1000 and HVC/EVC register to PBX as SIP clients.
  • Page 12: Configure Emc1000 Network

    NAT/firewall traversal. Make sure you remove the cross cable and connect EMC1000 to production network when EMC1000 reboots. Change your PC network setting back to the original setting (e.g. DHCP). Enter EMC1000 new IP address in internet browser URL. Log in using admin and admin.
  • Page 13: User Management For Web Accessing

    Admin role has full access to all EMC1000 settings. User can only create, view control conference (meeting). You can delete an existing user by clicking...
  • Page 14: Sip Configuration

    SIP CONFIGURATION SIP parameters are in CONFIGURATION. Click to start editing.
  • Page 15: Sip Interface

    PBXs, or non-registered SIP clients. SIP clients cannot register to EMC1000 through this port, to register with EMC1000 the Listening SIP Port of the Built-in Registrar / Proxy should be used. If this box is checked, direct incoming calls through “SIP Listening Port” (see...
  • Page 16: Outbound Proxy

    States whether an outbound proxy server is used. Use Outbound Check-box In case that the EMC1000 is behind NAT or configured with public IP, and NAT Proxy Server (Yes/No) traversal (Near or Far end) is provided by EMC1000, the Outbound proxy server should not be configured.
  • Page 17: Add Sip Users

    ADD SIP USERS If you enable Built-in Registrar, you can add SIP users by clicking . Click confirm the action. SHOW AND EDIT SIP USERS Click on to see all SIP users. You can edit each of them as well. The columns on this screen can be sorted in ascending or descending order by clicking on any of the column headers.
  • Page 18: Access Numbers

    ACCESS NUMBERS An access number is a number which a participant dials to connect to EMC1000. An interactive voice response system directs the user to enter the conference number and the PIN code. However, access numbers are not mandatory, since a participant can also join a conference by dialing directly the conference number.
  • Page 19: Date And Time

    DATE AND TIME You can set date, time, and time zone manually or use NTP server to auto set it. To set date and time. System Settings, Date & Time After you finish, click save the changes.
  • Page 20: Maintenance

    MAINTENANCE Common maintenance tasks can be performed, including View System Status – status of system components, general system information including CPU usage, free and total memory. Restart the Application – All ongoing conference (meeting) sessions drop, application restarts. Hardware Reset - Reboot hardware. It takes about 3 minutes. It is recommended to log out and re-login the system after Hardware Reset.
  • Page 21: Upgrade

    UPGRADE To upgrade the system software, enter System Settings, Upgrade. Enter “ezmeetup.averusa.com” in the URL as the upgrade serve, the latest firmware version will display if DNS is setup properly. Check Reboot and click Download when you are ready. After download completes, Start the upgrade button appears.
  • Page 22: Conference (Meeting) Settings

    If there are no bandwidth restrictions in your environment, you may use “Medium” or High “High” for enhanced video quality. Equal Layout The type of the video conference layout. EMC1000 uses “Dominant based” as the Video Layout Type Dominant default value for every new conference room.
  • Page 23: Content Sharing

    EZMeetup and other EMC1000 compatible terminals can receive content sending from HVC and EVC. DIALING TO A CONFERENCE If the user is on a HVC/EVC or EZMeetup registered to EMC1000, they can dial to the access number or the conference number. The following example illustrates various dialing options, assuming ...
  • Page 24 Connected to conference Number – Dial 100 Connected to conference Conference Number Participant is registered on EMC1000 built-in registrar Dialing Operations and Prompts Option Code Access √ Dial 500 – Prompt “Please enter your conference number followed by the # key”...
  • Page 25: Leader Dashboard

     Remove participants from the conference  Modify the conference layout mode. First, the leader logs in EMC1000 using his/her username and password. On the main screen of leader dashboard, the following items are displayed.  Meeting Information – Meeting information includes conference and access numbers.
  • Page 26 Dominant participant Participant (not Dominant) Call statistics Participant voice enabled Video only conference Participant voice muted Visible, participant Voice only participant Participant video disabled Remove participant When you click on , more detailed information appear. You can change the meeting layout in leader dashboard as well. One of two layouts can be chosen:...
  • Page 27 Enter the name or number, of who you want to invite, appears in the registration to SIP registrar if EMC1000 is registered too. Or you can invite non-registered participant by entering the full path including the SIP server IP address: name/number@SIP server-IP-Address. Click to add more and click “Invite”.
  • Page 29: Specifications

    Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing) Control Information EMC1000 web based GUI supports Internet Explorer 8 or newer, Web-based GUI Google Chrome 20 or newer, Mozilla Firefox 14 or newer and Safari 5 or newer.
  • Page 30: Limited Warranty

    Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable you’re your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or...
  • Page 31: Limitation Of Liability

    CONNECTION WITH THIS LIMITED WARRANTY, OR THE USE OR PERFORMANCE OF ANY PRODUCT, WHETHER BASED ON CONTRACT OR TORT, INCLUDING NEGLIGENCE, OR ANY OTHER LEGAL THEORY, EVEN IF AVER HAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AVER’S TOTAL, AGGREGATE LIABILITY FOR DAMAGES OF ANY NATURE, REGARDLESS OF FORM OF ACTION, SHALL IN NO EVENT EXCEED THE AMOUNT PAID BY YOU TO AVER FOR THE SPECIFIC PRODUCT UPON WHICH LIABILITY IS BASED.
  • Page 32: Federal Communications Commission Statement (Class A)

    FEDERAL COMMUNICATIONS COMMISSION STATEMENT (CLASS A) NOTE- This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 33: Copyright

    COPYRIGHT © 2013 by AVer Information Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of AVer Information Inc.
