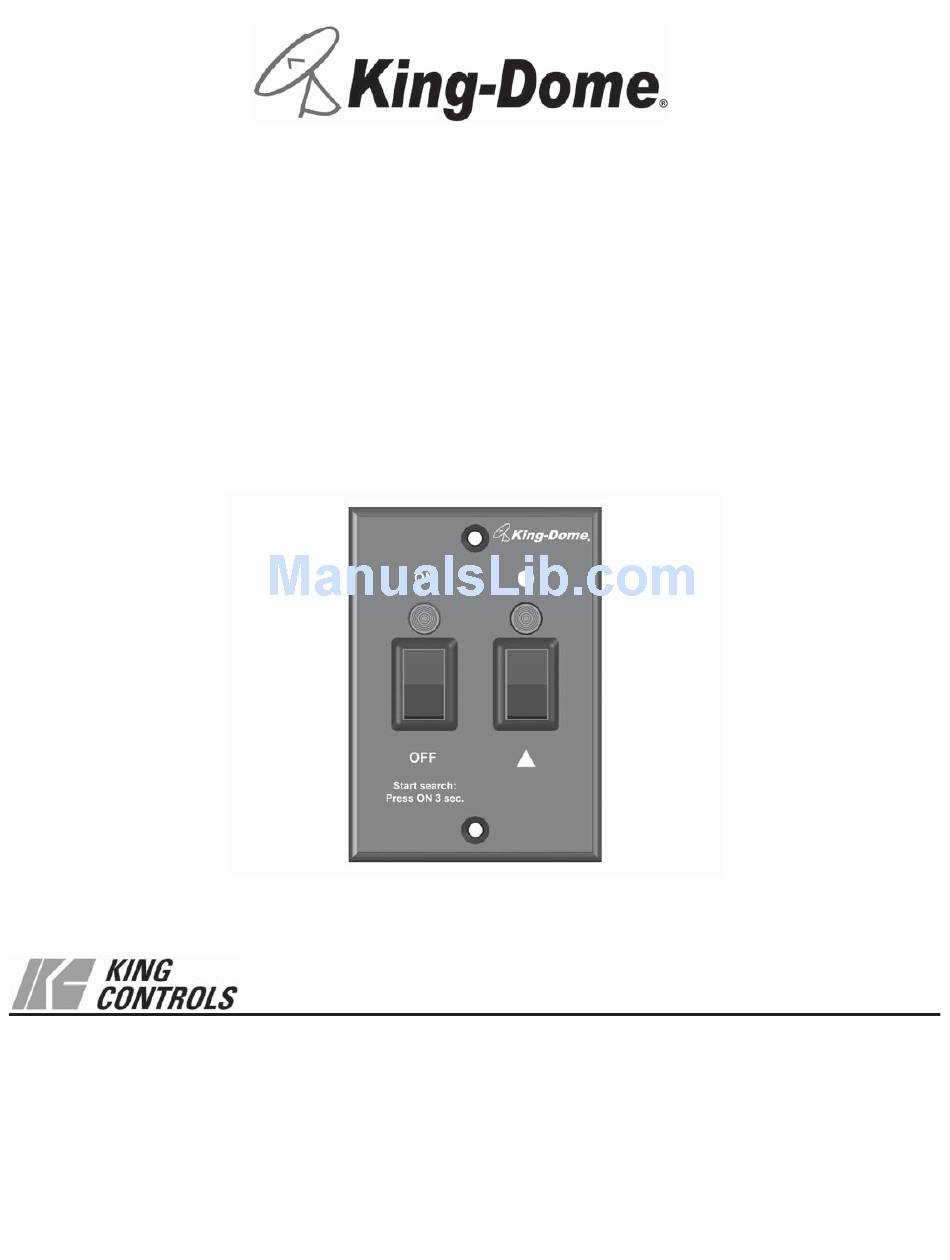

Automatic Satellite System
KD2000 Stationary
KD3000 In-Motion
Installation and Operating Instructions
®
Digital TV Solutions for Mobile Markets
11200 Hampshire Avenue South, Bloomington, MN 55438-2453
Phone: (952) 922-6889
Fax: (952) 922-8424
www.kingcontrols.com
21456 REV A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD2000 and is the answer not in the manual?

Questions and answers

Related Manuals for King-Dome KD2000

Summary of Contents for King-Dome KD2000

  • Page 1 Automatic Satellite System KD2000 Stationary KD3000 In-Motion Installation and Operating Instructions ® Digital TV Solutions for Mobile Markets 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (952) 922-6889 Fax: (952) 922-8424 www.kingcontrols.com 21456 REV A...

  • Page 3: Table Of Contents

    Bell TV programming, YOU MUST CONFIGURE THE ANTENNA to work with your satellite service. Doing this will allow the King-Dome to lock on the correct satellites to receive your programming and also enable automatic satellite switching via the receiver’s remote control for multi-satellite service.

  • Page 4: Introduction

    INTRODUCTION Section 1 The King-Dome 2000 and 3000 Satellite Systems include (2) main components (Fig. 1). Dome (Antenna) Unit Located on the roof of the vehicle. The satellite dish and electronics are covered by a protective dome that keeps operational components free from the elements.

  • Page 5: Definition Of Terms

    IMPORTANT! The antenna unit requires a “direct line of sight” to the satellite for signal reception. Any tall objects such as poles, trees, buildings, mountains, etc. can all block the signal from reaching the dish. FIG. 2 DEFINITION OF TERMS Section 2 SIGNAL STRENGTH: Intensity of signal received from the satellite.

  • Page 6: Installation

    INSTALLATION Section 3 TOOLS AND MATERIALS REQUIRED • drill and drill bit set • tape measure • 7/16” open end wrench (coax connections) • adhesive sealant (compatible with roof material) • appropriate fasteners to install all components and wiring • 5/32” allen wrench, channel lock or pliers (to remove shipping bolts) •...
  • Page 7 IMPORTANT! The tie strap and spacer, and the shipping bolts and washers must be removed from the bottom of the dome unit prior to installation. DO NOT REMOVE THE DOME COVER TO REMOVE THESE SHIPPING RESTRAINTS. YOU MUST PLUG THE SHIPPING BOLT HOLES WITH THE SUPPLIED PLUGS (ATTACHED TO TIE STRAP SHIPPING RESTRAINT).
  • Page 8 NOTE: Many RVs are pre-wired for satellite with RG6 coaxial cable. Contact the manufacturer of your RV or your local dealer to verify where the coax cable for satellite pre-wire is located. If pre-wired, run the existing pre-wiring from the pre-wire location to the dome unit. When choosing the dome unit location, make sure the pre-wiring will reach the dome unit.
  • Page 9 DOME INSTALLATION IMPORTANT! Make sure shipping restraints are removed from bottom of dome unit and plugs are inserted in holes (Fig. 6, Page 5). Cable connections must ALWAYS be positioned facing the rear of vehicle. 5. Place dome unit on installation location chosen using the criteria discussed in the previous section.
  • Page 10 (Fig. 9). NOTE: The King-Dome is wired for multiple receiver support. There are two coax ports on the back of the dome unit. The one labeled “MAIN” MUST be connected to the main receiver in vehicle. This is the receiver that will control automatic satellite switching if applicable.
  • Page 11 11. Run wires from the back of the dome unit to the roof edge, then along edge to location where wiring will be fed into the vehicle. If installing an optional second receiver, run second coax to location where it will enter the vehicle. Secure wiring to roof every 12-18 inches (Fig. 10). IMPORTANT! Installer is responsible for determining proper roof compatible fasteners for cable entry cover.
  • Page 12 NOTE: Using multiple receivers is not recommended for multi-satellite services where automatic satellite switching is desired. Components and wiring supplied with the KD2000/KD3000 are shown in black. Existing components and wiring or those sold separately are shown in gray. 15. Choose your desired wiring confi guration.
  • Page 13 DIRECTV / Bell TV FIG. 11 King-Dome Models KD2000 & KD3000 Single satellite IMPORTANT! Main coax cable must be connected to 18V input on multi-switch. Page 11...
  • Page 14 DIRECTV / DISH / Bell TV FIG. 12 King-Dome Models KD2000 & KD3000 2 or more satellites with auto-switching NOTE: An optional second receiver connected to the AUX port is not recommended when auto switching is used. NOTE: Using multiple receivers is not recommended for multi-satellite services where automatic satellite switching is desired.
  • Page 15 Bell TV programming, you must confi gure the antenna to work with your satellite service. Doing this will allow the King-Dome to lock on the correct satellites to receive your programming and also enable automatic satellite switching via the receiver’s remote control for multi-satellite service.

  • Page 16: Antenna Configuration

    ANTENNA CONFIGURATION USING WALL MOUNT CONTROLLER NOTE: If you are using the keypad for programming, go to page 19. On pages 15-18, fi nd your service and follow the instructions in the box. DIRECTV DIRECTV SD (Factory Pre-set) ....Page 15 DIRECTV SD with Locals .

  • Page 17: Directv Sd (Factory Pre-Set)

    DIRECTV ANTENNA CONFIGURATION DIRECTV SD (Satellite 101) The King-Dome is factory pre-set for the DIRECTV 101 satellite. Unless the antenna has been confi gured for another option since leaving the factory, PERFORM STEP 5 ONLY. 1. On the King-Dome controller, press and release the ON button.

  • Page 18: Dish Sd

    DISH ANTENNA CONFIGURATION DISH SD (satellites 110, 119) 1. On the King-Dome controller, press and release the ON button. Wait for status light to fl ash orange, then WAIT 4 MORE SECONDS. 2. Press and release the ON button 12 times.

  • Page 19: Dish Sd And Hd Alternate

    DISH SD and HD Alternate (satellites 61.5, 110, 119) 1. On the King-Dome controller, press and release the ON button. Wait for status light to fl ash orange, then WAIT 4 MORE SECONDS. 2. Press and release the ON button 16 times.

  • Page 20: Bell Tv

    BELL TV ANTENNA CONFIGURATION Bell TV SD (satellite 91) 1. On the King-Dome controller, press and release the ON button. Wait for status light to fl ash orange, then WAIT 4 MORE SECONDS. 2. Press and release the ON button 8 times.

  • Page 21: The King-Dome Will Not Receive Hd Channels Broadcast From Directv's Ka Band Satellites At 99° And

    DISH SD and HD Alternate (SW64 Switch) 61.5, 110, 119 Bell TV Bell TV SD Bell TV SD and HD 82, 91 NOTE: The King-Dome will not receive HD channels broadcast from DIRECTV’s Ka band satellites at 99° and 103°. Page 19...
  • Page 22 19 (EXCEPT DIRECTV SD SERVICE - SEE BOX BELOW). DIRECTV SD Service Only! The King-Dome is factory pre-set for the DIRECTV 101 satellite. Unless the antenna has been confi gured for another option since leaving the factory, do the following: Set your receiver as shown in this box.
  • Page 23 SET SERVICE PROVIDER CODE * 24 # 1. Press to display the current service provider code (see chart on page 19). * 96 # 2. To change the current service provider, press * 66 # * 88 # 3. Press the UP and DOWN arrows (2 and 8 keys) to choose your desired service provider from the chart on page 19.
  • Page 24 This page intentionally left blank. Page 22...
  • Page 25 DISH model ViP211z, ViP211k or a ViP211 HDTV receiver for DISH SD and HD and DISH SD and HD Alternate. King Controls does not recommend the use of dual tuner receivers or receivers with built-in recorders when using the automatic satellite switching feature. The King-Dome will not work with DIRECTV SWM only receivers.
  • Page 26 NOTE: Not all receivers will display a screen with options that include “superDISH” and “Alternate” boxes. 5. Make sure “superDISH” and “Alternate” boxes are NOT selected. 6. Highlight “Test” and press SELECT. The receiver will perform a check switch test, during which time the antenna will periodically move back and forth between satellites.
  • Page 27 “NO SWITCH DETECTED” Bell TV SD Bell TV SD and HD “INSTALLED DEVICE UNKNOWN” similar MUST SHOW “SW21” NO “X”s If indicated results are not obtained, go back to Step 3 and run test again. Contact King Controls if the check switch fails to load after 4 attempts. 8.

  • Page 28: Operation

    The distance driven since last performing a search may affect how long it takes for the King-Dome to fi nd the satellite. This King-Dome will not receive HD channels broadcast from DIRECTV’s Ka band satellites at 99° and 103°. STATIONARY SEARCH 1.

  • Page 29: Operation

    AUTOMATIC SATELLITE SWITCHING After you have properly confi gured the King-Dome antenna for your satellite service, the King-Dome will automatically switch between satellites by simply selecting your desired channel using the receiver’s remote control. NOTE: For better performance when using the automatic satellite switching feature, change channels by selecting your program from the channel guide rather than channel surfi...

  • Page 30: Second Receiver Operation For Dish

    Section 6 INITIAL SETUP FOR SECOND RECEIVER With the second receiver disconnected from the King-Dome, use your DISH remote control and press MENU, 6, 1, 1 to display the Point Dish screen. Use the arrow buttons on the remote to highlight “Check Switch” and press SELECT.
  • Page 31 DOWNLOADING PROGRAMMING TO THE SECOND RECEIVER The channels available on the second receiver are determined by the channel/satellite selected by the main receiver. For example, if you select a channel on the main receiver that is broadcast from the 119 satellite, then the second receiver will be able to view any channel broadcast from the 119 satellite after performing the following procedure: With the antenna locked on, re-set the second receiver by pressing the POWER button on the front panel for 10 seconds.

  • Page 32: Troubleshooting

    STATUS light is steady green but no picture. Satellite receiver is off or requires reset. Turn receiver on or reset. King-Dome is factory set for DIRECTV Single Confi gure the King-Dome for your Satellite 101 and you have a different service.

  • Page 33: Maintenance

    This will prevent water from sticking to the dome ® surface and blocking the signal. For additional details on Dome Magic rain fade solution please contact an authorized King-Dome dealer or call King Controls at (952) 922-6889. Single Application Packet #1830-SP Spray Can #1830 ®...

  • Page 34: Limited Warranty

    LIMITED WARRANTY Section 9 Every new King-Dome Satellite System is thoroughly inspected and tested before leaving the factory, and is covered by the following two year parts and one year labor limited warranty from the date of original purchase: • Two year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty.
  • Page 36 ® 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (952) 922-6889 Fax: (952) 922-8424 www.kingcontrols.com...
