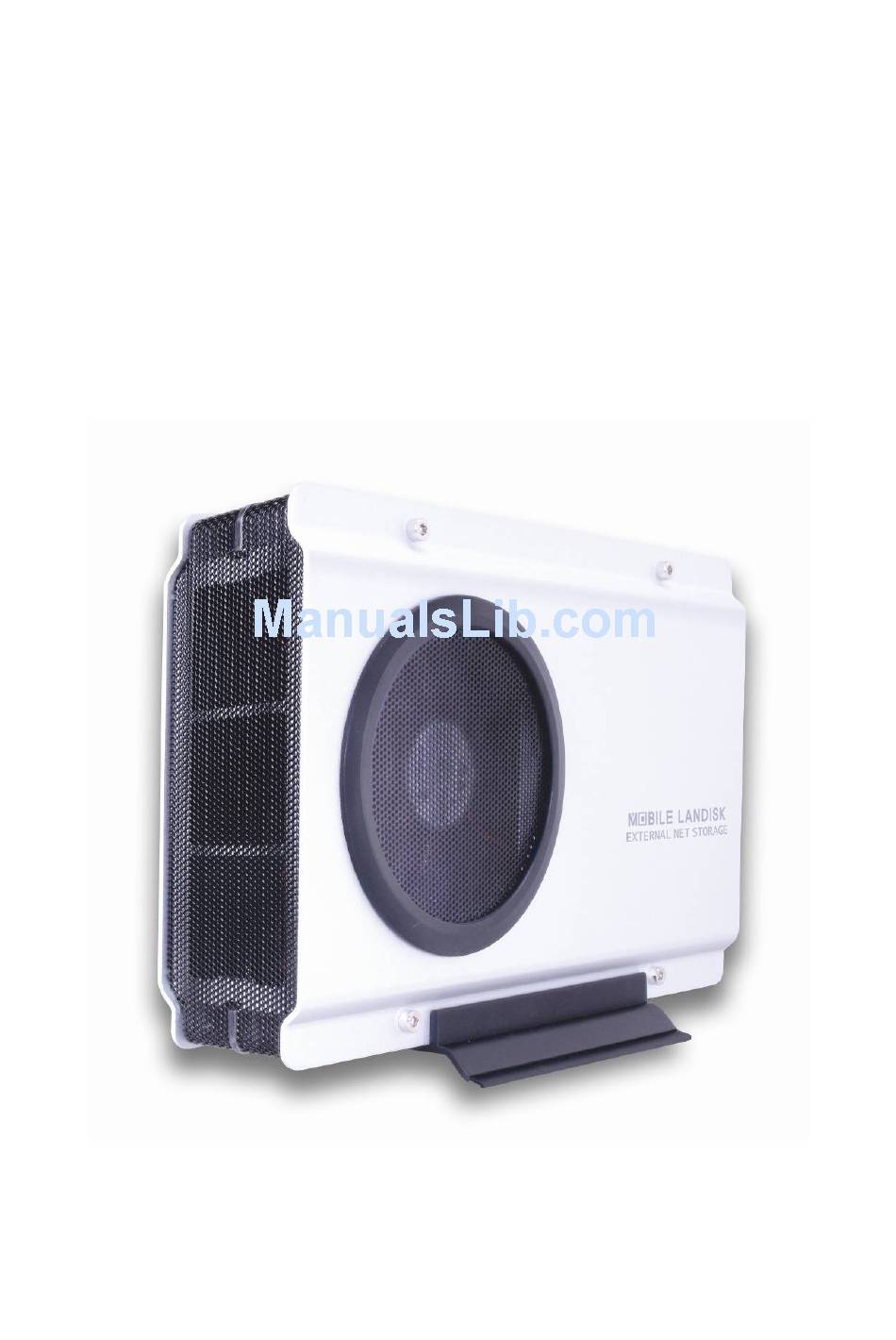

- Page 1 3.5” Mobile LAN Disk User Guide...
-
Page 2: Table Of Contents
Mobile LAN Disk User Guide Contents Hardware ........................2 Power ..........................2 Ports ..........................2 Reset Button........................2 LEDs..........................2 Front View ........................3 Rear View.........................3 Installation.................... …..………..…4 2.1 Requirements…………………………………………………………………………………………4 2.2 HW Installation……………………………………………………………………….………...…..…4 2.2.1 HDD Installation Guide……………………………………………………….…………..…4 2.2.2 Installation steps of LAN Disk ……………………………………………………..……6 Web ..........................7 Home..........................7 Administration........................7 3.2.1... -
Page 3: Hardware
Mobile LAN Disk User Guide 1. Hardware Overview 1.1 Power Receptor for the provided Power Adapter (12V DC, Maximum 2 Amps, 100-240V AC, 50-60Hz) 1.2 Ports LAN Port - LAN connection. USB Port - Connect your LAN Disk to PC. USB Host Port - Connect your USB device to LAN Disk. -
Page 4: Front View
Mobile LAN Disk User Guide About the 3.5” SATA Mobile LAN Disk 1.5 Front View Ventilation design 1 Ventilation design 2 1.6 Rear View USB Host Port Fan Switch Power Switch Power Jack LAN Port USB port... -
Page 5: Installation
Mobile LAN Disk User Guide 2. Installation 2.1 Requirements The following are required when using the LAN Disk. • TCP/IP Protocol must be installed in your PC. • Connect LAN Disk to a switch/hub port to connect your network. 2.2 HW Installation 2.2.1 HDD Installation Guide STEP 1：... - Page 6 Mobile LAN Disk User Guide STEP 4： Screw HDD to the enclosure. STEP 5： Reassemble two faceplates back to the enclosure and screw them together. STEP 6： Screw the back panel to the enclosure.
-
Page 7: Installation Steps Of Lan Disk
Mobile LAN Disk User Guide 2.2.2 Installation steps of LAN Disk STEP 1： Connect the network cable to LAN port of LAN Disk. STEP 2： Connect the power to LAN Disk and press the power button. STEP 3： Booting up will cost about 30 seconds. NOTE：... -
Page 8: Web
Mobile LAN Disk User Guide 3. Web Just simply type in the LAN Disk IP (default IP：192.168.16.1) in the browser to enter the LAN Disk web. 3.1 Home The basic information of the LAN Disk will be shown at here. 3.2 Administration The username and password will be required when entering this section. -
Page 9: Lan Settings
Mobile LAN Disk User Guide 3.2.1 LAN Settings This section contains all LAN settings to configure the LAN Disk to the network. Depending on how the network is set up, changes to this page may or may not be necessary. We can choose between DHCP and Static IP from the “Protocol” 3.2.1.1 DHCP Selecting this option enables the LAN Disk to request an IP and auto-configure itself to the network if there is a DHCP Server present. -
Page 10: System
Mobile LAN Disk User Guide 3.2.2 System The basic settings of LAN Disk can be set at here. Including “Device Name”, “Description”, “Date”, “Time Zone”, “Http Port” and the NTP, FTP server can be enabling or disable in here too. After the NTP option is enabled, you’ll need to enter a valid NTP server to make it work correctly. -
Page 11: Users
Mobile LAN Disk User Guide 3.2.4 Users A LAN Disk hard disk MUST be installed for this function to work in properly. Change Password: We can change the user’s password from here (only works if there’s a user exist). Delete User: We can delete the useless user’s account from here. There are two options to choose in here：... -
Page 12: Share
Mobile LAN Disk User Guide There are 3 properties can be choose: No accessible to other users：Only user himself can access to the folder. Read-only to other users：The other user of LAN Disk get in to this user’s folder to read only. Read/Write to other users：The other user of LAN Disk can read and write files in this user’s folder. -
Page 13: Bittorrent
Mobile LAN Disk User Guide 3.2.6 BitTorrent A LAN Disk hard disk is required to use this function. Global settings From here we can choose which folder (public or user’s folder) we want to place the torrent files. The max download and upload rate can be limited to the rate we want. Seed options：... - Page 14 Mobile LAN Disk User Guide After finished uploading the right .torrent file, click on “Start” to start the download. There are four operations we can do： Detail： Show the detail information of the job. Start ： If you want to running the job clicks this button. Stop ：...
-
Page 15: Tools
Mobile LAN Disk User Guide 3.2.7 Tools 3.2.7.1 Scheduling A schedule for the LAN Disk to restart can be set in here. 3.2.7.2 Restart Restart the LAN Disk immediately. 3.2.7.3 Hard disk utility Two functions can be found in this option. 1. -
Page 16: Fw Upgrade
Mobile LAN Disk User Guide 3.2.7.4 Firmware Upgrade Whenever a new firmware released, we can upgrade the LAN Disk firmware from here. This will takes about 1~2 min for the upgrade to complete. 3.2.7.5 Save Config Here allows us to backup the setting we’ve set for future use. (Including the settings in LAN, System and Scheduling) Download：The configuration file will be downloading. -
Page 17: Factory Default
Mobile LAN Disk User Guide 3.2.7.6 Factory Default Only use this function whenever you want the device back to the Factory Default. LAN Disk will be reboot for the new setting to be effective. 3.2.7.7 Login Settings The username and password to login the LAN Disk can be change from here. 3.2.7.8 System Log We can view the log from here.
