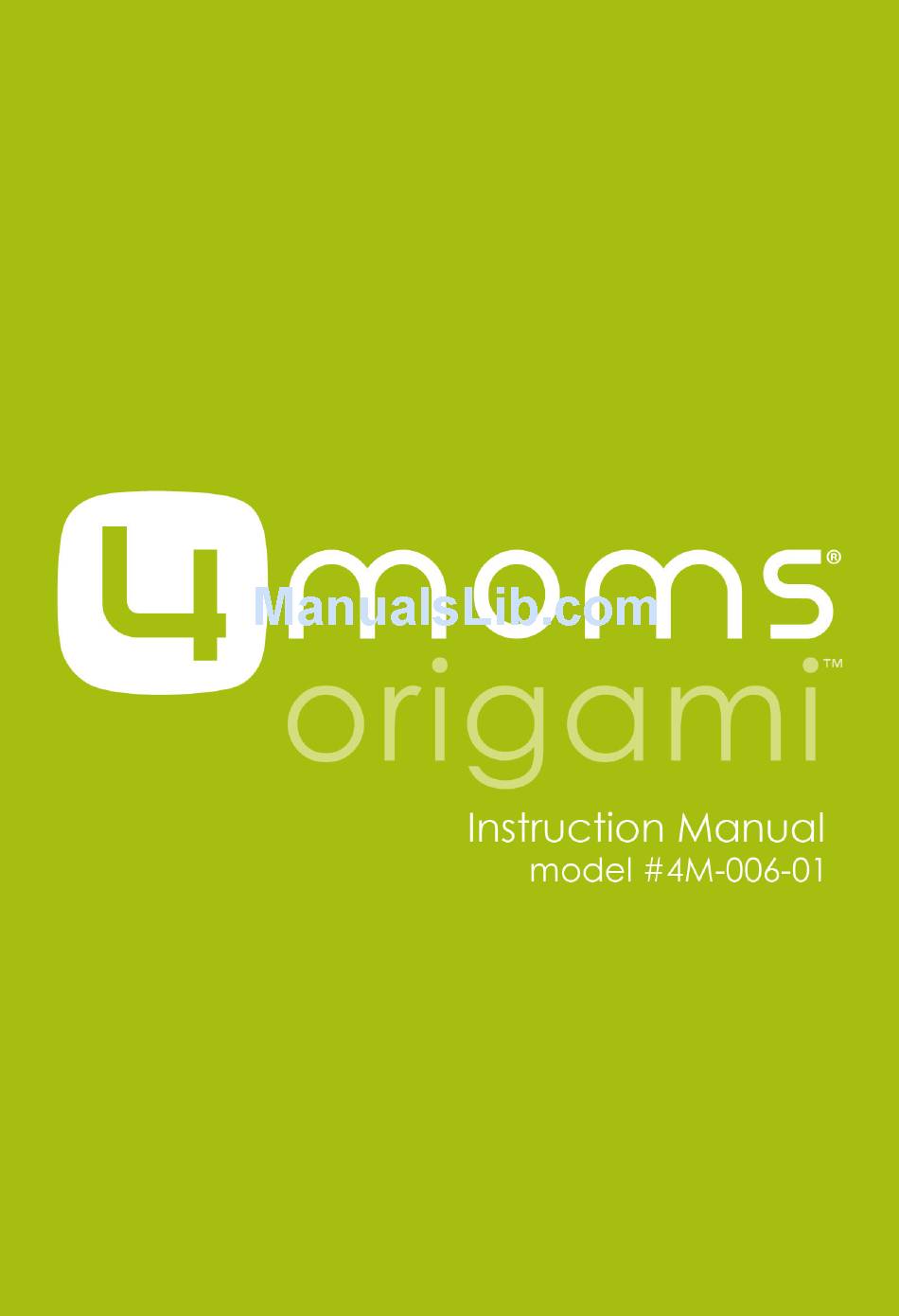

Summary of Contents for 4 Moms Origami 4M-006-01
-
Page 2: Storage Bag
Congratulations on your new Origami ™ Here are some helpful hints to get you started. INSTALL SEAT RING Affix seat ring to stroller frame at handle bar and power pod by sliding pin through holes until it clicks. Buckle the seat restraint strap around the Central Bar. -
Page 3: Table Of Contents
English Table of Contents Chapter 1: Safety Information....4 Chapter 2: Seat Ring Safety ....7 Chapter 3: Battery Warning . -
Page 4: Safety Information
Chapter 1: Important Safety Instructions Please read these instructions carefully before use and keep them for future reference. For your child’s safety, please make sure anyone else using the Origami Stroller reads and understands these instructions before using it as well. Immediately discontinue use of the stroller should it become damaged or broken. - Page 5 English Chapter 1: Important Safety Instructions Always stay in control of the Origami’s movement. Any wheeled vehicle can roll unpredictably, so always stay within arm’s reach of the stroller. Keep the stroller balanced: do not hang heavy objects off the Handlebar, or allow children to play with or hang off the Handlebar.
- Page 6 English Chapter 1: Important Safety Instructions WARNING Use this stroller only for walking. The Origami is not designed for jogging, running, roller skating, or any motion other than an adult’s walking pace. Do not let a child push the Origami. WARNING Ensure that the stroller latches are engaged before use.
-
Page 7: Seat Ring Safety
English Chapter 2: Seat Ring Safety Instructions Chapter 2: Seat Ring Safety Instructions WARNING Avoid serious injury from falling or sliding out. Always use restraints and adjust belts to get a snug fit around your child. WARNING This seat unit is not suitable for children under 6 months. -
Page 8: Battery Warning
Chapter 3: Battery Warnings The Origami contains a Lithium Polymer battery pack. Use only battery pack 4M-106-11-000101 or a 4moms® approved equivalent. NEVER use non-rechargeable batteries in the Origami. Failure to follow instructions or use of non-approved batteries could cause permanent damage to the battery and its surroundings, and cause bodily harm. -
Page 9: Chapter 4: Parts Guide
English Chapter 4: Parts Guide Handlebar Power Button Outer Ring Sunshade Upper Attachment Peek-A-Boo Window Seat Recline Strap Brake (see page #18) Storage Bag Loops Central Bar Power Charger Manual Folding Latch (see page #22) (see page # 21) - Page 10 Chapter 4: Parts Guide (Seat Ring) Upper Attachment Socket Safety Harness Cup holders Telescoping Frame Crotch Restraint Seat Release Button Lower Attachment Storage Bag...
-
Page 11: Chapter 5: Installing The Handlebars
English Chapter 5: Installing the handlebars... -
Page 12: Chapter 6: Installing The Seat Ring
Chapter 6: Installing the Seat Ring Adult Assembly Required This section deals only with the installation of your included seat ring. The included seat ring is not suitable for children under 6 months of age. If installing an alternate 4moms® approved seating accessory, please see the instructions that came with the accessory. - Page 13 English...
-
Page 14: Chapter 7: Using Your Origami
Chapter 7: Using Your Origami How to Power Fold and Unfold To fold or unfold the Origami, turn the Outer Ring of the Activation Dial counterclockwise until it won’t go any further, then release it. The dial will light up for 5 seconds. -
Page 15: Securing Your Baby
English Chapter 8: Securing Your Child in Seat Ring This section deals only with the installation of your included seat ring. The included seat ring is not suitable for children under 6 months of age. If installing an alternate 4moms® approve seating accessory, please see the instructions that came with the accessory. -
Page 16: Chapter 9: The Lcd
Chapter 9: The LCD Battery life indicator Gender Bow Temperature trip Trip odometer Lifetime odometer Child indicator Speed Central bar latches are engaged and stroller is safe to use Latches are not engaged; stroller is not safe to use Something is wrong; stroller is error not safe to use. -
Page 17: Chapter 10: Lights
English Chapter 10: Lights The Daytime Running Lights on the stroller’s legs will come on when the stroller is opened, and will turn off again after 3 minutes of no movement. After 10 seconds of movement, they will come back on. They will turn off when the stroller is closed. -
Page 18: Chapter 12: Seat Recline And Storage Bag
Chapter 12: Seat Recline and Storage Bag To recline the Origami’s seat to its fullest extent, loosen the Seat Recline Strap and push the seat towards the Central Bar. To put the seat in a position between fully reclined and fully upright, leave the Seat Recline Strap buckled and adjust the length of the strap. - Page 19 English Attaching Storage Bag To attach the Storage Bag, snap the bag's straps into place on the Central Bar (as shown below). The Origami will fold with the Storage Bag attached, even if the Storage Bag has items inside it. We recommend you remove fragile or glass items, or large, bulky items from the Bag before folding the Stroller.
-
Page 20: Chapter 13: Folding The Stroller Manually
Chapter 13: Folding the Stroller Manually 4moms® strongly recommends opening and closing the stroller using the power folding system. However if the battery doesn’t have sufficient power or you experience some other unforeseen issue, the stroller can be opened and closed manually. - Page 21 English To Open or Close the Origami Manually Once the stroller is in Manual Mode, push the Manual Folding Latch release button and lift the Latch lever. Open or close the stroller by sliding the Central Bar a few inches, release the Latch and slide the Central Bar until it clicks.
-
Page 22: Chapter 14: Charging The Battery Manually
Chapter 14: Charging the Battery Manually The Origami is equipped with an on-board generator to charge its battery whenever you are pushing the stroller. The battery life of a fully charged Origami is 100 open-and-close cycles, or several months in a static position. If you wish to charge the battery manually, plug the small end of the Charger into the outlet on the bottom of the Power Pod, then insert the plug end... -
Page 23: Chapter 15: Maintaining Your Origami
English Chapter 15: Maintaining Your Origami Wheels and Power Pod The Origami is designed to handle many types of ground and rough terrain. However, to keep the stroller in peak condition, keep the wheel bearings free of sand and abrasive grit, and wipe water off the Power Pod after use. -
Page 24: Chapter 16: Troubleshooting
Chapter 16: Troubleshooting Issue Action The LCD is off. The stroller will automatically go into power-saving mode after a few minutes sitting still. Push it forward or turn the Activation Dial slightly to wake it up. -The stroller’s power will be completely off when in Manual Mode. - Page 25 English Chapter 16: Troubleshooting Issue Action The stroller looks The stroller is not fully latched. Please open, but the close and open it again. unlocked icon If this problem continues, discontinue is showing. use and contact customer service. When I tried to close For safety, the Origami will stop (or open) the stroller, it folding automatically when it...
-
Page 26: Chapter 17: Warranty
Chapter 17: Warranty 4moms, LLC warrants to the original purchaser of every new 4moms Origami® that the unit will be free from defects in material and workmanship, under normal and proper use as specified by 4moms, LLC and upon proper usage in accordance with the instruction manual supplied with each Origami®... -
Page 27: Chapter 19: Compliance
English Chapter 19: Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
