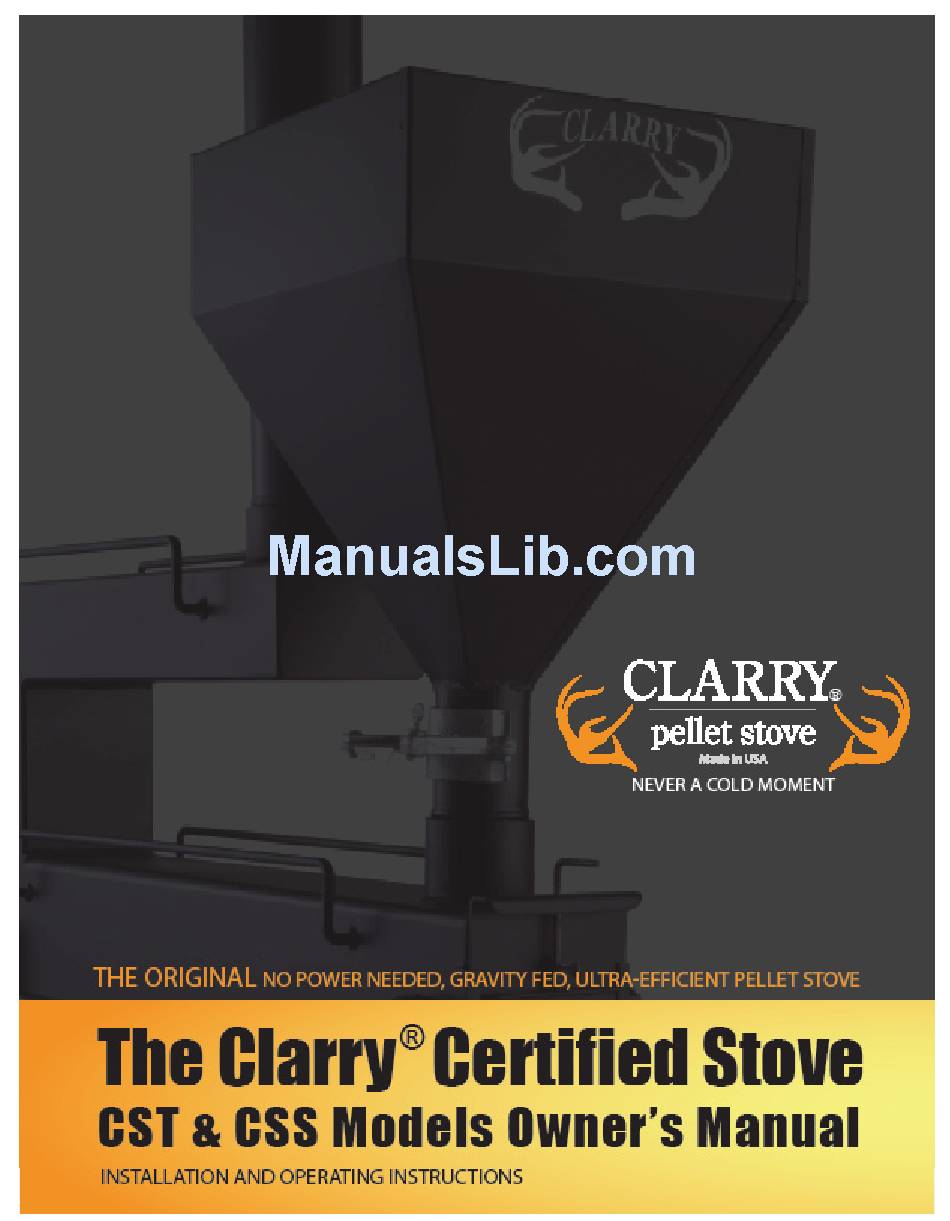

  • Page 2 Clarry® Pellet Stove This product is patented under US Patent #8020547 and Canadian Patent # CA2604313 Made in the USA Clarry® is a registered trademark of Clarry Pellet Stove, LLC Report number: 0397PS001S Tested to ULI482-2011 CST & CSS Models...
  • Page 3 FUEL-BURNING HEATER. Failure to follow these instructions could result in property damage, We welcome you as a new owner of the Clarry® Pellet Stove, CST or bodily injury, or even death. CSS model. This manual will explain the installation, operation and maintenance of this pellet-burning heater.

  • Page 4: Safety Precautions

    This stove must be properly installed to prevent • the possibility of a structural fire. The instructions Clarry Pellet Stove LLC grants no warranty must be strictly adhered to. Do not use makeshift implied or stated, for the installation or methods or compromises in the installation.
  • Page 5 1.) DIMENSIONS AND SPECIFICATIONS: CST Model Note * Heating capacity will vary depending on the exterior wall material, degree of insulation, and the outside temperature. It is also affected by the fuel size, quality, and moisture level. ** Fuel: This unit is designed for...

  • Page 6: Epa Compliance

    CSS HEATING SPECIFICATIONS: Approximate Maximum Heating Capacity (in square feet): 500 sq. ft.* EPA COMPLIANCE: Approximate Burn Rate (pounds per hour): 4.5 lbs/hr.** The CST and CSS model stoves are EPA exempt from Approximate Burn Time: 10 hours** Phase II requirements.

  • Page 7: Packing List

    2.) INSTALLATION: Setting up the Stove Before You Begin PACKING LIST • CST or CSS Stove Body • Ash Drawer READ THIS ENTIRE MANUAL • Stainless Steel Grate BEFORE YOU INSTALL AND USE THE • Damper Door and Grate Access Door CLARRY®...
  • Page 8 Assembly FIGURE 2 Tip the stove body (A) on end, insert the legs (B) and loosely tighten the set screws. (B.1) Move the stove (A) into the upright position. Adjust the legs (B) so that the stove is level. Finish tightening the set screws (B.1). Lift fire chamber access door (A.3) and slide grate (A.1) into the fire chamber in body (A).

  • Page 9: Installation Options

    2.) INSTALLATION: “Burning In” the Stove WARNING • Prior to placing the Clarry® Pellet Stove in your structure, you must burn the stove in for 20 minutes, to set the stove paint. • Assemble the stove in an outdoor location according to NEVER REDUCE THE the directions above;...
  • Page 10 2.) INSTALLATION: Floor Protection Requirements The heater must be installed on a non-combustible floor protector extending the full width and depth of the heater and extending 18” in front beyond the pellet hopper and 8” outside of the legs, minimum 30˝ wide by 56˝ deep. Minimum 1”...
  • Page 11 Use no more than 180 degrees of elbows (two 90 degrees, or two 45 degree and one 90 degree elbow, etc.) Maximum horizontal run is 36”. • Consult your local building codes for clearances, thimbles and connections required when connecting the Clarry Pellet Stove to an exiting or new masonry chimney.

  • Page 12: Factory Built Chimney

    The chimney connector is a single walled pipe used to connect the stove to the chimney. For use with the Clarry® Pellet Stove, the chimney connector MUST be 4” in diameter, with a minimum thickness of 28 gauge black steel.

  • Page 13: Masonry Chimney

    2.) INSTALLATION: Chimney Connection CHIMNEY HEIGHT TYPICAL FOR ALL INSTALLATIONS A masonry chimney or a listed factory-build chimney must be the required height above the roof and any other nearby obstructions. The chimney must be at least 3’ (90 cm) higher than the highest point where it passes through the roof and at least 2’...

  • Page 14: Chimney Termination

    6” (2 inches [51 mm] larger than the 4” [152.4 mm] chimney connector). Use this as a pass-through for a minimum DO NOT TERMINATE THE CLARRY 24-gage single wall steel chimney connector. Keep solid-pak PELLET STOVE VENT PIPE HORIZONTALLY.
  • Page 15 2.) INSTALLATION: Interior Vertical Installations FIGURE 7...
  • Page 16 2.) INSTALLATION: Interior Vertical Installations FIGURE 8...
  • Page 17 2.) INSTALLATION: Interior Horizontal Installation See note page 9 for floor protection extention under chimney connector. FIGURE 9...
  • Page 18 3.) OPERATION: Operating Instructions WARNING OPERATING INSTRUCTIONS REFER TO FIGURE 2.) 1. Fill the hopper (C) with one 40-lb. bag of “PREMIUM or Super Premium” pellets. This unit is designed for wood pellets that comply with the standards set by NEVER USE GASOLINE, GASOLINE-TYPE the Association of the Pellet Fuel Industry (density of at least 40 lbs.

  • Page 19: Heat Output

    3.) OPERATION: Operating Instructions WARNING HEAT OUTPUT Temperatures exceeding 900 degrees in the fire chamber and 500 degrees at the heat exchanger are reached in 15 minutes. Do not touch the stove, or place any DANGER: FIRE HAZARD AND CARBON combustible materials within 36 inches.

  • Page 20: Maintaining The Stove

    4.) MAINTAINING THE STOVE CLEANING THE STOVE WHEN YOU’RE USING IT FOR AN EXTENDED PERIOD IS EXTREMELY IMPORTANT. 1. After every use, remove the ash from the ash drawer. Note: Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes should be placed on a noncombustible floor or on the ground, well away from all combustible materials, pending final disposal.

  • Page 21: Warranty

    Clarry®; or (iv) natural disasters, such as fire, flood, etc. Clarry® shall in no event be liable to a purchaser of the stove or any third party for consequential, indirect or incidental damages of any type, kind or nature, or for damage to or failure of other equipment, caused by a defect in the stove or component thereof.
  • Page 23 Clarry® Pellet Stove This product is patented under US Patent #8020547 and Canadian Patent # CA2604313 Made in the USA Clarry® is a registered trademark of Clarry Pellet Stove, LLC Clarry Pellet Stove, LLC P.O. Box 2097 Battle Ground, WA 98604...
  • Page 24 MODELS RE & RME FOR OUTDOOR ADVENTURES...
  • Page 25 1.) SETTING UP THE STOVE FIGURE 1 APPLIES TO RE & RME MODELS RME MODEL ONLY...

  • Page 26: Setting Up The Stove

    1.) SETTING UP THE STOVE WARNING STOVE ELEMENTS A.) Stove body (A), which includes the grate (A.1), ash drawer (A.2), and grate access door (A.3) with damper door (A.3.1) WARNING: FAILURE TO FOLLOW THIS PROCEDURE WILL LEAD TO B.) Four (4) legs (B) and four (4) set screws (B.1) “OVER FIRING”...
  • Page 27 2.) OPERATION WARNING OPERATING INSTRUCTIONS: SEE FIGURE 1 1. Fill the hopper (C) with one 40-lb. bag of “PREMIUM or Super Premium” grade pellets. This unit is designed for wood pellets that comply with the standards CAUTION: NEVER USE GASOLINE, set by the Association of the Pellet Fuel Industry (density of at least 40 lbs.

  • Page 28: Continuous Operation

    2.) OPERATION CAUTION “BURNING IN THE STOVE” • Prior to placing the Clarry® Pellet Stove in your structure, you must burn the stove in for 20 minutes, to set the stove paint. CAUTION: CLOSING THE ASH DRAWER PRIOR TO COMPLETELY BURNING •...
