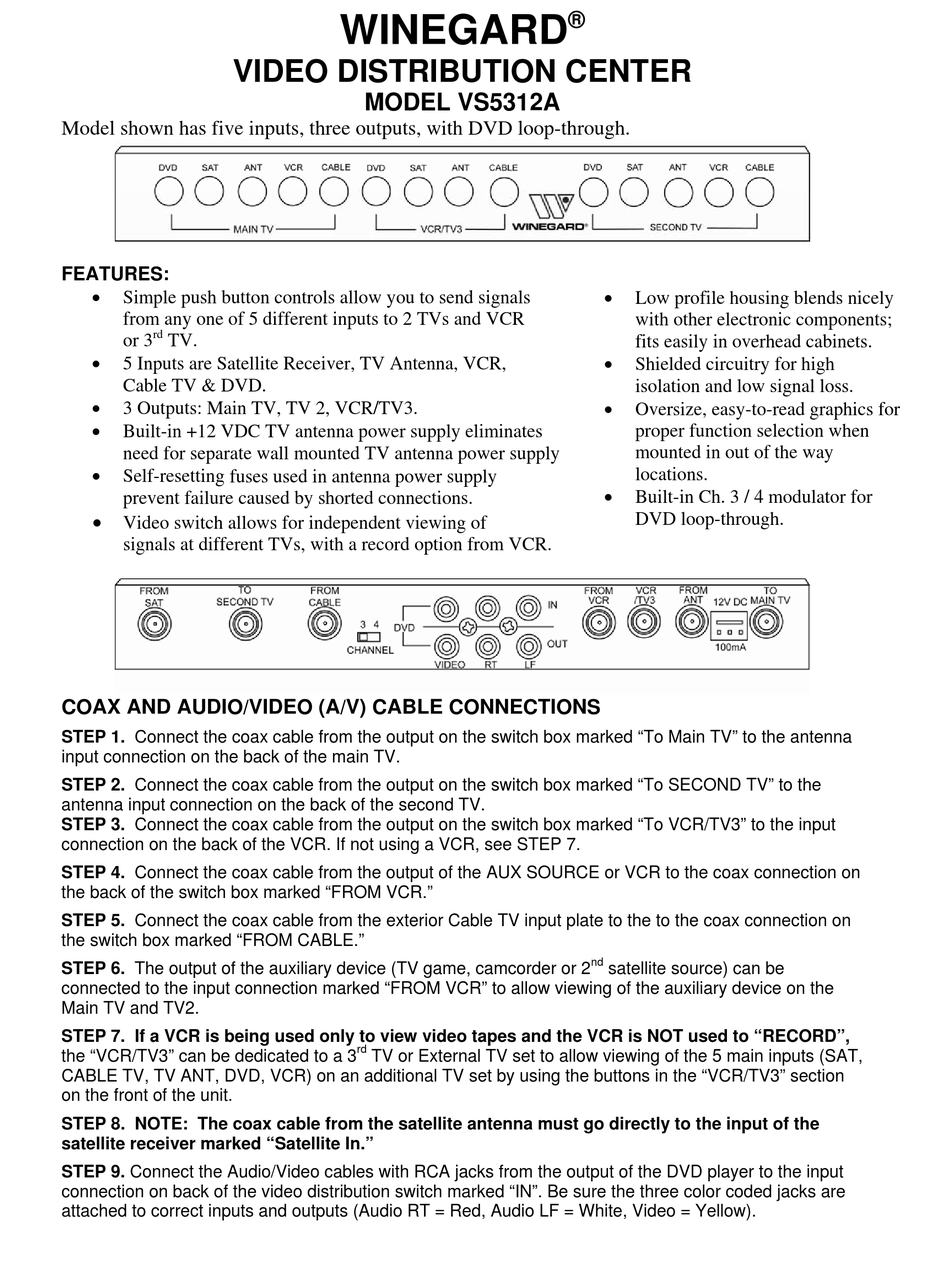

Winegard VS5312A Owner's Manual

VIDEO DISTRIBUTION CENTER
Model shown has five inputs, three outputs, with DVD loop-through.

FEATURES:



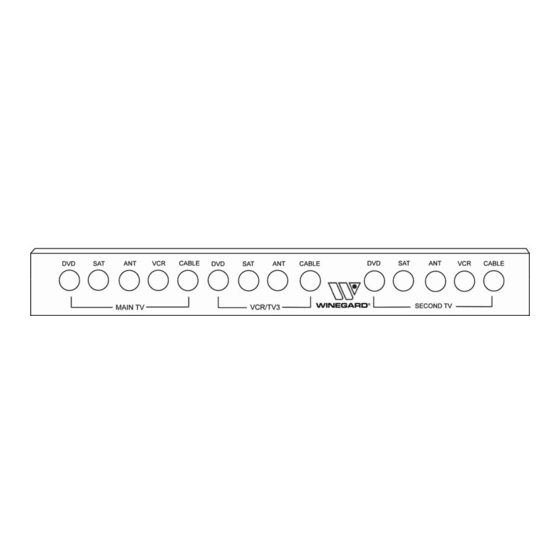

Simple push button controls allow you to send signals
from any one of 5 different inputs to 2 TVs and VCR
rd
or 3 TV.

5 Inputs are Satellite Receiver, TV Antenna, VCR,
Cable TV & DVD.

3 Outputs: Main TV, TV 2, VCR/TV3.

Built-in +12 VDC TV antenna power supply eliminates
need for separate wall mounted TV antenna power supply.

Self-resetting fuses used in antenna power supply
prevent failure caused by shorted connections.

Video switch allows for independent viewing of
signals at different TVs, with a record option from VCR.

COAX AND AUDIO/VIDEO (A/V) CABLE CONNECTIONS

STEP 1. Connect the coax cable from the output on the switch box marked "To Main TV" to the antenna
input connection on the back of the main TV.
STEP 2. Connect the coax cable from the output on the switch box marked "To SECOND TV" to the
antenna input connection on the back of the second TV.
STEP 3. Connect the coax cable from the output on the switch box marked "To VCR/TV3" to the input
connection on the back of the VCR. If not using a VCR, see STEP 7.
STEP 4. Connect the coax cable from the output of the AUX SOURCE or VCR to the coax connection on
the back of the switch box marked "FROM VCR."
STEP 5. Connect the coax cable from the exterior Cable TV input plate to the to the coax connection on
the switch box marked "FROM CABLE."
STEP 6. The output of the auxiliary device (TV game, camcorder or 2
connected to the input connection marked "FROM VCR" to allow viewing of the auxiliary device on the
Main TV and TV2.
STEP 7. If a VCR is being used only to view video tapes and the VCR is NOT used to "RECORD",
the "VCR/TV3" can be dedicated to a 3
CABLE TV, TV ANT, DVD, VCR) on an additional TV set by using the buttons in the "VCR/TV3" section
on the front of the unit.
STEP 8. NOTE: The coax cable from the satellite antenna must go directly to the input of the
satellite receiver marked "Satellite In."
STEP 9. Connect the Audio/Video cables with RCA jacks from the output of the DVD player to the input
connection on back of the video distribution switch marked "IN". Be sure the three color coded jacks are
attached to correct inputs and outputs (Audio RT = Red, Audio LF = White, Video = Yellow).
WINEGARD
MODEL VS5312A
rd
TV or External TV set to allow viewing of the 5 main inputs (SAT,
®

Low profile housing blends nicely
with other electronic components;
fits easily in overhead cabinets.

Shielded circuitry for high
isolation and low signal loss.

Oversize, easy-to-read graphics for
proper function selection when
mounted in out of the way
locations.

Built-in Ch. 3 / 4 modulator for
DVD loop-through.
nd
satellite source) can be
