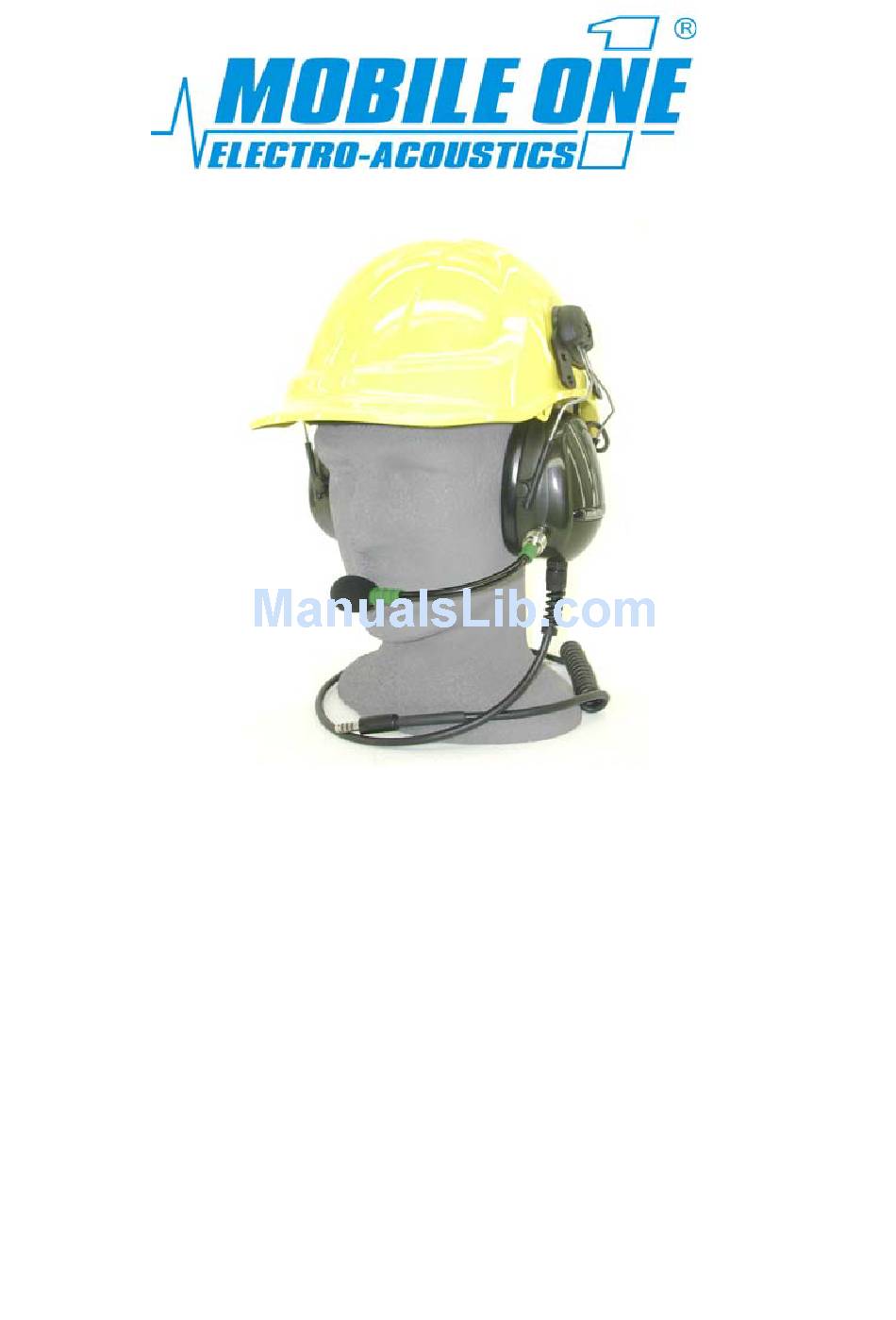

HEADSET INSTRUCTIONS
AND
USER GUIDE
HSP-5 & 7 SERIES
Thank you for choosing a quality communica ions Headset
t
from Mobile One Australia. This Headset has been designed
and developed to maximise comfort, to provide superior
electronic communications and to ensure excellent hearing
protection within environments of high ambient noise.
Advertisement
Table of Contents
Related Manuals for Mobile One HSP-5 series
Summary of Contents for Mobile One HSP-5 series
- Page 1 USER GUIDE HSP-5 & 7 SERIES Thank you for choosing a quality communica ions Headset from Mobile One Australia. This Headset has been designed and developed to maximise comfort, to provide superior electronic communications and to ensure excellent hearing protection within environments of high ambient noise.
-
Page 2: Certification Data
8 - 9 CONTACT DETAILS CERTIFICATION DATA Mobile One headsets are approved to comply with AS1270 -2002, Acoustics - Hearing Protectors. NOTE: The headsets must be selected, used and maintained according to AS 1269. These instructions must be followed if the headset is expected to perform... -
Page 3: Fitting Instructions
FITTING INSTRUCTIONS The purpose of this Headset is to: 1. Protect your hearing 2. Provide electronic communications Correct fitment of the Headset to your head is vital for maximum hearing protection and to optimise communications ability. A CORRECTLY FITTED HEADSET Figure A Figure B The Headset Ear Cups must be fitted over your ears covering and... - Page 4 STEP BY STEP USER GUIDE NOTE: The Headset is intended to be worn with the microphone and cable on the wearer’s left hand side. STEP 1 Fitting the Mic. Boom Fit th e Microphone Boom assembly to the mounting socket locate d on Left Side Ear Cup (cable side).
- Page 5 STEP 3 Placing Inter-Cup Cable inside the Hardhat With your thumb as an anchor point, use your fore finger and index finger to push out and remove the two rear clips that support the harness within the Hardhat. See figures 3.1 & 3.2. Figure 3.1 Figure 3.2 Place Inter-Cup Cable inside Hardhat as shown in figure 3.3.
- Page 6 STEP 4 Putting on Hardhat and Headset The Ear Cups can be ‘clicked’ into two positions when mounted onto a Hardhat: 1. Disengaged – Cups positioned outward away from head (figure 4.1 & 4.2). 2. Engaged – Cups positioned inwards against the head (figure 5.2 bottom right) To put on the Hardhat with Headset, first click both Ear Cups outward to the Disengaged position (figure 4.1).
- Page 7 STEP 6 Adjusting Ear Cups for comfort a) Figure 6.1 below illustrates how the black Adjusting Slides can be moved up or down on the Headband. This allows you to adjust the position of the Ear Cup to provide better comfort and a more efficient seal on the head to keep out noise. b) Utilising the up / down adjusting slides, with one hand on the Hardhat (as shown in Figure 6.2), move the Ear Cups up or down so that they completely cover your ears and fit comfortably.
-
Page 8: Care And Maintenance
(7b) ADJUSTING MIC. POSITION Adjust windsock (Microphone) to be directly in the centre of the mouth opening. Ensure that the Yellow Dot is facing toward your mouth. See figure 7.2 Figure 7.2 STEP 8 Checking electronic operation Check Earphones (speakers) You should hear sound from your radio in both Ear Cups. -
Page 9: Parts Replacement
To maintain the noise attenuation properties of the Headset, the Ear Cushions (see Figure 8.0, item 4) should be replaced every six months and the inner foam and spacer assembly (see Figure 8.0 , item 3) every twelve months. More frequent replacement of these items may be required if the Headset is being used under extreme conditions. -
Page 10: Replacement Parts List
HEADSET PARTS – EXPLODED VIEW Figure 9.0 REPLACEMENT PARTS LIST Order Code Description HSP-FCK Hygiene Kit (includes items 3 & 4) MB102 Microphone Boom (includes items 1 & 2) Replacement Wind Sock for Mic. Head (item 2) WSS2... - Page 11 NOISE EXPOSURES There is considerable medical research data now available which clearly demonstrates a link between the loss of hearing in humans as a result of exposure to noise. The factors which contribute to this loss of hearing are many and complex, and as the Headset user you should discuss your requirements with suitably qualified professionals to ensure that the headset you have selected is suitable for the type (frequencies) of noise &...
- Page 12 “NO WORRIES” AUSTRALIAN PRODUCT WARRANTY Any MOBILE ONE product that fails due to manufacturing defects will be repaired or replaced as follows: General Aviation & Helicopter headsets- Three (3) full years from date of purchase. Intercoms, Headsets other than above & Accessories- One (1) full year from date of purchase.
