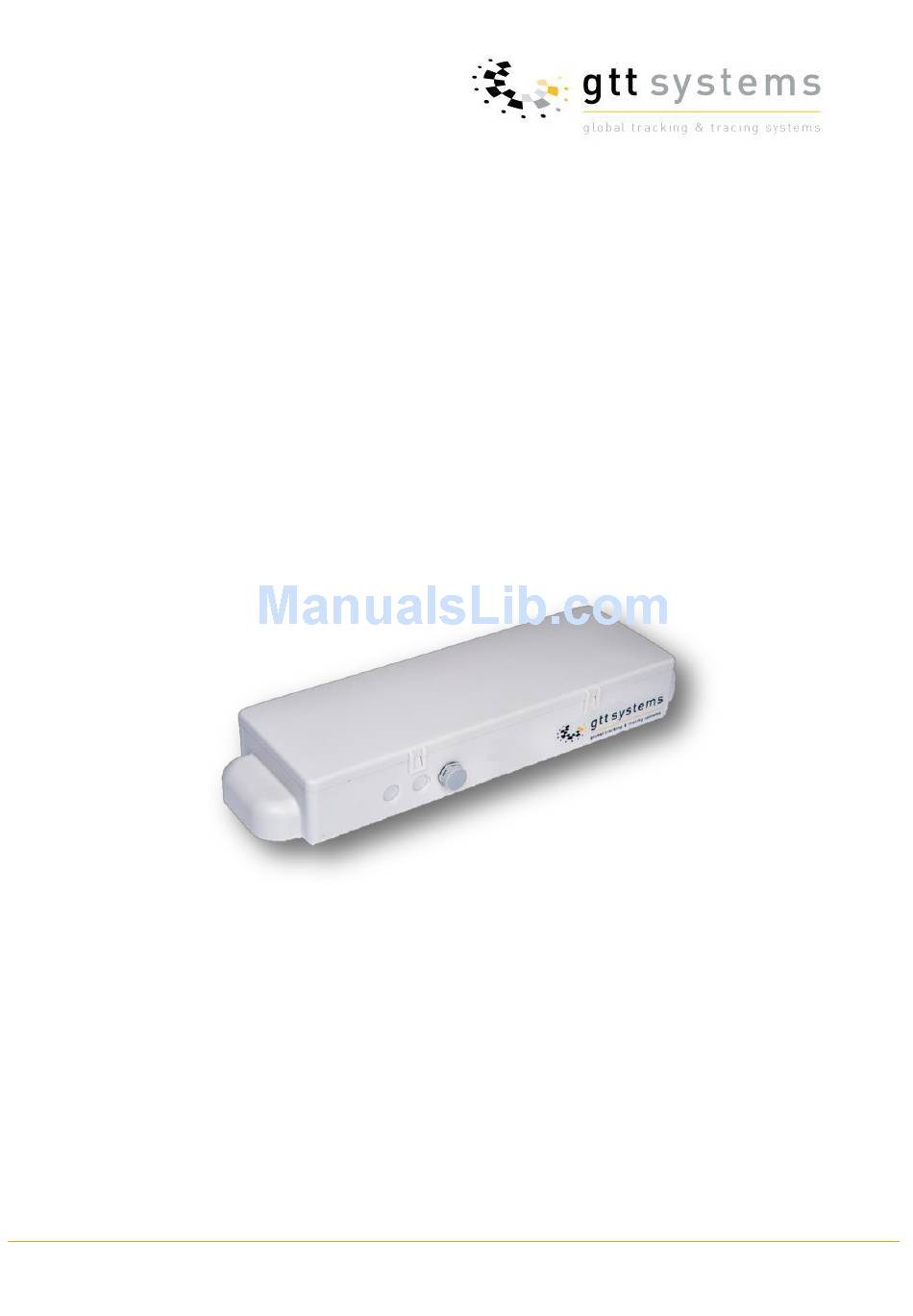

- Page 1 Installation and User’s Manual Global Tracking and Tracing System GTTS-2000Bi Version 1.1 June 2009 GTTSystems B.V. Herfordstraat 16 7418 EX Deventer, The Netherlands 0570 605075 0570 677755 info@gtts.eu www.gtts.eu...
- Page 2 Do not store the GTTS2000Bi on a metal shelf. This will drain the battery. There are no user serviceable parts inside. Do not open the GTTS-2000Bi under any circumstances. If the internal battery has to be replaced, contact your dealer.
-
Page 3: Table Of Contents
Table of Content ..............................4 NTRODUCTION 1.1 G ..........................4 ENERAL INFORMATION 1.2 S ............................ 4 YSTEM DESCRIPTION ..............................6 NSTALLATION 2.1 U ..............................6 NPACKING 2.2 A ......................6 CTIVATION IN THE RIDIUM ETWORK 2.3 I READ THIS FIRST ..................6 NSTALLATION GENERAL 2.3.1 I .................... -
Page 4: Introduction
(SBD) for communication. The Iridium network is the only network commercially available that offers true global coverage. The GTTS-2000Bi was developed in such a way that it can fulfil most of the customer needs without modifications, add-ons or special software versions. - Page 5 An installed GTTS-2000Bi will activate the internal GPS at preset time intervals and measure its geographical position. The position, along with other information, is then send through the Iridium satellite constellation to the Iridium Gateway. In the Gateway the data is processed and send to a pre- configured IP-address and/or E-mail address.
-
Page 6: Installation
2.3 Installation general READ THIS FIRST The GTTS-2000Bi is very easy to install. It shall be installed in horizontal position onto a (ferro) steel surface with no obstructions to the sky above. As soon as the GTTS-2000Bi is mounted onto ferrous metal, it will be switched on automatically. -
Page 7: Installation With Magnet Mounting
2.3.1 Installation with magnet mounting Holding the GTTS-2000Bi with both hands, hold it over the area where it shall be placed. Tilt the GTTS-2000Bi appr. 45 degrees as shown in figure 3 below. Then lower it onto the steel surface and turn the GTTS-2000Bi until the magnets make contact with the steel surface. -
Page 8: Installation With Screw Mounting
2.3.2 Installation with screw mounting If the GTTS-2000Bi should be installed using 4 pieces M5 bolts, the bolts shall not be longer then 18mm plus the steel surface thickness. Drill 4 holes Ø 5,5 mm according the drill plan. See figure below X is steel surface thickness Figure 4. -
Page 9: Configuration
In no event GTTSystems B.V. will be liable for battery wear. 4 Replacement of the battery If the battery needs to be replaced, we advice to return the GTTS-2000Bi to the service department of your dealer. Along with the battery, the gasket in the lid of the unit, shall also be replaced to ensure optimum moisture ingress protection. -
Page 10: Specifications
5 Specifications Size 350x100x50 mm Physical Weight 1250 gr. Optional Magnets Weight Magnets Holding Force 1080 N (~108 Kg) Operating Temperature -35..+65 C Environmental Storage Temperature -35..+25 C Humidity Relative 100% Battery 5,8V / 15600mAh Electrical Power consumption Sleep: ±160 µA Estimated Nr.
