  • Page 1 Card Reader UCR-61S2B Quick Installation Guide...
  • Page 2 Introduction Disclaimer: The information in this document is subject to change without prior notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make any changes from time to time in the content hereof without any obligation of the manufacturer to notify any person of such revision or changes.
  • Page 3: Table Of Contents

    IC Card Reader Table of Contents Introduction Features System Requirements Package Contents Parts of your Card Reader Installation Hardware Installation Software Installation Using your Card Reader Operation Indication Insert & Remove your Smart Media Card Insert & Remove your Memory Stick Card Insert &...
  • Page 4: Introduction

    Introduction Congratulations on purchasing the card reader. This product is designed for accessing data from Smart Media Cards, Compact Flash Cards, Secure Digital Cards and Memory Stick Cards. It is easy to use and provides rates of up to 12Mb/sec. The IC card reader is suitable for PC compatible and notebook users.
  • Page 5: Package Contents

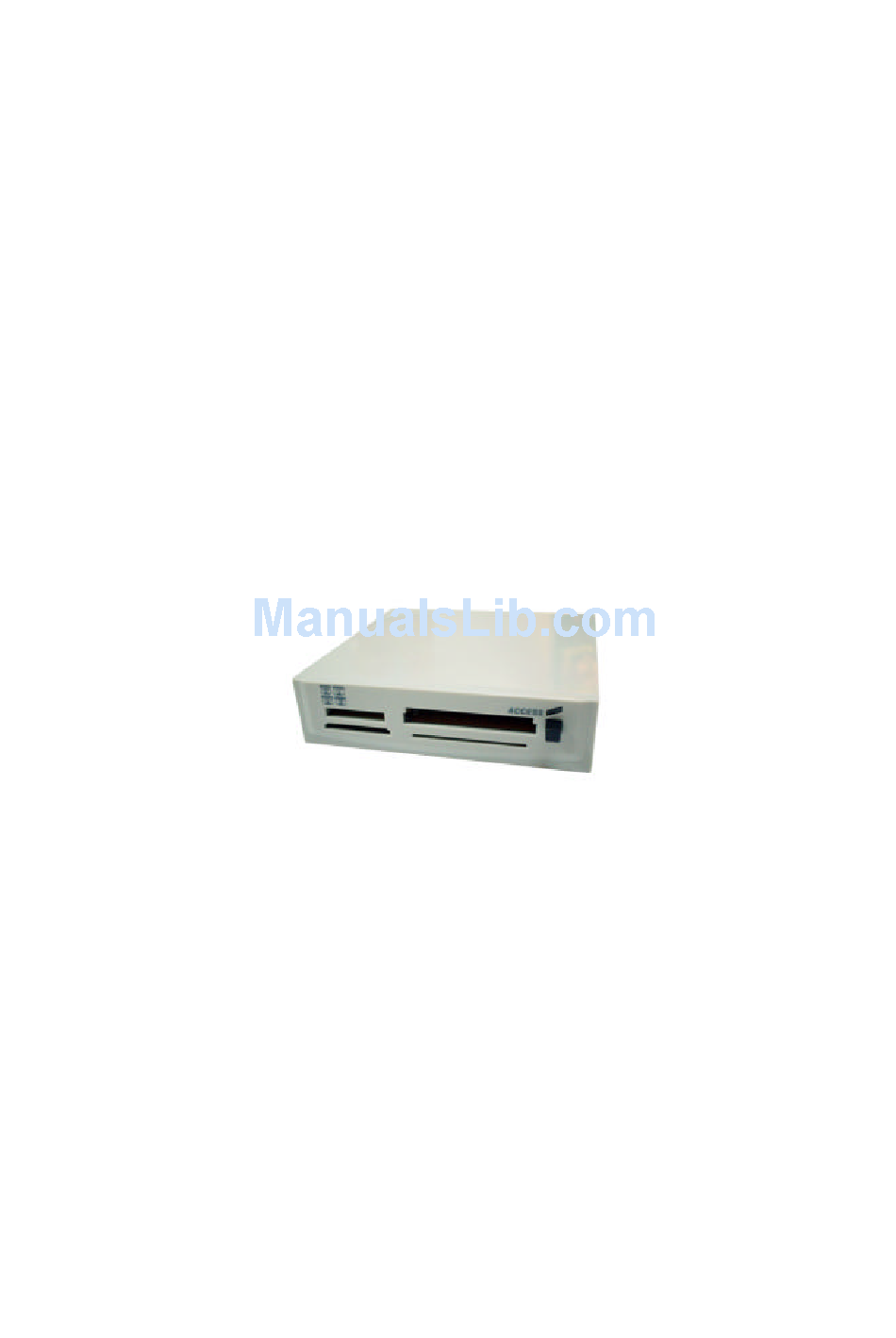

    IC Card Reader Package Contents The package should contain the following items: -- ? ? O ne card reader -- This User’s Guide Parts of your card reader Activity LED Eject CompactFlash Memory Stick card slot or card slot MicroDrive Multi Media card SmartMedia card card slot...
  • Page 6: Installation

    Installation Installation The Card reader is fairly easy to install and operate. It is a Plug and Play installation. To avoid complications during the installation process, please follow the easy steps provided in this chapter. Hardware Installation Install the IC card drive into an available drive bay. Connect the USB cable to the USB header located on your mainboard.
  • Page 7: Software Installation

    Installation Software Installation for Windows Operating System Users must install the driver by the following path from the mainboard’s CD. E:\Peripheral\Card reader\UCR-61S2B\Driver2\Setup.exe .
  • Page 8: Using Your Card Reader

    Using YourCard Reader Using your Card Reader The Card Reader sup ports a variety of storage cards. Operation Indication The Card Reader has one active LED indicators which display the operation status. The LED will blink when the reader is busy. Do not take out or insert a storage card into the IC Card Reader when the LED is blinking.
  • Page 9: Insert & Remove Your Smart Media Card

    IC Card Reader Insert & Remove a SmartMedia Card Insert a SmartMedia card (SSFDC) with its gold contacts side face down into t he socket of the reader. To remove the card, simply pull out of the reader. See figure below. Note: Be careful not to insert the SmartMedia card in the wrong direction.
  • Page 10: Insert & Remove Your Compactflash Card

    Using Your Card Reader Insert & Remove a CompactFlash Card Insert a CompactFlash (with adapter) card face up firmly into the socket of the reader. To remove a card, simply press on the eject button on the reader and pull the card out of the reader. See figure below.
  • Page 11: Reading & Writing To Your Storage Card

    IC Card Reader Reading & Writing to your Storage Card Normally, a storage card is seen like a hard drive in most syst ems. Go to the “My Computer” icon on your systems desktop and double-click it. The cards are listed, simply double-click on the card to open it.
