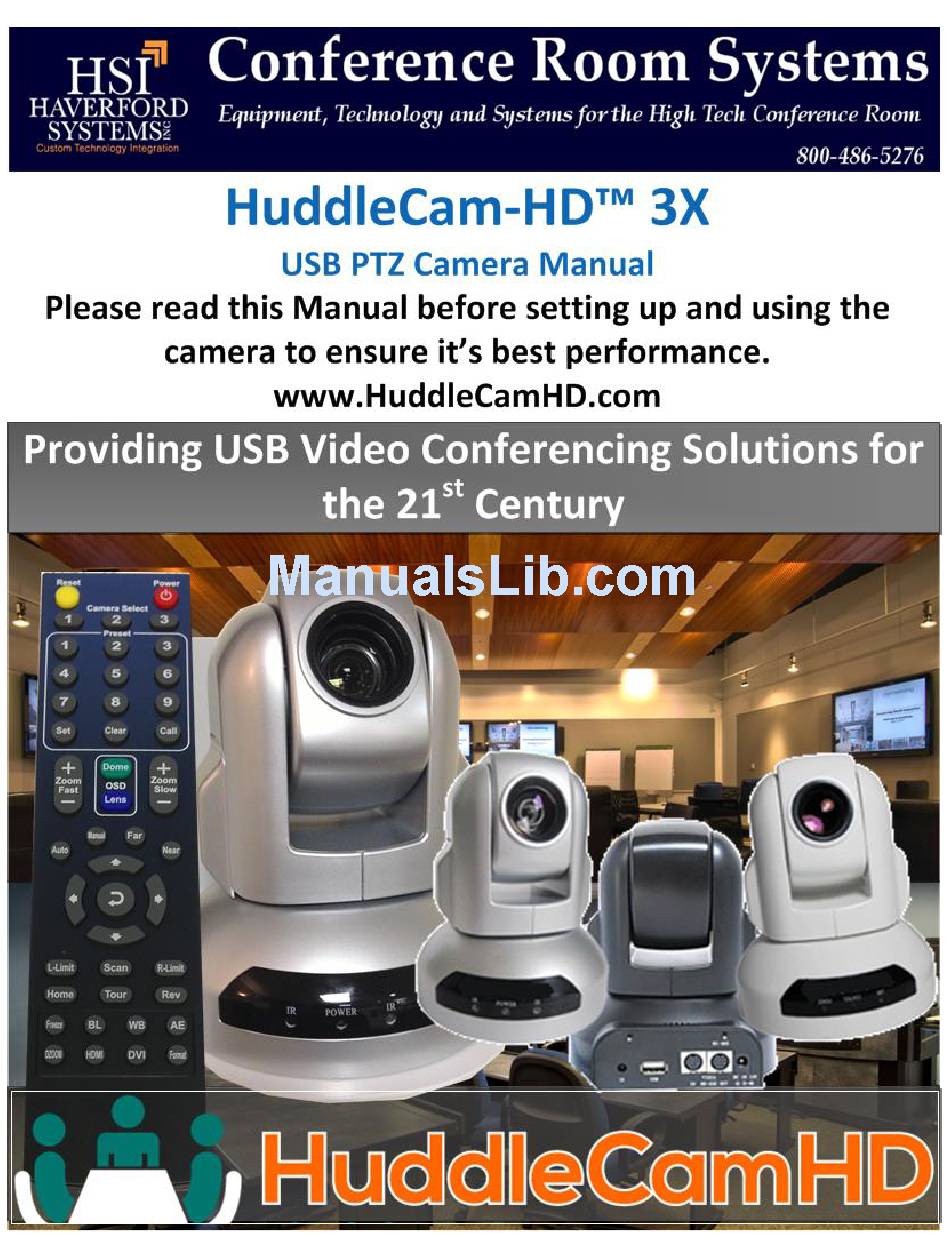

HSI HuddleCam-HD 3X User Manual

Usb ptz camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HuddleCam-HD 3X and is the answer not in the manual?

Questions and answers

Related Manuals for HSI HuddleCam-HD 3X

Summary of Contents for HSI HuddleCam-HD 3X

  • Page 2: Supplied Accessories

    Precautions…………………………………………………………………………………………. Safety Tips……………………………………………………………………………………………. • Please read this manual carefully before using the camera. • Avoid damage from stress, violent vibration or liquid intrusion during transportation, storage or installation. • Take care of the camera during installation to prevent damage to the camera case, ports, lens or PTZ mechanism.
  • Page 3 • USB 2.0 Data Lines (3m), Serial Control Line, RS-232C to RS-485 Cable • IR Remote Controller • Control Cable (1) • User Manual (1) Rear Board Connectors………………………………………………………………………… High Definition Interface: USB 2.0 Control Signal Interface: mini DIN-8 (VISCA IN, VISCA OUT/RS485) Control Signal Configuration: Dip-Switch Pin 7/TTL Signal;...

  • Page 4: Front View

    Rear Board & Function……………………………………………………………………….. 1. Front View……………………………………………………………………………………. 1. Lens 10x Optical Zoom. 2. IR Receiver To receive IR remote controller signal. 3. Power LED Blue LED blinks when unit is powered, Orange LED blinks for Stand-By status. 4. IR Receiver To receive IR remote controller signal.

  • Page 5: Rear View

    2. Rear View…………………………………………………………………………………… 5. DC IN 12V Socket Only use the Power Adapter supplied with this camera. 6. IR Receiver To receive IR remote controller signals. 7. VISCA IN Port For hard wired remote control from a 3 party PC, joystick, etc... 8.

  • Page 6: Bottom View

    3. Bottom View………………………………………………………………………………… 1. Tripod Will accept 1/4-20 bolt from 3 party tripod, wall or ceiling mount using included tripod adapter. 2. Dip-Switches Used for selecting serial and IR communications settings. Ver 1.1 6/30/14...
  • Page 7 4. Dip-Switch Settings…………………………………………………………………………… Note: When changing Dip-Switch settings, make all changes with camera powered off. SW1: Used for setting RS232 address. SW1 Switch State 1-7, (8 for stand-by) Address DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6 DIP-7 Notes: 1. Broadcast address: If the Joystick is 255 (all dip switches on), any Camera can be controlled by any address.
  • Page 8 SW2: Used for communication settings. SW2 DIP-1,2,3: Baud Rate, Communication Protocol Baud Rate SW2 DIP-1 Communication SW2 DIP-2 Communication SW2 DIP-3 Mode Protocol 9600bps OFF (Def) RS-232 OFF (Def) VISCA OFF (Def) 38400bps RS-485 PELCO-D SW2 DIP-4,5: IR Remote Control Receiving Address Table SW2 Switch State (4-5) IR Remote Address DIP-4...
  • Page 9 Cable Connection Info………………………………………………………………………… VISCA RS-232C - IN Reference……………………………………………………………… VISCA RS-232C - Out Reference…………………………………………………………… Ver 1.1 6/30/14...
  • Page 10 OSD MENU…………………………………………………………………………………………….. !!!!!(Menu does not currently work with the HuddleCam-HD™ 3x)!!!!! The following OSD Menu information is only included in the event that future firmware versions include full menu access. Please use the Rev button on the remote control for flipping image for ceiling mount. On Screen Display Menu - Use the OSD menu to access and change the camera’s settings.
  • Page 11 The Lens OSD Menu is as follows: (not applicable, see note above) • DISPLAY Default Value: Off On Screen Display = On or Off • SHARPNESS Default Value: Low Level of Sharpness: Low/Normal/High • SATURATION Default Value: Normal Level of Saturation Low/Normal/High •...

  • Page 12: Camera Models

    IR Remote Controller (Note: Some buttons do not operate for all camera models) Reset: Restarts the camera and restores it to Factory Default settings. (Note: Will delete all memory). Camera Selection Select Camera ID: 1, 2 or 3 Preset Positions 1-9: Preset Positions Set: Setting Preset Position Clear: Clear Preset Position...
  • Page 13 Pan/Tilt Function Zone L-Limit: Set left boundary limit scanning position Scan: Enable Boundary Scanning (Auto Panning) R-Limit: Set right boundary limit scanning position Home: Go to camera’s Home position Tour: Enable automatic patrol tour of presets Rev: Enable image flip for ceiling mounting Connection Instructions………………………………………………………………………...
  • Page 14 Installation Instructions……………………………………………………………………… Desktop Installation……………………………………………………………………………… When using the HuddleCam on a desk, Make sure that it will stand level. If you want to use the camera on an incline, make sure the angle is less than 15 degrees to ensure that the camera’s pan and tilt mechanism operates normally. Tripod Installation…………………………………………………………………………………...
  • Page 15 To fix the tripod mount to the bottom of the camera, use the supplied screws to hold it in place. Then screw the tripod to the tripod bracket. Ver 1.1 6/30/14...
  • Page 16 Wall and Ceiling Mount………………………………………………………………………… Ver 1.1 6/30/14...

  • Page 17: Troubleshooting

    Troubleshooting………….………………………………………………………………………… Problem Cause Resolution There is no power to the Power adapter is Check the connections camera. disconnected from mains between the camera, or from camera. power adapter and mains. If anything is disconnected, reconnect Camera will not connect to USB cable is bad.
