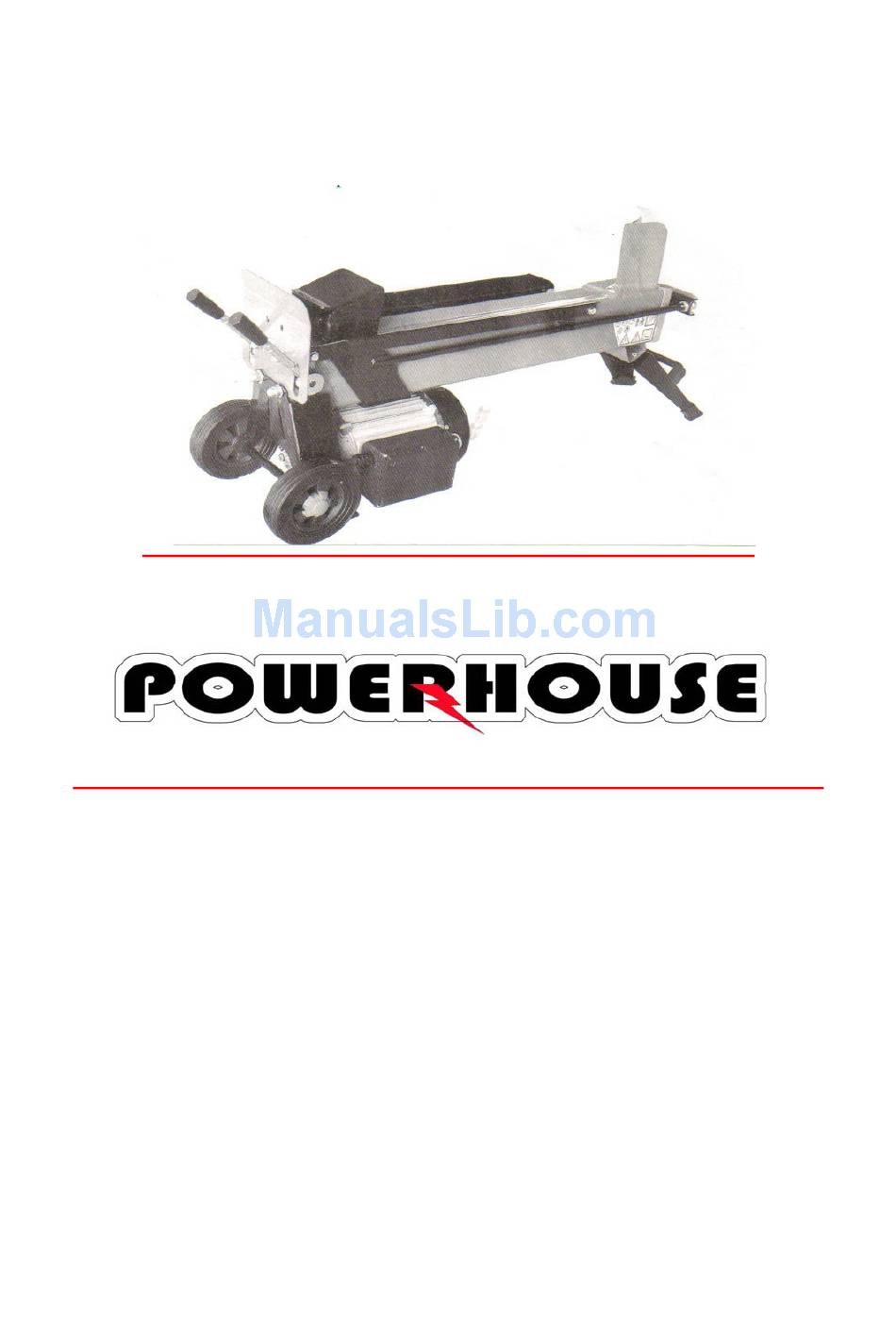

- Page 1 LS7T-52 LOG SPLITTER Operation Manual Please carefully read this operation manual before starting work.
- Page 2 IMPORTANT! READ BEFORE REMOVING LOG SPLITTER Always use CAUTION when working with machinery. CAUTION: Oil may leak during the assembly process. It is advised to lay down cardboard or newspaper prior to assembly in case this happens. 1. Carefully remove the Main Body (part no. 45 in manual) and Motor Assembly (part no.
-
Page 3: Warranty
WARRANTY We warrant this product against any manufacturing defects in material and workmanship for a period of one (1) year from date of purchase. This warranty is valid only by completion of the warranty card AND original or photocopy of sales receipt. This warranty does not cover any defects or damages caused by the following: ... -
Page 4: Electrical Connection
Thank you for purchasing Type LS7-52 9. NEVER operate this machine without 7-Ton Log Splitter. Please carefully read supervision. this operation manual and strictly 10. Turn off machine when it has observe these instructions for your safety completely stopped. and those around you. Following these 11. -
Page 5: Special Warnings
Standard graphic symbols are used on all machines in order to ensure complete Warning! Never remove a log safety. Review these symbols to ensure trapped in the wedge with your hands. your safety when operating the log splitter. Warning! Before starting any maintenance described in this manual, disconnect the plug of the machine. -
Page 6: Key Specifications
Never attempt to split logs containing nails, KEY SPECIFICATIONS wire, or other debris. Clean up as you LS7T-52 work; accumulated split wood and chips Electrical motor: can create a hazardous work 110 volts – 120 volts/60 hertz 3340 rpm environment. - Page 7 2. Never split logs bigger than the then the hardness of the log exceeds the specified log size capacity. Do not capacity of the machine and must not be attempt to split logs with debris such as used on the log splitter. nails, staples, etc as this may cause a jam 11.
- Page 8 The following hydraulic oil is recommended for use in the hydraulic ram: SHELL TELLUS T22 ARAL VITAM Gf22 SP ENGERGOL HCP22 MOBILE DTE11 Or equivalent oils Never use other kinds of oils. CHECK BEFORE UNCASING AND INSTALLATION Remove all components from the packaging box and check each item to ensure it has not been damaged in the shipping process.
- Page 9 the supporting feet (Part 19) using 2 screws (Part 21) and 2 nuts (Part 20). Tighten the screws and nuts. (See Figure With the main part on the foam block and supporting feet attached, use the safety ring (Part 59) to attach 2 wheels (Part 60) onto the shaft of the wheel Figure 1: List of all major components frame (Part 61), and then use the wheel...
-
Page 10: Operation
3. Route the power cord. Locate an appropriate power outlet and secure an extension cord if necessary. Route the cord from the splitter to the power source in a way that safeguards against tripping over the cord or having the cord being damaged in the works session. - Page 11 1) and log pusher (B in Figure 1) will Warning: Never hammer on the contact the log squarely on the ends. jammed log, or place your hands near the log when attempting to free it. 7. Two hand operation. Depress the ...
- Page 12 5. Clean the Dip Stick (part 10), and insert it to make sure the oil level is between the two marks on the dip stick. 6. Clean the Dip Stick (part 10) and O- type Seal (part 11) and re-install. Be careful not to damage the threads of the aluminum Oil Cylinder Cover.
- Page 13 Trouble-shooting Problems that may arise when using the log splitter and recommended remedies are given in the table below. If operation of the machine is carried out by unauthorized persons, the warranty will be immediately null and void, and the manufacturer will be relieved of any responsibility for injury to persons or animals.
