any Super Aurora 12 Operating Instructions

DESCRIPTION

The Aurora 12 and Super Aurora 12 are 12 channel 2 preset lighting desks primarily aimed primarily at schools and drama
groups. Although budget priced, they have many features normally associated with larger more expensive desks, such as flash
level slider, slaving facility and optional goose neck light. The Super Aurora 12 has a range of pre-programmed chase sequences
driven from its speed control or by an audio input. The desks are supplied with the sides fitted for table top use, although they
can be reversed to allow the desk to be 19" rack mounted.

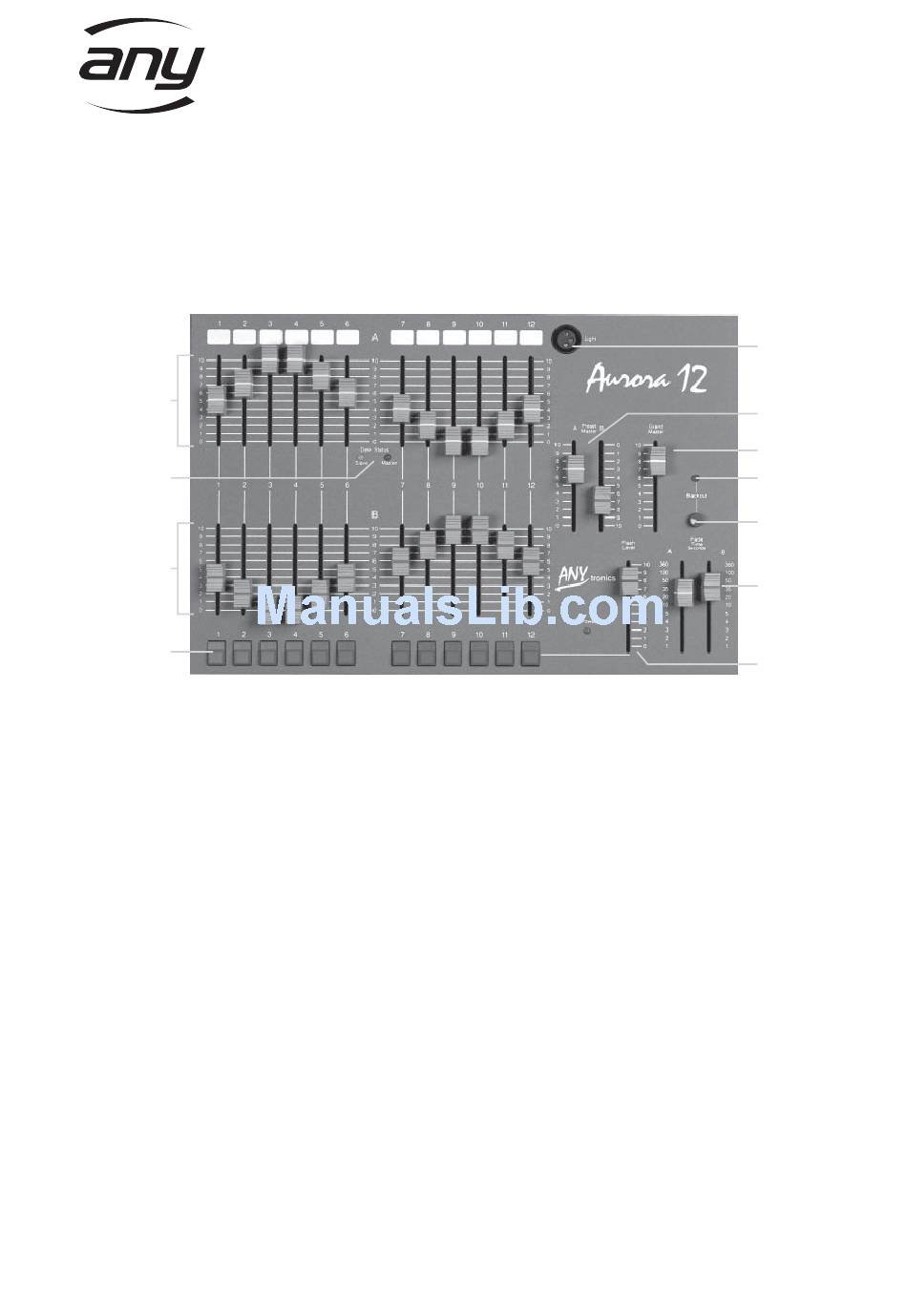

Preset A
Slave/Master
Status L.E.D's
Preset B
Flash Buttons

AURORA 12 Layout and Operation

The layout of the desk is conventional, having preset A sliders directly above preset B sliders, which are positioned immediately
above the 12 light action flash buttons.
On the centre line of the A and B presets and to their right are the A and B master sliders. The B master is reverse connected (i.e.
B preset is off with B master at the top of its travel), allowing for one handed manual crossfades. Located to the right of the
sliders is the grand master slider, which has overall control over both presets. Below and left of the grand master slider is the
flash level slider, which controls the level to which the flash buttons take the output of the channel. To the right of this slider are
the 2 timer sliders, one for each preset, offering timed crossfades up to 360 seconds. Due to the operating parameters of the
crossfade timing circuit the fastest manual crossfade is approximately 0.8 of a second, but as relatively large lamps are usually
being controlled we feel that this will not cause a problem. The times shown against the sliders should be taken as a guide only,
as the component tolerances in the timing circuits could result in fade times of up to 10% higher than indicated.
Located above the timer sliders is the blackout switch, which turns off the output from the two presets, the output from the flash
buttons is not affected by this switch. There are 4 L.E.D's on the panel, one a power L.E.D, two to show the desk status - either
master or slave and finally one which will be lit when the desk is in blackout.

INPUT AND OUTPUT CONNECTIONS

Outputs are via two 8 pin ring locking DIN sockets. These carry the DC supply for the desk from the dimming packs. If packs
other than Anytronics units are used then a supply of 18 ----- > 25V at a minimum of 70mA will be required to run the desk alone.
If the desk light is to be used, a current of at least 200mA will be needed, which can be supplied by two Anytronics packs. If you
are using Anytronics packs fitted with the DMX option, then there will only be enough current available to run the desk and not
the light, as the DMX cards use some of the available supply. A separate power supply is available from Anytronics which is
capable of powering either model of desk, including the light. A DC socket is provided on the desk for the P .S.U.
Two 5 pin DIN sockets are provided for slaving in - out connections, along with a selector switch. On a desk in 'slave' mode, only
the preset sliders and flash buttons will operate, all other functions being controlled by the 'master' desk. There is a limit to the
number of desks which may be slaved, however, as this figure is in excess of 50 units it hardly seems worth mentioning!
For easy identification, all sliders controlling preset A are marked with a yellow pointer and all sliders controlling preset B are
marked with an orange pointer.

Operating Instructions

Please try and read at least once before discarding!!
Desk Light
Socket
Preset Masters
Grand Master
Blackout L.E.D
Blackout
Switch
Timer Sliders
Flash Level
continued...
