NewVission U-10WF User Manual

Portable interactive pad
Hide thumbs
Table of Contents

Advertisement

Quick Links

NewVission
Portable Interactive Pad
U-10WF
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U-10WF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NewVission U-10WF

Summary of Contents for NewVission U-10WF

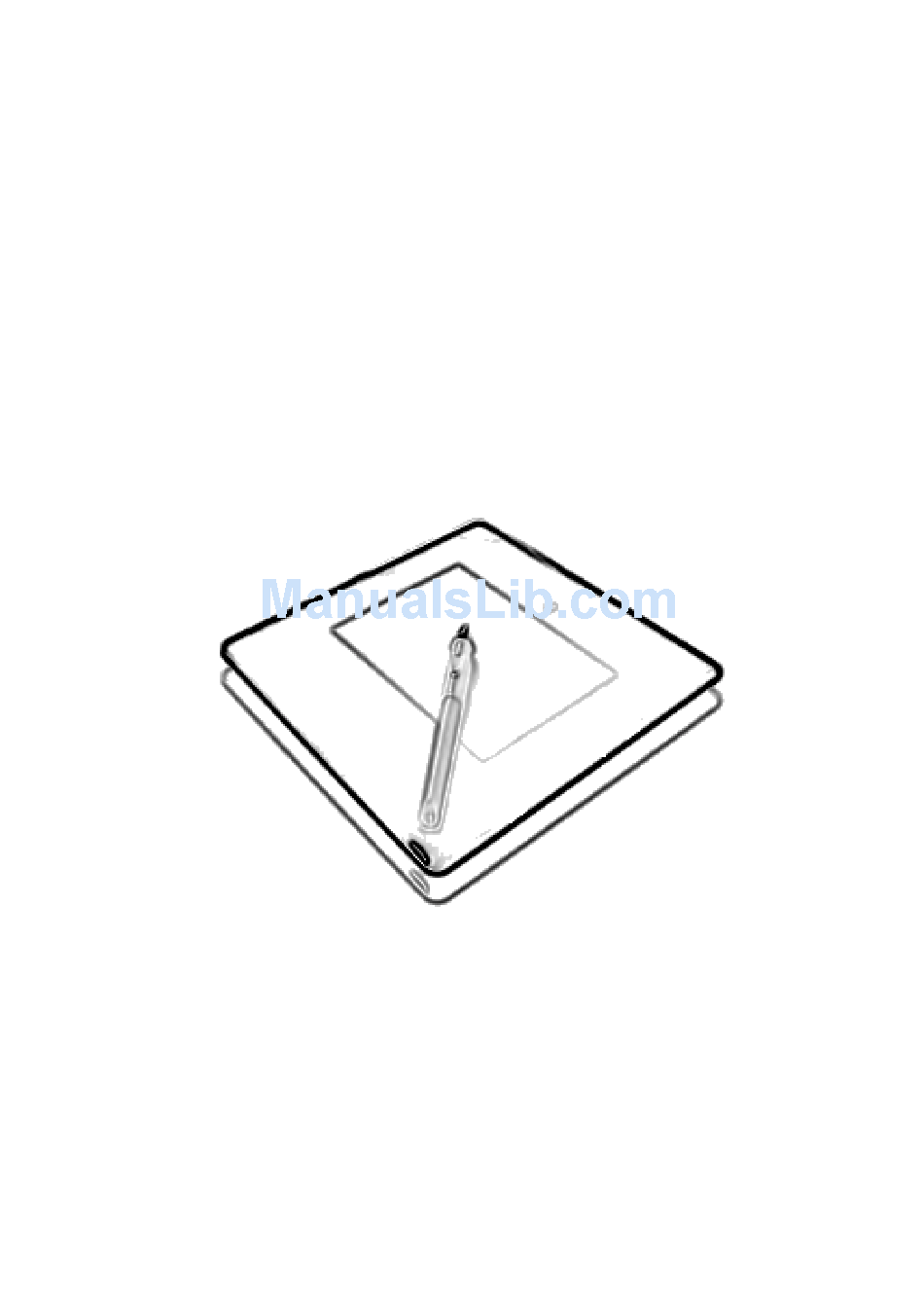

  • Page 1 NewVission Portable Interactive Pad U-10WF User Guide...

  • Page 2: Table Of Contents

    Contents CHAPTER 1 GRAPHICS TABLET INTRODUCTION ....... 1 1.1 G ..............1 ENERAL NTRODUCTION 1.2 F ..................1 EATURES CHAPTER 2 QUICK-START TUTORIAL ..........2 2.1 S .................. 2 ETUP STEPS 2.2 I ..........3 LLUSTRATION OF IRELESS ABLET 2.3 W ................

  • Page 3: Chapter 1 Graphics Tablet Introduction

    Tablet Introduction CHAPTER 1 GRAPHICS Chapter 1 Graphics Tablet Introduction 1.1 General Introduction The Graphics Tablet allows user to create graphics on a computer using a cordless and battery-free pen. It is very easy to use. The user does not have to be an experienced graphic artist to use it.

  • Page 4: Chapter 2 Quick-Start Tutorial

    Quick-Start Tutorial CHAPTER 2 Chapter 2 Quick-Start Tutorial 2.1 Setup steps 1. Install the driver from product CD 2. Connect receiver to USB port on computer. 3. Choose working mode:  Wired mode: Connect the receiver to tablet.  Wireless mode: Disconnect the receiver from tablet.

  • Page 5: Illustration Of Wireless Tablet

    Quick-Start Tutorial CHAPTER 2 2.2 Illustration of Wireless Tablet 2.2.1 Front Side Charging Indicator: Red light represents charging the tablet. Full Power Indicator: Green light represents full battery power. The battery cannot be detected or malfunctioned when the Power-on Indicator and Charging Indicator are blinking;please check whether the battey is secured in the compartment and is in good condition.
  • Page 6 Quick-Start Tutorial CHAPTER 2 2.2.2 Wired Mode Battery compartment: A compartment stores tablet battery. Channel switch button: To switch channel when multiple wireless tablets use the same channel and interfere each other. Press Channel switch button for once time, the channel can be switched from 0 to 15.Receiver Indicator blinks if the channel was switched successfully.
  • Page 7 Quick-Start Tutorial CHAPTER 2 Reset Key: To reset the tablet when sleep mode or crashing. Code Match Button: Press the code match button of tablet for 3 seconds and receiver indicator will blink, then match the code. Note: Code between tablet and its receiver has been matched during production.

  • Page 8: Wake Up Tablet

    Quick-Start Tutorial CHAPTER 2 between receiver and tablet. 2.2.4 Wireless Mode 2.3 Wake up Tablet Tablet will be into sleep mode automatically when the tablet idled over about 10 minutes. Press wake up button, then users can use the tablet normally. 2.4 Switch Channel of Tablet Disconnect receiver with tablet, the tablet will be on wireless...

  • Page 9: Battery Charging For Tablet

    Quick-Start Tutorial CHAPTER 2 mode. It will be disturbed when multiple tablets using the same channel, for example: multiple tablets being wireless mode, using wireless tablet with RF mouse or wireless telephone together in one room. Press Channel switch button once, receiver indicator will blink, and the channel will be switched.
  • Page 10 Quick-Start Tutorial CHAPTER 2 Then you can see a window like below Select “Enable” and click “OK”. You can see below It means match code successfully. 4. Match code successfully if using the pen tablet normally. Otherwise, please press match code of receiver again, then press match code of tablet.

  • Page 11: Chapter 3 Usage Of Pen

    of Pen CHAPTER 3 USAGE Chapter 3 Usage of Pen Holding the pen Hold the pen as usual.  The pen will take effect when it comes within 7mm above the tablet.  While using the pen, be sure that your thumb or index finger can easily control the button on the pen, which acts as the right-click key of a mouse.
  • Page 12 of Pen CHAPTER 3 USAGE Positioning Moving the pen in the active area of the tablet will control the cursor’s position on the computer screen. The pen and tablet use the Absolute Coordination method. This means the active area of the tablet represents the entire computer screen.
  • Page 13 of Pen CHAPTER 3 USAGE Single Click One slight touch of the pen on the tablet has the same effect as a single left-click of the mouse. Double Click Two immediate clicks on the tablet have the same effect as a double left-click of the mouse.
  • Page 14 of Pen CHAPTER 3 USAGE Dragging Select a target by pressing the pen down on it, and do not release the pen till you have moved the target to the new position you want. Pressure Sensitive Painting In applicable software, you can use the pressure sensitivity of the pen to control the painting brushwork for different effects such as direction, stroke width, color and thickness.

  • Page 15: Chapter 4 Instruction For Windows Systems

    MAINTENANCE Chapter 4 Instruction for Windows Systems 4.1 System Requirements Pentium III 1GHz or later 256MB Hard-disk 1 GB Windows/Mac & Linux Port USB1.1 or 2.0 4.2 Installation Connect the drawing tablet’s USB cable to the computer’s USB port. Step 1 Insert the driver CD into the CD-ROM drive.

  • Page 16: Uninstalling

    MAINTENANCE Step 2 Click on Install Driver for Graphic Tablet button to install the driver. Step 3 After installing the driver and the bundled software, read this manual for detailed information on using and customizing your graphics tablet. Note: If the tablet cannot be used after driver installation, please restart your computer.

  • Page 17: Chapter 5 Maintenance

    MAINTENANCE Step 3 Click Uninstall and follow the prompts to remove the tablet driver. Chapter 5 Maintenance 5.1 Pen Holder Front View of Pen Holder Back View of Pen Holder a. Vertical Pen Slot a. Pen Nib Storage Slide switch toward green dot to open, then pick...
  • Page 18 MAINTENANCE pen nibs from Pen Nib Storage; slide the switch toward red dot to close the Pen Nib Storage b. Horizontal Pen Slot b. Storage hole for extra pen nibs c. Pen Nib Exchanger Front view with pen placed in horizontal slot...

  • Page 19: Exchange Pen Nib

    MAINTENANCE 5.2 Exchange Pen Nib  Insert the old nib to Pen Nib Exchanger, hold tight and pull the pen out of the pen nib exchanger.  Pulling out the pen nib After pulling the pen out of the exchanger, the old pen nib...
  • Page 20 MAINTENANCE stayed in Pen Nib Exchanger.  Insert a new pen nib into the pen. Note: The pen holder is not included in all series of products. If you purchased the product does not have the pen holder as mentioned above, please using tweezers, grasp the nib and draw it out.

  • Page 21: Specification

    Specifications Model No. U-10WF U-15WF Technology Electromagnetic Panel Size 7.5" inch (190mm) 10" inch (254mm) Resolution 4000dpi/Inch 5080dpi/Inch Reading speed 120Dot/S 220Dot/S Pressing Levels 1024Levels 2048Levels Battery Rechargeable Lithium-Ion Battery Wireless 2.4G RF Wireless Technology RF Range 5 meters Touch Input...
  • Page 22 XIAMEN INTERACTIVE TECHNOLOGY CO. LTD., 1F No. 45, Wanghai Rd, Xiamen Software Park Phase II, Xiamen, China - 361008 Tel : 86-592-5902910 Fax : 86-592-5902916...
