IMC Networks Giga-MediaLinX Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Giga-MediaLinX
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Giga-MediaLinX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IMC Networks Giga-MediaLinX

Summary of Contents for IMC Networks Giga-MediaLinX

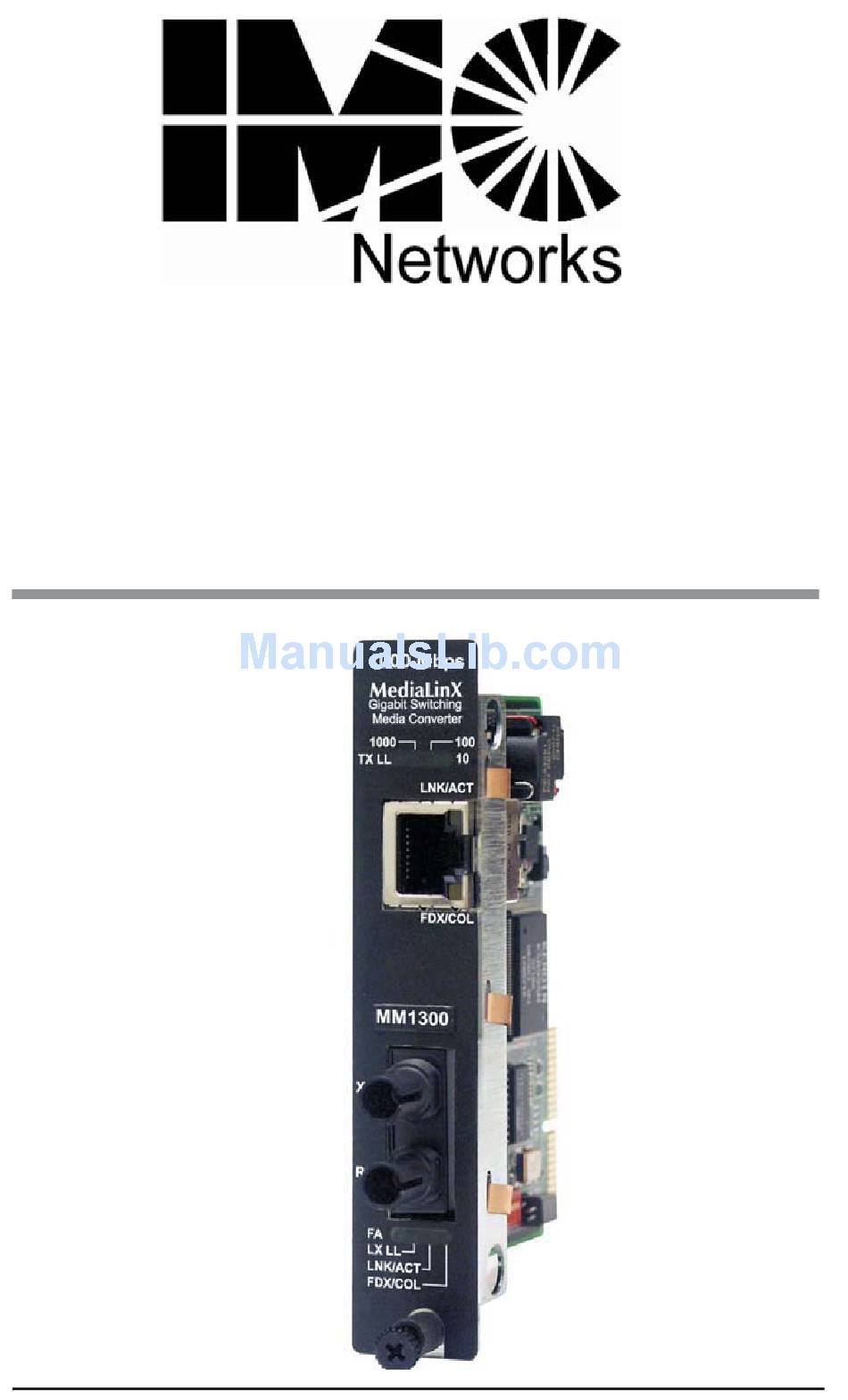

  • Page 1 Giga-MediaLinX Operation Manual...
  • Page 2 Notes:...

  • Page 3: Table Of Contents

    Table of Contents About the iMcV-Giga-MediaLinX ....1 LED and Port Operation ......1 Installing the iMcV-Giga-MediaLinX .

  • Page 4: About The Imcv-Giga-Medialinx

    • Blinks green when data activity occurs. MASTER Glows amber when in Master mode. The twisted pair port on the iMcV-Giga-MediaLinX includes AutoCross, a feature which automatically selects between a crossover workstation or pass-through connection depending on the connected device.

  • Page 5: Installing The Imcv-Giga-Medialinx

    ANAGED ODULES To manage an iMcV-Giga-MediaLinX, it must be installed within an SNMP-Manageable chassis. In a managed environment, install the module first, then configure using the management software. Within iView², con- figure features and troubleshooting functions in the Module Detail section under the picture of the module.
  • Page 6 NMANAGED ODULES Configure the iMcV-Giga-MediaLinX for desired features before installing it inside a chassis. Dip Switch Settings S1 Function Default 1 TX Auto-Negotiation 2 TX Port: HDX(ON) or FDX(OFF) 3 TX Port: 100(ON) or 10(OFF) 4 TX Port: 1000 5 TX LinkLoss...

  • Page 7: About Linkloss And Fiberalert

    ORCING THE UPLEX The twisted pair port on the iMcV-Giga-MediaLinX can be set to either Half- or Full-Duplex operation. Before manually setting the duplex mode, disable Auto-Negotiation by setting DIP Switch 1 to OFF. • The twisted pair port is configured for Full-Duplex by default, which is the OFF position on DIP Switch 2.
  • Page 8 The appropriate “LNK” (link) LED is lit to indicate this. The iMcV-Giga-MediaLinX also sends out link pulses from its copper and fiber transmitters, but normally has no way of knowing whether the cable to the other device is intact and the link pulses are reaching the other end.

  • Page 9: Specifications

    1) Only use fiber patch cords (or connectors) from a reputable supplier; low- quality components can cause many hard-to-diagnose problems. 2) IMC Networks installs dust caps to ensure factory-clean optical devices. These protective caps should not be removed until the moment of con- necting the fiber cable to the device.

  • Page 10: Warranty

    (6) years after the original date of purchase. This warranty is subject to the limitations set forth below. At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited war-...

  • Page 11: Federal Communications Commission Radio Frequency Interference Statement

    Every reasonable effort has been made to ensure that IMC Networks product manuals and promotional materials accurately describe IMC Networks product specifications and capabilities at the time of publication. However, because of ongoing improvements and updating of IMC Networks products, IMC Networks cannot guarantee the accuracy of print- ed materials after the date of publication and disclaims liability for changes, errors or omissions.
  • Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. Giga-MediaLinX is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
