Page 1: Operation Manual

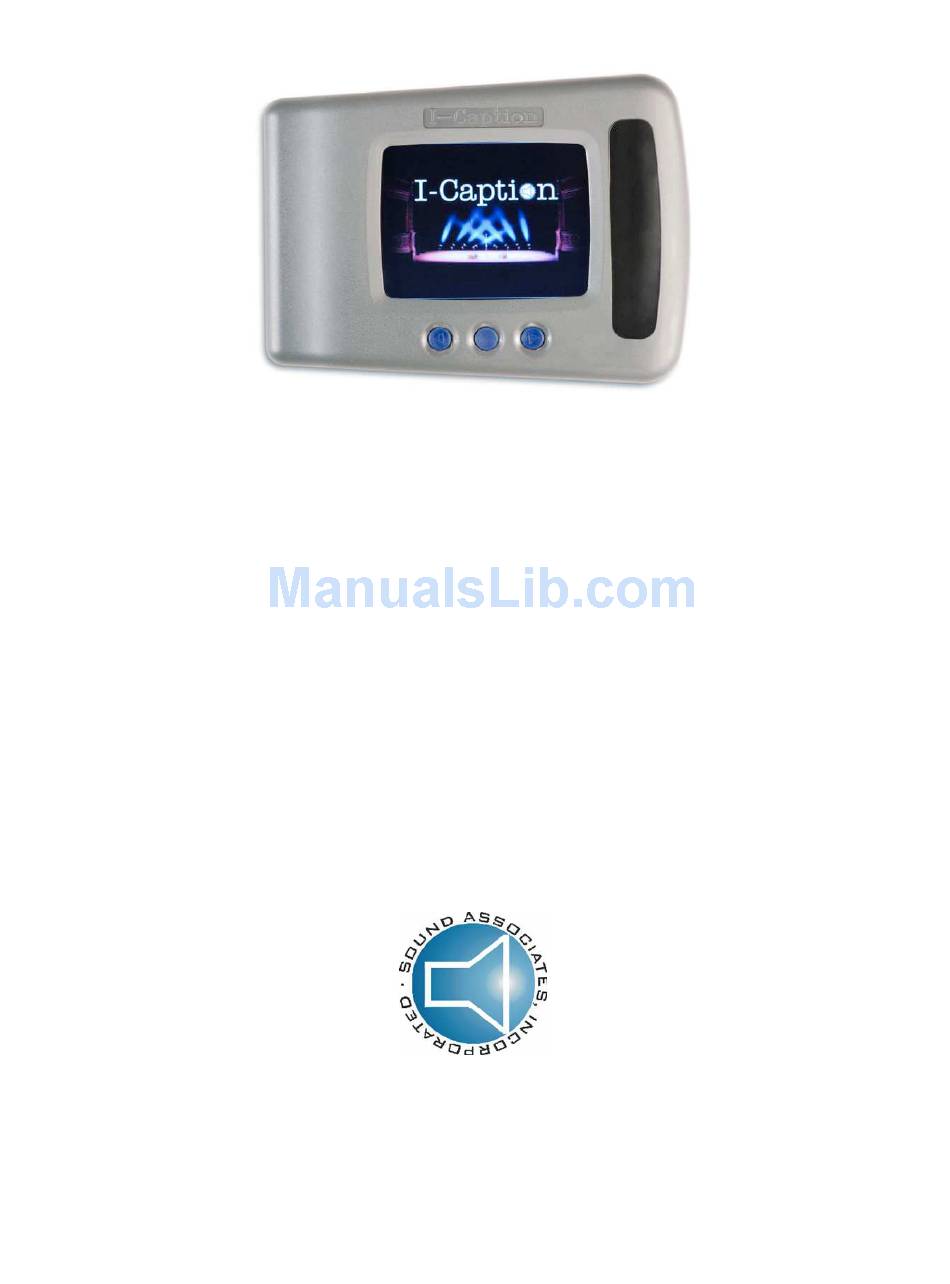

OPERATION MANUAL ® I-Caption R4 Receiver: SOUND ASSOCIATES, INC. 424 West 45th Street, New York, NY 10036 Tel: (212) 757-5679 Fax: (212) 265-1250 Toll free: (888) 772-7686 Home Page: www.soundassociates.com... -
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INFORMATION..................2 INTRODUCTION...........................3 FEATURES ...........................3 UNPACKING UNIT ........................3 FRONT PANEL CONTROLS ......................3 SIDE PANEL CONNECTIONS .....................4 INSTALLATION OF SD CARD CONFIGURATOR...............4 ADDING A NEW SHOW – R4 INITIAL SET UP ................5 Parameter Set Up ......................5 Creating File Folder Location ...................6 Adding Content to Show or Services ................6 CHARGING THE UNIT .........................7 RUNNING A SERVICE –... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DO NOT EXPOSE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: Introduction
INTRODUCTION Thank you for choosing a Sound Associates, Inc. manufactured product. All Sound Associates, Inc. products are carefully designed and engineered for cutting edge performance and world class reliability. I-Caption® is a state-of-the-art, wireless visual aid that provides verbatim closed captions and subtitling on an individual hand-held receiver. -
Page 5: Side Panel Connections
2 – Center Button: Shows battery and signal strength while in regular operating mode; enter button in menu modes. 3 – Right/Forward Arrow: Increases volume (when audio is playing); returns to current slide when I- Caption is running; up arrow in menu modes. .Note: The R4 control buttons have different functions depending on which mode the receiver is operating SIDE PANEL CONNECTIONS... -
Page 6: Adding A New Show - R4 Initial Set Up
ADDING A NEW SHOW – R4 INITIAL SET UP Once the SD Card Configurator program has been installed, the following window will open. (If the windows does not open, you may also click on the desk top icon.) The window will take you through the process of setting up the parameters for your new show. -
Page 7: Creating File Folder Location
Save Selection - R4 will start in Menu mode during the first power cycle. Once the selection is made it will save that selection and start in that selected service when the unit is power cycled. To return to the Menu page hold the left hand side arrow button and power cycle the R4 unit. -
Page 8: Charging The Unit
From Drop Down Menu, select the type of file associated with this service: PowerPoint presentation (Caption or • Subtitle Slides or Graphics) Note: Power Point Presentations will be converted to the appropriate JPEG files. JPEG files (Slides or Graphics) • MP3 file (Audio Files for Audio •... -
Page 9: Running A Service - Operation Of R4 Receiver
RUNNING A SERVICE – OPERATION OF R4 RECEIVER To operate the R4 Receiver, first insert an SD card that has been formatted through the SD Card Configurator. (See page 6.) Once the card is inserted, use the toggle switch on the side of the unit to power on. The “start up”... -
Page 10: Theory Of Operation
Info Screen: displays systems settings created by the SD Card Configuator for the SD card currently in use. To display Info Screen: using a thin object (such as a jeweler’s screwdriver or paperclip), press the recessed • button on the back of the receiver (right side, see pic above) . Systems Settings are displayed. -
Page 11: Standard I-Caption® Live Text Setup With Laptop Computer
Power indicator on bottom of T4 units will light red when they are powered on. • Data indicator on bottom of the wired T4 & T4R units will light green when connected to the network and will • flash when data is being sent. Standard I-Caption®... -
Page 12: Service Or Repairs
Finish/Material (Front)..................Textured gray ABS plastic ACCESSORIES To order accessories or equipment related to the R4 Receiver, please contact Sound Associates’ Customer Service Department Monday – Friday 10:00 am - 5:30 pm EST at (888) 772-SOUND (7686). For your convenience, we have included the following part numbers for easy reference:... -
Page 13: Warranty
Sound Associates will repair or replace the unit, whichever Sound Associates chooses, free of charge. All repairs will be conducted by trained personnel at Sound Associates’ facility in reasonable time.
