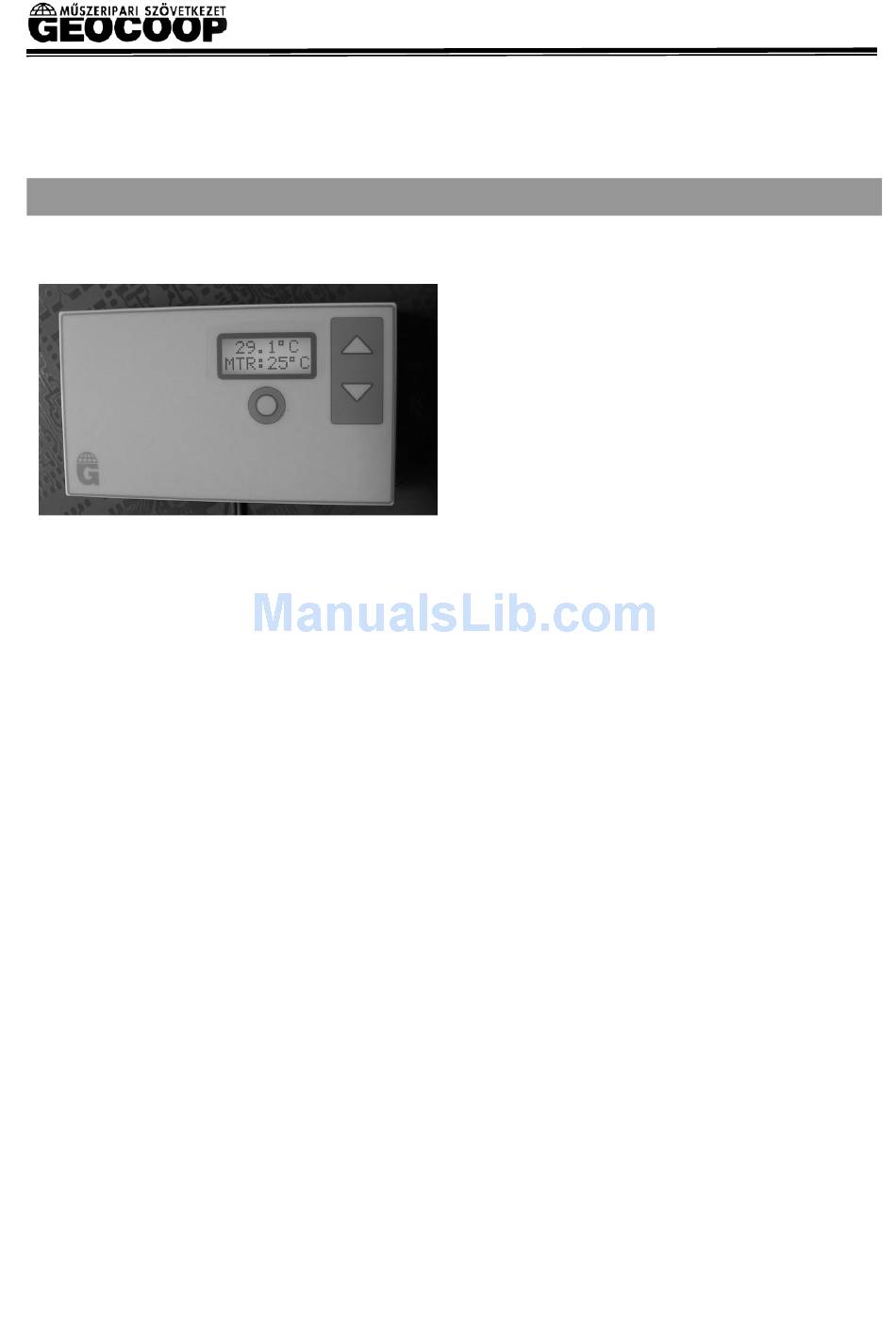

RGT-03
PROGRAMMABLE GSM THERMOSTAT
USER GUIDE
Features
• Instant and remote programming
• Inquiry via SMS or phone call
• MANUAL mode: Operates as a thermostat
with fixed set point through the day.
• AUTO mode: Follows a user-defined
program with 4 target temperatures and
switching times/day for each day of a week.
• HOLIDAY mode: Follows Sunday
program on the current day and the day
after.
• Temperature override
• All data is kept in case of a power loss
• Control program for seven different types
of heating/cooling systems
• Optional distantly mounted heat sensor
• ALARM SMS in case of over or under
heating/cooling
• Can be customised at initial setup:
o Heating/cooling system
o Temperature shift
o Safety temperature limit
o Forced pump operation
o Weekly program
o Language of SMS messages
The RGT-03 is an automatic SMS programmable
control device made for the temperature control of
apartments, weekend houses or even whole
buildings.
The
selectable
algorithms make it ideal for the operation of gas,
oil, electric heating systems (including pumps) and
air-conditioners. The built in GSM unit provides the
remote access and guarantees the exact timing.
Distant programming and the inquiry of data is
easily done by simple SMS messages, while the
controller also can be set on the spot with three
buttons and an LCD display.

Technical data

Controlling accuracy
Temperature range
Controlling method
Temperature display
Sensor
Programming
Relay switch
Relay life
Power input
Operating temperature -20 ... 55°C operation
Dimensions
ML_RGT03_V5_english.doc
pre-programmed
±0,3°C
5 ... 40°C, in 1°C steps
PI (proportional integrating)
-3 ... 50°C, in 0,1°C steps
NTC thermistor 10K @ 25°C
7 days, 4 set point/day
Single Pole Double Throw
voltage: 24V-230VAC
load: 6A ohmic, 3A inductive
100 000 switches
10 ... 13VDC, max. 110 mA
-40 ... 85°C transport or storage
120x70x25 mm (W, H, D)
