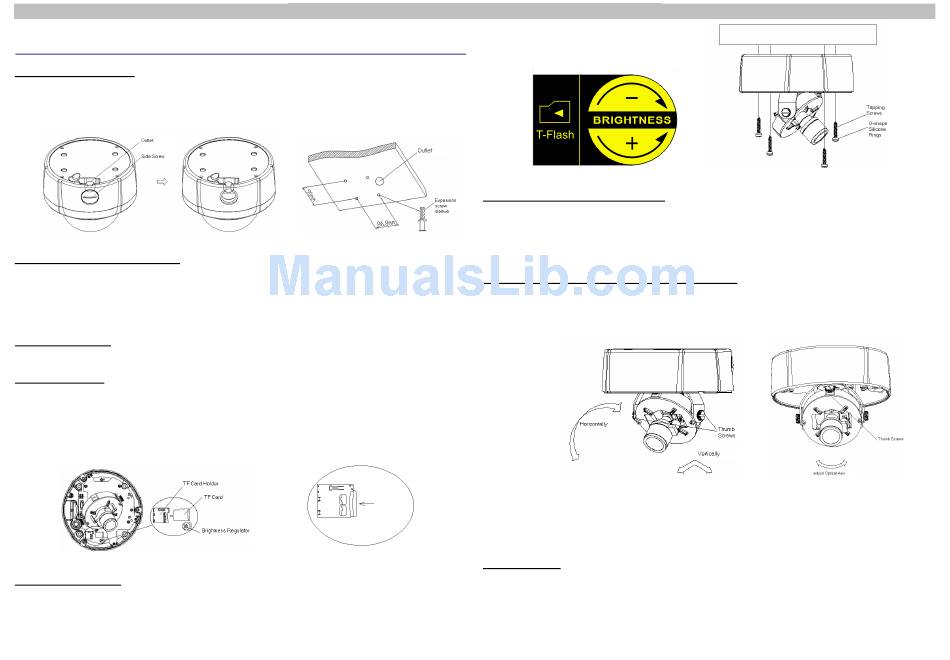

The quick guide is for quick installing this product. For details, please refer to the camera's User Manual.
Installation Guide
1. Outgoing Line Mode
Lead cables through ceiling or side of the semi-dome camera according to the installation condition. If from side
of camera, unscrew the screw on the side and remove the thin wall of the line outlet with pliers and debur it, as
shwon in
Figure 1.
Figure 1 Outgoing from Side
2
Install expansion screw sleeve
Drill four Φ6 holes (center distance of holes are 90*86.8mm) with an impact drill on the mounting plate. Press four
Φ6 screw sleeves into the holes (supplied with accessories); If lead cables through ceiling, drill an outlet first.
The location of outlet should be determined appropriately based on the bottom case of the semi-dome camera,
as shown in Figure 2.
3
Connect Cables
Connect cables, including video, alarm, power, audio, and network cables, by tags as per Figure 16 and Table 1.
4
Install TF Card
To install TF card, please perform the following steps: 1) Open the bottom cover; 2) Place T
flatly; 3) Insert TF card into the TF card socket as in the direction of arrow, as shown
To pull out TF card, please perform the following steps: 1) Push the TF card in the direction of the arrow,
then release; 2) Take the TF card out at about 1cm from TF card socket, as shown in Figure 4.
Figure 3 Install TF Card and Adjust Brightness
5
Adjust Brightness
For HD manual zoom color semi-dome IP camera, it is required to adjust brightness. To do so, please perform
the following steps: Adjust brightness regulator is as shown in
clockwise to increase the brightness, counterclockwise to decrease, as shown in Figure 5.
Add: 4/F,W1-A,Bldg,Gaoxin S.1th Ave.,Hi-Tech Park,Nanshan District,Shenzhen,PRC
Tel:
(86)
755 26525680-2503 /
(86)
755-400-8866755
NCN 52 Series HD Semi-dome IP Camera Quick Start Guide
Figure 2 Install Expansion Screw Sleeve
F card on PCB
in
Figure 3.
Figure 4 Pull out TF Card
Figure 3. Adjust the regulator to proper position,
ZIP Code:518057
FAX:(86) 755 26520574
Figure 5 TF Card Installation and Brightness Adjustment
6
Lock the bottom case onto ceiling
Take the four O-shape silicone rings (Spec: D8*2.5) and the four tapping screws (Spec: BA4*25) out from the
accessory bag, put the four silicone rings onto the four tapping screws, and then pass them through the four
holes on the bottom case and aim them at the four expansion screw sleeves on the ceiling, fasten them with
cross screw driver, as shown in Figure.
7
Adjust HD Semi-dome IP Camera from Three-axis
(1) Aim the lens at the target direction, rotate it in horizontal (0-3600) and vertical (±600) directions respectively to
adjust, and then tighten the thumb screws at both sides of the U-shape bracket, as shown in
Figure 7 Three-axis Adjustment
(2) Confirm the image formed is exactly consistent with actual observed scene, if any inversion or deflection,
loosen the thumb screws and rotate the camera to adjust the optical axis within 360
with the actual situation, then tighten the two screws, as shown in Figure 8.
8
Adjust Lens
For manual zoom lens, the focal length of lens is required to be adjusted. To adjust it, perform the following:
Loosen the focus control bolt, then adjust the focal length to an appropriate position by rotating the focal length
adjusting bolt toward "T" or "W", tighten the focus control bolt, then loosen the focal length adjust bolt and rotate
the focusing ring clock/counterclock-wise till the optimum image effect is obtained, as shown in
Website: http://www.ztenv.com.cn
Serial No.: SJ-20120528174826-001
Figure 6 Bottom Case Installation
Figure 8
Adjust Optical Axis of Lens
0
till the image is totally fit
Figure 9.
E-mail:0049001000@zte.com.cn/ wang.guofu@zte.com.cn
Figure 7.
1
