WIFI Router Quick Guide
21.6Mbps Wireless Router
Switching On/Off Your Device
Hold the Power button to switch on/off the device.

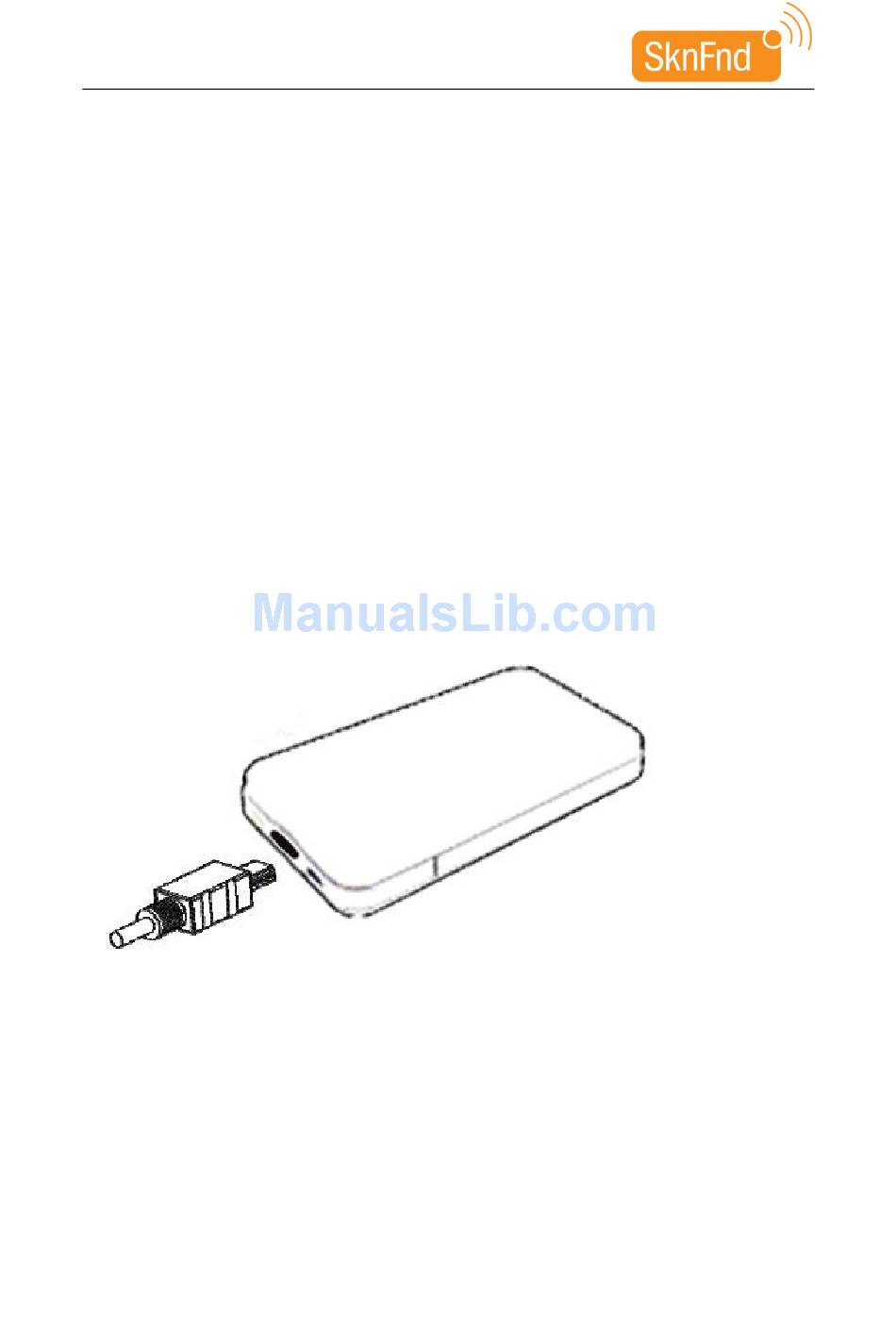

Charging Your Device
You can charge your device by using USB cable or adapter.
1. Insert the charger lead carefully with the plug arrow facing the bottom of the device.
2. The plug only fits one way. Do not use excessive force to insert the plug.
3. Make sure the plug is the right way round and lined up correctly and inserted gently.

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 21.6Mbps Wireless Router and is the answer not in the manual?

Questions and answers

Summary of Contents for SknFnd 21.6Mbps Wireless Router

  • Page 1: User Guide

    WIFI Router Quick Guide 21.6Mbps Wireless Router User Guide Switching On/Off Your Device Hold the Power button to switch on/off the device. Charging Your Device You can charge your device by using USB cable or adapter. 1. Insert the charger lead carefully with the plug arrow facing the bottom of the device.

  • Page 2: Working Mode

    WIFI Router Quick Guide Working Mode Your device supports three working modes. We only use PC or laptop as the example in this document. USB Mode: Connect to the device with the USB cable. Wi-Fi Mode: Connect to the device via Wi-Fi. Notes: If you want to connect to the Internet by using Wi-Fi mode, make sure that the client supports the Wi-Fi function.
  • Page 3 WIFI Router Quick Guide Establish a connection between your Wi-Fi device and the client Via USB Cable Connect your device and the client with the USB cable. Power on your device. Follow the system prompts to complete the software installation. Notes: ...

  • Page 4: Access The Web Gui Configuration Page

    WIFI Router Quick Guide Access the Web GUI Configuration Page 1. Make sure the connection between your device and the client is correct. 2. Launch the internet browser and enter http://192.168.0.1 or http://ufi.home in the address bar. Notes: It is recommended that you use IE (7.0 or later), Firefox (3.0 or later), Opera (10.0 or later),Opera(10.0 or later), Safari (4.0 or later) or Chrome (5.0 or later).

  • Page 5: Quick Setup

    WIFI Router Quick Guide Notes:  The (U)SIM card will be locked if you enter wrong PIN code consecutively for three times If you want to modify the PIN Status, please select Settings > Advanced > PIN Manage to do the actions Quick Setup After logging in, select Quick Setup, and then the Quick Setup wizard appears...
  • Page 6 WIFI Router Quick Guide Settings After logging in, select Settings, and you can do the following operations. View the current station list, change the basic wireless network Select Settings > settings, and choose the security mode and WPA type and perform the Wi-Fi Settings WPS configuration Select Settings >...
  • Page 7 WIFI Router Quick Guide  Network Mode: If all of the wireless devices connect with this device in the same transmission mode, performance will be improved by choosing the appropriate wireless mode.  Network Name (SSID): Service Set Identifier (SSID). Enter a string less than 32 characters as the name for your wireless local area network (WLAN).

  • Page 8: Administrator Management

    WIFI Router Quick Guide 4. Click Apply to confirm. In the SHARED security mode: 1. Select the Default Key which you want to use. 2. Enter the WEP Keys(5 or 13 ACSII characters/10 or 26 HEX characters). 3. Click Apply to confirm. In the WPA-PSK, WPA2-PSK or WPA-PSK/WPA2-PSK security mode: 1.

  • Page 9: Usage Of Wps

    WIFI Router Quick Guide 1.Log in the Web GUI Configuration page, and select WAN Connection. 2.Select Manual > Disconnect Internet. 3.Click Apply. Notes: Turning off the device can also terminate the Internet connection. Usage of WPS If your client device supports WPS, you need not to input the password manually after WPS has been available, Please do the following 1.
  • Page 10 WIFI Router Quick Guide A: MOBILE HOTSPOT is a portable Wi-Fi device that fits in the palm of your hand. It will allow you to connect up to 5 devices to access the Internet, such as laptops, portable game consoles or mobile phones.

  • Page 11: Troubleshooting

    WIFI Router Quick Guide Troubleshooting Problem Possible Causes Problem Solving Description The system The device will appear as a cannot run the virtual CDROM on the PC’s installation start menu. Click on the icon The system configuration is having program and start the Autorun.exe.
  • Page 12 WIFI Router Quick Guide Profile Setting.
  • Page 13 Seek and Find AS www.sknfnd.com...
