D3676/D3677/D3678/D8576
What This Owner's Manual Can Do For You
- It explains exactly how The Rite Door
- It explains periodic maintenance requirements necessary to assure reliable operation.
- It explains simple things to do and check before you call for service, so you may save the cost of an
unnecessary service call.
- It provides a complete listing of service replaceable parts.
- It provides your Adams Rite Limited Warranty and what steps to take for service.
Owners Record
The model number is located on the hinge stile mounting base. Refer to this number and the additional informa-
tion below when you call upon your local Rite Door
Model No: D3676/D8576/D3677/D3678
Finish:
Door Size:
Hardware Supplier:
Date Installed:
Exit Device Operation
The Rite Door
Top Rod Concealed Vertical Rod (CVR) devices provides for life safety, security & fire containment
®
by use of a rotating top latch and post type header strike. When the push bar is depressed, the top rod retracts to
release the door. Upon closing, the top actuator deadlatches around the top strike post securing the door.

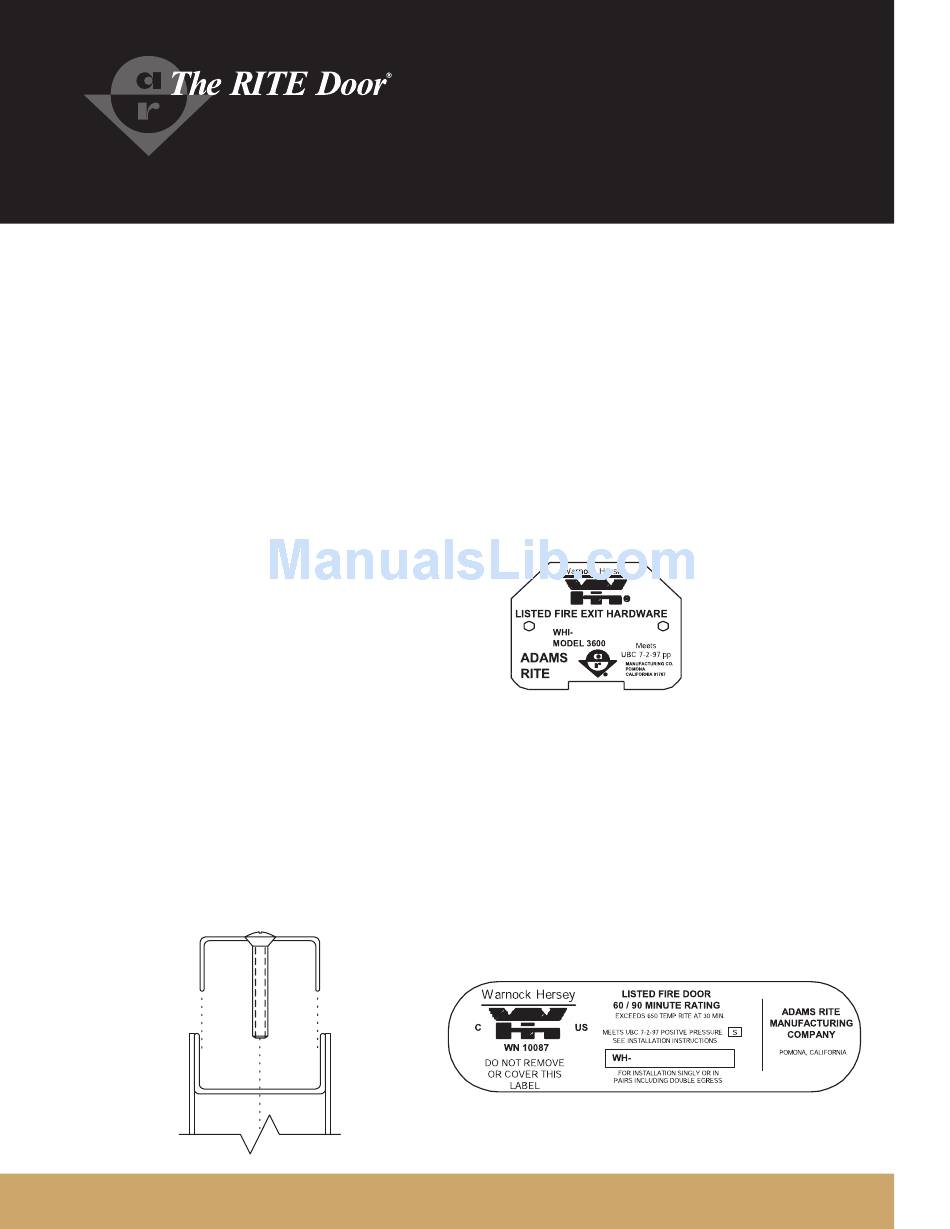

Fire Door Labels, Strikes and Frame Screws
Fire Door Labels and other misc. hardware will be located in a removable channel located at the top of the door.
This channel is secured by two Phillips head screws that can be easily removed. Please contact the factory im-
mediately if this hardware can not be located.
Owner's Manual
operates.
®
dealer regarding this product.
®
Advertisement
Summary of Contents for The RITE Door D3676
- Page 1 Owner's Manual D3676/D3677/D3678/D8576 What This Owner's Manual Can Do For You - It explains exactly how The Rite Door operates. ® - It explains periodic maintenance requirements necessary to assure reliable operation. - It explains simple things to do and check before you call for service, so you may save the cost of an unnecessary service call.
- Page 2 Owner's Manual Entry Trim Operation The 3080 series outside entry trim is an available option with The RITE Door . The entry trim will activate the locking ® mechanism with any downward or upward motion of the lever handle. The trim utilizes a clutching mechanism that protects the lever from forced entry or vandalism.
- Page 3 Owner's Manual End Cap and Pushbar Removal / Replacement To facilitate maintenance procedures, the two end caps and pushbar can be removed. To begin, open the door to 90°. Manually trip the top actuator to the locked position so pushbar is extended. Remove end caps by removing the two black screws that secure each end cap.
- Page 4 Owner's Manual Top Actuator Operation & Top Strike Positioning Proper operation of this device relies heavily on the correct adjustment of the top actuator. The strike is designed to be operated with a minimum of 1/16" between top of door and frame. The diagram below (Figure A) shows the correct relationship of the square bolt to the top actuator.
- Page 5 Owner's Manual Entry Trim Maintenance The entry trim screws mounted on the interior of the door should be checked to assure tightness. The diagrams on the following page (Figure C) will show how to locate the screws. A detailed parts list is also included for your convenience.
- Page 6 Owner's Manual Entry Trim - con't The entry trim utilizes a clutching mechanism that protects the handle from vandalism or forced entry. If the handle has been forced into the clutch position one or both of the 1/8" dia x 1" rotation limiting pins, located below the handle lock nut, may have to be replaced.
- Page 7 Owner's Manual...
- Page 8 Owner's Manual Maintenance of Top Rod Assembly Annually apply a small amount of commercial grease to the top of the square bolt at the top of the door. In unusually dirty situations a small amount of spray lubricant can be applied to the center gear mechanism by removing the edge plate on the edge of the door.
- Page 9 Owner's Manual Latch Retraction (LR) Devices Electric latch retraction is an available feature for The RITE Door . The LR option provides for electric latch retraction ® from a remote location. All D3676LR, D3677LR & D8576LR devices are required to be operated with the D-PS-LR Adams Rite power supply.
- Page 10 Owner's Manual PS-LR Power Supply Wiring Diagram...
