Summary of Contents for Kuhnke MA 800 GB

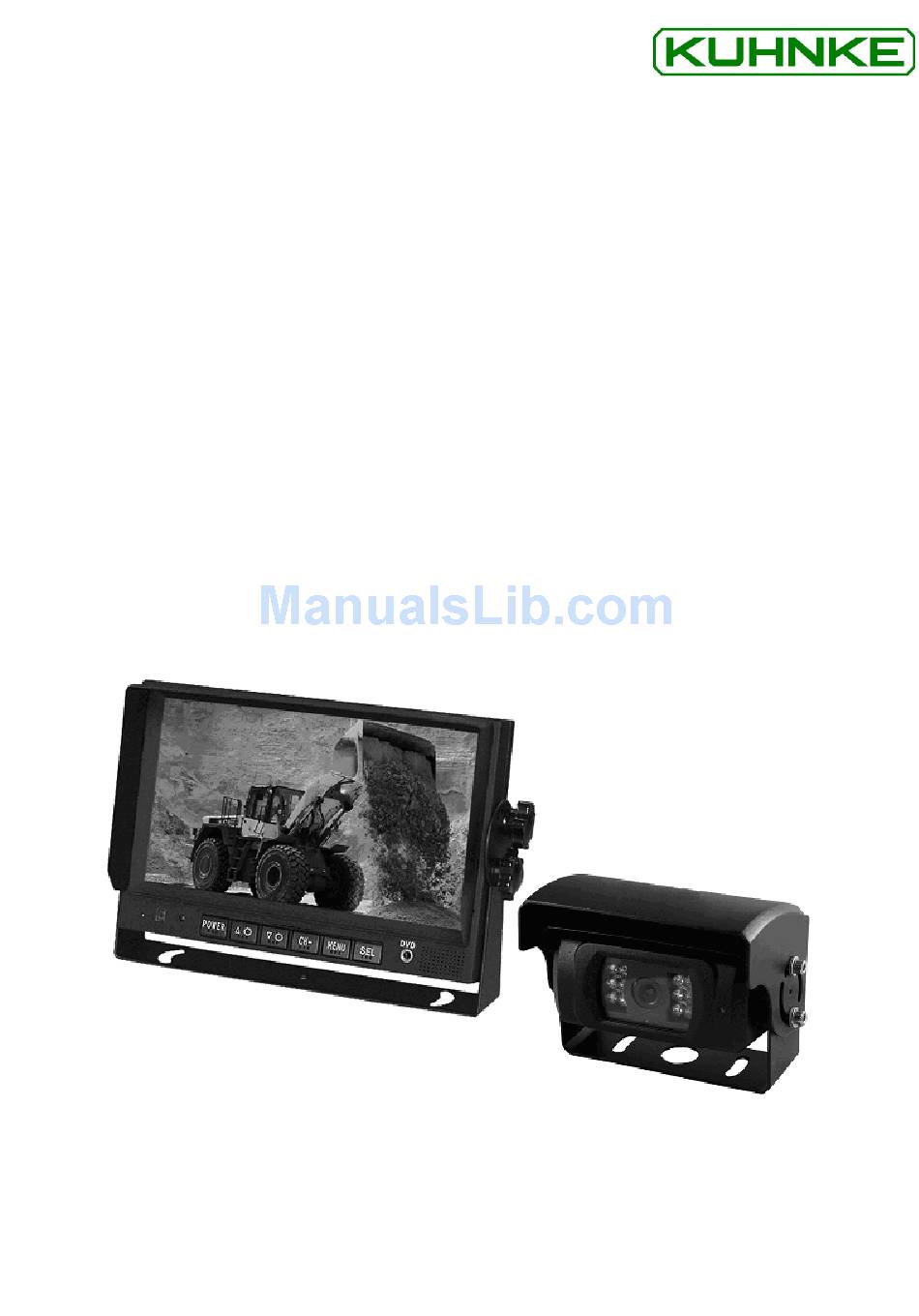

- Page 1 Kuhnke Electronics Operating Manual Arriva Camera System Shutter MA 800 GB 20.07.11/ 10157976...
- Page 2 This operating manual is primarily directed to system designers, project engineers and device developers. It does not provide any information as to product availability. All specifications are only of descriptive nature and are not to be understood as warranted properties in a legal sense. Any claims for compensation against us – independent from the legal reason –...
-
Page 3: Table Of Contents
Connection of AV Adapter and Controller Cable............. 13 Removing the Monitor ...................... 14 Reversing Display ......................14 Accessories..........................16 Troubleshooting .........................17 Sales & Service ..........................18 1.6. Malente headquarter......................18 1.7. Customer service / customer care ..................18 MA 800 GB Seite 1 von 18 20.07.11/ 10157976... -
Page 4: Precautions
The exclamation point within a triangle is intended to alert to the presence of important operating and maintenance (service) instructions in the literature accompanying the appliance. This symbol is intended to alert the user not to waste electrical and electronic equipment. MA 800 GB Seite 2 von 18 20.07.11/ 10157976... -
Page 5: Storage And Keeping
1. High voltage is present within the monitor. The opening of the case should be by professional. Warning ! 1. Do not watch the video while driving unless you are monitoring the rear view camera display. MA 800 GB Seite 3 von 18 20.07.11/ 10157976... -
Page 6: Maintenance
2. Use mild household detergent and clean the unit with a slightly damp. Soft cloth. Never use strong solvents such as thinner or benzine, as they damage the finish of the device. 1.5. Declaration of conformity MA 800 GB Seite 4 von 18 20.07.11/ 10157976... -
Page 7: Tft Lcd-Screen
TFT LCD-Screen 2.1 Parts Identification MA 800 GB Seite 5 von 18 20.07.11/ 10157976... -
Page 8: Product Features
8. Resolution: 480x3 (RGB) x234. 9. Contrast: 400:1. 10. Brightness: 350cd/m². 11. Viewing angle: U:45/D:65, R/L:65. 12. Operating temperature: -20~+70°C, RH90%. 13. Storage temperature: -30~+80°C, RH90% Note: All specifications are subject to change without notice. MA 800 GB Seite 6 von 18 20.07.11/ 10157976... -
Page 9: Operation
Each time you press the MENU button, the screen shows one of three setting modes. These are PICTURE, OPTION and SYSTEM. 2.4.1. Picture The screen shows the VOLUME, BRIGHTNESS, CONTRAST, COLOR, SHARP and HUE as follows: Press CH- to select VOLUME. MA 800 GB Seite 7 von 18 20.07.11/ 10157976... -
Page 10: System
CAM1, CAM2, CAM3 (NORMAL / MIRROR) and DVD in the same way. 2.4.3. System The screen shows COLOR-SYS, BLUE BACK, HORIZONTAL, VERTICAL and ZOOM as follows: Press CH- to select COLOR-SYS. MA 800 GB Seite 8 von 18 20.07.11/ 10157976... - Page 11 In case of any problems, please turn off the display at once and notify our company or authorized dealer. The monitor is a complex device. Any Disassembly or modification may to damage and void the warrantee. MA 800 GB Seite 9 von 18 20.07.11/ 10157976...
-
Page 12: Remote Control Operation
3. Press the control buttons firmly. Allow 2 seconds for picture to change. Note: 1. If the remote control is not used for a long time, the batteries should be removed from the remote control in the meantime. MA 800 GB Seite 10 von 18 20.07.11/ 10157976... -
Page 13: Operation
3.2 Operation MA 800 GB Seite 11 von 18 20.07.11/ 10157976... -
Page 14: Ccd Color Camera
Housing Material Aluminum die casting Weight (camera including 600g bracket) Operating -20 ~ +70° C Dimensions (WxHxD) 124 x 87 x 72mm Note: All specifications are subject to change without notice. MA 800 GB Seite 12 von 18 20.07.11/ 10157976... -
Page 15: Basic Operation
Single brown wire to positive power wire of back-up light. Single white wire to positive power wire of left turn light. Single blue wire to positive power wire of right turn light. MA 800 GB Seite 13 von 18 20.07.11/ 10157976... -
Page 16: Removing The Monitor
2. When the blue wire is connected to the positive wire of the right turn light, the monitor automatically switches to CAM 2 (right side camera) when the turn indicator is activated. MA 800 GB Seite 14 von 18 20.07.11/ 10157976... - Page 17 The distancing grid will also be displayed. Note: Please close before installing the system to a vehicle battery and check the function of the individual components. The return of an already installed system is not possible! MA 800 GB Seite 15 von 18 20.07.11/ 10157976...
-
Page 18: Accessories
Accessories MA 800 GB Seite 16 von 18 20.07.11/ 10157976... -
Page 19: Troubleshooting
Troubleshooting The symptoms described below do not necessary mean a failure within the display. Please check the following items before you initiate request for repair. MA 800 GB Seite 17 von 18 20.07.11/ 10157976... -
Page 20: Sales & Service
Please visit our website to find further information on our sales and service network and the respective addresses. Feel free to also contact us at our headquarter in Malente/Germany: 1.6. Malente headquarter Kuhnke Automation GmbH & Co. KG Lütjenburger Straße 101 23714 Malente/Germany Phone +49 45 23 402 0 Fax +49 45 23 402 247 Email sales@kuhnke.de...
