Related Manuals for Fortress Technologies FMC17D9G
Summary of Contents for Fortress Technologies FMC17D9G
-

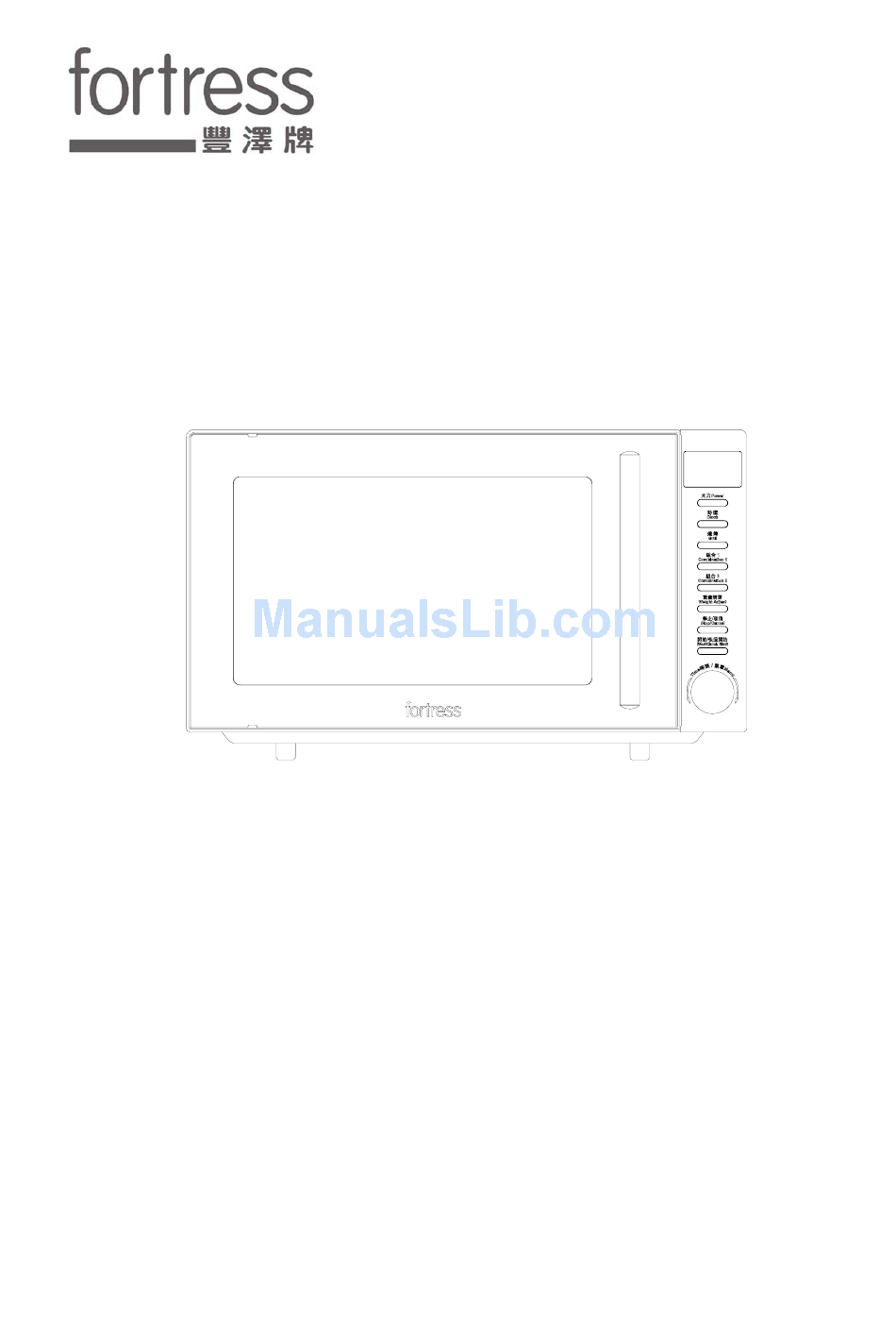

Page 1: Microwave Oven
Owner's Manual MICROWAVE OVEN MODEL: FMC17D9G Please read these instructions carefully before installing and operating the oven. Record in the space below the SERIAL NO found on the nameplate on your oven and retain this information for future reference. SERIAL NO:... -
Page 2: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ............................3 SPECIFICATIONS ........................... 4 INSTALLATION ..........................4 RADIO INTERFERENCE ....................... 4 GROUNDING INSTRUCTIONS ..................... 5 MICROWAVE COOKING PRINCIPLES ..................5 BEFORE YOU CALL FOR SERVICE .................... 5 PART NAMES ..........................6 CONTROL PANEL .......................... -
Page 3: Specifications
230V~50Hz Power Consumption: 1200W(Microwave)；900W(Grill) Rated Microwave Power Input: Rated Microwave Power Output: 700W Operation Frequency : 2450MHz Outside Dimensions 262×452×360 mm (H x W x D) Oven Cavity Dimensions 198×315×294 mm (H x W x D): Oven Capacity: 17Litres Cooking Uniformity: Turntable System Interior Material Painted white galvanized iron... -
Page 4: Grounding Instructions
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. -
Page 5: Part Names
Door Safety Lock System Oven Window Roller Ring Control Panel Oven Air Vent Glass Tray Grill Heater Metal Rack... -
Page 6: Control Panel
MENU ACTION SCREEN Cooking time, power, action indicators, and clock are displayed. POWER Touch this button a number of times to set microwave cooking power level. CLOCK Use to set current time GRILL Press to set a grill cooking program. COMBINATION 1 / COMBINATION 2 Press to set a combination cooking program. - Page 7 POWER GRILL To set the power level Grilling function is conducted by heating In the process of cooking , press【POWER】to element. It is suitable for grilling meats likes check the current power level. steak, pork, sausages or chicken wings. Please find the below table for power level： Power Index Suitable Food...
-
Page 8: Specific Function
During the cooking, press 【STOP/CANCEL】 cooking program, the machine will be in ready pause cooking, then press status. 【START/QUICK START】to resume cooking; This button can be used to set and cancel the press this bottom two times to cancel the child lock. -
Page 9: Cooking Food
The bottle with narrow neck could not be put into the microwave oven to heat. When we use the keep- fresh paper to cook, make one corner of the paper tuck up for air circulation, when the cooking finished, remove it carefully, not to hurt by the heat steam. 5. - Page 10 26. The microwave should be monitored by somebody, and do not leave it when it works. 27. Please use the utensils that is without cover when it was use to boil the water, if you need put in coffee power, milk power, cornmeal or others, the water must be milled or waited to cool down for minutes to avoid scald.
-
Page 11: How To Set The Oven Controls
automatically. SETTING DIGITAL CLOCK For example, suppose you want to set the oven clock time to 12:35. GRILL Step: For example, suppose you want to grill for 12 minutes. When the microwave oven is in ready , choose to set the clock in 12 or 24-hour cycle Step: by touching the button once or... - Page 12 AUTO COOK After indicate the type of food that you wish to cook as well as the weight of this food, the program will start and it is not necessary to program the duration and the cooking power. For some program, in the middle of cooking time, the cooking programmer pause and beeps can be heard to remind you to open the door and check its doneness and turn food over to obtain uniform cooking;...
-
Page 13: General Knowledge
The following situation is in reason Situation Reason The light is dark. The light will be unclear and cause some noise when we use low power not high power to cook, and the situation is normal when the microwave oven controlling the power. Steam stay on the door and When the food cooked, it will dispel steam, and most of them will heat fan come out from the... -
Page 14: Cleaning And Care
3. In the following table,“○”means can be used, “X” means can not be used. Vessel Combination Grill Microwave Pyrex ○ ○ ○ Chinaware ○ ○ ○ Generic Glass Heat–resistant plastic ○ Generic Plastic Keep Fresh Film ○ Metal Net ○ Metal Vessel ○... -
Page 15: Service Instruction
when cleaning is finished. 5. Clean the door, window and the gap of the microwave oven regularly, clean it by soft cloth of mild sudsy water and wipe it clean by another dry soft cloth. 6. The outside surfaces should be cleaned with a dry soft cloth with mild sudsy water and wipe it clean by another dry soft cloth. - Page 16 Parts that easily removed and touched by Parts that may cause radiation of the microwave above 250V High Voltage. 1. Magnetron 1. If the magnetron does not install correctly, it may cause radiation of the microwave 2. H.V.transformer over abundant. 2.
- Page 17 REQUESTS FOR SERVICE SHOULD BE MADE TO: FORTRESS SERVICE DEPARTMENT FORTRESS Fortress Service Centre Tel: 2555-5788...
Need help?
Do you have a question about the FMC17D9G and is the answer not in the manual?
Questions and answers
Why my microwave, always beeping sometimes not working sometimes it's work, what is the problem.
Possible issues with your Fortress Technologies FMC17D9G microwave that is beeping and working intermittently could include:
1. Door or Safety Interlock Issues – If the door is not closing properly or if the hinges, latches, or seals are damaged, the microwave may stop working intermittently for safety reasons.
2. Micro Switch Mounting Assembly Problem – If the micro switch is not properly loaded, it may cause the microwave to work inconsistently.
3. High Voltage Component Issues – Problems with the magnetron, H.V. transformer, capacitor, diode, or fuse could lead to intermittent operation.
4. Excessive Microwave Energy Protection – If the microwave detects excessive radiation due to improper installation or damage, it may stop working as a safety measure.
5. Electrical Connection Issues – A loose power cord or unstable power supply could cause intermittent operation and beeping.
If the issue persists, it is recommended to contact a qualified service person or the Fortress Service Centre for further assistance.
This answer is automatically generated
