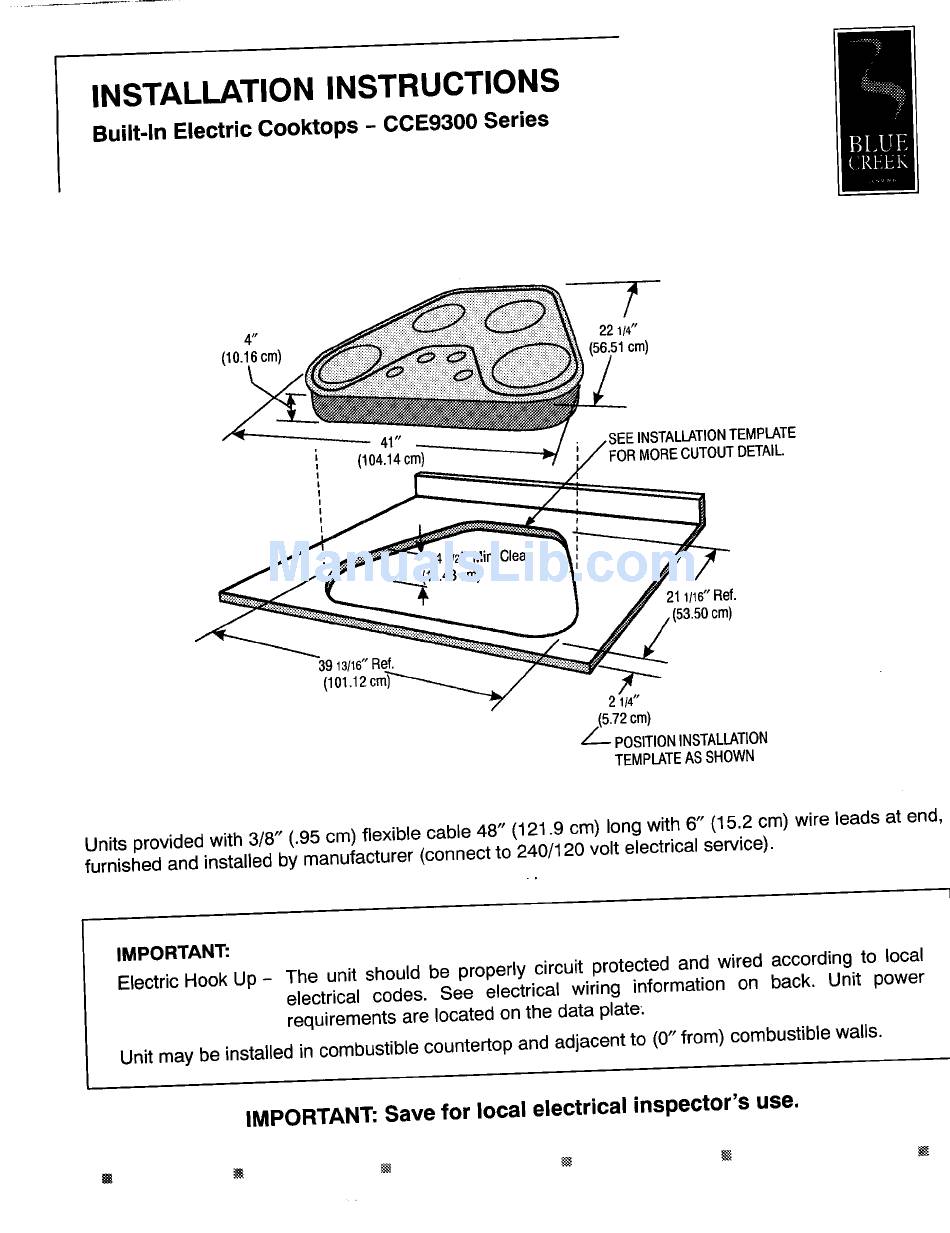

INSTALLATIONINSTRUCTIONS
Built-In Electric Cooktops - CCE9300 Series
l
4" 221/4"
(10.16 crn) 51crn)
\
41" i -- SEE INSTALLATION TEMPLATE
TDETAIL.
3913/16" R_::_'::_.::i_..,,,,
(101,12 c m)
21/4"
(5.72 cm)
"/ POSITION INSTALLATION
TEMPLATE ASSHOWN
Units provided with 3/8" (.95 cm) flexible cable 48" (121.9 cm) long with 6" (15.2 cm) wire leads at end,
furnished and installed by manufacturer (connect to 240/120 volt electrical service).
IMPORTANT:
Electric Hook Up- The unit should be properly circuit protected and wired according to local
electrical codes. See electricat wiring information on back. Unit power
requirements are located on the data plate:
Unit may be installed in combustible countertop and adjacent to (0" from) combustible walls,
IMPORTANT: Save for local electrical inspector's use.
