Version: 1.1 / December 2013

User manual

English

Table of Contents

Need help?

Do you have a question about the Feddz and is the answer not in the manual?

Questions and answers

Summary of Contents for emo-bike Feddz

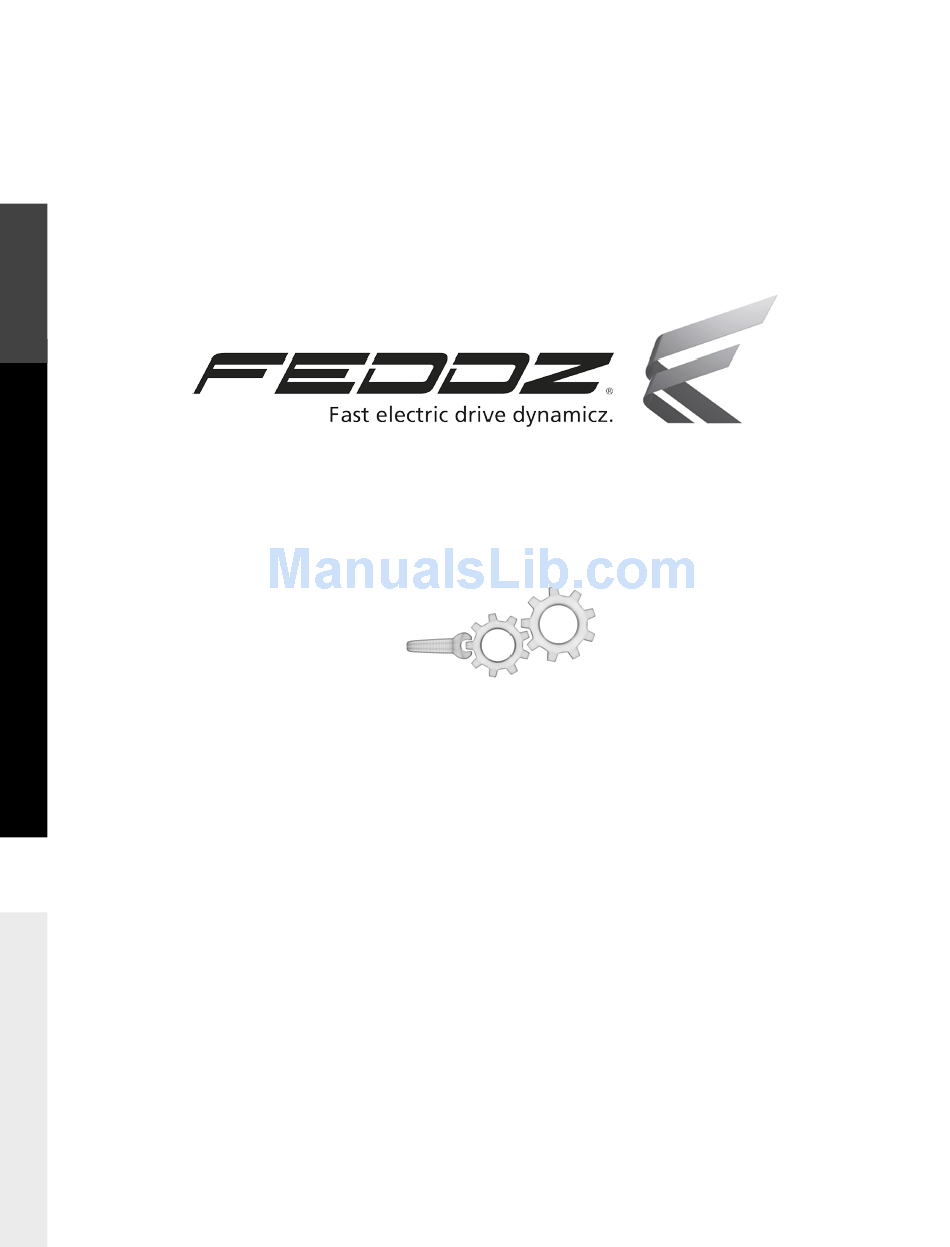

Page 1 Version: 1.1 / December 2013 User manual English...
Page 2: Table Of Contents
Contents General Information ........The FEDDZ schematic diagram ....... Unpacking instructions ........Battery charging and mounting ..... Handling and storage of the battery ....Disk brake adjustment ........Handlebar controls, left/right ......Display and gauges ......... Starting directions .......... 12/13 Suspension .............
Page 3: General Information
The quiet way into the future This handbook contains information on the proper use and maintenance of your new FEDDZ. For your maximal safety and comfort, we recommend that you carefully read the entire handbook before your first use.
Page 4: The Feddz Schematic Diagram
The FEDDZ schematic diagram License plate holder and mud guard LED rear lamp with brake light and blinker Adjustable seat Storage compartment belt with closure RFID - digital start system Adjustable rear mirror left Digital Display LED front blinker LED-front head lamp...
Page 5: Unpacking Instructions
We recom- mend fully charging the battery prior to a longer drive. Should it not be possible to start using your FEDDZ after delivery, the battery should be fully charged before use. Please follow the instructions regarding battery charging below.
Page 6: Battery Charging And Mounting
Battery charging and mounting To charge the battery you need a normal 230V-oulet having a 16A-fuse or circuit breaker. First, connect the DC-plug on the bike, then the plug into the elec- tric outlet. The DC-plug of the charger is magnetically and po- larity secured, i.e.
Page 7: Battery Charging And Mounting
If still mounted on the bike, the bike should be turned off. To check how far the charging procedure is, you can turn on the FEDDZ and check the main display to see how much time is still needed.
Page 8: Handling And Storage Of The Battery
If the FEDDZ will not be used for some time, it is best to fully charge the battery and remo- ve it for storage until further use where it does not become too cold.
Page 9: Disk Brake Adjustment
Adjustment of disk brakes After the first 10-12 km of driving, the disk brakes should be adjusted. They are then free of any dirt and can be used more forcefully once they have been adjusted. To adjust the brakes, the two screws found on the brake should be loosened, so that the unit sits loosely on the handle bar and has room to move.
Page 10: Handlebar Controls, Left/Right
Control elements left/right On the left side of the handlebars you will find the controls for the horn and the left blinker. There is also a rearview mirror on the left hand side of the handlebar. The controls can be adjusted if needed by loosening the two screws.
Page 11: Display And Gauges
Display and gauges „Power-Mode“ Step 1- 45km/h full performance „Power“ „ E C O - M o d e “ Step 2- 45km/h reduced performance „ C i t y - M o d e “ Step 3- 30km/h reduced speed „City“ Number of Odometer kilometres driven...
Page 12: Starting Directions
Start system To start the FEDDZ one must first turn on the red po- wer switch. The display will become active, the head lamp turns on, as does the rear lamp. For your safe- ty these lights are always on when the bike is in use.
Page 13 Startsystem For your safety, you cannot start the FEDDZ when the kickstand is extended, since there is no motor noise and one could mistakenly press the accelera- tor. When the kickstand is extended and the main switch is on, the display will indicate „stand“.
Page 14: Suspension
Suspension You can manually adjust the suspension on the front fork by turning the ABS suspension system to the left towards plus for a softer ride, or in the other direction (minus) for a harder ride. The rear suspen- sion has been given a standard setting and should only be adjusted by a professional service agent.
Page 15: Seat Height Adjustment
Your optimal seat position can be adjusted by loose- ning the Allen screw below the seat and pulling the seat higher or pushing it lower. You have the perfect position when you sit comfortably on the FEDDZ with your feet able to lightly reach the ground.
Page 16: Foot Rest
Foot rests The foot rests are already mounted on the rear wheel linkage. Here they are placed slightly to the rear given you a sporty position. In case you prefer a more relaxed leg position, you can later place the foot rest in the forward position where it also positioned a bit lower.
Page 17: Tires
Tires The FEDDZ has a 26 inch (zoll) tire from Schwalbe with the name „Crazy Bob“. These ties are available in all bike shops or can be ordered. Changing the tires can be performed by your FEDDZ-service part- ner or in any reliable bike shop.
Page 18: Procedure When Not In Use
You should regularly check the charge level of the battery. To do this you need to mount the battery in the FEDDZ and turn it on. Be sure to not allow the charge level to fall below 30%. Should a large loss of battery capacity be noted while it is not being used, please contact your service partner.
Page 19: Technical Data/Guarantee
Technical data/Guarantee Accessories and Features: Cargo storage 2 belts with closures on the storage space Battery (Eco or Premium) Battery charger High performance-LED-headlamp from Philips LED rear light with integrated brake light LED blinkers both in front and back Display with data RFID - digital start system.
Page 20: Technical Data/Guarantee
Following this assessment, if needed we will arrange for the pickup of the FEDDZ for its return to us for inspection at no cost. For this purpose please re- tain the carton used for delivery to protect the FEDDZ during shipment.
Page 21: Contact And Partner
Fabrikstrasse 15 88400 Biberach an der Riss Germany Tel: +49 (0)7351 53904001 Fax: +49 (0)7351 53904009 info@emo-bike.de www.feddz.de GreenRoad GmbH Polan 32 9815 Kolbnitz Austria Tel: +43 (0) 676 9755525 beratung@greenroad.at www.greenroad.at Copyright - emo-bike GmbH und Co. KG 2013 ©...
