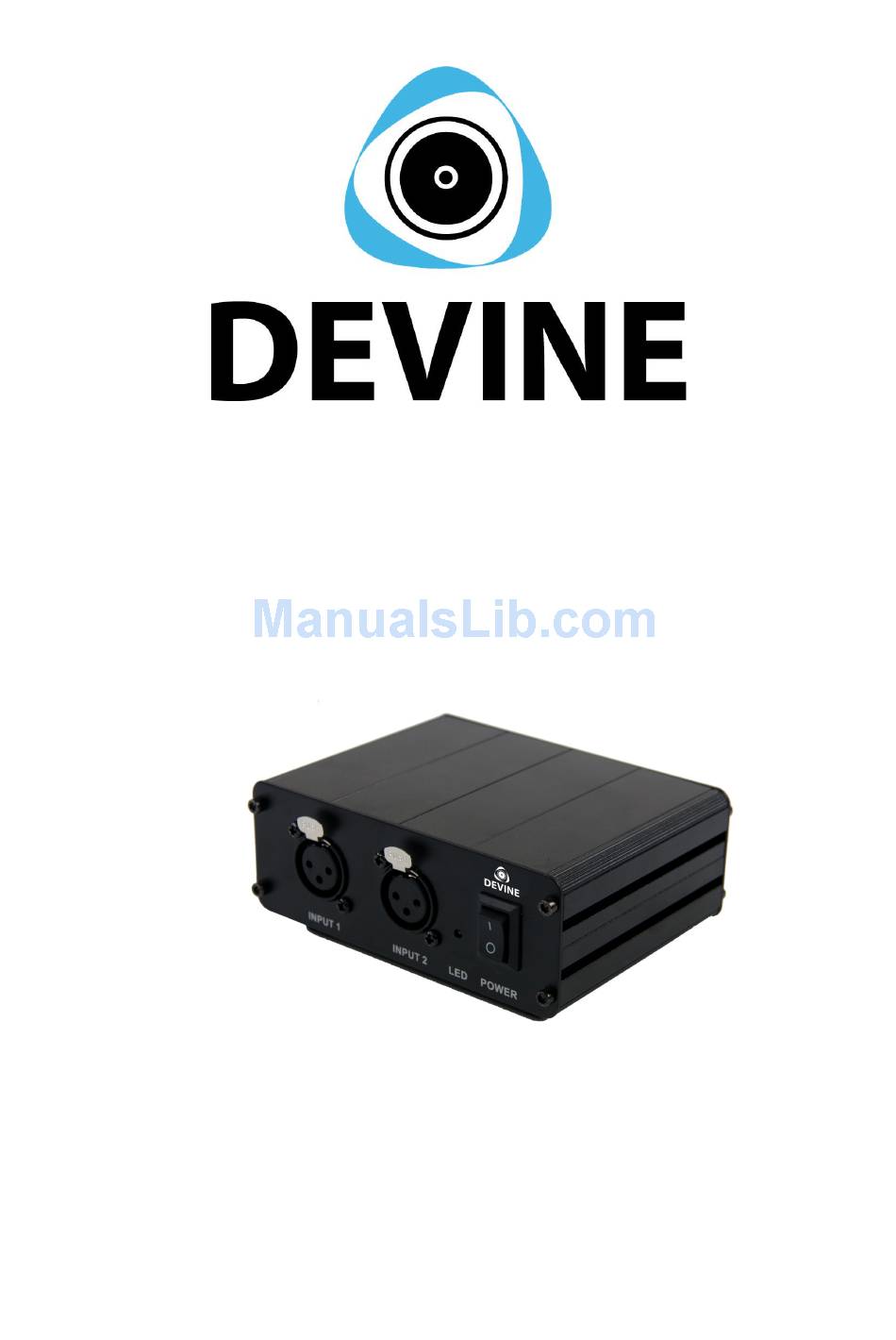

- Page 1 Devine MPS 500 Dual 48V Microphone Phantom Supply User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 27-01-2014 DK Revision date + author initials: 27-01-2014 DK...
- Page 2 Also check the contents of the box to make sure all necessary parts are included. If the MPS 500 fails to operate properly, or if you have any problems while using it, disconnect it and contact your local dealer for more information and help.
- Page 3 The Devine MPS 500 Dual Phantom Supply is a high quality dual channel 48 Volt Phantom Power Unit, designed to be used with condenser microphones. The MPS 500 delivers simple phantom power without any sound degradation. The MPS 500 has two XLR Inputs and two XLR Outputs, an On/OFF Power switch and a LED-indicator.
-
Page 4: Troubleshooting
Troubleshooting Problem Possible Cause Solution No sound No power Make sure the AC Adapter is connected properly Volume set too low Increase incoming volume and gain on your mixer, interface or other sound processing device Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 27-01-2014 DK Revision date + author initials: 27-01-2014 DK... -
Page 5: Technical Specifications
Technical specifications - 48V Dual Phantom Supply - for use with condenser microphones - 2 x XLR Inputs - 2 x XLR Outputs - AC Power Adapter: 230V - Working current: 18V DC - Weight: 0.77 kg - Dimensions: 55 x 121 x105 mm (HxBxD) Included in package: AC Adapter 18V - Model: YJZ-1800300...
