Dipol K1650 User Manual

Ip high speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

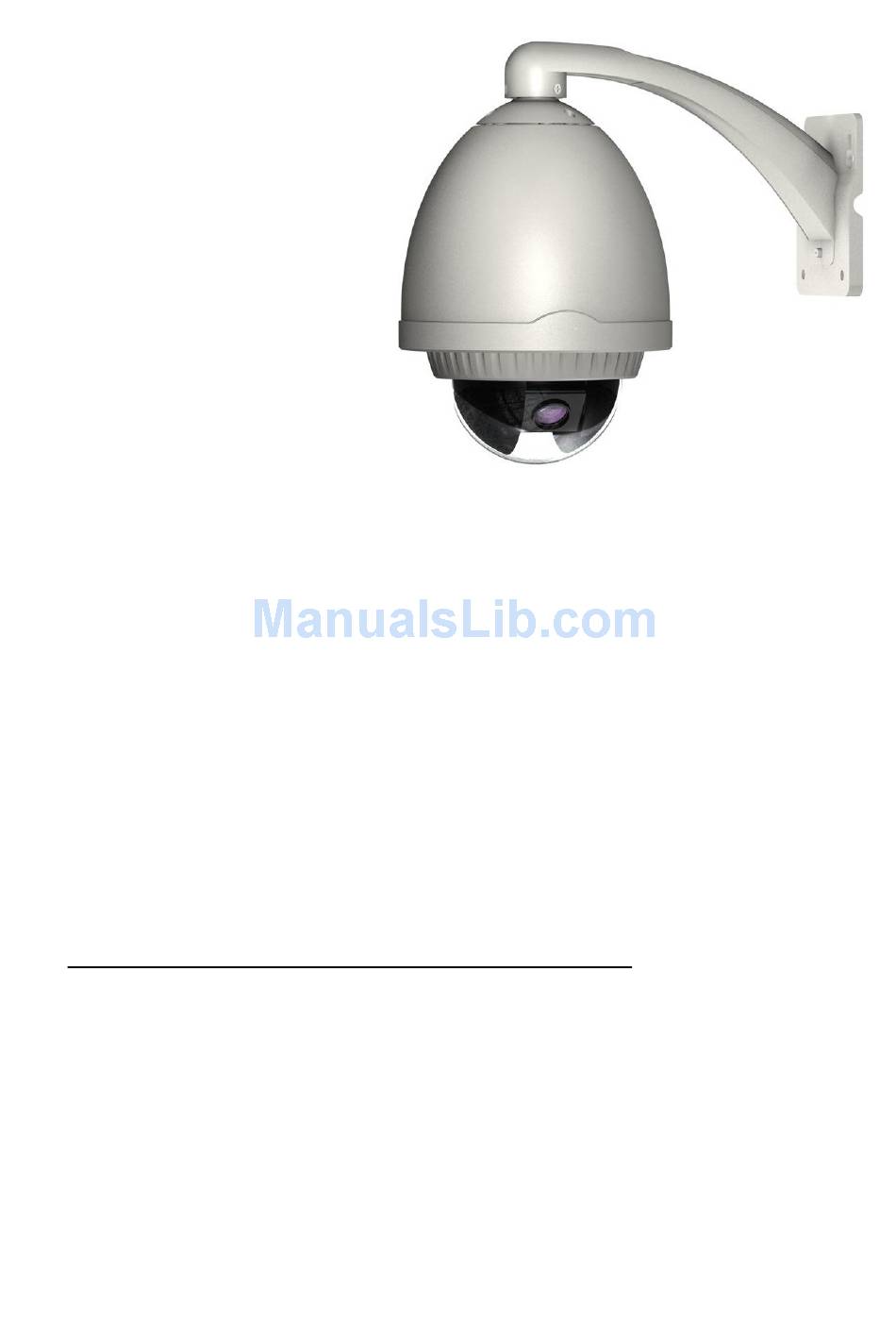

IP High Speed Dome Camera
User's Manual
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K1650 and is the answer not in the manual?

Questions and answers

Related Manuals for Dipol K1650

Summary of Contents for Dipol K1650

  • Page 1 IP High Speed Dome Camera User’s Manual V1.1...
  • Page 2 IP High Speed Dome Camera User’s Manual Chapter 1 Profile Network Camera is a kind of embedded digital surveillance product collected traditional simulation camera and network video server. Adopts embedded Linux operation system and SOC hardware platform of Graim Corp. And has characteristics of high efficiency on system adjustment, solidified code on Flash, small bulk, high stability and reliability.
  • Page 3 IP High Speed Dome Camera User’s Manual 2.2 Panel Illuminate 2.2.1 Rear Elevation Fig. 2.1 Connection Cable Cable Function Connection Red/White AC24V Input Please refer to the camera parameter Black/Purple Video Output Connect to video cable of monitor, standard BNC interface 3.5mm interface, connect to acoustics device, such as speaker etc for audio speech output(impedance: >16Ω);...
  • Page 4 IP High Speed Dome Camera User’s Manual 3.1 Setup parameter by IE browser The default IP:192.168.0.120, default port:30001, superuser: admin, superuser password: admin Login network camera by IE, input IP address, and will shoot out logging in window, input username and password, click “login”...

  • Page 5: Table Of Contents

    IP High Speed Dome Camera User’s Manual Contents 1. Attention ............................... 3 2. Speed dome camera performance characteristics..................4 3. Function and Operation..........................5 4．Basic Operation of Dome Camera ......................7 5. Display Settings ............................8 6. Camera Parameter Setup Menu ........................9 7.
  • Page 6 IP High Speed Dome Camera User’s Manual SAFE PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN! CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The requirement for the people who will install and repair the machine: Owning the certificate to install and repair CCTV system.

  • Page 7: Attention

    IP High Speed Dome Camera User’s Manual 1. Attention → Electric Safety The national and local electric safety standard must be obeyed during the installation. → Shipping with Care Prevent the damage caused by stress, strenuous vibration and moist during the shipping, storing and installation.

  • Page 8: Speed Dome Camera Performance Characteristics

    IP High Speed Dome Camera User’s Manual 2. Speed dome camera performance characteristics 2.1 Technical Parameter Electrical： Set up： Baud rate Rating Voltage AC24V 2400/4800/9600/19200bps (RS485) Pelco-P / Pelco-D/Phillips / Panasonic and so on, 17 Power 12W indoor, 35W outdoor Protocol Protocol choice Operation：...

  • Page 9: Function And Operation

    IP High Speed Dome Camera User’s Manual ● Auto Brightness Control ● Auto Iris ● Auto AWB ● Color & B/W Transition ● Auto BLC ● Auto Frame Accumulating → OSD Menu ● Chinese/English Menu ● OSD menu display; change the information and parameter of the camera by keyboard and OSD, operation becomes simple and easy.
  • Page 10 IP High Speed Dome Camera User’s Manual automatically adjusts the rev of the tripod head according to the focus. And make the manual tracking object easier. → Automatic Reversal If the operator pulling rocker when the lens appoint the bottom, the lens will horizontal whirl 180 º automatically and whirl 90º...

  • Page 11: Basic Operation Of Dome Camera

    IP High Speed Dome Camera User’s Manual the memory. When need, you can use these data to the position. Preset point can be set quickly and easily by using keyboard, you can set two hundred twenty preset points. → Auto Cruising Auto cruising is the function of this dome.

  • Page 12: Display Settings

    IP High Speed Dome Camera User’s Manual [NEAR] focus on vicinity [FAR] focus on beyond Joystick tilt up: When choosing menu, shows choosing the previous one, when choosing image, shows camera circumgyrating upwards. Joystick tilt down: When choosing menu, shows choosing the next one, when choosing image, shows camera circumgyrating downwards.

  • Page 13: Camera Parameter Setup Menu

    IP High Speed Dome Camera User’s Manual ID label Cam era title Temperature lab el Preset title Date label Time label Coordinate label Lens multiple 6. Camera Parameter Setup Menu 6.1 Zoom Speed MAIN MENU 1. DISPLAY SETTINGS 1. Press ‘Menu’ on the keyboard or evoke the presets no. 95 and 64 to enter 2.
  • Page 14 IP High Speed Dome Camera User’s Manual MAIN MENU 6.2 BLC 1. Press ‘Menu’ on the keyboard or evoke the presets no. 95 and 64 to enter 1. DISPLAY SETTINGS 2. CAMERA SETTINGS the main menu, or press the preset no.1 twice continuously within 1 second. 3.
  • Page 15 IP High Speed Dome Camera User’s Manual 6.3 Frame Heap MAIN MENU 1. Press ‘Menu’ on the keyboard or evoke the presets no. 95 and 64 to enter the main menu, or 1. DISPLAY SETTINGS press the preset no.1 twice continuously within 1 second. 2.
  • Page 16 IP High Speed Dome Camera User’s Manual MAIN MENU 6.4 D-Zoom Settings 1. DISPLAY SETTINGS 1. Press ‘MENU’ on the keyboard or evoke the presets no. 95 and 64 to enter the main menu, 2. CAMERA SETTINGS or press the preset no.1 twice continuously within 1 second. 3.
  • Page 17 IP High Speed Dome Camera User’s Manual MAIN MENU 6.5 Video Sync 1. DISPLAY SETTINGS 1. Press ‘Menu’ on the keyboard or evoke the presets no. 95 and 64 to enter the main menu, or 2. CAMERA SETTINGS press the preset no.1 twice continuously within 1 second. 3.

  • Page 18: Advanced Settings

    IP High Speed Dome Camera User’s Manual 6.7 Advanced Settings 1. Press ‘Menu’ on the keyboard or evoke the presets no. 95 and 64 to enter the main menu, or press the preset no.1 twice continuously within 1 second. B&W SETTINGS 1.
  • Page 19 IP High Speed Dome Camera User’s Manual 6.7.2 WB Mode MAIN MENU The system has the following WB modes: [Auto], [Manu], [Self- adjustment], [Single lock], [Indoor], [Outdoor], etc. 1. DISPLAY SETTINGS 2. CAMERA SETTINGS 3. PRIVACY MASK See detailed operation steps as below: 4.

  • Page 20: Privacy Mask

    IP High Speed Dome Camera User’s Manual 7. Privacy Mask This function will make concerned area masked, for example, the window of the bedroom or ATM in the bank. The speed dome camera maximally support 24 privacy mask zones（This MAIN MENU function relates to the camera block model, and the mask window numbers may differ due to different cameras）.

  • Page 21: User Program

    IP High Speed Dome Camera User’s Manual 8. User Program 8.1 Preset Setup MAIN MENU 1. Press ‘MENU’ on the keyboard or evoke the presets no. 95 and 64 to enter the main menu, 1. DISPLAY SETTINGS or press the preset no.1 twice continuously within 1 second. 2.
  • Page 22 IP High Speed Dome Camera User’s Manual 8.2 Tour Setup MAIN MENU Auto Tour is defined as a sequential moving from preset to preset and dwell for a specific time 1. DISPLAY SETTINGS at each preset. It is useful if you need to repeat switching among a number of presets. Each 2.
  • Page 23 IP High Speed Dome Camera User’s Manual 8.3 Auto Learning MAIN MENU The camera will at least record the special routing (Pan & Tilt control, or camera control 1. DISPLAY SETTINGS 2. CAMERA SETTINGS demand, etc) for 180 seconds continuously. There are 4 auto learnings maximally. 3.

  • Page 24: Scan Setup

    IP High Speed Dome Camera User’s Manual 8.4 Scan Setup MAIN MENU 1. Preset 2 points first, the camera will scan between 2 presets horizontally with stable speed and same zoom time. A speed dome camera has 4 groups of scans. 1.
  • Page 25 IP High Speed Dome Camera User’s Manual 8.5 Timer Setup MAIN MENU This function sets the time for executing presets, scan, tour and auto learning. 1. DISPLAY SETTINGS 2. CAMERA SETTINGS 1. Press ‘MENU’ on the keyboard or evoke the presets no. 95 and 64 to enter the main menu, 3.

  • Page 26: Alarm Setup

    IP High Speed Dome Camera User’s Manual 8.6 Alarm Setup USER PROGRAM The dome camera supports 7 alarm inputs and 2 outputs; It can realize alarm-linkage, external alarm info transmitting to camera, alarm position 1. PRESET SETUP shooting (evoke presets, or startup auto touring, auto learning and scan), and 2.

  • Page 27: System Settings

    IP High Speed Dome Camera User’s Manual 9. System Settings 9.1 Camera Title MAIN MENU Dome title, it is the title of the dome. Assigning a name to a dome helps user 1. DISPLAY SETTINGS to remember which dome it is. 2.
  • Page 28 IP High Speed Dome Camera User’s Manual 9.2 Information MAIN MENU 1. DISPLAY SETTINGS 1. Press ‘Menu’ on the keyboard or evoke the presets no. 95 and 64 to enter 2. CAMERA SETTINGS 3. PRIVACY MASK the main menu, or press the preset no.1 twice continuously within 1 4.

  • Page 29: Pan And Tilt

    IP High Speed Dome Camera User’s Manual 9.3 Pan and Tilt MAIN MENU The settings can control series of normal actions. It plays an important role to control the 1. DISPLAY SETTINGS image display. 2. CAMERA SETTINGS 3. PRIVACY MASK 4.
  • Page 30 IP High Speed Dome Camera User’s Manual 9.3.2 Idle Time This setting allows the PTZ camera to implement an appointed action after PAN & TILT getting into free time state for some time (1-240minutes). The default setting 1. AUTO FLIP OPEN value is 0, showing not implementing action automatically.
  • Page 31 IP High Speed Dome Camera User’s Manual 9.4 Delete MAIN MENU 1. Press ‘Menu’ on the keyboard or evoke the presets no. 95 and 64 to enter 1. DISPLAY SETTINGS 2. CAMERA SETTINGS the main menu, or press the preset no.1 twice continuously within 1 second. 3.

  • Page 32: Language Setup

    IP High Speed Dome Camera User’s Manual 9.7 Date & Time MAIN MENU 1. DISPLAY SETTINGS 2. CAMERA SETTINGS 1. Press ‘MENU’ on the keyboard or evoke the presets no. 95 and 64 to enter the main menu. 3. PRIVACY MASK 4.

  • Page 33: Camera Menu Index

    IP High Speed Dome Camera User’s Manual 11. Camera Menu Index MAIN MENU 1.DISPLAY SETTINGS 2.CAMERA SETTINGS 3.PRIVACY MASK 4.USER PROGRAM 5.SYSTEM SETTINGS 6. LANGUAGE/语言 7. Exit DISPLAY SETTINGS CAMERA SETTINGS PRIVACY MASK USER PROGRAM SYSTEM SETTINGS 1. CAMERA TITLE 1.CAMERA TITLE OPEN 1.ZOOM SPEED...

  • Page 34: System Installation

    High Speed Dome Camera User’s Manual 12. System Installation 12.1 Installation Dimension Figure 1 Installation Style Wall Installation Figure 2 - 30 -...
  • Page 35 High Speed Dome Camera User’s Manual Pendant Installation Figure 3 Ceiling Mounting this hatch aim at the side where cable comes out CLOSE OPEN the size of installation hole at Dome's pedestal φ Figure 4 - 31 -...
  • Page 36 High Speed Dome Camera User’s Manual Ceiling mount Embed into a cutout with a diameter slightly larger than 236mm (9.25”). Figure 5 12.2 Installation Steps Taking wall-installation style as example: Unpacking the carton and carefully take out the dome camera and its attachments. According to the size of Dome, drill the installation hole in the wall and fixed expander bolts.(Also can drill hole according to fixed hole of bracket ) Rotate the vitreous cover CCW (counterclockwise) and take it out.
  • Page 37 High Speed Dome Camera User’s Manual Figure 7 Fetch the signal cable, video cable and power wires from bracket. Fix the cover plate, tighten the knurled-screw (refer to Figure 6). Fix the assembled Dome on the wall and tighten 4 PCS knurled-screws. Instruction of surface installation: According to the size of Dome's fixed board, drill the installation hole on the ceiling and fixed expander bolts(Also can drill hole according to fixed hole of fixed board.
  • Page 38 High Speed Dome Camera User’s Manual material shall be considered; A bracket or plate is necessary sometimes to increase support). 3. Remove the ornament cover by rotating clockwise; then remove the transparent cover by rotating it counterclockwise（ As shown in figure 9). Coding switch Counterclockwise rotate the transparent cover Rotate clockwise and open the ornament cover...

  • Page 39: Dome Configuration

    High Speed Dome Camera User’s Manual Figure 10 12.4 Disassembly and installation of Main Body 1．Quick disassembly design, be easy to maintain and change the main body. 2．Turn vitreous cover on its axis in CCW (counter clockwise) direction and separate it down. 3．...

  • Page 40: Appendix A：24Vac Wire Diameter And Transmission Distance Comparison Chart

    High Speed Dome Camera User’s Manual Figure 12 Appendix A：24VAC Wire Diameter and Transmission Distance Comparison Chart While the wire diameter determinate and 24VAC loss rate under 10%, the longest transmission distance is recommended as following chart. Wire diameter (mm) Transmission Distance 0.8000...

  • Page 41: Appendix B：wire Gauge Conversion Chart

    High Speed Dome Camera User’s Manual 20（6） 32（9） 51（15） 129（39） 18（5） 30（9） 47（14） 120（36） 17（5） 28（8） 44（13） 113（34） 16（4） 26（7） 42（12） 106（32） 15（4） 25（7） 39（11） 100（30） 14（4） 23（7） 37（11） 95（28） 14（4） 22（6） 35（10） 90（27） Appendix B：Wire Gauge Conversion Chart Bare wire diameter Bare wire cross metric size sectional area...

  • Page 42: Appendix C：lightning Proof And Surge Signal Proof

    High Speed Dome Camera User’s Manual 0.800 0.5027 0.900 0.6362 1.000 0.7854 1.250 1.2266 1.500 1.7665 2.000 3.1420 2.500 4.9080 3.000 7.0683 Appendix C：Lightning Proof and Surge Signal Proof The product adopts TVS lightning proof technology to prevent from damage by lightning strike below 1500 W and impulse signals such as surge;...
