Summary of Contents for Cardio Theater CTI SYSTEM 800

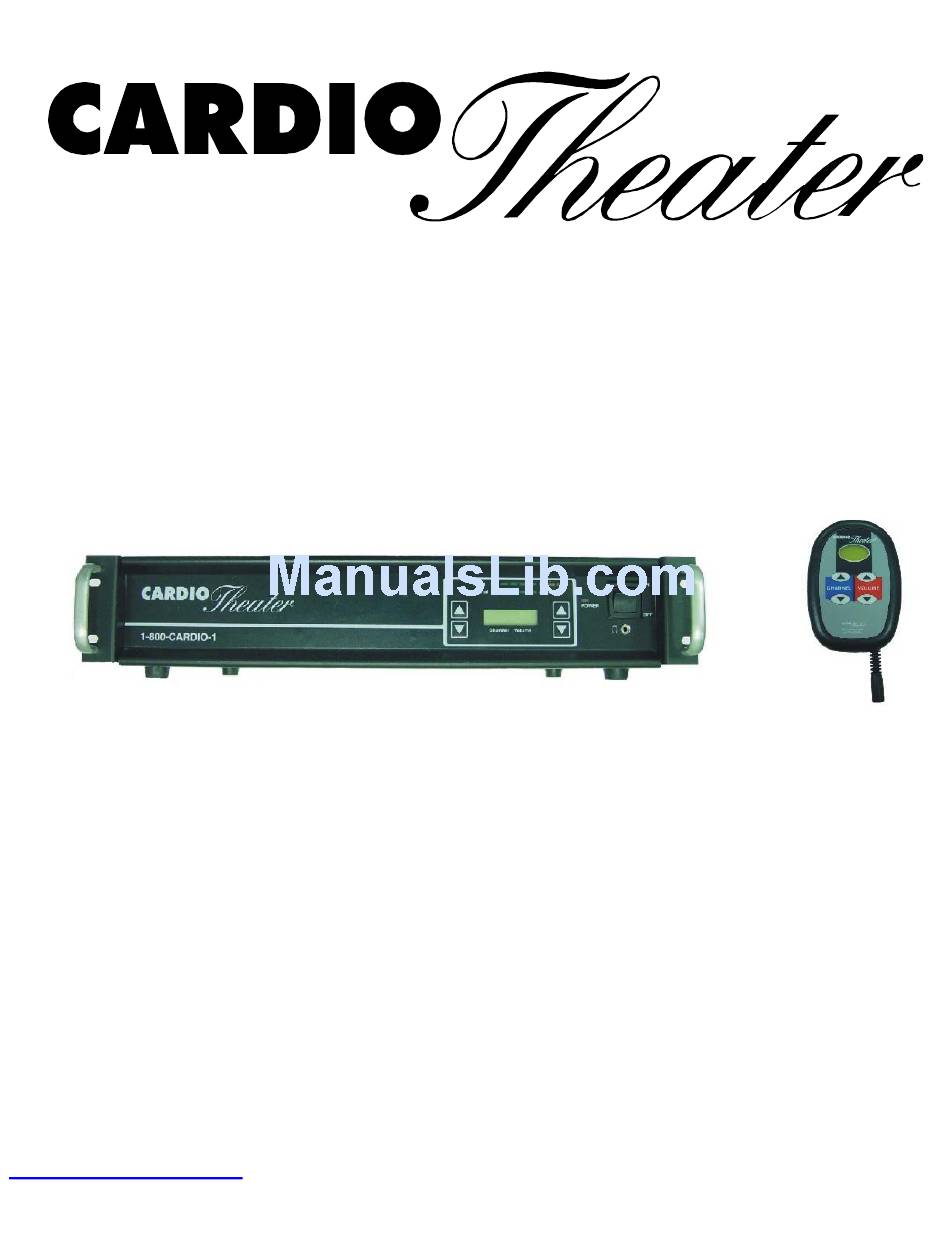

- Page 1 CTI SYSTEM MODELS 800 AND 1600 INSTRUCTION MANUAL Cardio Theatre Holdings, Inc. 20031 142nd Ave. NE P.O. Box 7202 Woodinville, WA 98072-4002 (800) 776-6695 (425) 486-9292 www.cardiotheater.com...
-
Page 2: Serial Number
Introduction CONGRATULATIONS on your choice of this product. Its superior sound reproduction will provide enjoyment and entertainment. We appreciate your patronage and take pride in the quality components our company builds. Please read this manual before you install and operate the system. This manual will acquaint you with operating features and system-connection considerations. -
Page 3: Table Of Contents
Table of Contents FCC Compliance Statement ....................... 3 Before You Begin ..........................4 Important Safeguards........................5 - 6 Suggestions for Installation ......................7 - 8 Controls and Indicators........................ 9 - 10 System Connections ........................11 - 12 Attaching Upper Monitors......................... 13 Setup and Operation Input Signal Setup ........................ -
Page 4: Fcc Compliance Statement
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult Cardio Theater or an experienced radio/TV technician for help. WARNING : To Prevent Fire Or Electrical Shock, Do Not Expose These Appliances To Rain,... -
Page 5: Before You Begin
Before You Begin • Please insure that you have all of the required equipment before disposing of any packing materials. Model 800 or 1600 Amplifier CTI Upper Monitor Box Lower Monitor Box Quantity as ordered Quantity as ordered Power Cord Plastic Wire Ties Quantity (1) (4) four for each... -
Page 6: Important Safeguards
Important Safeguards Please read all of the safeguards before operating this unit. Follow all warnings placed on the unit and adhere to the operating and use instructions. Retain this manual for future reference. 1. Power sources - Connect the unit to a power source 7. - Page 7 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO A QUALIFIED CARDIO THEATER TECHNICIAN. THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SIGNIFICANT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
-
Page 8: Suggestions For Installation
Suggestions for Installation • Provide for cable or an antenna for radio and television reception. The type of building and the location could effect reception. • Use televisions with “Audio Out” or preferably “Line Out”. If you are using televisions with “Audio Out” the external speakers should be turned off and the volume set to three quarters of maximum. -
Page 9: Suggestions For Installation
1500). It is a narrow cable cover with beveled edges and a low profile that will not interfere with traffic flow. It may be secured to the floor with double-sided cloth carpet tape, screws or nails. Wire mold catalog number 1500 may be purchased from Cardio Theater at (800) 776-6695 or (425) 486-9292. •... -
Page 10: Controls And Indicators
Controls and Indicators Distribution Amplifier - Front 1. Main Power Switch - The main power switch supplies power for the main amplifier and all monitor boxes. 2. Power-on Indicator - Lights when main power switch is on. 3. Phono Jack - For setting input volume levels. 4. - Page 11 Controls and Indicators Cont’d Upper Monitor 1. Channel Displ - Indicates current channel selected. 2. Channel Select - To select the desired listening channel. 3. Volume Adjust - To select desired listening volume. 4. FlexJack - Headphone connector on flexible cord. Floor Monitor Box 1.
-
Page 12: System Connections
System Connections Distribution Amplifier NOTE: MAKE ALL CONNECTIONS TO MAIN AMPLIFIER, UPPER MONITORS & AUDIO DEVICES WITH POWER OFF. Step 1 Connect the audio components to inputs 1 through 16 for a 16 Channel Amplifier, inputs 1 through 8 for an 8 Channel Amplifier. Step 2 Connect the Coax Cable to outputs A, B, C &... - Page 13 System Connections Cont’d Upper Monitors & Floor Monitors USA: (503) 645-8881 US A: (503) 645-8881 UK: 0500 223999 UK: 0500 223999 Step 1 - From the Main Amplifier, connect the Coax Cable to as many as 20 Floor Monitors using the Coax Cable and “T” Connectors supplied, as shown above. Step 2 - Connect the “T”...
-
Page 14: Attaching Upper Monitors
Attaching Upper Monitors The Upper Monitor can be installed on virtually any piece of equipment. Proper placement on the exercise equipment is essential for proper operation and will extend the life of your new product considerably. If you need assistance on locating the proper mounting position on your exercise equipment, please call our Service Center at 1-800-776-6695 •... -
Page 15: Setup And Operation
Setup and Operation Input Signal Setup This procedure will adjust the audio level entering the Amplifier for each audio component connected. 1. When installation is complete, turn power on at the Main Amplifier and all audio components. The Power LED and Input Signal Bar Graph will light for 5 seconds while the display shows the version number. -
Page 16: Upper Monitor Operation
Setup and Operation Cont’d Upper Monitor Operation Headphones - Insert any standard set of headphones into the flexible MaxJack 1/8 inch connector. Adjust volume level desired for your own personal enjoyment Volume Adjust - Press Volume Adjust buttons for desired listening volume. Press and hold either button to adjust volume rapidly. - Page 17 For questions regarding any specifications, please call the Service Center. Limited Warranty PLEASE READ THESE WARRANTY TERMS AND CONDITIONS CAREFULLY BEFORE USING YOUR CARDIO THEATER PRODUCT. BY USING THE EQUIPMENT, YOU ARE CONSENTING TO BE BOUND BY THE FOLLOWING WARRANTY TERMS AND CONDITIONS.
-
Page 18: Limited Warranty
WARRANTIES THEREAFTER. allow limitations on how long an implied warranty Precor Incorporated (“Precor”) warrants all new Cardio Theater products to be free from defects in lasts, so the above limitation may not apply to you. materials and manufacture for the warranty periods set forth below. The warranty periods PRECOR ALSO HEREBY DISCLAIMS AND EXCLUDES commence on the invoice date of the original purchase. -
Page 19: Technical Support
Cardio Theater PVS and Cardio Theater Quick Change Headphone Jack are registered trademarks of Cardio Theatre Holdings, Inc. © 2004 Cardio Theatre Holdings, Inc., all rights reserved...
