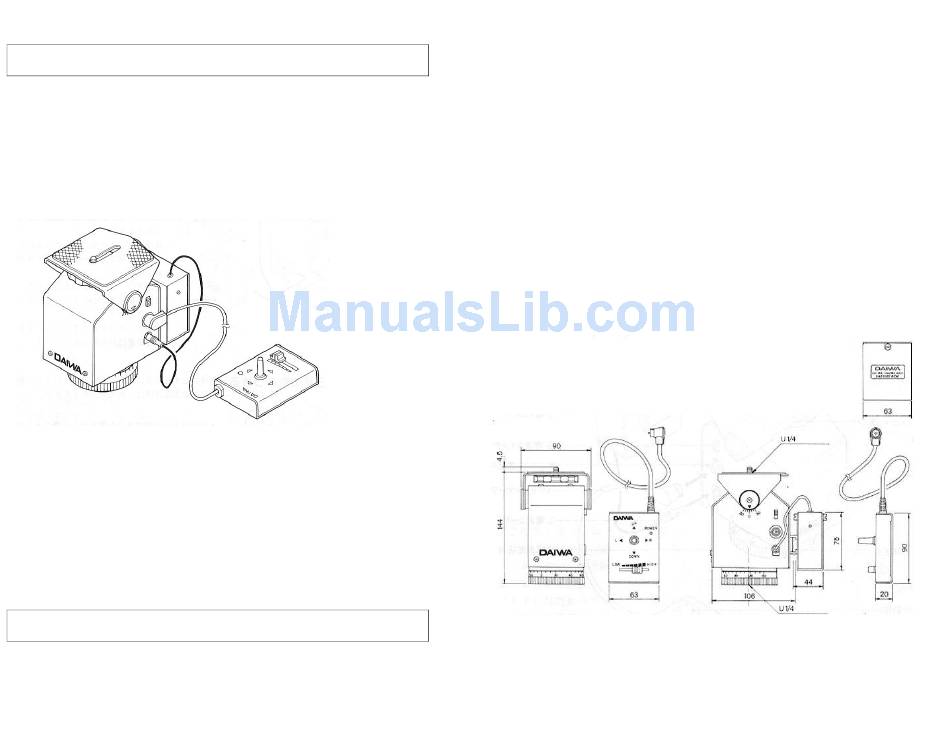

Kenko INNOVATIVE STRONG PAN-TILT HEAD MVH-2D Instruction Manual

Innovative strong pan-tilt head

Download this manual

Enlarged version

Kenko

INNOVATIVE STRONG PAN-TILT HEAD

MVH-2D

INSTRACTION MANUAL

Kenko Co., Ltd.

SPECIFICATIONS

Mounting: ------------------------ Horizontal and upright or inverted position

Operating temperature: --------- -10ºCto 45ºC

Dimensions: ---------------------

90w X 144H X 106D mm

Weight: --------------------------- 1.45kg

Power Source -------------------- DC12V 270mA max. (8 X AA size penlight batteries)

Pan movement: ------------------ -150º to +150º in horizontal plane

Tilt movement: ------------------

-30º to +30º in vertical plane

Pan speed: -----------------------

2.0º/sec. To 6.5º/sec. (Variable)

Tilt speed: -----------------------

0.7º/sec. To 2.2º/sec. (Variable)

Maximum Load: ----------------

5.0kg in upright position

3.0kg in inverted position

Maximum Cable length: -------

7m (200m by extending control cable)

Mounting Brackets: ------------- PT-M2D Ceiling Mount Plate,

WH-1, WH-2, WH-4, PT-W3 Wall Mounts (Option)

Need help?

Do you have a question about the INNOVATIVE STRONG PAN-TILT HEAD MVH-2D and is the answer not in the manual?

Page 1 Kenko INNOVATIVE STRONG PAN-TILT HEAD MVH-2D INSTRACTION MANUAL Kenko Co., Ltd. SPECIFICATIONS Mounting: ------------------------ Horizontal and upright or inverted position Operating temperature: --------- -10ºCto 45ºC Dimensions: --------------------- 90w X 144H X 106D mm Weight: --------------------------- 1.45kg Power Source -------------------- DC12V 270mA max. (8 X AA size penlight batteries) Pan movement: ------------------ -150º...
Page 2 Specialty 1. PAN-TILT HEAD is set on the tripod and use for Video camera with wired remote control. 2. Pan (vertical) and Tilt (horizontal) is possible to control and also possible pan and Tilt same time. Possible to adjust speed variable. Notice for use 1.
Page 3 NAME OF PARTS (8)Camera Fix knob (7) Fixed Stand MAIN UNIT (12)Control lever INSTRCTION (1) Battery cover screw 1.PUT BATTRY (2) Battery box (3) Battery box cover (13) Power switch (9) Connecter for Remote controller (10) Cable for Remote controller (5) Power cable (6) Power jack (14) Power indicator...
Page 4 3.SET CAMERA Camera direction is same as diagram. Balance of camera and lens must be center and tight screw. Screw position is possible to slide. Attention! This unit can hold Max.5kg camera (balance height 6cm). Not in balance will diminimize functions. 4.SET CABEL Remote controller cable (10) put on Unit (9) same as diagram direction.
