Summary of Contents for MediaMatrix VCAT-HD

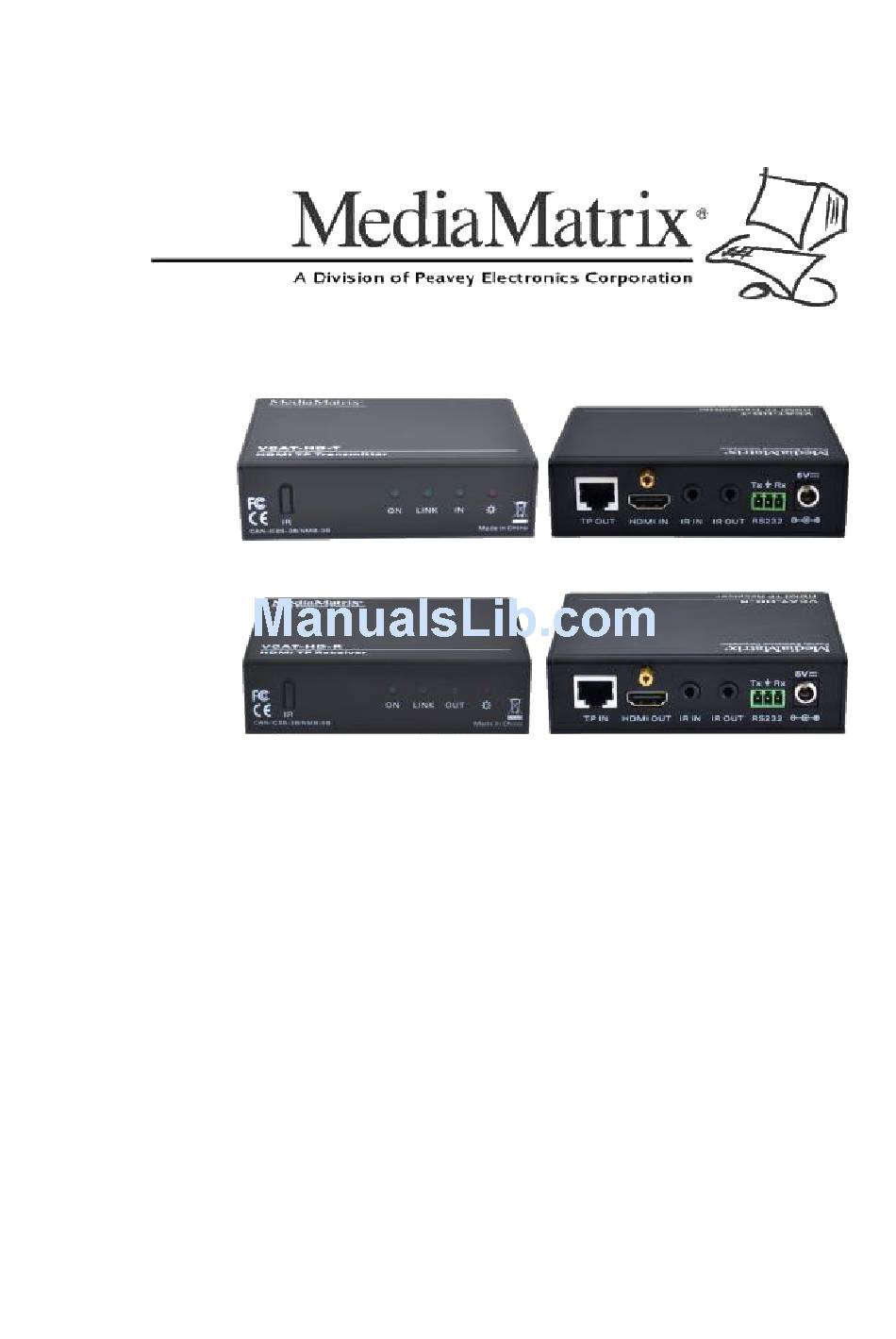

- Page 1 VCAT-HD Quick Set-Up Guide Version 1.7.2.0 March 27, 2015...
- Page 2 Prepared by Peavey Digital Research, 6 Elm Place, Eynsham, Oxford, OX29 4BD, UK. Email:mmtechsupport@peavey.com (mailto:mmtechsupport@peavey.com). Scope This guide describes how to physically install a VCAT-HD-T or VCAT-HD-R HDBaseT Extender and configure it with basic settings. Version 1.7.2.0 March 27, 2015...
-
Page 3: Important Safety Instructions
1 - Important safety instructions Warning: When using electrical products, basic cautions should always be followed, including the following: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. - Page 4 a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚ b) colored green or colored green and yellow. c) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
-
Page 5: What's In The Box
VCAT-HD is an HDBaseT extender comprising transmitter (VCAT-HD-T) and receiver (VCAT-HD-R). VCAT-HD delivers HDMI video signals and IR and RS-232 control signals over a single STP cable. The maximum transmission distance is 70 meters (230 ft) with CAT5e/CAT6 cable. Features Support for full HD. -
Page 6: Installation And Configuration
IR IN and IR OUT ports on the VCAT-HD-T and VCAT-HD-R. Notes: If you want to use the IR IN and IR OUT ports on one of the VCAT-HD devices, you must also use these ports on the other VCAT-HD device. -
Page 7: Reference Information
4 - Reference information Specification VCAT-HD-T VCAT-HD-R Input Input Signal 1 HDMI, 1 IR, 1 RS-232 1 IR, 1 RJ-45, 1 RS-232 Input Connector HDMI, 1/8” 3.5mm IR in 1/8” 3.5mm IR in, RJ-45 Video Signal HDMI 1.4 Audio Embedded HDMI audio... -
Page 8: Vcat-Hd-T Front And Rear
Case Dimension L134xW77xH30mm Net Weight 0.8Kg VCAT-HD-T front and rear 1. IR internal receiver. 2. ON: Blinks green when the transmitter is working correctly. 3. LINK: Twisted pair link status indicator. On when the connection is successful. 4. IN: Solid when the display supports HDCP and the key is passed; Blinks when the display does not support HDCP. -
Page 9: Vcat-Hd-R Front And Rear
8. IR IN: Connector for IR receiver. 9. IR OUT: Connector for IR transmitter. Notes: If you want to use the IR IN and IR OUT ports on one of the VCAT-HD devices, you must also use these ports on the other VCAT-HD device. -
Page 10: Twisted Pair Cable Connection
9. IR OUT: Connector for IR transmitter. Notes: If you want to use the IR IN and IR OUT ports on one of the VCAT-HD devices, you must also use these ports on the other VCAT-HD device. When the IR IN and IR OUT ports are connected, the internal IR sensors (labeled IR ... -
Page 11: Warranty Statement
How To Get Warranty Service DOMESTIC (USA) LIMITED WARRANTY End Users: Take the defective product and your dated sales receipt or other proof of purchase to your Authorized MediaMatrix Systems Effective Date: May 1, 2005 Integrator or Authorized Peavey Service Center. System... - Page 12 MediaMatrix® A Division of Peavey Electronics Corp. 5022 Hartley Peavey Drive, Meridian Mississippi, 39305, USA Phone: 866.662.8750 http://www.peaveycommercialaudio.com/products.cfm/mm/ Features & Specifications subject to change without notice Copyright © 2015, All Rights Reserved 80307513...
