Milestone International GROOVOX WAVE User Manual

Portable digital audio player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

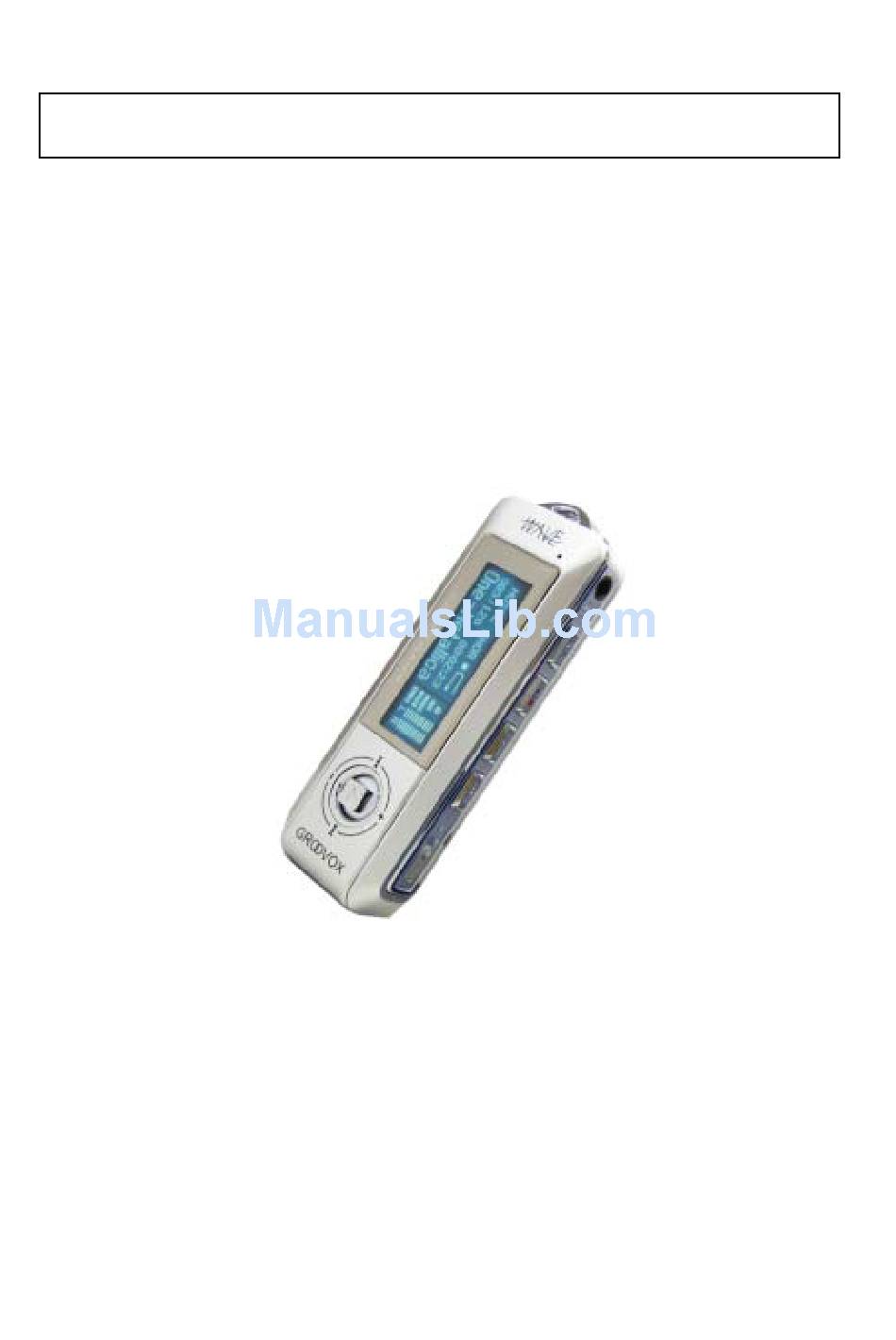

GROOVOX WAVE
English
Users Manual
Milestone International Japan Co., Ltd.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GROOVOX WAVE and is the answer not in the manual?

Questions and answers

Summary of Contents for Milestone International GROOVOX WAVE

  • Page 1 GROOVOX WAVE English Users Manual Milestone International Japan Co., Ltd.

  • Page 2: Table Of Contents

    Contents 1.Warnings and Cautions ･････････････････････････････････････････････････････････････ 2.Main Function and Features ･･･････････････････････････････････････････････････････ 3.Name of the Parts ････････････････････････････････････････････････････････････････････ 4.Basic Operation Guide ･･････････････････････････････････････････････････････････････ 5.Charging battery ････････････････････････････････････････････････････････････････････ 6.Installing and uninstalling driver ･･････････････････････････････････････････････････ 7.Listening to FM radio ････････････････････････････････････････････････････････････････ 8.Recording by mode ････････････････････････････････････････････････････････････････ 9.Folder and file by mode ･･･････････････････････････････････････････････････････････...

  • Page 3: Warnings And Cautions

    5. The files in the memory may be changed or lost if the unit is misused by you or any other person, when electrostatically or electrically damaged, or during repairing or changing battery. GROOVOX WAVE is not responsible for any change or loss of memory. Be careful not to have memory changed or lost.

  • Page 4: Main Function And Features

    2.Main Functions and Features • GROOVOX WAVE is a highly efficient portable digital audio player. The unit plays MP3 and WMA (64Kbps or higher) digital music files in various modes, and can record voice or files from other external devices.

  • Page 5: Name Of The Parts

    3.Name of the Parts (1/3)
  • Page 6 3.Name of the Parts (2/3) USB Terminal → Open the lid. The USB plug rotates 180 degree. Note 1. Plug in/out the USB plug straight. Do not apply excessive force when the unit is connected with PC. The plug may be damaged.
  • Page 7 3.Name of the Parts (3/3) LCD Display What is inside the package Stereo Earphone USB Cable Line in Cable Neck Strap Win 98SE USB Driver AC ADAPTER(Option)

  • Page 8: Basic Operation Guide

    4.Basic Operation Guide (1/3) 1. Power ON/OFF Press and hold the PLAY/PAUSE button for over a second to turn on the power. Press and hold the PLAY/PAUSE button again to turn off the power. Note If power is not on when you first use the unit, you should charge the battery.(Refer to the battery charging guide in Page 8.) 2.
  • Page 9 4.Basic Operation Guide (2/3) 7. Main menu Press and hold the MENU button to display the main menu. Select the desired menu with the REW/FF button, and then, press the PLAY/PAUSE button. 8. Intro play Press and hold the PLAY/PAUSE button longer than a second during the play. As the “INTRO”...
  • Page 10 4.Basic Operation Guide (3/3) 13. RESUME ( The function is to resume the data which is off from the Pause status. ) The unit remembers the play data of the current track, and recovers the data when power is switched off/on. (Set up RESUME ON at System menu.) Note If you want to use the unit while it is being recharged through PC, run “Remove Hardware”...

  • Page 11: Charging Battery

    5.Charging battery The unit has a built-in Lithium- Ion battery. 1. Charging battery with the USB cable (1) Switch on the PC, and connect the unit with the USB cable. (2) As the unit is connected to PC, blinks to give notice that the unit is being charged.

  • Page 12: Installing And Uninstalling Driver

    6. Installing and uninstalling driver (1/2) The USB Mass Storage function enables the unit to be used as a hard driver. The unit supports PLUG and PLAY for Windows ME, 2000 and XP without additional software program (You need to install the driver for Windows 98SE.) *If you clock [My Computer] on your PC, the unit is recognized as a portable disk in [My Computer].
  • Page 13 6. Installing and uninstalling driver (2/2) (3) If you click the toolbar, following message window is displayed. Follow the steps on the window. (4) If the following toolbar is displayed, disconnect the unit from the PC. Note If you fail to follow the above instructions, an error may occur in the Windows and the program.

  • Page 14: Listening To Fm Radio

    7. Listening to FM radio ･ Select FM RADIO on the MODE menu. ･ You can easily catch the FM radio channel with the AUTO SEEK function. If you press and hold FF/REW KEY for a second or longer, the unit automatically seeks the available channel.

  • Page 15: Recording By Mode

    8. Recording by mode You can record files in 3 modes. Select a mode and press down the REC button longer than a second. (1) LINE IN Recording Connect the audio cable to the line in jack. (LINE IN ENC FILE) (2) Built-in MIC Recording If you press the REC button without the LINE IN cable connected, the unit records voice with the built-in MIC.

  • Page 16: Folder And File By Mode

    9.Folder and file by mode (1/2) (1) When connected with PC LINE, RADIO and VOICE folder are displayed. The files are automatically sorted out and stored in the concerned folder. LINE – Files recorded through LINE IN L001, L002, L003, ... 256 RADIO - –...
  • Page 17 9.Folder and file by mode (2/2) (2) Creating MUSIC folder You can create folders with “Create Folder” menu. You can create folders in additional to the default folders. You can create up to 999 files but within the memory size. You can create up to 512 folders.

  • Page 18: Downloading File

    10.Downloading file (1) When you connect the unit to the PC, wait until a, messages “New Hardware” and “Ready to Use” are displayed. (The above messages are displayed when the unit is first connected with the PC.) (2) In My Computer, click. (3) Copy music files or data from PC to the file management windows to download.

  • Page 19: Deleting File

    11.Deleting file (1) Deleting on the PC Select the file you wish to delete, and click the right mouse button. In the toolbar, select “Yes”. You can delete files from LINE, RADIO and VOICE FOLDER in the same procedure. (2) Deleting file on SET Press and hold the MENU button, select Select a mode in , and select the file (or folder) you with to delete.

  • Page 20: Mode And Main Menu

    12. Mode and main menu (1/4) (1) Mode menu If you press the MENU button, the mode menu is displayed. The mode menu consists of the following play related menus. 1. BOOK-MARK PLAY You can designate the desired music files only. (You can select up to 20 music files.) 2.
  • Page 21 12. Mode and main menu (2/4) （2）Main menu If you press and hold the ‘MENU’ button, the following main menus are displayed. You can select a menu with REW/FF, and activate the menu by pressing the PLAY/PAUSE button. SYSTEM PLAYBACK NORMAL, REPEAT ONE, REPEAT ALL, SHUFFLE POWER OFF TIME 1min, 3min, 5min, ALWAYS ON...
  • Page 22 12. Mode and main menu (3/4) 2. SOUND EQUALIZER NORMAL, CLASSIC, POP, ROCK, JAZZ, LIVE USER EQ You can adjust the equalizer by frequency from –12dB to +12dB in 3dB step. SRS USER SETTING SRS LEVEL, TruBass LEVEL, FOCUS LEVEL SRS LEVEL: 1~10 Tru Bass: 1~10 FOCUS LEVEL: Low High...
  • Page 23 12. Mode and main menu (4/4) 4. SRS SRS provides 3D sound effect; NORMAL, WOW EFFECT, SRS EFFECT, TrueBass EFFECT, EXIT is the registered trademark of SRS Labs, Inc.) WOW reinforces stereo effect, and TrueBass reinforces bass 5. DELETE DELETE ONE DELETE FOLDER FORMAT EXIT...

  • Page 24: Connecting To External Device

    13. Connecting external device 1. Recording from external device Connect the audio cable to LINE IN of this unit. Volume down of the external device, and connect the audio cable to the external device. 2. Recording from this unit to external device Start recording at the external device at the same time as you start playing in this unit.

  • Page 25: Firmware Upgrade

    14. FIRMWARE UPGRADE This unit provides the Firmware Upgrade function to improve the unit functions and to correct errors. You can download the firmware upgrade file from Milestone homepage. After downloading the upgrade file from Milestone homepage, copy the file to the connected device, and download to the root.

  • Page 26: Specifications

    15. Specifications Model MMGV05 File type MP3, WMA, Signal to noise ratio 85dB Frequency response 20Hz~20KHz VOICE BITRATE LP, HQ MP3 BITRATE 48Kbps, 64Kbps, 96Kbps, 128Kbps, 160Kbps, 192Kbps Earphone output Max. 5mW(16ORM) Play mode EQ : NORMAL, ROCK, POP, CLASSIC, LIVE, JAZZ, SRS BACK LIGHT LED 7 COLORS Memory...
