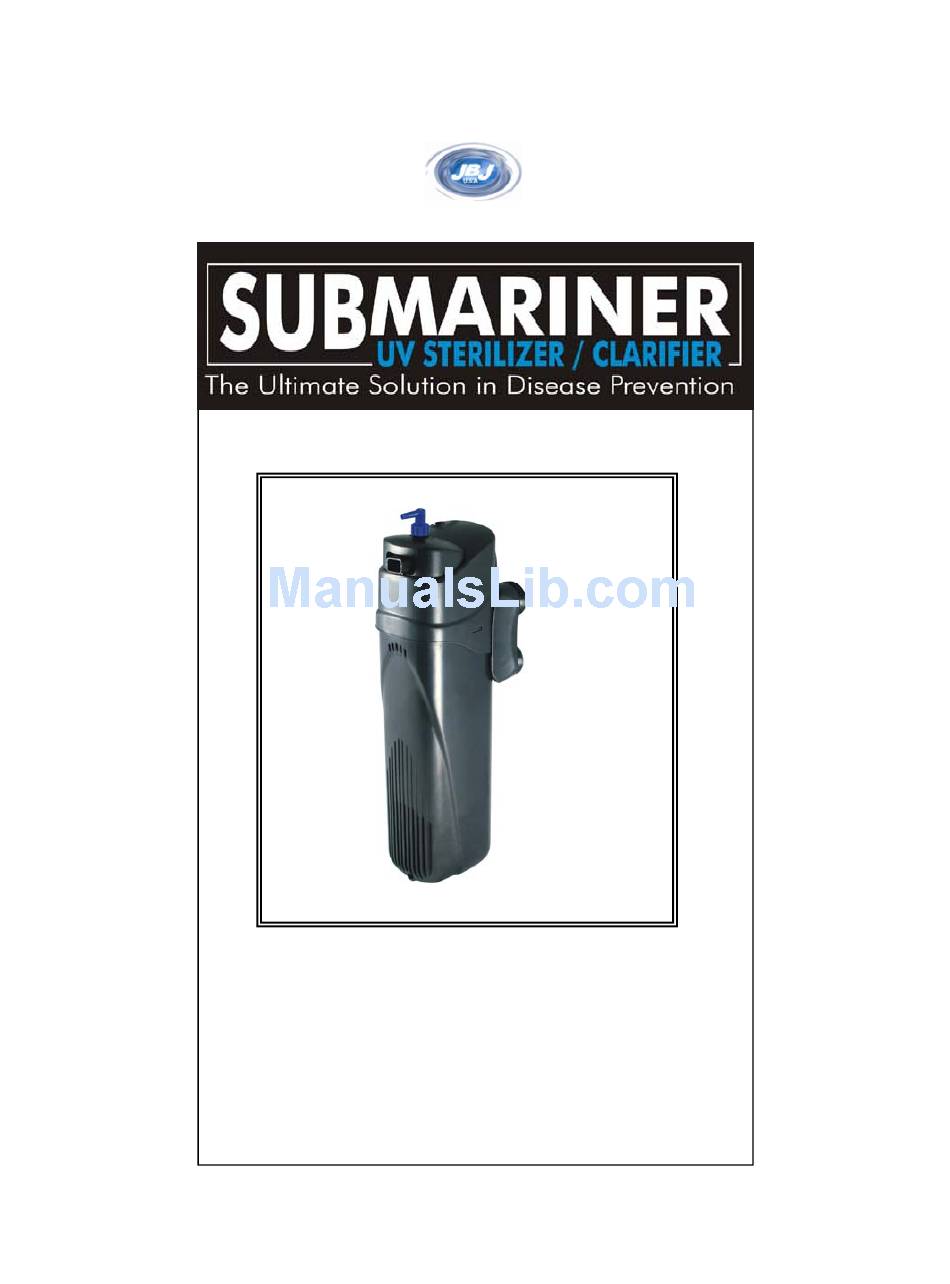

- Page 1 OWNER’S MANUAL 5 Watt & 9 Watt Models TRANSWORLD AQUATIC ENTERPRISES INC...
- Page 2 Table of Contents Important Safety Instructions 3—5 Parts Introduction Installation Operation Maintenance Procedures 11-14 Maintenance Log...
- Page 3 WARNING To guard against injury, basic safety precautions should be ob- served, including the following: READ ALL SAFETY INSTRUCTIONS BEFORE USE. DANGER UV EXPOSURE: Do not operate lamp outside housing, direct exposure to UV rays can cause temporary reddening and irrita- tion of eyes and skin.
-
Page 4: Parts
To avoid the possibility of the ap- pliance plug or receptacle getting wet, position aquarium stand and tank to one side of a wall mounted receptacle to prevent water from dripping onto the receptacle or plug. A “drip loop”, shown in the Figure at the right should be arranged by the user for each cord connecting an aquarium appliance to a receptacle. - Page 5 Make sure an appliance mounted within the tank is securely installed before operating it. Read and observe all the important notices on the appliance. This Appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized out- let only one way.
-
Page 6: Uv-9L
PARTS EXPLODED VIEW & IDENTIFICATION Description Part # UV-1 Venturi Valve UV-01 UV-2 UV-3 Impeller Housing Cap UV-02 UV-4 Swivel Spout UV-03 UV-5 Impeller UV-04 UV-6 Pump Motor UV-05 Suction Cup Mounting UV-06 UV-7 Bracket UV-C Lamp 5watt UV-07/ UV-8 UV-5L UV-9 UV-C Lamp 9watt... - Page 7 Innovative Algae & Disease Control Thank you for purchasing the proactive solution to eradicating harmful mi- cro-organisms and unattractive green free-floating algae in fresh & saltwater aquariums. This revolutionary UV sterilizer/clarifier is completely submersible, which can be placed either in the main body of the aquarium or positioned horizontally in a sump for a clutter free set-up.
-
Page 8: Installation
CAUTION: Inspect UV Lamp & Quartz Sleeve Prior to Installation. Do not allow children to operate this aquarium appliance. Do not operate if appliance has a damaged cord or plug. Initial Inspection - For breakage Upon receiving this product please unsnap pump and unscrew black quartz sleeve cover and thoroughly inspect for breakage from shipping. - Page 9 Adjusting Swivel Spout Nozzle Adjust according to your desired flow direction. (211 GPH) We’ve also incorporated an adjustable swivel spout nozzle to add extra flow in your aquarium as a secondary benefit. Adjusting the Swivel Spout: Can be adjusted from side to side for convenient directional flow output positions.
-
Page 10: Operation
Operation Mode The Submariner UV-C sterilizer/clarifier is preassembled for quick operation. Once installed and positioned securely, you will gain instant germicidal bene- fits against parasites and bacteria. No need for tubes, purchasing pumps sepa- rately, or messy attachments. Operation –Principle The first step to long-term consistent steriliza- tion is an adequate mechanical pre-filter to trap particulate matter and debris. - Page 11 Maintenance Made Simple Regular maintenance is the key to consistent disease control. Please perform routine maintenance on your UV for peak performance: • Replacement of Pre-Filter Sponge / Monthly • Cleaning of the Quartz Sleeve / Monthly • Cleaning of the pump Impeller/ Every other Month •...
- Page 12 Replacing the UV-C Lamp—Yearly The UV-C lamp has an average life span of 8000 hours of operation. Al- though the lamp may illuminate, it will not perform effectively for disease control. Lamp should be replaced before it expires. You can check the status of the lamp by an illuminated blue color at the bot- tom of the Submariner.
-
Page 13: Maintenance Procedures
Replacing the pump impeller STEP 1 Squeeze both sides of the impeller housing/nozzle cap and pop off. STEP 2 Pull impeller and wash under running water to clean. CAUTION: Always unplug the Submariner from the electrical wall out- let before performing any maintenance procedures. - Page 14 Recommended Maintenance Model UV-5 UV-9 UV Lamp PL- 5 Watt PL-9 Watt Volts/Hz AC110V/60Hz AC110V/60Hz Pump Flow: Min/Max 74-132 GPH 74-132 GPH Aquarium Capacity 40 Gallons Up to 100 Gallons Life Of UV Lamp Approx. 8000 hrs Approx. 8000 hrs Avg.
